Clayton Off Road Complete Drag Link Flip Kit | RHD Drag Link + CNC Knuckle Insert + 1/4" Track Bar Bracket | All Hardware Included | 3.5"–4.5" Lift | 2007–2018 Jeep Wrangler JK | SKU: COR-5208100
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This kit fits the 2007 through 2018 Jeep Wrangler JK — 2-Door and 4-Door Unlimited — in all trims, at 3.5" to 4.5" of front lift. It is designed for use with Clayton Off Road's 3.5" and 4.5" JK lift kits. Non-Clayton lifts at these heights may also be compatible — verify geometry requirements before ordering.
| Year Range | Make | Model | Configuration | Lift Range | Notes |
|---|---|---|---|---|---|
| 2007–2018 | Jeep | Wrangler JK | 2-Door | 3.5"–4.5" | Drilling, pressing, and welding required |
| 2007–2018 | Jeep | Wrangler JK Unlimited | 4-Door | 3.5"–4.5" | Drilling, pressing, and welding required |
If you already have one component: Individual components are available separately. If you already have the track bar bracket, order COR-5208210 (knuckle bushing) and the RHD drag link separately. If you already have the knuckle bushing, order COR-5208110 (track bar bracket). COR-5208100 is the correct purchase when starting from scratch.
An adjustable front track bar is strongly recommended after installation — the factory track bar will be the wrong length for the raised mount position.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| Jeep Wrangler JL (2018–2026) | Different front axle and steering geometry |
| Jeep Gladiator JT (2020–2026) | Different front axle and steering geometry |
| Jeep Wrangler TJ / LJ (1997–2006) | Different front axle architecture |
| JK trucks running less than 3.5" of lift | Factory drag link and track bar geometry may not require correction at lower lift heights |
| JK trucks running more than 4.5" of lift | Geometry correction may be insufficient above 4.5" — verify with Clayton before ordering |
| Non-Clayton lifts at 3.5"–4.5" | Designed for Clayton lift kits at these heights; likely compatible with most non-Clayton lifts but geometry verification required — text (469) 407-7538 to confirm |
| Buyers without access to a 7/8" drill bit, a bushing press or driver, and a certified welder | All three are required. Drilling the knuckle, pressing the insert, and welding the track bar bracket are all mandatory steps — none are optional. |
| Buyers who already have COR-5208110 or COR-5208210 | If you already have one component, purchase the other individually rather than buying the complete kit and duplicating hardware you already own. |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-5208100 |

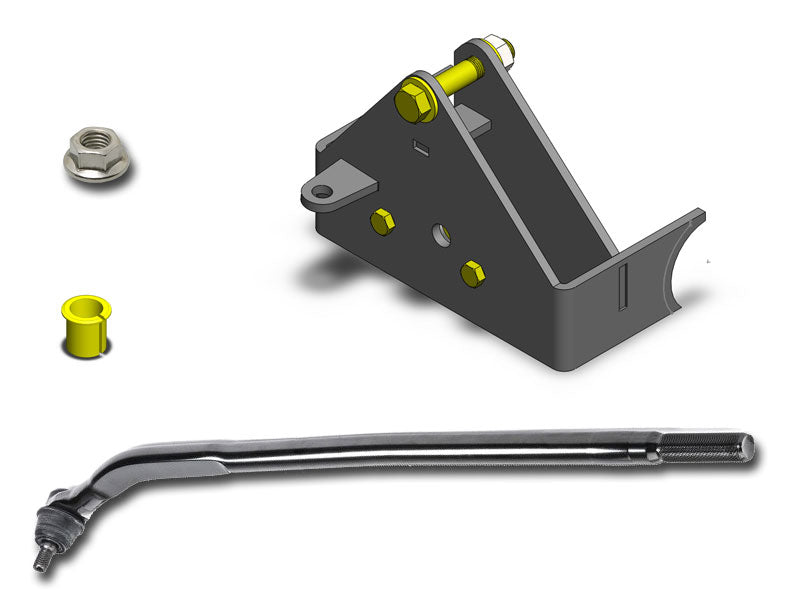

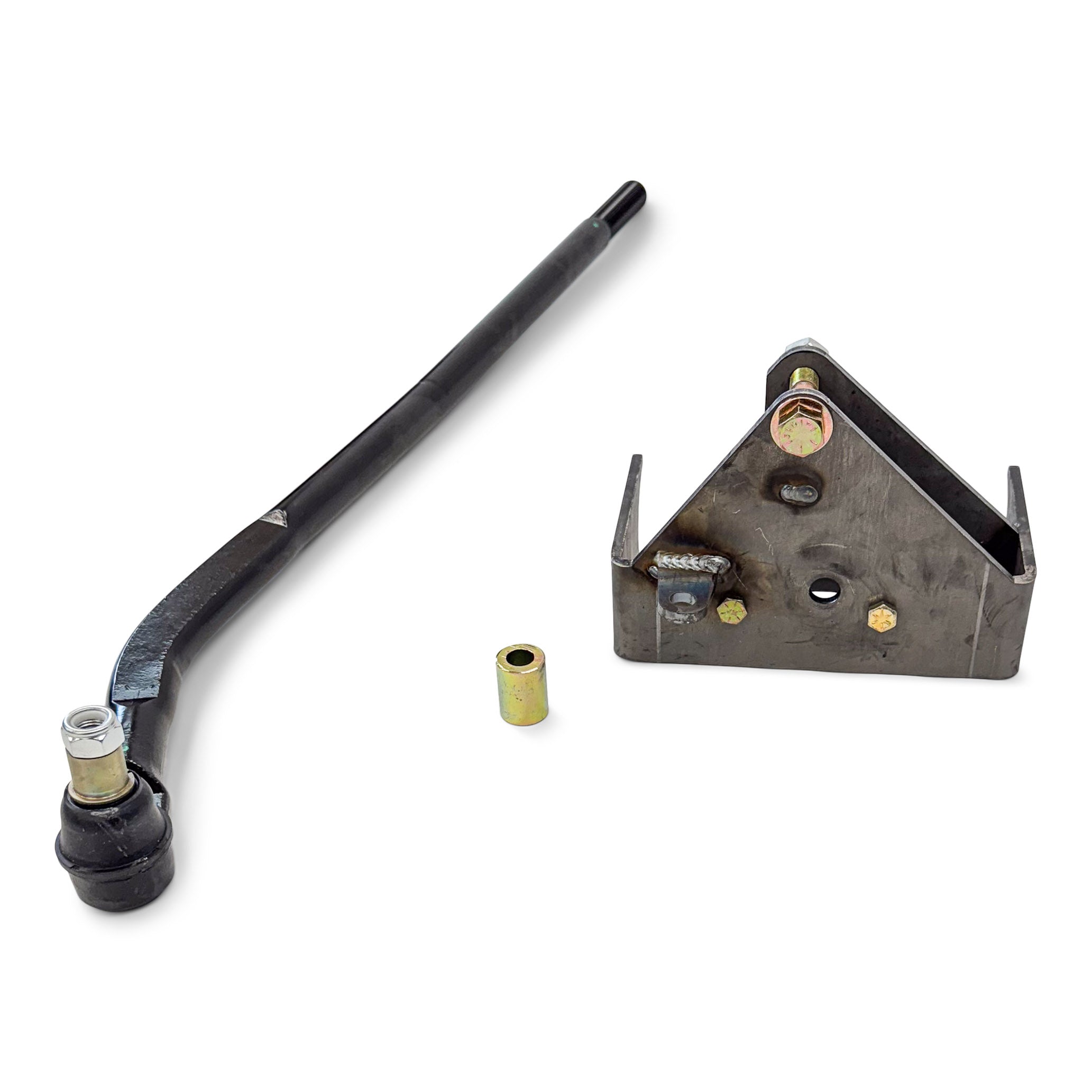

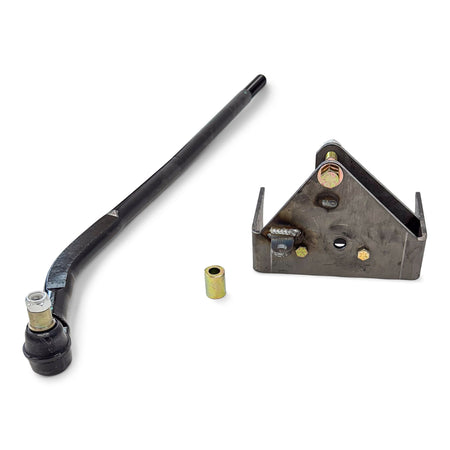

| Kit contents | OEM-style RHD drag link; CNC-machined steel knuckle insert; metric locknut; 1/4" track bar bracket; 9/16" Grade 8 bolt with spacer; 3× 3/8"-16 Grade 8 bolts with lock washers and nuts |
| Knuckle insert material | CNC-machined steel |
| Knuckle drill size required | 7/8" — on-axis, passenger side upper knuckle |
| Track bar bracket | 1/4" steel — bolt-and-weld to factory axle location |
| Bracket hardware | 3× 3/8"-16 Grade 8 bolt/lock washer/nut + 1× 9/16" Grade 8 bolt with spacer |
| Temporary drive capability | Yes — bracket bolts in; weld-out required for permanent installation |
| Sway bar mount | Relocated lower position — integrated into track bar bracket |
| Tools required | Welder; grinder; 1/2" electric drill with 7/8" bit; press or driver for knuckle insert; standard hand tools |
| Adjustable track bar | Strongly recommended — sold separately |
| Individual components available | COR-5208110 (track bar bracket only); COR-5208210 (knuckle bushing only) |
| Designed for | Clayton Off Road 3.5" and 4.5" JK lift kits |
| Country of origin | Made in USA |
| Unit weight | 10 lb |
| Shipping dimensions | 36" × 4" × 4" |
What Is and Is NOT Included
Included:
| Component |
|---|
| OEM-style RHD drag link |
| CNC-machined steel knuckle insert (passenger side upper knuckle) |
| Metric locknut |
| 1/4" steel track bar bracket |
| 9/16" Grade 8 bolt with spacer (track bar bracket) |
| 3× 3/8"-16 Grade 8 bolts with lock washers and nuts (track bar bracket) |
Not Included:
| Item | Notes |
|---|---|
| Adjustable front track bar | Strongly recommended — the factory track bar will be the wrong length for the raised mount. Sold separately. |
| Sway bar end links | Verify existing end link length is compatible with the relocated lower sway bar mount after installation — replacement links may be required. |
| 7/8" drill bit | Required for knuckle bore. A 1/2" electric drill is required — a drill press or bore guide is strongly recommended for an on-axis bore. |
| Bushing press or installation driver | Required to seat the knuckle insert without distorting the bore. |
| Weld-through primer and chassis paint | Required to coat bare metal at weld zones after weld-out. |
| Professional welding labor | Certified welder required for track bar bracket weld-out. |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Three fabrication steps — all required | This kit requires: (1) drilling the passenger side upper knuckle to exactly 7/8" on-axis, (2) pressing the CNC knuckle insert with a press or driver, (3) welding both sides of the track bar bracket to the front axle with full-penetration welds. None of these steps is optional. | Confirm access to a 7/8" drill bit and drill press or guide, a bushing press or driver, and a certified welder before ordering. |
| 7/8" knuckle bore — exact and permanent | An undersized bore prevents the insert from seating. An oversized bore creates a loose insert that moves under steering load. Both conditions compromise steering geometry. An oversized bore cannot be corrected without knuckle replacement. | Use a drill press or bore guide for an on-axis, exactly 7/8" bore. Confirm bit size before drilling. |
| Weld-out is mandatory — bolt-in is temporary | The track bar bracket bolts into the factory axle location for initial installation. This state is for transit to the welder only. Long-term use on bolt-in hardware risks bracket movement under steering load. | Drive to a certified welder immediately after bolt-in. Full-penetration welds on both sides of the bracket are required before normal use. |
| Post-weld corrosion protection | Welding burns off existing coating at weld zones. Unprotected bare metal at weld zones will corrode. | Apply weld-through primer and chassis paint to all bare metal after weld-out before returning to service. |
| Adjustable track bar | The raised track bar mount requires a track bar of different length than the factory unit to re-center the axle. An off-center axle produces handling pull and uneven tire wear. | Install an adjustable front track bar and re-center the axle before alignment. |
| Sway bar end links | The relocated lower sway bar mount changes end link geometry — existing links may not be the correct length. | Check end link length after installation. Replace if required. |
| Lift height range | Engineered for 3.5"–4.5" of lift. Below 3.5" the correction may be unnecessary; above 4.5" it may be insufficient. | Confirm lift height is 3.5" or 4.5" before ordering. Text (469) 407-7538 for other lift heights. |
Installation Notes
Skill level: Advanced — certified welding, precision drilling, and press-fit installation all required. This is not a bolt-on kit.
Required tools confirmed from Clayton source:
- 1/2" electric drill
- 7/8" drill bit (drill press or bore guide strongly recommended)
- Bushing press or parallel-faced driver
- Welder and grinder
- Standard hand tools
- Torque wrench
Phase 1 — Knuckle preparation:

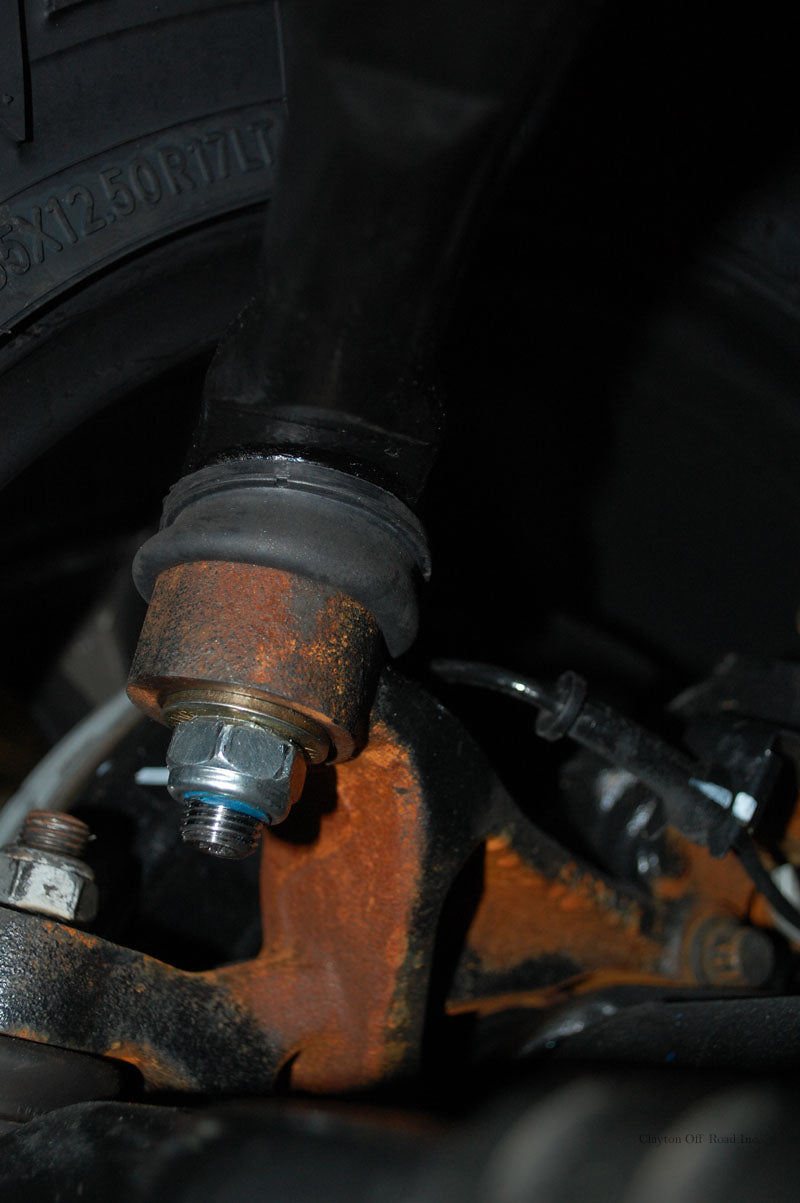

- Drill the passenger side upper knuckle to exactly 7/8" using a drill press or bore guide for an on-axis bore. Clean the bore.
- Press the CNC knuckle insert into the drilled bore using a press or parallel-faced driver until fully seated and flush. Do not hammer without a driver.
- Verify the insert is fully seated with no movement.
Phase 2 — Track bar bracket bolt-in:

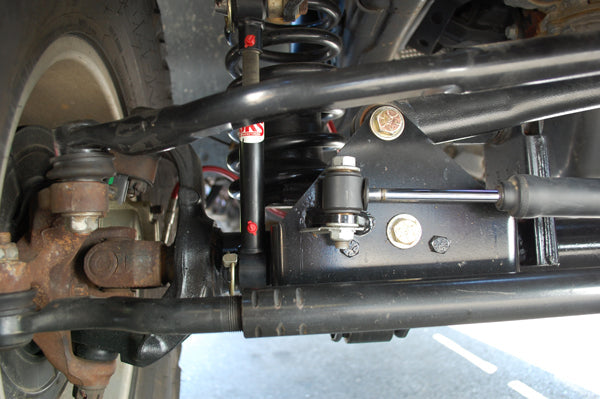

- Install the 1/4" track bar bracket at the factory axle bracket location using the three 3/8"-16 Grade 8 bolts and the 9/16" Grade 8 bolt with spacer. Snug all bolts — do not final torque before welding.
- Drive directly to a certified welder.
Phase 3 — Weld-out:

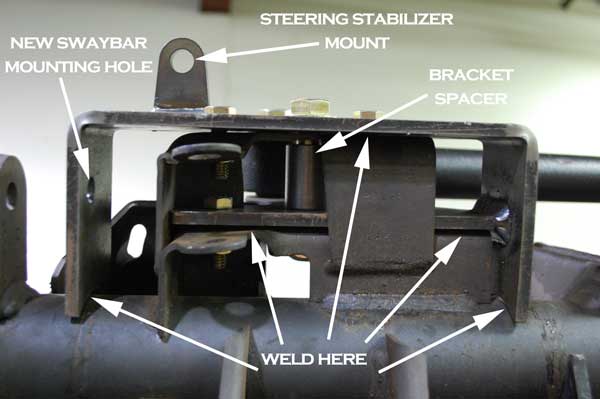

- Weld both sides of the track bar bracket to the front axle — full-penetration welds on all bracket-to-axle contact surfaces. No stitch welds on load-bearing joints.
- Allow welds to cool. Apply weld-through primer and chassis paint to all bare metal at weld zones.
Phase 4 — Drag link and final components:

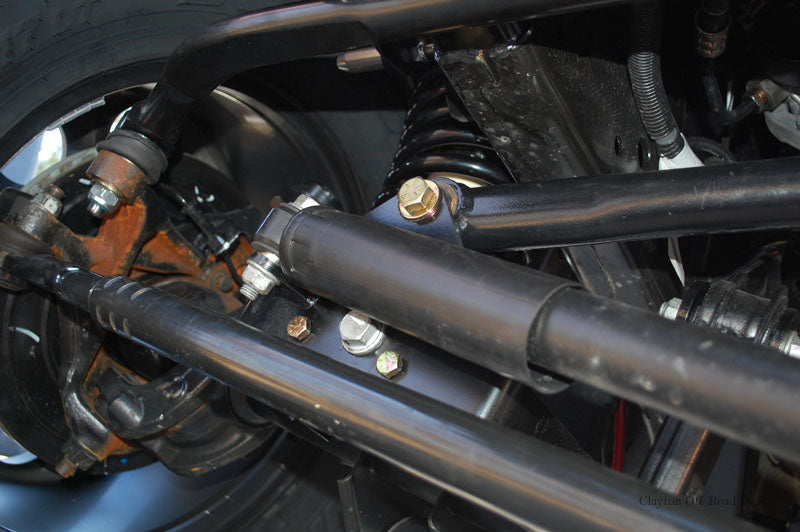

- Install the OEM-style RHD drag link end into the seated knuckle insert. Torque with the metric locknut to Clayton's specification.
- Install an adjustable front track bar and adjust to re-center the axle at the raised mount height.
- Verify sway bar end link length at the relocated lower mount — replace if required.
- Complete a full front alignment — caster, toe, and thrust angle.
Common Questions
Should I buy this complete kit or the individual components?
Buy COR-5208100 if you are starting the drag link flip build from scratch — everything is in one box, one order, one transaction. Buy the individual components (COR-5208110 and COR-5208210) only if you already have one piece of the system and need to source the other separately. Buying the complete kit when you already have COR-5208110 or COR-5208210 means paying for hardware you already own.
What is the drag link flip and why do I need it at 3.5"–4.5" of lift?
At factory ride height, the JK's drag link and tie rod run roughly parallel — the correct geometry for predictable, bump-steer-free steering. When you lift the JK 3.5"–4.5", the drag link drops relative to the tie rod and the two links no longer run at matching angles. The result is bump steer on every suspension cycle, steering wander, and in severe cases, death wobble triggered by that geometry mismatch. The drag link flip moves the drag link mount to the passenger side upper knuckle above the tie rod, restoring parallel link geometry. The track bar bracket simultaneously corrects track bar angle and clears the differential cover.
Can I drive it after bolt-in without welding?
Temporarily, to reach a welder. The bolt-in state is a transit configuration — not a completed installation. Drive directly to the welder after installing the bracket hardware. Do not use the truck normally before the bracket is welded.
Do I need an adjustable track bar?
In practical terms, yes. The raised track bar mount means the factory fixed-length track bar will hold the axle off-center. An adjustable front track bar lets you re-center the axle at the new mount height before alignment. Clayton describes this as "strongly recommended" — treat it as required for a correctly finished build.
Does this work with non-Clayton lift kits?
The kit is engineered and validated for Clayton's 3.5" and 4.5" lift systems. Most non-Clayton lifts at these heights use similar geometry and are likely compatible, but the exact correction depends on the drag link and tie rod angles in your specific lift kit. Text (469) 407-7538 with your lift brand and height to confirm before ordering.
The Obsidian Take
This kit is for the JK owner at 3.5"–4.5" of lift who is building the drag link flip from scratch and wants every required component in one purchase — RHD drag link, CNC knuckle insert, track bar bracket, and all hardware. Nothing to source separately, nothing to forget. The complete kit is the right buy when starting fresh.
It is not the right buy if you already have COR-5208110 or COR-5208210 — buy only what you're missing rather than duplicating hardware at the complete kit price. It is not for any JK running less than 3.5" of lift where the factory geometry may still be within acceptable range. And it is not finished until the track bar bracket is welded, the knuckle insert is pressed, the adjustable track bar is installed and centered, and the truck has a full front alignment.
Three fabrication steps are required: drilling a steering knuckle, pressing a precision-fit insert, and welding a load-bearing bracket to a front axle. All three must be done correctly. The kit provides every component — the fabrication capability has to come from the builder's shop or their welder.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, fitment details, lift height compatibility, and weld specifications may vary by specific vehicle configuration, existing lift kit, and manufacturer updates. Confirm compatibility with your specific lift height and brand before ordering.
Non-Returnable Notice
Steering components are non-returnable once installed. This product requires drilling a steering knuckle (permanent) and welding a load-bearing bracket to the front axle (permanent). Confirm lift height (3.5"–4.5"), access to required tools and a certified welder, and that you are not duplicating components you already own (COR-5208110 or COR-5208210) before ordering. Text (469) 407-7538 with any fitment or configuration questions before your order is placed.
