Clayton Off Road Bolt-On Rear Long Arm Frame Brackets for 2007-2018 Jeep Wrangler JK

Is This for You?

• You're converting your 2007–2018 Jeep Wrangler JK to a true 4 long arm rear suspension system and want a 100% bolt-on bracket solution — no cutting, no welding, no frame modification. These brackets bolt directly to the JK rear frame using eight 1/2" bolts to interior brackets with preinstalled PEM fasteners.
• You want both upper and lower long arm mounting locations in a single bracket set. These brackets include both upper and lower rear long arm mounts, giving you the ability to run 4 true long arms in the rear of your JK — not just lower long arms with factory upper positions.
• You want a bracket engineered in 3D Solidworks for a precision fit to the JK frame, with a superior clamping method. The interior bracket system with preinstalled PEM fasteners provides superior clamping force compared to a full-frame clamp design — the bolts are captured and held in place during installation.

The Result

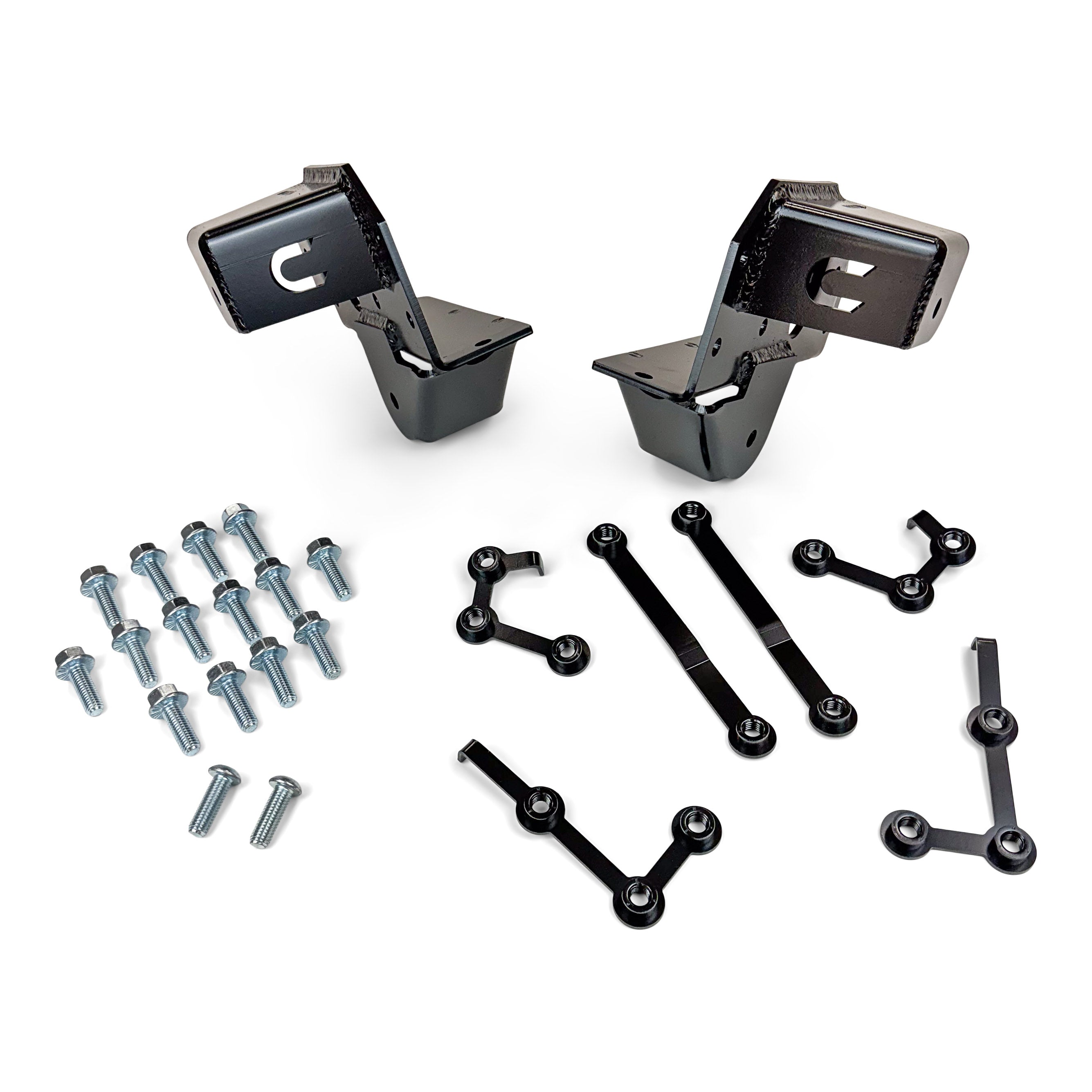

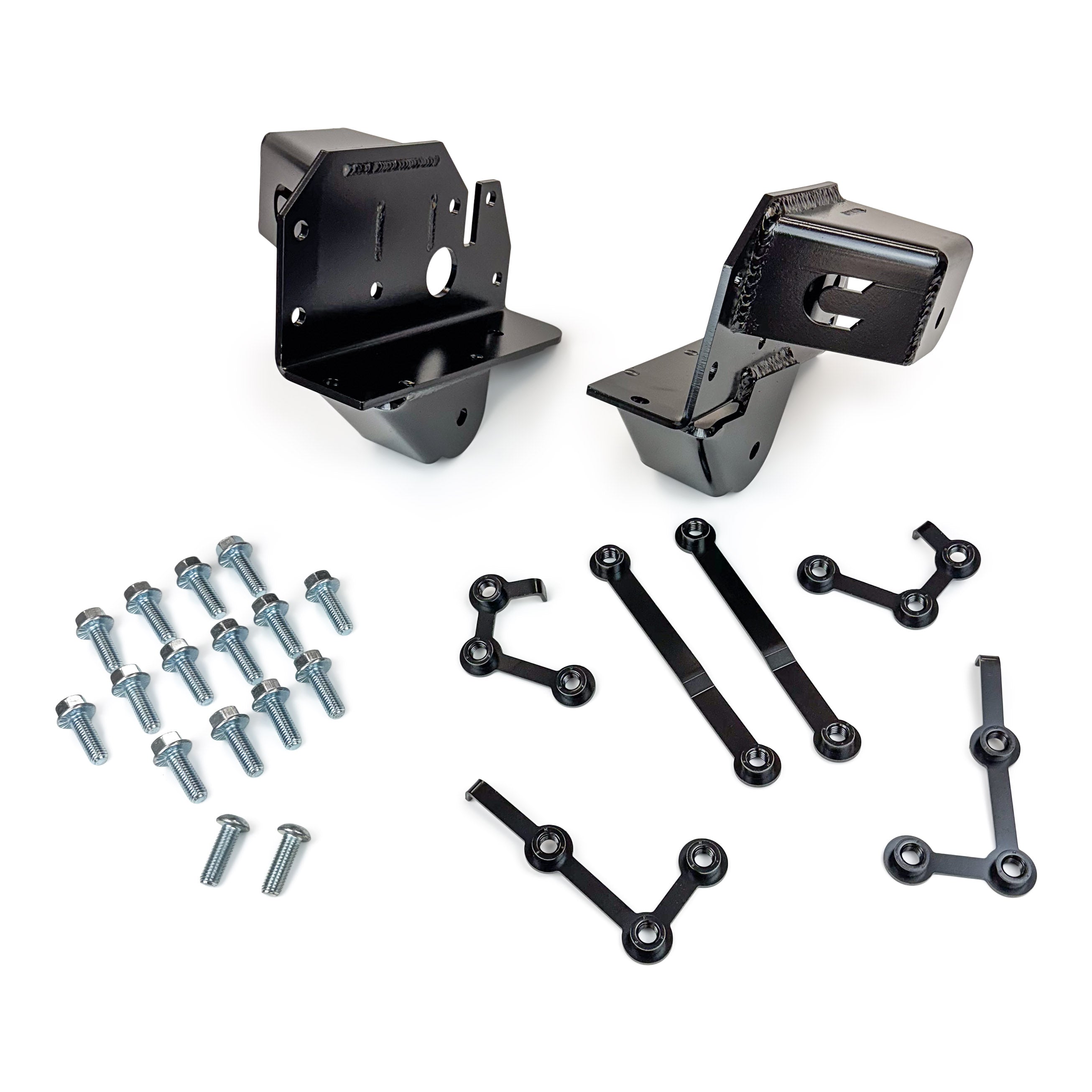

• 100% bolt-on installation — no cutting or welding required — eight 1/2" bolts secure the brackets to interior brackets with preinstalled PEM fasteners; the PEM fasteners capture the bolts and hold them in position during installation, eliminating the need to hold bolts in place inside the frame.
• Upper and lower rear long arm mounting locations — both upper and lower mounting positions use a 9/16" bolt with a 2-5/8" inside diameter; enables a true 4 long arm rear suspension configuration on the JK.

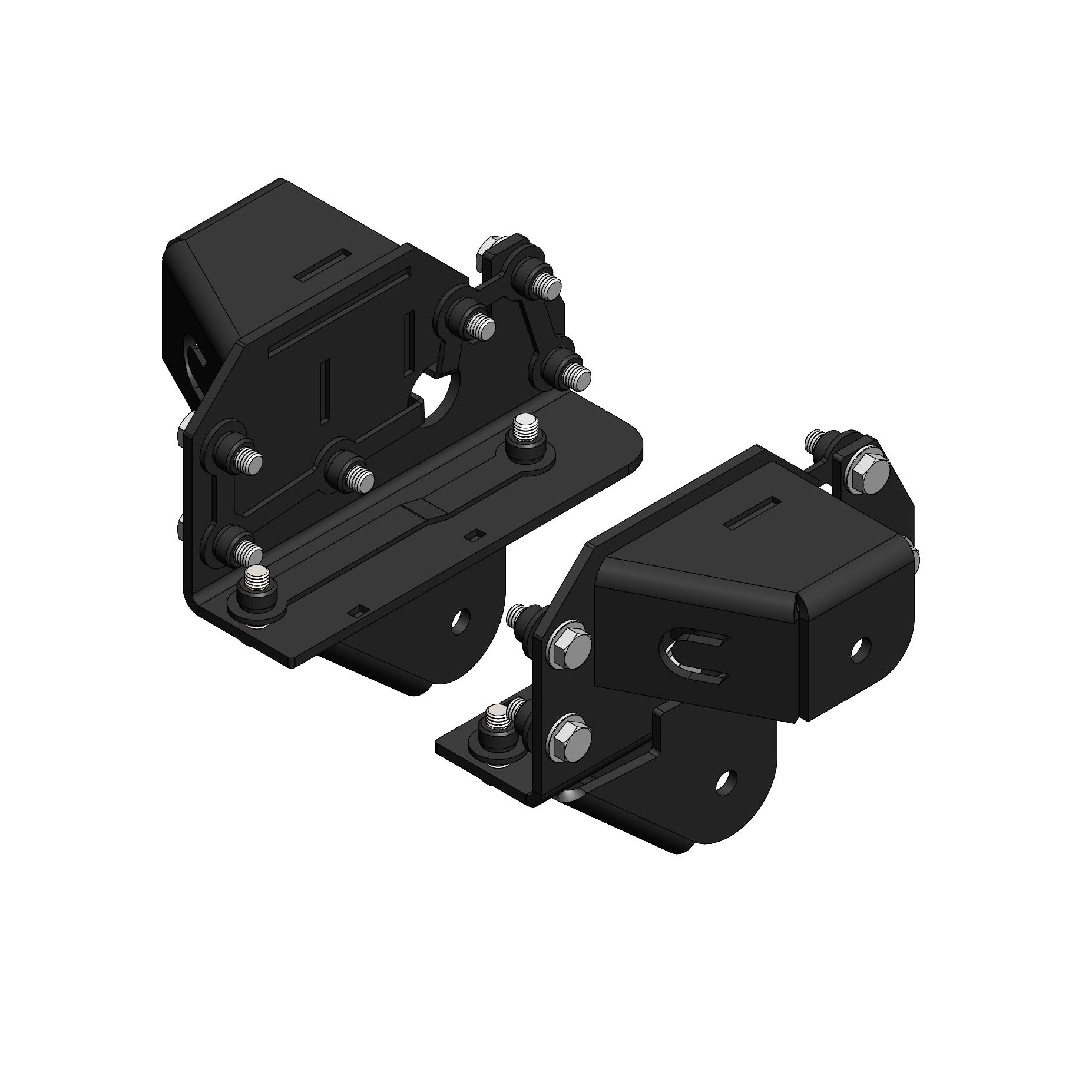

• 1/4" steel, 3D Solidworks-engineered for precision JK frame fit — designed to the exact geometry of the 2007–2018 JK rear frame; superior fit over generic or universal long arm brackets.

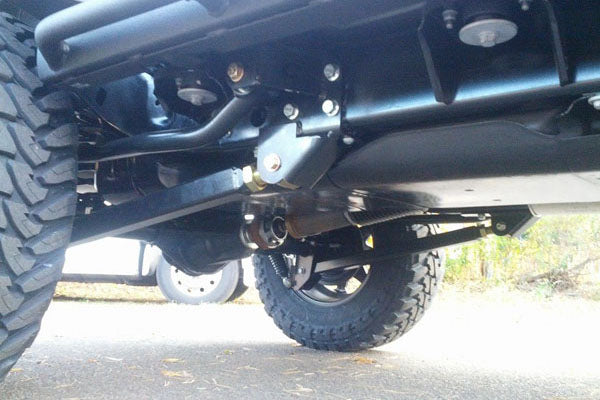

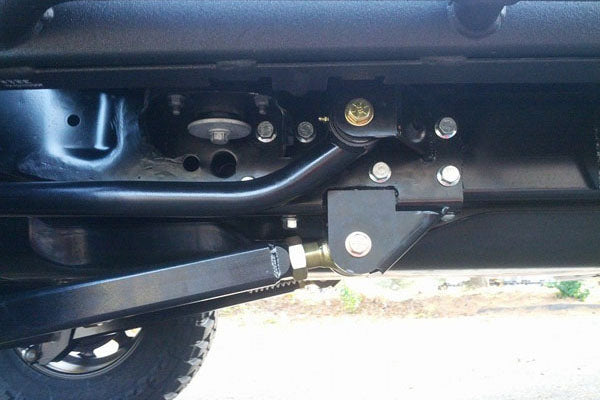

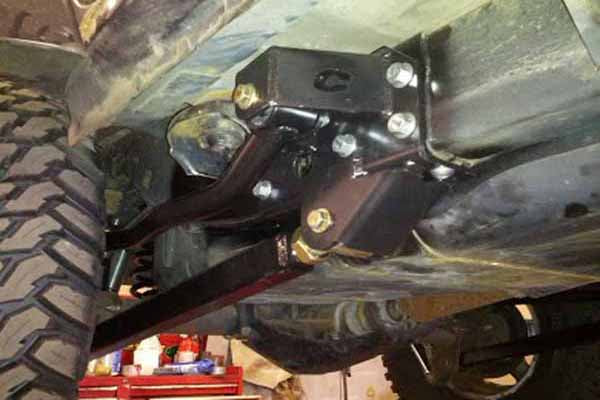

The COR-2208100 is Clayton Off Road's bolt-on rear long arm frame bracket set for the 2007–2018 Jeep Wrangler JK. Unlike weld-on long arm brackets, these are 100% bolt-on — no frame cutting or welding required. The brackets bolt to the JK rear frame using eight 1/2-13x1.5" 120M PSI case hardened hex bolts torqued to 110–120 ft-lbs, securing to interior brackets that have preinstalled PEM fasteners. The PEM fasteners capture and hold the bolts in position during installation — eliminating the frustration of trying to hold bolts inside the frame while torquing from outside. This interior bracket clamping method provides superior clamping force compared to designs that clamp the entire frame rail. Both upper and lower rear long arm mounting positions are included in this bracket set, enabling a true 4 long arm rear suspension configuration. Both mounting locations use a 9/16" bolt with a 2-5/8" inside diameter. Designed in 3D Solidworks for a precision fit to the JK rear frame. Ships at 26 lbs.

Audit Table

Verified Fitment (OFAS Standard)

Fits — 4-Door (Unlimited):

• ✅ 2007–2010 Jeep Wrangler Unlimited X (JK)
• ✅ 2007–2018 Jeep Wrangler Unlimited Rubicon (JK)
• ✅ 2007–2018 Jeep Wrangler Unlimited Sahara (JK)
• ✅ 2010–2018 Jeep Wrangler Unlimited Sport (JK)
• ✅ 2011 Jeep Wrangler Unlimited 70th Anniversary (JK)
• ✅ 2016–2018 Jeep Wrangler Unlimited Sport S (JK)

Fits — 2-Door:

• ✅ 2007–2010 Jeep Wrangler X (JK)
• ✅ 2007–2018 Jeep Wrangler Rubicon (JK)
• ✅ 2007–2018 Jeep Wrangler Sahara (JK)
• ✅ 2010–2018 Jeep Wrangler Sport (JK)
• ✅ 2011 Jeep Wrangler 70th Anniversary (JK)
• ✅ 2016–2018 Jeep Wrangler Sport S (JK)

Does NOT Fit:

• ❌ 2019–2026 Jeep Wrangler JL — different rear frame geometry; see COR-2209200 (JL rear long arm brackets)
• ❌ Jeep Gladiator JT — different frame and wheelbase geometry

Installation & Fabrication Notes

• No cutting or welding required — 100% bolt-on installation to the JK rear frame.
• Secure brackets using eight 1/2-13x1.5" 120M PSI case hardened hex bolts to the interior brackets. Torque to 110–120 ft-lbs.
• Interior brackets have preinstalled PEM fasteners — these capture and hold the bolts in position during installation. Do not remove or modify the PEM fasteners before installation.
• Both upper and lower arm mounting positions use a 9/16" bolt with a 2-5/8" inside diameter — verify your long arm hardware matches these specs before installation.
• Full 4-wheel alignment required after installation — long arm geometry changes caster and pinion angle; use a shop familiar with long arm JK rear geometry.
• Verify driveshaft angle and length after installation — long arm systems change pinion angle and may require driveshaft modification depending on lift height.
• California Prop 65 Warning: This product can expose you to chemicals including those known to the State of California to cause cancer and reproductive harm. See P65Warnings.ca.gov.

Wheel & Tire Fitment

No direct wheel or tire fitment restriction for these frame brackets. Tire clearance is determined by your complete long arm system lift height and wheel offset — verify with your Clayton Off Road JK long arm kit documentation.

Engineering Question: Are you running a true 4 long arm rear configuration, or only lower long arms? These brackets include both upper and lower mounting positions — confirm your long arm control arm hardware uses a 9/16" bolt and 2-5/8" inside diameter at the frame mount before ordering. Also confirm your JK model year is 2007–2018 — these brackets are JK-specific and will not fit the JL platform.
