Clayton Off Road Adjustable Front Sway Bar End Links | FK Heim + Aluminum Spacers | 45° Alignment | Zinc-Plated | 1.5"–3.5" Lift | 2018–2026 Jeep Wrangler JL / 2020–2026 Gladiator JT | SKU: COR-5109100
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This product fits the 2018 and newer Jeep Wrangler JL and 2020 and newer Jeep Gladiator JT — 2-Door and 4-Door configurations — at the front sway bar position only. Confirmed compatible with 1.5", 2.5", and 3.5" Clayton lift kits; the adjustable design accommodates shorter or taller setups as well.
| Year Range | Make | Model | Configuration | Position | Lift Compatibility |
|---|---|---|---|---|---|
| 2018–2026 | Jeep | Wrangler JL | 2-Door | Front only | 1.5", 2.5", 3.5" and adjustable beyond |
| 2018–2026 | Jeep | Wrangler JL Unlimited | 4-Door | Front only | 1.5", 2.5", 3.5" and adjustable beyond |
| 2020–2026 | Jeep | Gladiator JT | All configurations | Front only | 1.5", 2.5", 3.5" and adjustable beyond |
2024 and newer JL/JT: Two sway bar bushing inserts are included — .372 for 2024+ Non-Rubicon and .475 for 2024+ Rubicon — to accommodate the factory sway bar mounting point diameter change on 2024+ models. Confirm your year and trim before installation to select the correct insert. Pre-2024 models do not use either insert.
Sold as a pair — 2 end links per order. Covers the front sway bar position only.
JK Wrangler buyers: The JK uses a different front sway bar geometry. Order COR-5109110 for JK front and rear sway bar end links.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason | Correct SKU |
|---|---|---|
| Jeep Wrangler JK (2007–2018) | Different front sway bar geometry — JK requires a different end link design | COR-5109110 |
| Jeep Wrangler JL — rear sway bar position | This SKU covers the front position only | COR-5109110 |
| Jeep Gladiator JT — rear sway bar position | JT rear sway bar end links are a separate SKU | COR-5110110 |
| Jeep Wrangler TJ / LJ (1997–2006) | Different sway bar end link geometry | Not applicable |
| Trucks at stock ride height | Factory fixed-length end links are correct for stock geometry — adjustable end links provide no functional benefit at stock height unless factory links are damaged | — |
| Buyers who have not confirmed lift height and 2024+ trim | Length must be set for your specific lift height; 2024+ buyers must identify Rubicon vs. Non-Rubicon to select the correct sway bar bushing insert | Text (469) 407-7538 |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-5109100 |

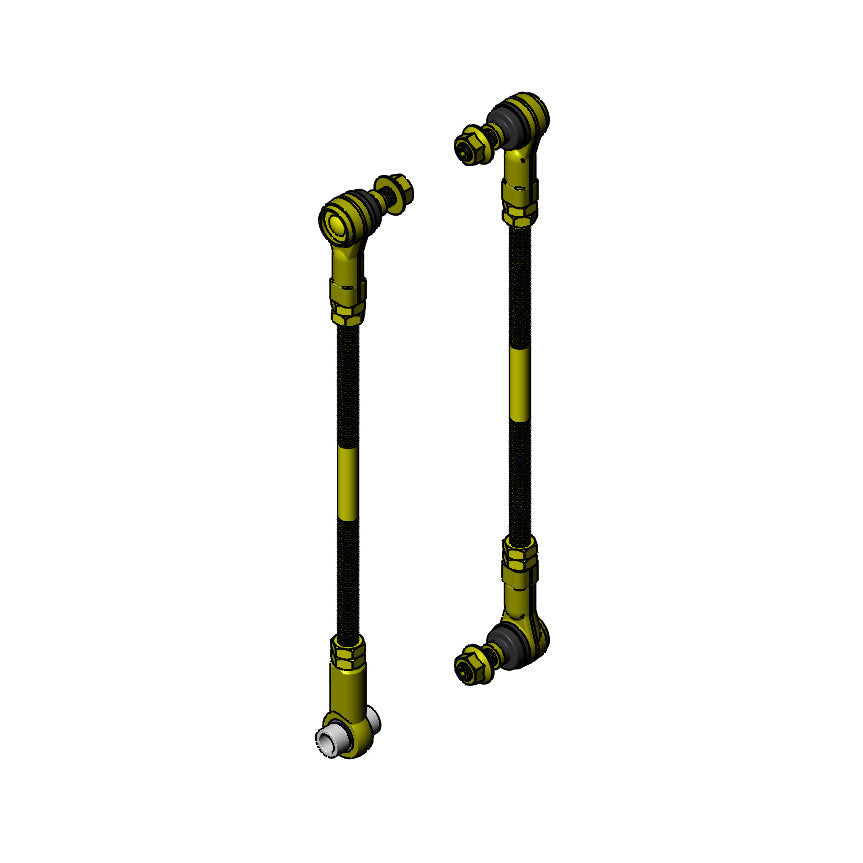

| Application | Adjustable front sway bar end links — JL (2018–2026) and JT (2020–2026) |
| Sold as | Pair — 2 end links; front position only |

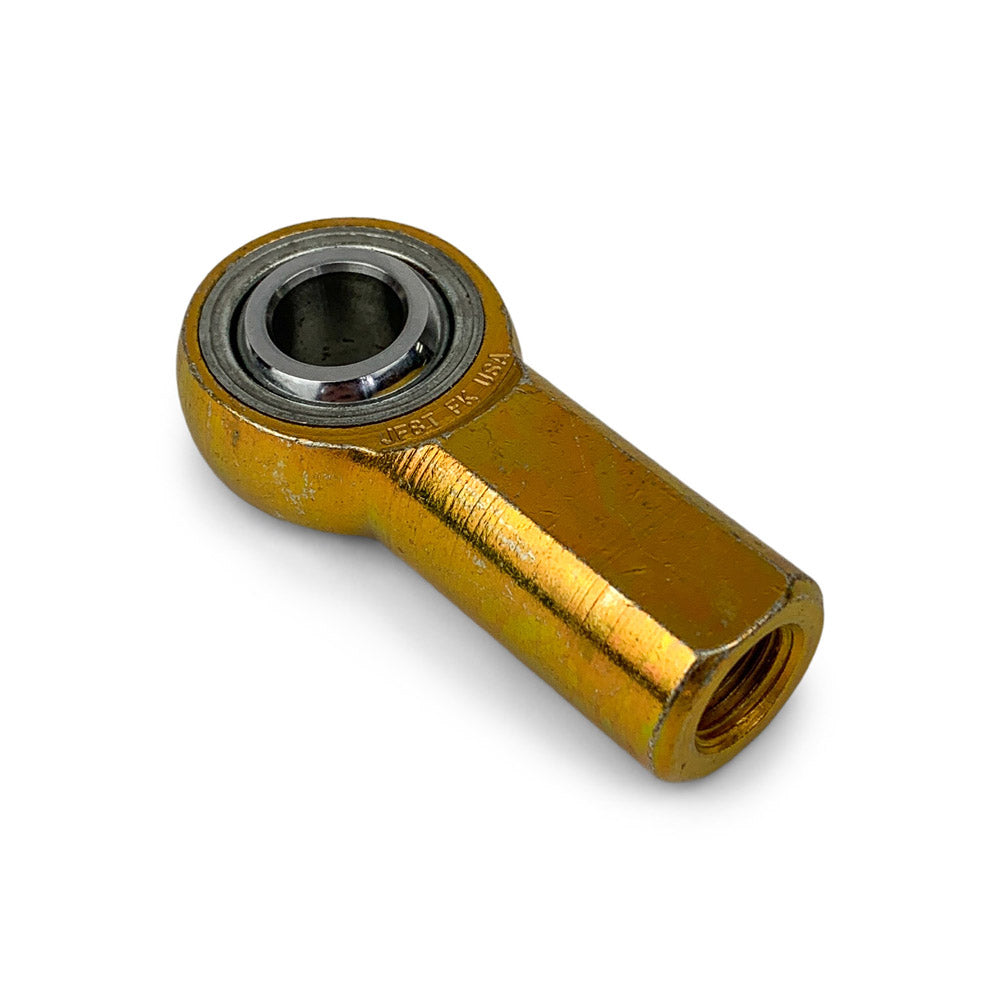

| Passenger-side mount | FK Heim Joint (FKR-JF8T) with aluminum spacers (3/4" OD × .509" ID × 7/16" long) |

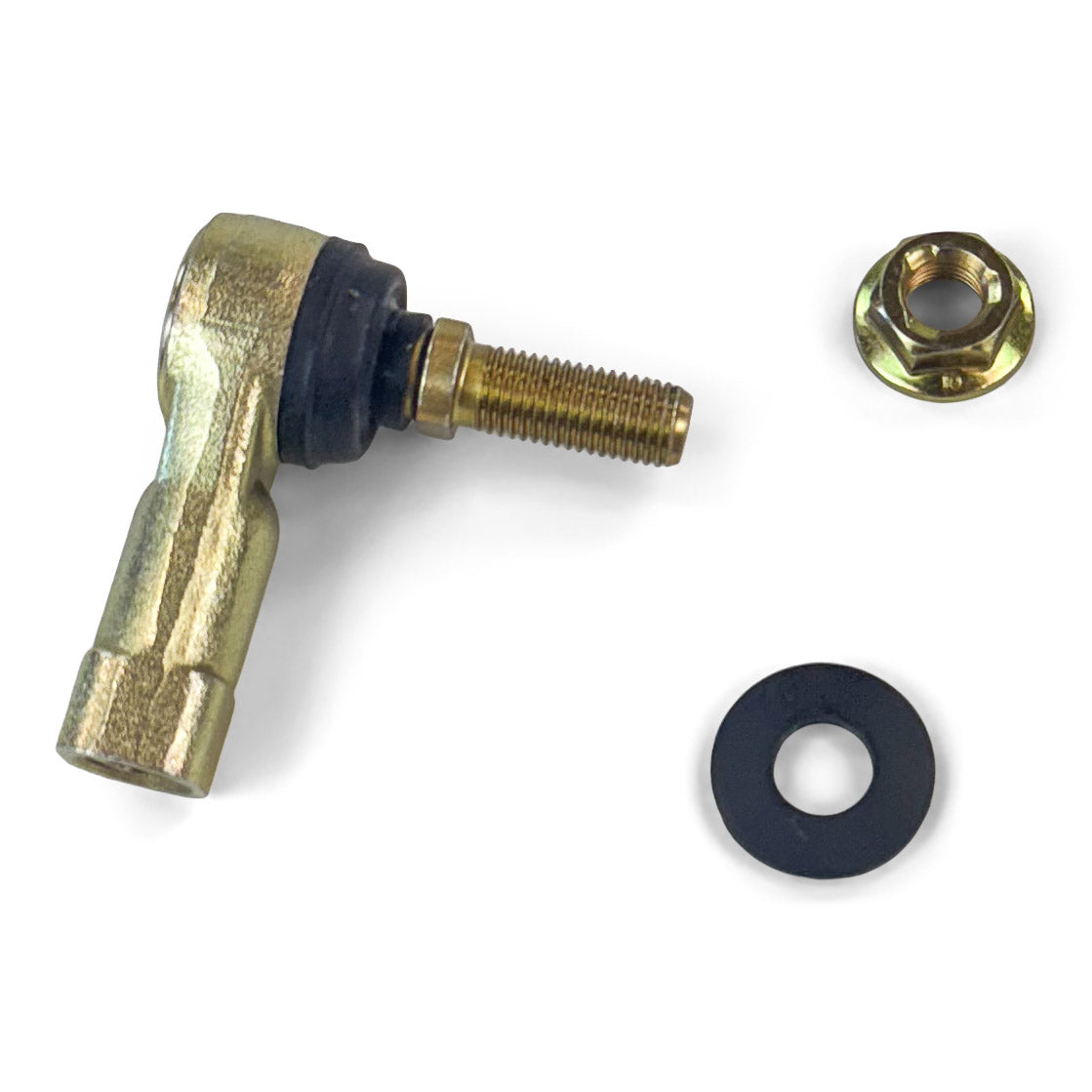

| Tie rod end | 1/2"-20 (AMP-TE-H502-12MM-W) — 45° angular misalignment, tension-free ball-socket |
| Jam nut | 1/2"-20 SAE J995 Grade 5 — clear zinc-plated (FAS-36260) |

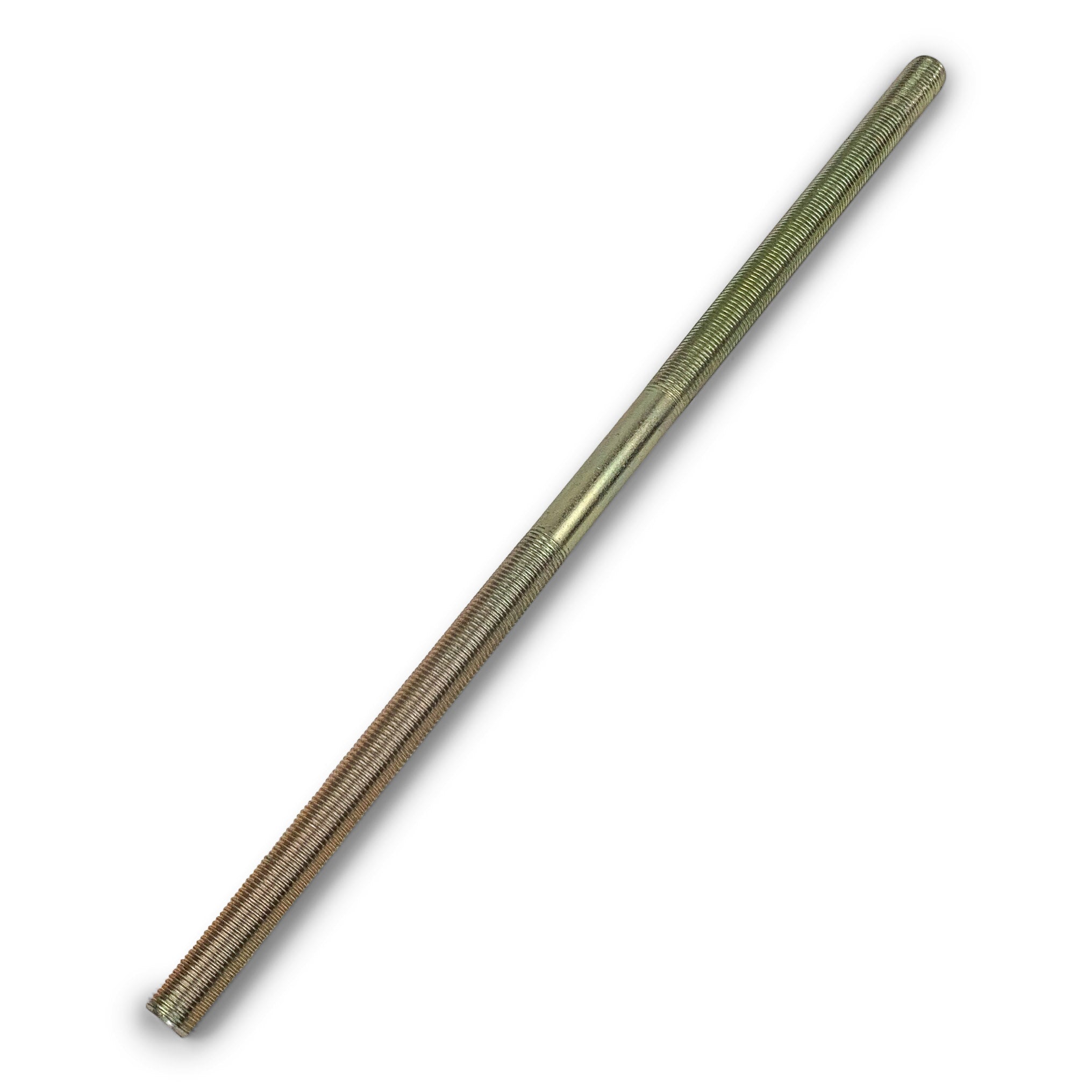

| Connecting rod | 1/2"-20 × 13.00" double-end stud — 5.375" thread each end, 1541 alloy steel, zinc/yellow (COR-5109001) |
| Thread pitch | 1/2"-20 |
| Adjustment range | 13.00" base length; adjustable via 5.375" thread engagement each end |
| 2024+ Non-Rubicon bushing insert | .372 diameter — AMP-HDW-H502B (included) |
| 2024+ Rubicon bushing insert | .475 diameter — AMP-HDW-H502C (included) |
| Finish | Zinc-plated |
| Material | 1541 alloy steel connecting rod; SAE J995 Grade 5 hardware |
| End fitting type | Conventional tie rod end (ball-socket) at driver side; FK heim joint at passenger side |
| Angular misalignment | 45° — accommodates full front sway bar sweep at lift height |
| Confirmed lift compatibility | 1.5" | 2.5" | 3.5" Clayton lift kits — adjustable beyond |
| Price | $139.00 |
| Unit weight | 4 lb (pair) |
| Shipping dimensions | 13" × 3" × 3" |
| Country of origin | Made in USA |
What Is and Is NOT Included

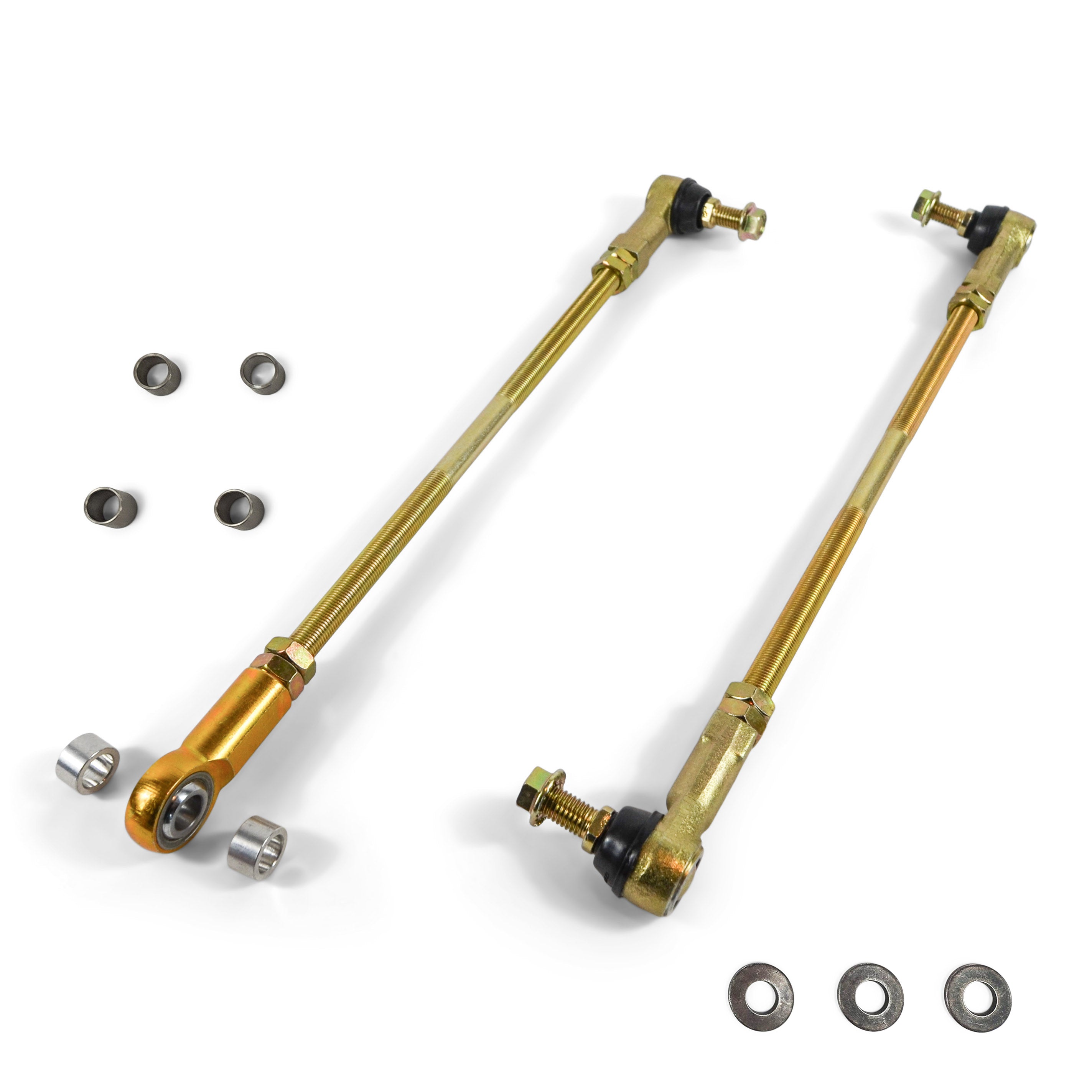

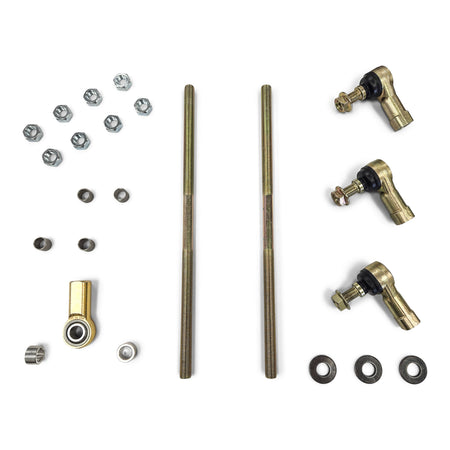

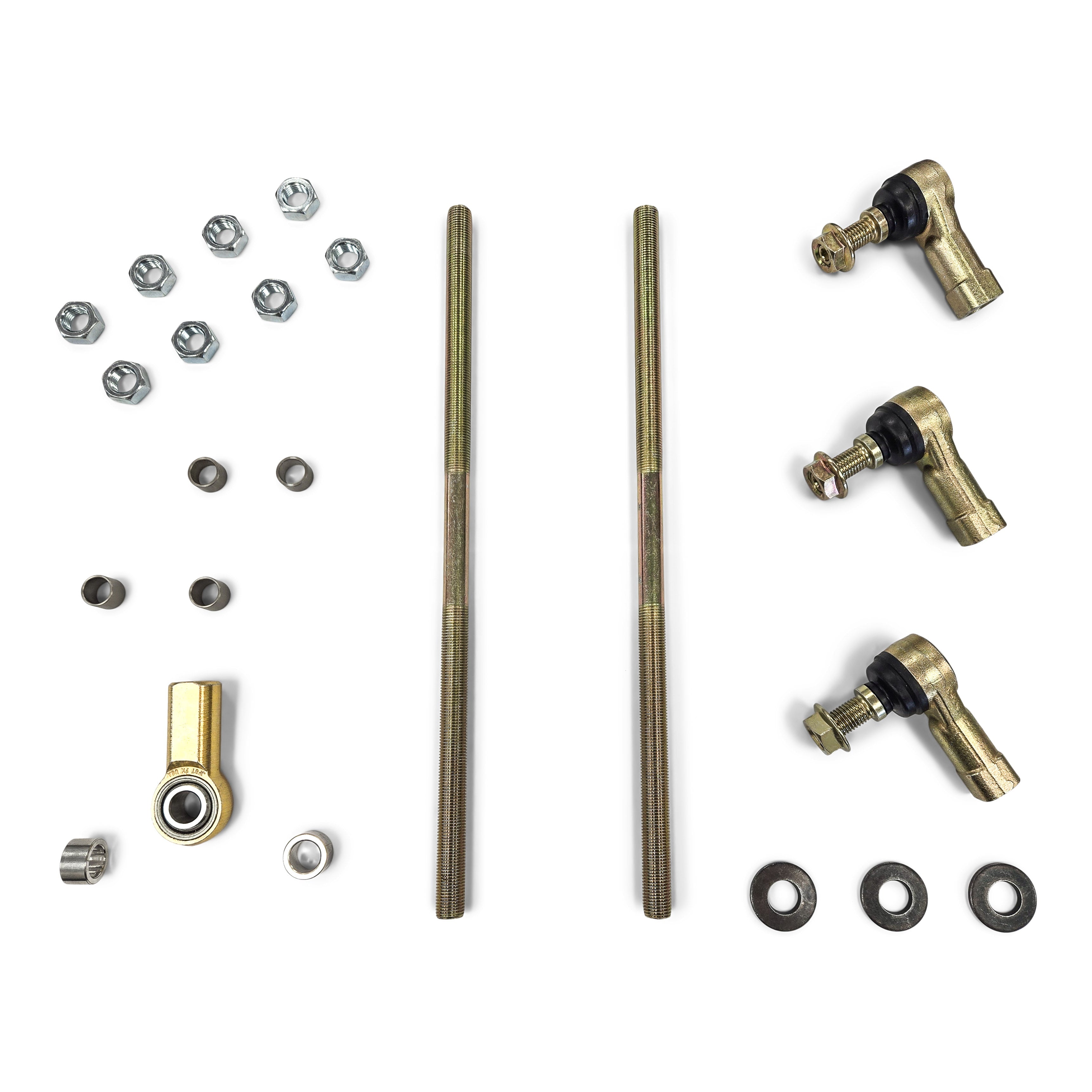

Included — per pair (2 end links):
| Component | SKU |
|---|---|
| Tie Rod End 1/2"-20 (×2) | AMP-TE-H502-12MM-W |
| FK Heim Joint (×2) — passenger-side mount | FKR-JF8T |
| Aluminum Spacer 3/4" OD × .509" ID × 7/16" long (×2) | ALS-AS75-22-28 |
| Connecting Rod 1/2"-20 × 13.00" double-end stud (×2) | COR-5109001 |
| Jam Nut 1/2"-20 SAE J995 Grade 5 clear zinc (×2) | FAS-36260 |
| Sway Bar Bushing Insert .372 — 2024+ Non-Rubicon | AMP-HDW-H502B |
| Sway Bar Bushing Insert .475 — 2024+ Rubicon | AMP-HDW-H502C |
Not Included:
| Item | Notes |
|---|---|
| Rear sway bar end links — JL or JT | Front position only. JL rear: COR-5109110. JT rear: COR-5110110. |
| Professional installation labor | Not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| 2024+ model year bushing insert selection | The 2024+ JL and JT changed the factory front sway bar mounting point diameter. Two inserts are included — .372 for 2024+ Non-Rubicon; .475 for 2024+ Rubicon. Only one insert is used per installation. Pre-2024 models use neither. | If 2024+, confirm Rubicon vs. Non-Rubicon before installation and install the correct insert only. |
| FK heim joint at passenger-side bracket | The JL/JT passenger-side sway bar bracket geometry requires the FK heim joint with aluminum spacers — do not substitute a standard ball-socket tie rod end at this location. The heim joint provides the angular articulation range the passenger bracket geometry demands. | Install FK heim joint with included aluminum spacers at the passenger bracket per Clayton's instructions. |
| Length must match lift height | The 13.00" connecting rod adjusts via thread engagement. Incorrect length puts the sway bar in preload or allows it to go slack at one extreme of travel — both degrade on-road handling and off-road droop. | Set both end links to the correct length for your installed lift height before installation. Text (469) 407-7538 to confirm setting. |
| Minimum thread engagement | Do not thread the tie rod end to fewer than 3 full threads from the end of the stud. Check at the maximum length setting used. | Verify minimum engagement at both ends of each connecting rod before final torque. |
| Jam nut torque | Untorqued jam nuts allow the end link to change length under load — this is the most common installation error on adjustable end links. | Torque jam nuts to Clayton's specification after setting length and before mounting. |
| Front position only — rear geometry uncorrected | Installing front-only adjustable end links while leaving the rear at stock length produces mismatched front-to-rear sway bar geometry at lift height. | Order COR-5109110 for JL rear and COR-5110110 for JT rear to correct both positions simultaneously. |
Installation Notes
Skill level: Beginner to intermediate. Bolt-in — no welding, drilling, or fabrication required. Installation instructions available from Clayton Off Road (5109100_Instructions.PDF and SWAY_BAR_QUICK_GUIDE.pdf).
Pre-installation — 2024+ buyers only:
Identify your trim — Rubicon or Non-Rubicon. Select the correct bushing insert: .372 for Non-Rubicon (AMP-HDW-H502B), .475 for Rubicon (AMP-HDW-H502C). Pre-2024 owners set both inserts aside.
Step 1 — Set length:
- Confirm installed lift height and consult Clayton's length specification for COR-5109100 at your height.
- Thread each tie rod end onto the connecting rod to the correct engagement depth — both end links in the pair must match.
- Torque each jam nut to Clayton's specification against the tie rod end before mounting.
- Verify minimum thread engagement (≥3 full threads each end).

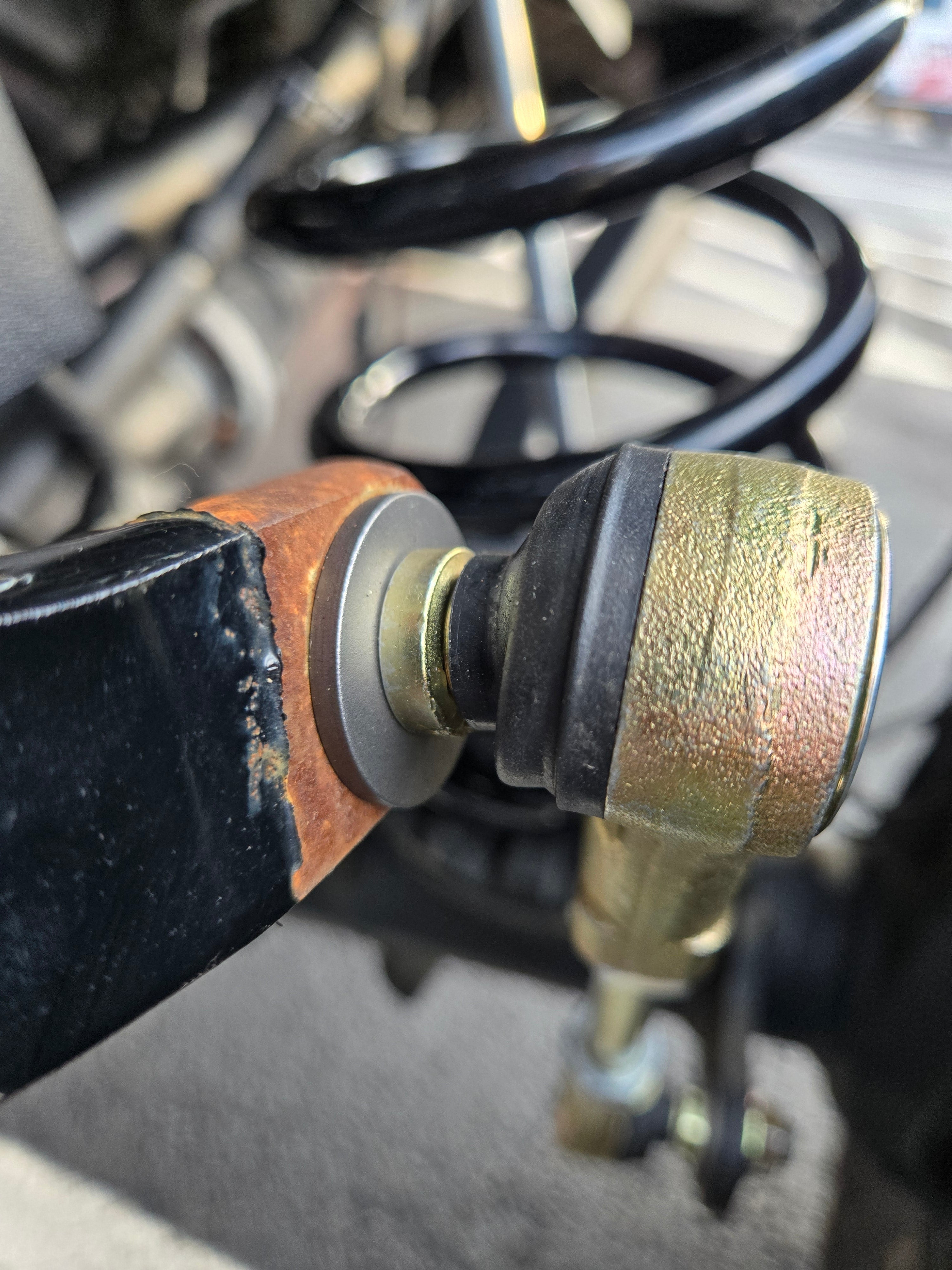

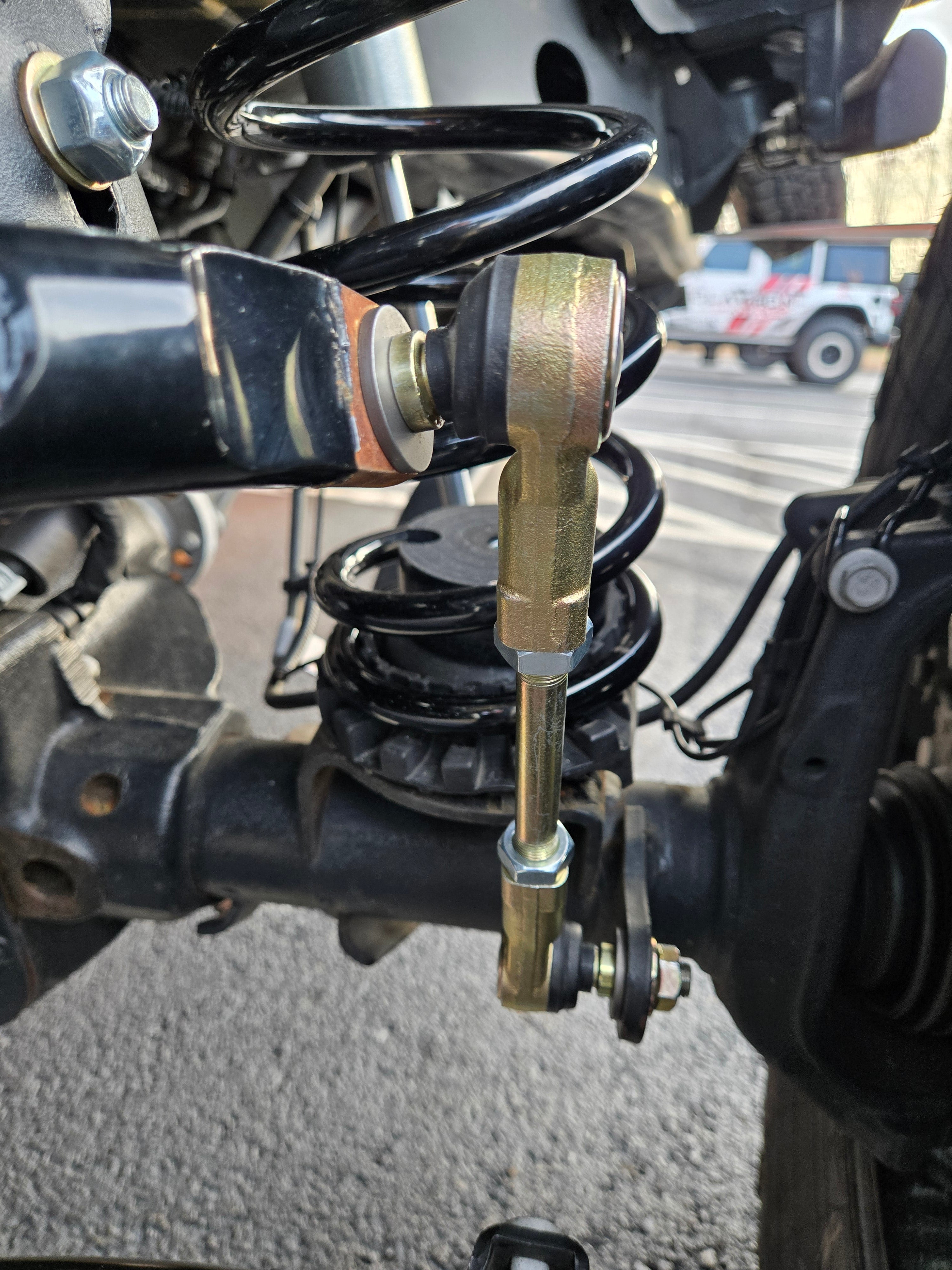

Step 2 — Installation:
- Remove factory front sway bar end links.

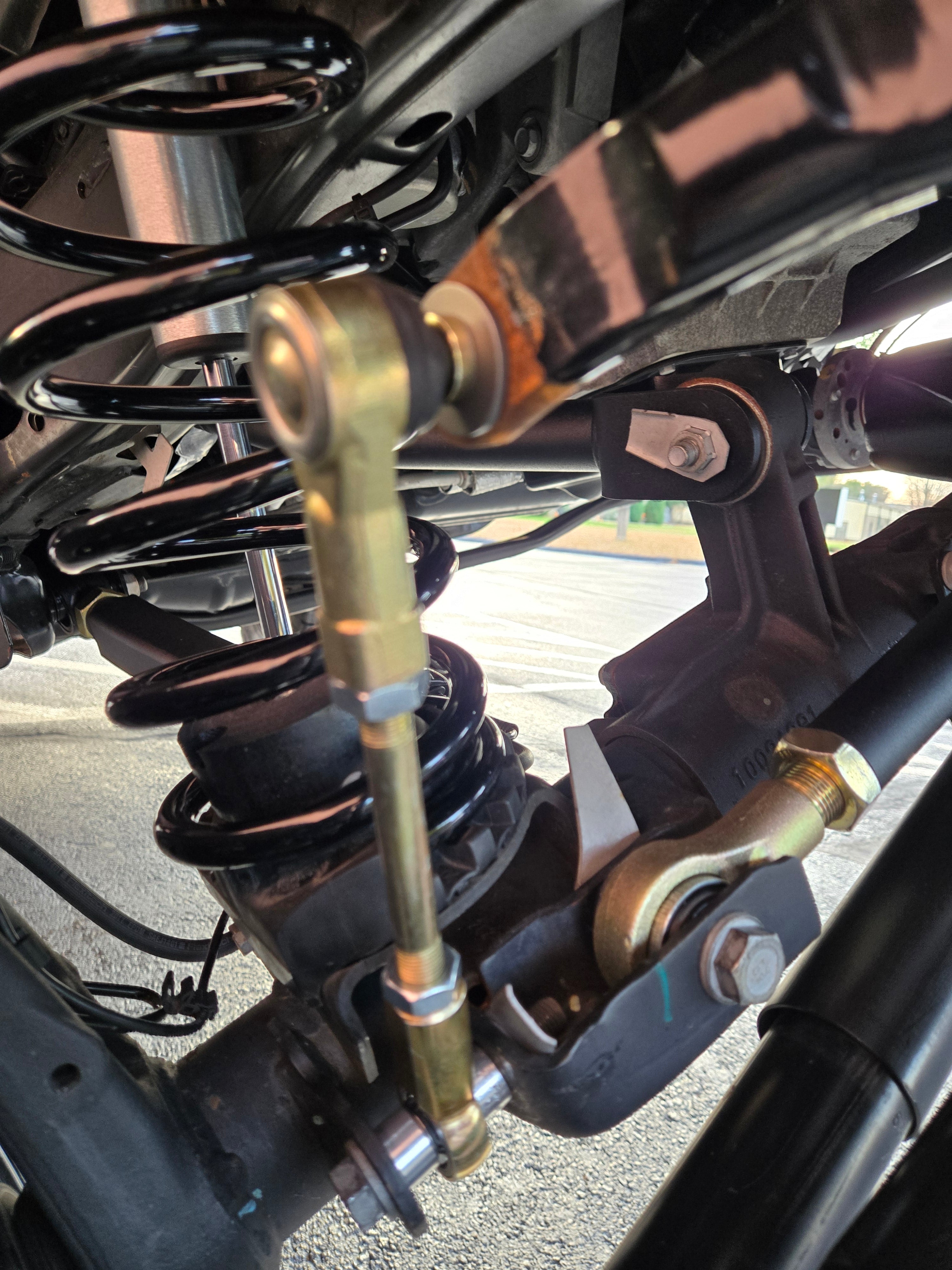

- Install FK heim joint with aluminum spacers at the passenger-side sway bar bracket per Clayton's instructions.
- Install the remaining end link at the driver-side bracket.
- Torque all mounting hardware at ride height — not at full droop or compression.
Step 3 — Verification:
- Cycle suspension through full travel range — confirm sway bar moves freely without binding at any point.
- Verify jam nuts remain tight after the first full suspension cycle.

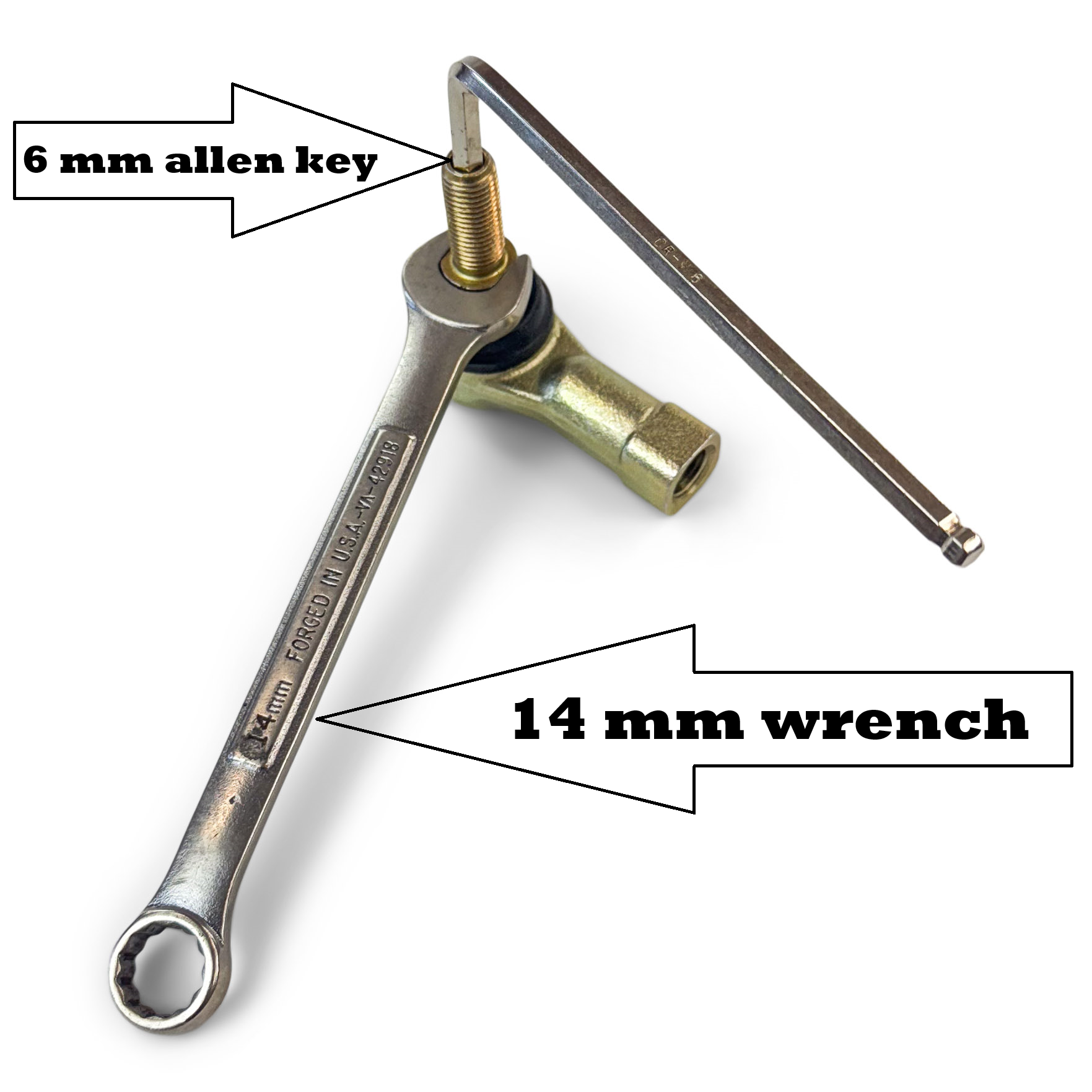

Required tools:
| Tool | Required |
|---|---|
| Standard socket and wrench set | Yes |
| Torque wrench | Yes |
| Tape measure | Yes — for length setting |
Common Questions
What makes this different from the JK sway bar end links (COR-5109110)?
Platform geometry and component design. The JL/JT front sway bar uses a passenger-side bracket geometry that requires an FK heim joint with aluminum spacers — the JK uses a standard tie rod end at both ends. Do not attempt to use COR-5109110 on a JL or JT front sway bar position. The heim joint is what makes this product JL/JT-specific.
I have a 2024 Wrangler JL. Which bushing insert do I use?
Two inserts are included to cover the 2024+ mounting point change. Non-Rubicon: use the .372 insert (AMP-HDW-H502B). Rubicon: use the .475 insert (AMP-HDW-H502C). Pre-2024 models do not require either insert. Text (469) 407-7538 if unsure which applies.
Does this cover the JL or JT rear sway bar?
No — front position only. JL rear uses COR-5109110. JT rear uses COR-5110110.
Does this fit the JK Wrangler?
No — the JK uses a different front sway bar geometry and does not require the FK heim joint setup this kit includes. Order COR-5109110 for the JK.
How do I know what length to set these to?
Length is specific to your installed lift height. Clayton validates this SKU for 1.5", 2.5", and 3.5" lift kits. Text (469) 407-7538 with your JL or JT lift height and OFAS will confirm the correct setting before your order ships.
What is the warranty?
Clayton Off Road products are backed by a lifetime warranty. Confirm terms at claytonoffroad.com/pages/warranty-policy.
The Obsidian Take
These end links are for the lifted JL Wrangler or Gladiator JT owner who wants the front sway bar operating in correct geometry at lift height — neutral at ride height, free through the full travel arc, not binding on the trail or degrading on-road handling. The FK heim joint and aluminum spacer setup at the passenger-side bracket is what separates this product from generic adjustable end links: the JL/JT front sway bar bracket geometry requires a heim joint at the passenger side, not a standard ball-socket end, for correct angular range through the full sweep. That is the design decision Clayton made that makes COR-5109100 the correct part and COR-5109110 the wrong one for this application.
The 2024+ bushing inserts are a detail that matters more than it looks. Two are included; exactly one applies to your build. Using the wrong insert or skipping it entirely on a 2024+ model produces an improperly seated sway bar bracket connection. Pre-2024 owners ignore them entirely.
It is not for the JK — that is COR-5109110. It covers the front position only — JT rear needs COR-5110110 and JL rear has its own separate SKU. And it is not installed correctly until the jam nuts are torqued at the set length and the FK heim joint is properly seated at the passenger bracket. Those two steps cannot be skipped.
At $139 for a pair covering the front position, this is the starting point of a complete JL/JT sway bar geometry correction. The rear position is the second step.
Manufacturer Data Disclaimer
Specifications are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, adjustment range, compatibility, and 2024+ bushing insert specifications may vary by specific vehicle configuration, trim level, and manufacturer updates. Confirm length setting and 2024+ trim bushing selection with Clayton or OFAS before installation.
Prop 65 Warning
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Non-Returnable Notice
Suspension components are non-returnable once installed. Confirm fitment (2018–2026 JL or 2020–2026 JT, front position only), installed lift height, and for 2024+ models, Rubicon vs. Non-Rubicon trim before ordering. Text (469) 407-7538 with any fitment or configuration questions before your order is placed.
