BDS 4-Inch Lift Kit — Dodge Ram 2500 Power Wagon SKU: BDS1767FS | Dodge Ram 2500 Power Wagon 2008 | Gas | 4" Front / 4" Rear | FOX 2.0 Performance Series | Leaf Springs Rear | 3-1/2 Inch Axle

A complete 4-inch suspension lift kit engineered specifically for the 2008 Dodge Ram 2500 Power Wagon gas. BDS-engineered lower control arms are longer than stock to rotate the axle for proper alignment, paired with a relocation mounting bracket to flatten the upper control arm angle. Gas-specific progressive rate Pro-Ride coil springs provide the 4-inch front lift. Forged drop pitman arm and track bar bracket correct steering geometry. The rear uses progressive rate multi-leaf springs for a 4-inch rear lift with extended U-bolts — configured for the 3-1/2 inch axle. FOX 2.0 Performance Series shocks front and rear. Clears up to 36-inch tires.

Before ordering: This kit is designed for the Dodge Ram 2500 Power Wagon only — it is not a general Ram 2500 kit. Gas engine only. You must measure your rear axle tube diameter before ordering — this kit is configured for the 3-1/2 inch axle. Two rear axle diameters exist on this generation Ram. Exhaust modification may be required to clear the front driveshaft at full suspension droop — confirm with your installer before scheduling. Welding equipment and a cut-off wheel are required specialty tools.

Verified Fitment

Power Wagon only. This kit is not designed for standard Ram 2500 configurations.

Component Specifications

Lift Configuration (this SKU):

Pro-Ride Coil Springs — Front:

Control Arms:

Rear Lift — Leaf Springs:

FOX 2.0 Performance Series Shocks (front and rear):

Recommended Tire and Wheel Configuration (trimming may be required):

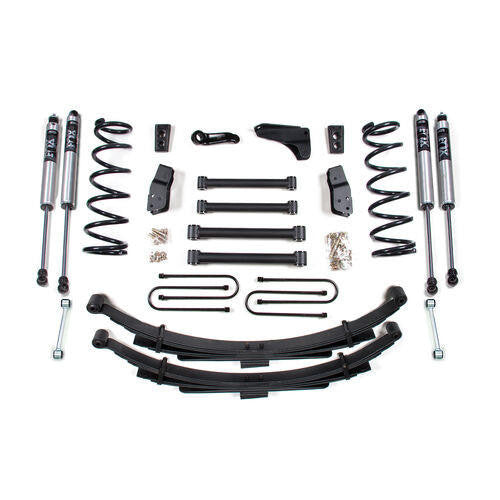

What Is and Is NOT Included

Included — Front:

• Gas-specific progressive rate Pro-Ride coil springs (pair)
• BDS-engineered lower control arms (pair — longer than stock)
• Upper control arm relocation mounting brackets
• Forged drop pitman arm
• Track bar relocation bracket
• Sway bar links
• Bump stops
• FOX 2.0 Performance Series front shocks

Included — Rear:

• Multi-leaf progressive rate rear springs (4-inch, 3-1/2 inch axle configuration)
• Extended U-bolts
• FOX 2.0 Performance Series rear shocks

Critical Compatibility

• Power Wagon only: This kit is designed specifically for the Dodge Ram 2500 Power Wagon. It is not designed for standard Ram 2500 configurations.
• Gas engine only: Gas-specific Pro-Ride coil springs are included.
• Rear axle measurement required — 3-1/2 inch axle configuration: Two rear axle diameters exist on this generation Ram. Measure your rear axle tube before ordering. The wrong axle selection results in an incompatible rear kit.
• Exhaust modification — conditional: Exhaust modification may be required to clear the front driveshaft at full suspension droop. Confirm with your installer before scheduling.
• Welding equipment required: Cut-off wheel or equivalent, grinder/sanding disc, and welding equipment are required specialty tools. Confirm installer capability before scheduling.
• 2008 model year only: For the 2006–2007 Power Wagon, see BDS1764FS (3-1/2 inch axle).
• ADAS recalibration: Required after installation. All recalibration costs are the owner's responsibility.

Installation Notes

Professional installation is strongly recommended. This kit is rated Moderate with an estimated installation time of 8 hours. Specialty tools required: cut-off wheel or equivalent, grinder/sanding disc, pitman arm puller, and welding equipment.

Verify before beginning:

• Rear axle tube diameter confirmed as 3-1/2 inch
• Confirm with installer whether exhaust modification is needed for driveshaft clearance at full droop
• Installer has welding equipment, cut-off wheel, and grinder
• ADAS recalibration appointment scheduled

Professional alignment is required after installation. Refer to the current BDS Suspension installation instructions for SKU BDS1767FS for complete procedures, torque specifications, and component-specific instructions.

The Obsidian Take

The BDS1767FS is the 2008-year-specific Power Wagon kit — the direct successor to BDS1764FS on the same gas Power Wagon platform. Same 4-inch front lift, same leaf spring rear at 4 inches on the 3-1/2 inch axle, same FOX 2.0 shocks, same 8-hour Moderate installation. The only year-specific differences are the coil spring application for the 2008 model and the absence of the steering gear box sector shaft check that applied to the 2006–2007 kit. Measure the rear axle, confirm welding equipment is on site, and have the installer check exhaust clearance at full droop before the driveshaft goes back in.

This Product Is For You If

• You own a 2008 Dodge Ram 2500 Power Wagon gas with a confirmed 3-1/2 inch rear axle.
• You want the leaf spring rear option for reduced axle wrap, improved stability, and maintained factory payload ratings.
• You want 4 inches of front lift and 4 inches of rear lift with FOX 2.0 Performance Series shocks.
• You want up to 36-inch tire clearance.
• Your installer has welding equipment, a cut-off wheel, and a grinder.

This Product Is Not For You If

• Your truck is a standard Ram 2500 — this kit is Power Wagon-specific.
• Your truck is a 2006 or 2007 Power Wagon — see BDS1764FS.
• You have not measured your rear axle tube diameter.
• Your rear axle is 4 inches — see the 4-inch axle variant.
• Your installer does not have welding equipment or a cut-off wheel.
• You want the block rear option — see the block kit variant.
• You want NX2 Nitro Series shocks — see the NX2 variant.
• You want FOX 2.5 Performance Elite Series shocks — see the FOX 2.5 variant.

Product Family Reference

Common Questions

Is this kit compatible with standard Ram 2500 trucks?
No. This kit is engineered specifically for the Dodge Ram 2500 Power Wagon. It is not designed for standard Ram 2500 configurations.

What is the difference between BDS1767FS and BDS1764FS?
Model year only. BDS1767FS fits the 2008 Power Wagon. BDS1764FS fits the 2006–2007 Power Wagon. All other specifications — lift heights, rear option, axle size, shock option, and installation requirements — are identical.

Why do I need to measure my rear axle before ordering?
Two different rear axle tube diameters exist on this generation Ram. Ordering the wrong configuration produces an incompatible rear kit. Measure your axle tube before placing your order.

Is exhaust modification required?
BDS states that exhaust modification may be required to clear the front driveshaft at full suspension droop. This is a conditional requirement — confirm with your installer during the build process.

Does ADAS need to be recalibrated after installation?
Yes. All ADAS sensors require professional recalibration after installation. All recalibration costs are the owner's responsibility.

Manufacturer Data Disclaimer

Fitment, specification, included-component, and installation data for this kit are sourced from BDS Suspension manufacturer documentation and OFAS-verified product data current as of publication. Manufacturer specifications and included components are subject to change without notice; confirm current documentation for this SKU at the time of purchase.

Required Legal, Warning, Fitment, and Return Notices

Fitment Notice: This kit is designed specifically for the Dodge Ram 2500 Power Wagon and will not fit standard Ram 2500 configurations. Gas engine only.

Rear Axle Warning: Two rear axle tube diameters exist on this generation Ram. Measure your rear axle tube before ordering. Ordering the wrong axle configuration produces an incompatible rear kit.

ADAS Recalibration Warning: This kit alters vehicle ride height and suspension geometry. All advanced driver assistance system (ADAS) sensors require professional recalibration after installation. Schedule recalibration at an authorized dealer or certified ADAS service center. All recalibration costs are the owner's responsibility.

Installation Warning: Professional installation is strongly recommended. Welding equipment, a cut-off wheel or equivalent, and a grinder/sanding disc are required specialty tools. A professional wheel alignment is required after installation.

Tire Fitment Notice: Up to 36 x 12.50-inch tires are supported. Trimming may be required. Buyer is responsible for verifying tire and wheel clearance for their specific vehicle and build.
