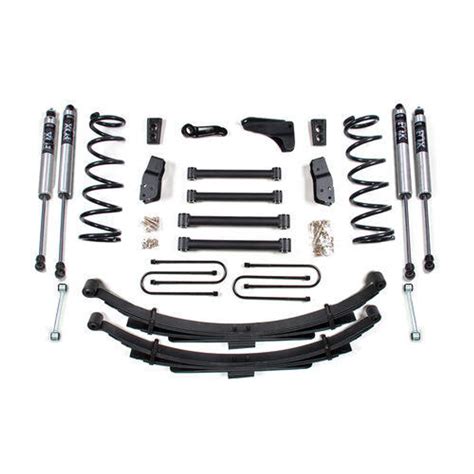

BDS 4-Inch Lift Kit | FOX 2.0 Shocks | Leaf Springs + 3.5-Inch Axle Block | Ram 2500 Power Wagon 4WD 2005–2007 | SKU: 1764FS

The BDS 1764FS is a 4-inch lift kit with FOX 2.0 Performance Series shocks for the 2005–2007 Ram 2500 Power Wagon 4WD — the first-generation Power Wagon. Front lift is delivered via Power Wagon-specific coil springs and geometry-correct radius arm brackets engineered for the Dana 60 front axle. Rear lift is matched via replacement leaf springs and 3.5-inch axle blocks. Every component in this kit is built specifically for the first-generation Power Wagon platform — it is not interchangeable with standard Ram 2500 lift kits and it does not cross to the 2008 or 2009–2013 Power Wagon generations.

This kit covers 2005, 2006, and 2007 Power Wagon only.

The 2008 Power Wagon requires 1767FS. The 2009–2013 Power Wagon requires 1770FS. The 2014 and newer Power Wagon is a different platform — confirm the correct kit with (469) 407-7538 before ordering. A standard Ram 2500 without the Power Wagon package is not compatible with this kit.

Component Specifications

What Is and Is NOT Included

Critical Compatibility

This kit is Power Wagon-specific and year-range-specific. Neither crosses to the other.

Not sure which Power Wagon generation you have? Text (469) 407-7538 before ordering.

Power Wagon Generation Reference — BDS Lift Kit By Year

Tire Clearance

At 4 inches of lift on the 2005–2007 Power Wagon platform, typical fitment runs 35–37-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specifications with your wheel and tire supplier before ordering.

Installation Notes

Professional installation is required — Dana 60 familiarity mandatory. The Power Wagon-specific lift requires a qualified suspension shop familiar with the Dana 60 front axle geometry and Power Wagon-specific suspension components. Do not attempt DIY installation.

Full front-end alignment is mandatory after installation. Do not drive on public roads before alignment is completed. Incorrect alignment on a lifted Dana 60 platform accelerates tire wear and affects steering geometry under load.

Rear axle block installation. 3.5-inch axle blocks must be installed per BDS specifications. Confirm U-bolt torque specs and axle centering after installation — improperly centered axle blocks cause driveline vibration and premature U-joint wear.

Torque all fasteners to BDS specification. Torque specs are included in the BDS installation instructions. Do not estimate torque values.

FOX shock break-in period. Allow FOX 2.0 shocks to complete the manufacturer-recommended break-in period before aggressive off-road use.

Text (469) 407-7538 to confirm your Power Wagon model year and package before ordering.

The Obsidian Take

The BDS 1764FS is the correct kit for the 2005–2007 Ram 2500 Power Wagon owner who wants 4 inches of front and matched rear lift with FOX 2.0 damping — engineered specifically for the Dana 60 front axle geometry of the first-generation Power Wagon. The Power Wagon-specific coil springs, Dana 60-specific radius arm brackets, and matched rear leaf spring package are not interchangeable with standard Ram 2500 lift components and they are not interchangeable with the 2008 or 2009–2013 Power Wagon kits. BDS engineers a separate kit for each Power Wagon generation — order the wrong year range and the geometry correction is wrong for your axle.

If your Power Wagon is a 2008, order 1767FS. If it is a 2009–2013, order 1770FS. If it is a 2014 or newer, text (469) 407-7538 to confirm the correct kit before ordering. If your Ram 2500 does not have the Power Wagon package, this kit's geometry-specific components are not the correct fit for the standard Ram 2500 suspension architecture.

First-generation Power Wagon, 2005–2007, Dana 60 confirmed — the 1764FS is the complete, generation-correct lift solution.

Common Questions

How do I confirm my Power Wagon is a 2005–2007 first generation?
Confirm your model year on your registration, title, or door jamb sticker. The first-generation Power Wagon covers 2005, 2006, and 2007 only. Text (469) 407-7538 if you need help confirming your generation before ordering.

Why can't I use a standard Ram 2500 lift kit on my Power Wagon?
The Power Wagon uses a Dana 60 front axle with different suspension geometry than the standard Ram 2500. The radius arm brackets and coil springs in this kit are designed specifically for Dana 60 geometry — standard Ram 2500 lift kits are not engineered for the Dana 60 mounting points and geometry correction requirements.

Does this kit lift the rear of the truck?
Yes. Front lift is via Power Wagon-specific coil springs and radius arm brackets. Rear lift is matched via replacement leaf springs and 3.5-inch axle blocks — both included in this kit.

What is the driveline impact at 4-inch lift on the Power Wagon?
Source data does not specify a mandatory driveline inspection at 4-inch lift on this platform — confirm driveshaft angle assessment with your installer as part of the installation process.

Is this a DIY install?
No. The Power Wagon-specific lift requires a qualified suspension shop familiar with Dana 60 front axle geometry. This is not a bolt-on leveling kit — professional installation is required.

What tire size fits at 4-inch lift?
Typical fitment on the 2005–2007 Power Wagon at 4-inch lift runs 35–37-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specs with your wheel and tire supplier before ordering.

What warranty does this kit carry?
BDS suspension components carry the BDS No-Fine-Print Warranty. FOX 2.0 shocks carry a FOX 1-year limited warranty.
