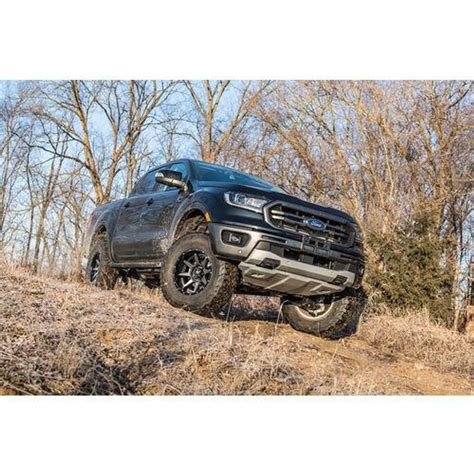

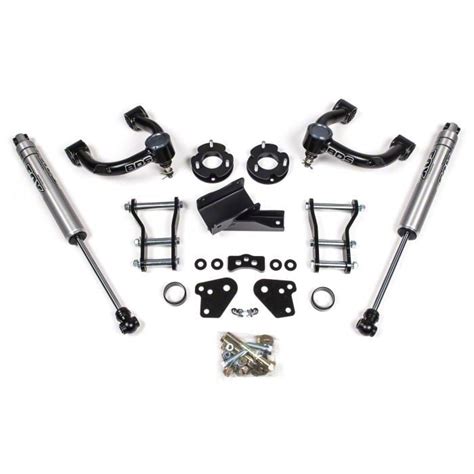

BDS 3.5-Inch Lift Kit | NX2 Nitro Shocks | Cast Aluminum Knuckles | Ford Ranger 4WD 2019–2023 | SKU: 1545H

Verified Fitment

Component Specifications

What Is and Is NOT Included

Critical Compatibility

Knuckle type is a hard fitment split on the 2019–2023 Ranger 4WD platform. Cast aluminum and cast steel knuckle kits are not interchangeable. Ordering the wrong knuckle kit results in fitment incompatibility and is a non-returnable error. Text (469) 407-7538 before ordering if you cannot confirm your knuckle type.

2019–2023 Ford Ranger 4WD Cast Aluminum Knuckle Shock Tier Reference

Text (469) 407-7538 to confirm your knuckle type and shock tier preference before ordering.

How to Confirm Your Knuckle Type

The 2019–2023 Ford Ranger 4WD was produced with both cast aluminum and cast steel front knuckles across the model run — the split is not cleanly divided by year or trim level. Do not assume based on year alone. Have a shop visually inspect the front knuckles before ordering, or text (469) 407-7538 and we will help you confirm the correct SKU before your order ships.

Installation Notes

Skill Level: Intermediate to advanced. Front lift component and knuckle installation on the Ranger 4WD platform requires a qualified suspension shop. Proper lifting equipment, correct torque procedures, and alignment setup are required. Do not attempt DIY installation.

Required Tools:

• Full hydraulic lift rated for Ranger weight
• Torque wrench
• Full socket and wrench set
• Alignment equipment or alignment shop scheduled before driving post-install

Alignment: Full front-end alignment is mandatory after installation. Do not operate the vehicle on public roads before alignment is completed.

Knuckle Confirmation: Confirm cast aluminum knuckle configuration before the kit ships. Incorrect knuckle kit installed voids fitment compatibility — this is a non-returnable error. Text (469) 407-7538 before ordering if you have any doubt.

Extended Brake Lines: Verify whether extended brake lines are required for your specific configuration at time of installation.

Torque Specs: Follow BDS-specified torque values included in the installation instructions. Do not substitute generic torque values.

Tire Fitment: At 3.5 inches of front lift on the Ranger platform, typical fitment runs 33–35-inch tires depending on wheel offset and backspacing. Confirm maximum tire diameter and wheel specifications with your wheel and tire supplier before ordering.

The Obsidian Take

SKU 1545H is the entry point into the BDS Ranger 4WD lift lineup for the cast aluminum knuckle platform. NX2 Nitro shocks deliver a meaningful damping improvement over factory — enough for daily driving, mild trail use, and improved road presence at 3.5 inches of lift. This is the correct kit for the Ranger owner who wants the BDS lift geometry at the lowest price point in the cast aluminum knuckle lineup and whose use case does not demand FOX-tier damping.

The decision between 1545H and 1545FS is shock performance. FOX 2.0 Performance Series in SKU 1545FS delivers better heat resistance, improved damping valving, and a more refined ride quality over the NX2 Nitro — meaningful differences if you trail ride regularly, run the Ranger hard off-road, or want a shock that holds up under sustained use. If your Ranger is primarily a daily driver with occasional light off-road, the NX2 Nitro in 1545H does the job at a lower price point.

The decision between 1545H and 1545FSL is system type. SKU 1545FSL uses FOX 2.0 coil-overs — replacing both the factory strut and coil spring as a single integrated unit. The coil-over delivers a more complete suspension upgrade with better geometry integration at lifted height. If you want the most capable front suspension system for the cast aluminum knuckle Ranger at 3.5 inches, 1545FSL is the correct choice. If the entry-level price point is the priority and your use case is moderate, 1545H is where to start.

This kit is for you if: You own a 2019–2023 Ford Ranger 4WD with confirmed cast aluminum knuckles, you want 3.5 inches of front lift at the lowest price point in the BDS Ranger lineup, and NX2 Nitro damping meets your daily driving and light off-road use case.

This kit is not for you if: Your Ranger has cast steel knuckles — order SKU 1906FSL. You trail ride regularly or want FOX-tier damping — order SKU 1545FS or SKU 1545FSL. Your Ranger is 2WD — this kit does not apply. You have a 2024 or newer Ranger — contact OFAS to confirm the correct kit. Do not guess on knuckle type — confirm before ordering. The kit is non-returnable once installed.

Common Questions

How do I know if my Ranger has cast aluminum or cast steel knuckles?
The 2019–2023 Ranger 4WD was produced with both knuckle types across the model run — the split is not cleanly year or trim based. Have a shop visually inspect the front knuckles before ordering, or text (469) 407-7538. Do not estimate — ordering the wrong knuckle kit is a non-returnable error.

What is the difference between SKU 1545H, SKU 1545FS, and SKU 1545FSL?
All three kits fit the 2019–2023 Ranger 4WD with cast aluminum knuckles and deliver 3.5 inches of front lift. The difference is the shock tier — 1545H uses NX2 Nitro entry-level shocks, 1545FS uses FOX 2.0 Performance Series, and 1545FSL uses FOX 2.0 Performance Series coil-overs that replace both the factory strut and spring as an integrated unit. If you trail ride or want FOX-tier damping, order 1545FS or 1545FSL. Text (469) 407-7538 to confirm which fits your use case.

What is the difference between SKU 1545H and SKU 1906FSL?
Knuckle type. SKU 1545H is for cast aluminum knuckles with NX2 Nitro shocks. SKU 1906FSL is for cast steel knuckles with FOX 2.0 coil-overs. These kits are not interchangeable — your factory knuckle configuration determines which SKU applies.

Does this fit the 2024 Ford Ranger?
Not confirmed. Text (469) 407-7538 before ordering a 2024 model year — do not assume compatibility.

Does this kit include rear lift?
No. SKU 1545H is a front lift system only. Rear lift components are not included.

What warranty covers this kit?
BDS suspension components including the NX2 Nitro shocks are covered by the BDS No-Fine-Print Warranty. The NX2 Nitro does not carry a separate FOX warranty.

Manufacturer Data Disclaimer: Specifications sourced from BDS Suspension product documentation and authorized distributor data. Obsidian Forged Auto Supply is an authorized BDS Suspension dealer. Manufacturer specifications are subject to change without notice.

⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.

⚠️ Non-Returnable Notice: Suspension components are non-returnable once installed. Confirm knuckle type, drivetrain, and year before ordering. Text (469) 407-7538 with any fitment questions before your order is placed.
