BDS 3.5-Inch Lift Kit | FOX 2.0 Performance Series Coil-Overs | Cast Steel Knuckles | Ford Ranger 4WD 2019–2023 | SKU: 1906FSL
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
| Year Range | Make | Model | Drivetrain | Knuckle Type |
|---|---|---|---|---|
| 2019–2023 | Ford | Ranger | 4WD only | Cast steel knuckles only |
Component Specifications
| Specification | Detail |
|---|---|
| SKU | 1906FSL |
| Brand | BDS Suspension |
| Lift Height | 3.5 inches (front) |

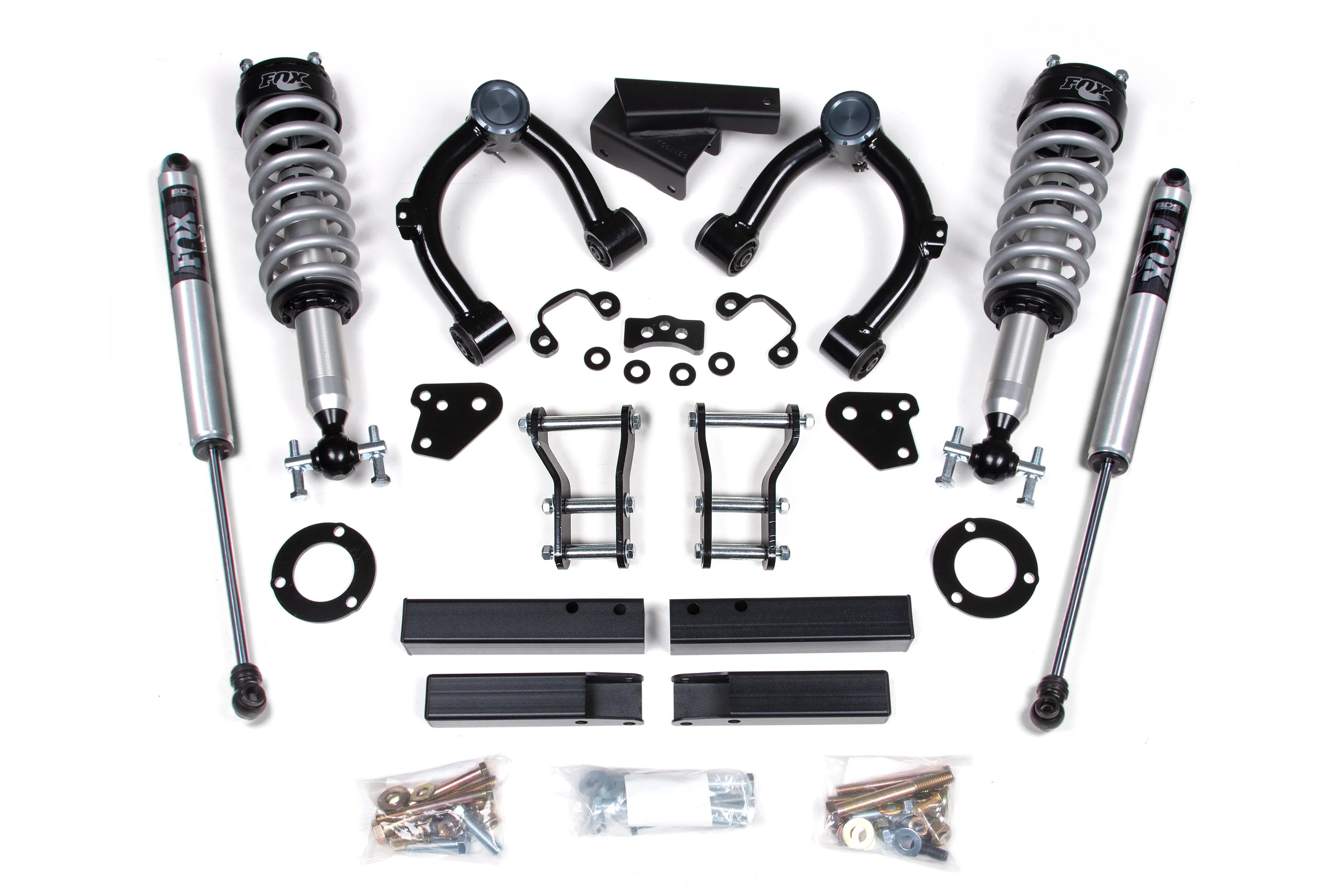

| Front System | FOX 2.0 Performance Series coil-overs + cast steel knuckles |
| Shock Model | FOX 2.0 Performance Series coil-overs |
| Knuckle Type | Cast steel — included in kit |
| Fuel Type | Gas — confirm application |
| Drivetrain | 4WD only |
| Application | Ford Ranger 4WD 2019–2023 — cast steel knuckle models only |
| Warranty | BDS No-Fine-Print Warranty + FOX 1-year limited warranty |
What Is and Is NOT Included
| Included | Not Included |
|---|---|
| FOX 2.0 Performance Series coil-overs — pair (front) | Rear lift components |
| Cast steel knuckles | Alignment — required post-install, buyer's responsibility |
| BDS geometry-correct lift components | Extended brake lines if required by installer |
| All required installation hardware | Wheels or tires |
| BDS installation instructions |
Critical Compatibility
| Configuration | Compatibility |
|---|---|
| 2019–2023 Ford Ranger 4WD — cast steel knuckles confirmed | ✅ Correct application |
| 2019–2023 Ford Ranger 4WD — cast aluminum knuckles | ❌ Wrong kit — order SKU 1545FSL |
| 2019–2023 Ford Ranger RWD / 2WD | ❌ Not compatible — 4WD only |
| 2024 and newer Ford Ranger | ❌ Different platform — kit does not apply |
| 2018 and earlier Ford Ranger | ❌ Different platform — kit does not apply |
| Ford F-150 — any year | ❌ Not compatible |
| Ford F-250 — any year | ❌ Not compatible |
Knuckle type is a hard fitment split on the 2019–2023 Ranger 4WD platform. BDS engineers separate kits for cast steel and cast aluminum knuckles — the components are not interchangeable. Ordering the wrong knuckle kit results in fitment incompatibility and is a non-returnable error. Contact OFAS at (469) 407-7538 before ordering if you cannot confirm your knuckle type.
2019–2023 Ford Ranger 4WD Knuckle Kit Reference
| SKU | Knuckle Type | Shock | Lift Height |
|---|---|---|---|
| 1906FSL | Cast steel — this listing | FOX 2.0 Performance Series | 3.5 inches |
| 1545FSL | Cast aluminum | FOX 2.0 Performance Series | 3.5 inches |
Both kits deliver the same 3.5 inches of front lift with FOX 2.0 Performance Series coil-overs on the 2019–2023 Ranger 4WD platform. The knuckle type is the only variable — and it is determined by your specific truck's factory configuration, not a preference. Contact OFAS at (469) 407-7538 to confirm your knuckle type before ordering.
How to Confirm Your Knuckle Type
The 2019–2023 Ford Ranger 4WD was produced with both cast steel and cast aluminum front knuckles across the model run — the split is not cleanly divided by year or trim level. Do not assume based on year alone. Have a shop visually inspect the front knuckles before ordering, or contact OFAS at (469) 407-7538 and we will help you confirm the correct SKU before your order ships.
Installation Notes
Skill Level: Advanced. FOX 2.0 coil-over and knuckle installation on the Ranger 4WD platform requires a qualified suspension shop. This is not a bolt-on leveling spacer — the coil-over replaces both the factory strut and coil spring as an integrated unit, and the knuckles require proper installation torque and geometry setup. Do not attempt DIY installation.
Required Tools:
- Full hydraulic lift rated for Ranger weight
- Coil-over compression tool
- Torque wrench
- Full socket and wrench set
- Alignment equipment or alignment shop scheduled before driving post-install
Alignment: Full front-end alignment is mandatory after installation. Do not operate the vehicle on public roads before alignment is completed.
Knuckle Confirmation: Confirm cast steel knuckle configuration before the kit ships. Incorrect knuckle kit installed voids fitment compatibility — this is a non-returnable error. If you have any doubt, contact OFAS at (469) 407-7538 before ordering.
Break-In Period: Allow FOX 2.0 coil-overs to complete the FOX-recommended break-in period before aggressive off-road use. New coil-overs require a seating period before reaching optimal damping performance.
Extended Brake Lines: Verify whether extended brake lines are required for your specific configuration at time of installation.
Torque Specs: Follow BDS-specified torque values included in the installation instructions. Do not substitute generic torque values.
The Obsidian Take
SKU 1906FSL is the correct kit for the 2019–2023 Ford Ranger 4WD owner with confirmed cast steel knuckles who wants 3.5 inches of front lift with a genuine coil-over upgrade over the factory strut setup. The FOX 2.0 Performance Series coil-over replaces both the factory strut and coil spring as a single integrated unit — this is not a strut spacer or a leveling kit. At 3.5 inches of lift, the Ranger sits aggressive, gains meaningful additional tire clearance, and rides on a damping system that is calibrated for the lifted geometry rather than fighting against it.
The cast steel knuckle is not the lower-spec option — it is simply the correct option for your truck's factory configuration. BDS engineers a knuckle specifically for each material type because the mounting geometry, load characteristics, and interface requirements differ between cast steel and cast aluminum. The knuckles included in 1906FSL are engineered to work with the FOX 2.0 coil-over at 3.5-inch lift height on the cast steel platform — not adapted from another application.
This kit is for you if: You own a 2019–2023 Ford Ranger 4WD with confirmed cast steel knuckles and want 3.5 inches of front lift with a complete FOX 2.0 coil-over system — not a spacer lift, not a strut extension, a purpose-built coil-over and knuckle system for your specific platform configuration.
This kit is not for you if: Your Ranger has cast aluminum knuckles — order SKU 1545FSL. Your Ranger is RWD or 2WD — this kit does not apply. You have a 2024 or newer Ranger — different platform entirely. You have a 2018 or earlier Ranger — different platform entirely. Do not guess on knuckle type — confirm before ordering. The kit is non-returnable once installed.
Common Questions
How do I know if my Ranger has cast steel or cast aluminum knuckles?
The 2019–2023 Ranger 4WD was produced with both knuckle types across the model run — the split is not cleanly year or trim based. Have a shop visually inspect the front knuckles before ordering, or contact OFAS at (469) 407-7538. Do not estimate — ordering the wrong knuckle kit is a non-returnable error.
What is the difference between SKU 1906FSL and SKU 1545FSL?
Knuckle type only. Both kits deliver 3.5 inches of front lift with FOX 2.0 Performance Series coil-overs on the 2019–2023 Ranger 4WD platform. SKU 1906FSL includes cast steel knuckles and SKU 1545FSL includes cast aluminum knuckles. The kits are not interchangeable — your truck's factory knuckle configuration determines which SKU applies.
Does this kit replace the factory strut entirely?
Yes. The FOX 2.0 Performance Series coil-over replaces both the factory strut and the factory coil spring as a single integrated unit. This is not a strut spacer or leveling kit — it is a complete strut assembly replacement with FOX 2.0 damping calibrated for the lifted geometry.
Does this fit the 2024 Ford Ranger?
No. The 2024 Ranger is a different platform generation — this kit does not apply. Contact OFAS at (469) 407-7538 and we will identify the correct kit for your model year.
Does this kit include rear lift?
No. SKU 1906FSL is a front lift system only. Rear lift components are not included.
What size tires fit at 3.5-inch lift on the Ranger 4WD platform?
Confirm maximum tire diameter and wheel specifications with your wheel and tire supplier based on your specific cab and bed configuration before purchasing tires. OFAS does not certify specific tire sizes for this application.
What warranty covers this kit?
BDS suspension components are covered by the BDS No-Fine-Print Warranty. FOX 2.0 Performance Series coil-overs carry a FOX 1-year limited warranty.
Manufacturer Data Disclaimer: Specifications sourced from BDS Suspension product documentation and authorized distributor data. Obsidian Forged Auto Supply is an authorized BDS Suspension dealer. Manufacturer specifications are subject to change without notice.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
⚠️ Non-Returnable Notice: Suspension components are non-returnable once installed. Confirm knuckle type, drivetrain, and year before ordering. Call (469) 407-7538 with any fitment questions before your order is placed.
