Baja Designs XL80 LED Light Pod Pair | Clear Lens | Driving/Combo Pattern | SKU 677803
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

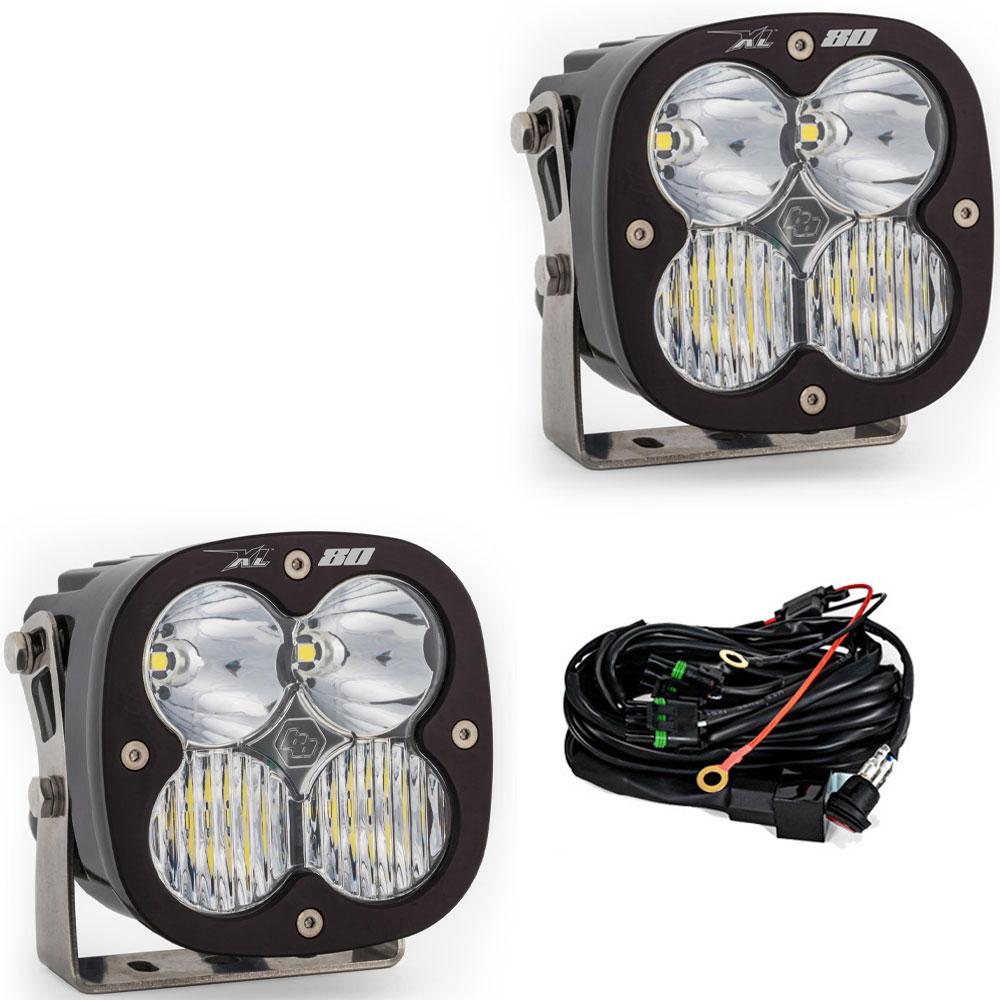

The Baja Designs XL80 (SKU 677803) is a pair of extreme-output LED light pods in the Driving/Combo pattern with clear lens, delivering 9,500 lumens per light from 4 Cree LEDs at 80W/5.79A — few lights match the XL80 in sheer power-to-size ratio. The Wide Driving pattern provides a 44° flat horizontal beam for cornering, dust, and fog, combined with a 6° High-Speed Spot beam for long, narrow throw further down the trail (Lighting Zone 3). A 20% dimming feature is built in for adjustable output. Hard anodized and powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated polycarbonate lens, stainless steel hardware and brackets. CopperDrive circuitry, MoistureBlock waterproofing (submersible to 9 ft), uService replaceable lenses and optics, ClearView optical design. 5000K daylight color temperature. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection. Includes mounting brackets and wiring harness. 30-day money-back guarantee, limited lifetime warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 677803 |
| Brand | Baja Designs |
| Model | XL80 |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Driving/Combo — 44° Wide Driving + 6° Spot, Lighting Zone 3 |
| Total Output | 9,500 lumens per light |
| LEDs | 4 Cree LEDs per light |
| Wattage / Amperage | 80W / 5.79A |
| Dimensions (per light) | 4.43" x 3.65" x 4.43" |
| Weight | 2.45 lbs per light |
| LED Life Expectancy | 49,930 hours |
| Dimming | 20% dimming feature |
| Housing | Hard anodized, powder-coated cast aluminum |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — submersible to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
Critical Compatibility
| Configuration | Status |
|---|---|
| Wiring harness | Included with this pair |
| Mounting brackets | Included with this pair |
| Amber lens variant | Available separately |
| Rock Guards (lens covers) bundle | Available as an add-on kit |
| Can-Am Maverick X3 | Designed for installation on Pre-Runner and Dune bumpers, or Light Support-equipped roofs |
| Can-Am Maverick Trail / Sport / Sport MAX | Can be installed on Can-Am front bumpers, Sport Roof, or Bimini Roof |
What Is and Is Not Included
| Item | Included |
|---|---|
| (2) XL80 LED light pods, clear lens | Yes |
| Mounting brackets | Yes |
| Wiring harness | Yes |
| Rock guards / lens covers | No — available as a separate kit |
Installation Notes
This pair ships complete — light pods, mounting brackets, and wiring harness are all included, so there's no separate harness or bracket purchase required before installation.
Beam aim matters for the Wide Driving component of this pattern — the 44° flat beam is optimized for cornering and lateral visibility, while the 6° Spot component throws long and narrow down the trail. Aim to balance both before final torque.
If mounting on a Can-Am Maverick X3, this pod is designed for Pre-Runner/Dune bumper positions or a Light Support-equipped roof. On Maverick Trail, Sport, or Sport MAX, it fits Can-Am front bumpers, Sport Roof, or Bimini Roof mounts.
Auxiliary lighting use on public roads is subject to state and local regulations — verify compliance before use on public roads.
Common Questions
Does this come with a wiring harness and brackets?
Yes — both are included with this pair.
How does this compare to Squadron Pro?
XL80 delivers meaningfully higher output (9,500 vs. ~4,900 lumens) at a similar per-light weight (2.45 lbs), making it the step-up choice when Squadron Pro isn't enough.
Is there an amber version?
Yes, available separately for dust and fog environments.
Can I add rock guards to protect the lenses?
Yes — a Rock Guards kit bundle is available that includes lens covers alongside the same light pair, harness, and brackets.
The Obsidian Take
The XL80 is for the builder who wants serious output — 9,500 lumens per light — without stepping up to the larger, heavier XL Sport. Wide Driving plus High-Speed Spot optics give genuine cornering visibility and long-range throw in one pod, and everything needed to install (brackets, harness) ships in the box.
It's not the pick if you specifically need the largest possible pod for a roof rack or chase rack build — that's still XL Sport's territory. But for bumper, roof, or Can-Am bimini/Sport Roof mounting where you want maximum output per ounce of hardware, XL80 is the stronger match.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mounting location compatibility before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
