Baja Designs XL Sport LED Light Pod Pair | Driving/Combo | Clear Lens | 3,150 Lumens | Harness Included | SKU 567803
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

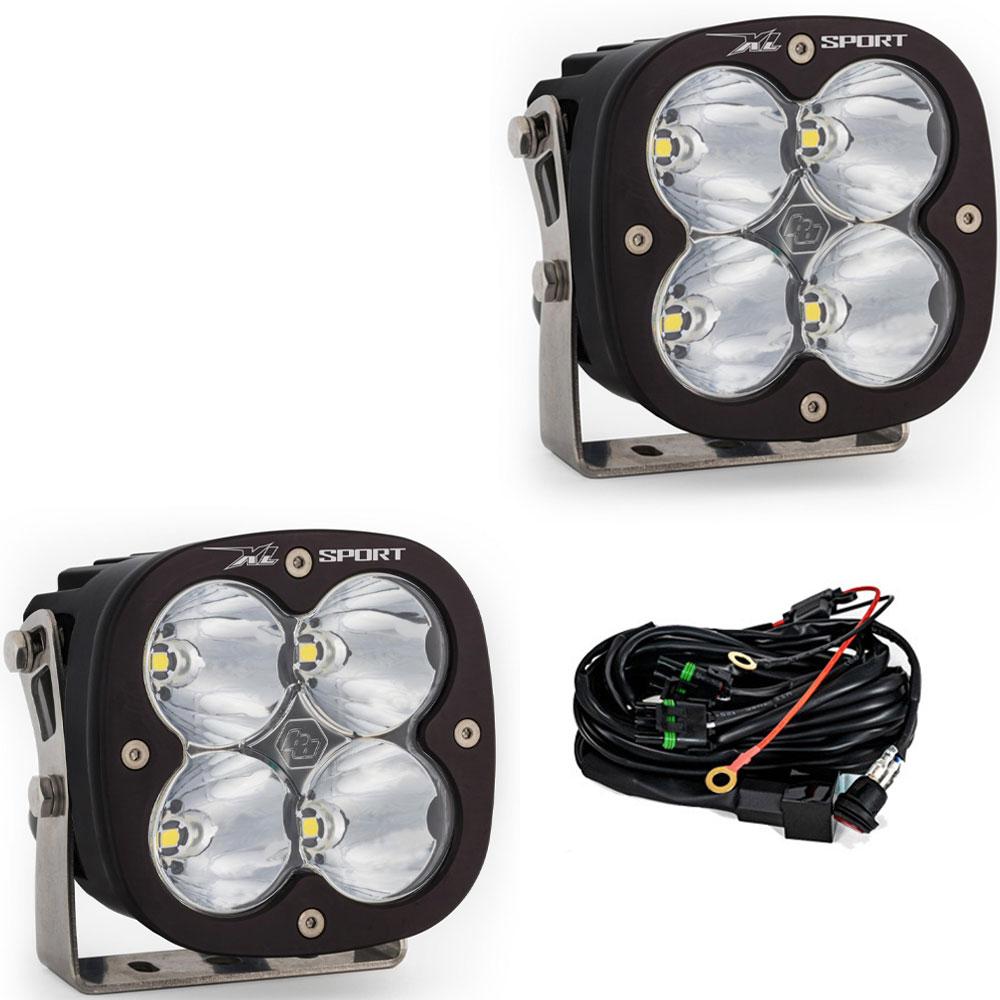

The Baja Designs XL Sport (SKU 567803) is a pair of extended-length LED light pods in the Driving/Combo optic pattern with clear lens, using Baja Designs' trademarked High Speed Spot reflectors to produce a longer and wider beam pattern. Each light delivers 3,150 lumens from 4 next-generation LEDs at just 26 watts. The Driving/Combo pattern combines Wide Driving (44°) and Spot (6°) optics for a smooth blend of near-field and long-range light (Lighting Zone 3) — maximum trail coverage in a single light, the best all-around pattern for high-speed trail, desert, and road use. Hard anodized and powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated clear polycarbonate lens, stainless steel hardware. CopperDrive circuitry, MoistureBlock waterproofing to 9 feet, uService replaceable lenses and optics, ClearView optical design. 5000K daylight color temperature. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection. Includes wiring harness and all necessary mounting hardware. 30-day money-back guarantee, limited lifetime warranty.
Note: A Baja Designs Skene dimmer must be purchased separately to enable a high/low beam toggle feature on this light.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 567803 |
| Brand | Baja Designs |
| Model | XL Sport |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Driving/Combo — 44° Wide Driving + 6° Spot |
| Total Output | 3,150 lumens per light |
| LEDs | 4 LEDs per light |
| Wattage / Amperage | 26W / 2A |
| Dimensions (per light) | 4.43" x 3.65" x 4.43" |
| Weight | 2.45 lbs per light (~4.9 lbs per pair) |
| LED Life Expectancy | 49,930 hours |
| Housing | Hard anodized, powder-coated cast aluminum |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Optional Accessory | Skene dimmer (sold separately) for high/low beam toggle |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) XL Sport LED light pods, clear lens | ✓ |
| Wiring harness | ✓ |
| Mounting brackets and all necessary hardware | ✓ |
| Skene dimmer (high/low beam toggle) | ✗ NOT included — sold separately |
| Rock guards | ✗ NOT included — available as a separate bundle option |
Baja Designs Pod Output Hierarchy
| Model | Lumens (per light) | Best For |
|---|---|---|
| S1 | 2,375 | Smallest footprint, tight mounting locations |
| S2 Sport | Up to ~1,581 | Mid-output compact, best value |
| S2 Pro | 2,450 | High-output, same compact footprint as S2 Sport |
| Squadron Sport | ~3,150–3,162 | Mid-size pod, high output |
| XL Sport (this listing) | 3,150 | Larger pod, longer/wider beam via High Speed Spot reflectors |
| XL Pro | ~4,600 | Largest output tier above XL Sport |
Verified Application
| Configuration | Status |
|---|---|
| Universal mount — trucks, vans, UTVs, motorcycles | ✓ |
| Roof rack, chase rack, A-pillar mounts sized for XL Sport dimensions | ✓ — confirm mount sizing |
| Squadron Sport-specific mounts | ✗ Not compatible — different pod dimensions |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Mount sizing | XL Sport pods (4.43" x 3.65" x 4.43") are larger than Squadron Sport — confirm your mount accommodates this size |
| High/low beam toggle | Requires a separate Skene dimmer accessory — not built into the standard kit |
| Public road use | Auxiliary lighting legality varies by jurisdiction — verify compliance before street use |
Common Questions
Does this come with a wiring harness?
Yes — wiring harness and all mounting hardware are included.
How much does the pair actually weigh?
About 4.9 lbs total (2.45 lbs per light) — confirm your mount is rated for this weight plus vibration load at speed.
Can I switch between high and low beam with this light?
Not out of the box — a separate Skene dimmer accessory is required to enable that function.
Is there a bigger/brighter option than this?
Yes — the XL Pro tier sits above XL Sport in Baja Designs' lineup, with significantly higher lumen output.
The Obsidian Take
The XL Sport (567803) is for the builder who wants a longer, wider beam than the Squadron Sport delivers — High Speed Spot reflectors, 3,150 lumens per light, harness and hardware included in the box, at roughly 4.9 lbs for the pair.
If you want a high/low beam toggle, budget for the Skene dimmer separately — it's not included with the standard kit.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mount sizing before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Input data significantly overstated weight (10 lbs/pair vs. confirmed ~4.9 lbs/pair) and incorrectly stated the wiring harness is sold separately. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
