Baja Designs Squadron Sport LED Light Pod Pair | Driving/Combo | Amber Lens | Harness Included | SKU 557813
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

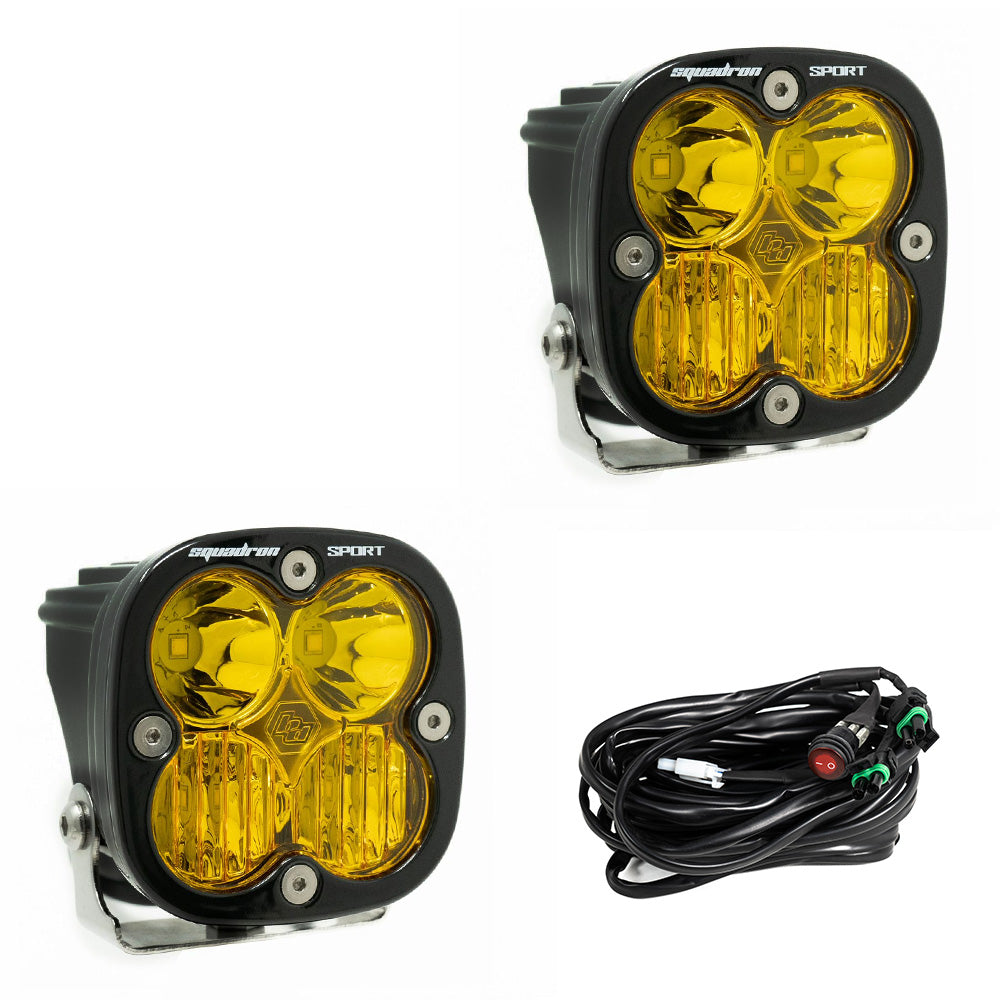

The Baja Designs Squadron Sport (SKU 557813) is a pair of high-output LED light pods in the Driving/Combo optic pattern with amber lens, producing approximately 3,150 lumens per light from 4 LEDs. The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation, reducing glare and improving contrast and depth perception in low-visibility conditions. The Driving/Combo pattern combines Driving (42°) and Spot (9°) optics for a smooth blend of near-field and long-range light (Lighting Zone 3) — more forward reach than the Wide Cornering pattern while retaining the amber lens benefit. In clear conditions, amber lens reduces total output compared to clear lens — for clear conditions, use the clear-lens Driving/Combo (SKU 557803) instead. Powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated polycarbonate amber lens with O-ring sealing. MoistureBlock waterproofing to 9 feet, built-in overvoltage protection, stainless steel hardware and brackets. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G. Includes wiring harness and mounting brackets. An upgraded harness (part 640117) is available separately if preferred. 30-day money-back guarantee, limited lifetime warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 557813 |
| Brand | Baja Designs |
| Model | Squadron Sport |
| Lens | Amber, hardcoated polycarbonate |
| Pattern | Driving/Combo — 42° Driving + 9° Spot |
| Total Output | Approximately 3,150 lumens per light (sources vary 2,260–3,150; confirm current generation) |
| LEDs | 4 LEDs per light |
| Wattage / Amperage | 26W / 2A |
| Pod Dimensions | 3.07" x 2.77" x 3.07" |
| Weight | 12 oz per light |
| LED Life Expectancy | 49,930 hours |
| Housing | Powder-coated cast aluminum |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, submersible |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) Squadron Sport LED light pods, amber lens | ✓ |
| Wiring harness | ✓ |
| (2) mounting brackets | ✓ |
| Upgraded harness (part 640117) | ✗ NOT included — available separately if a different harness is preferred |
| S2 Sport-compatible mount | ✗ NOT compatible — Squadron Sport pods are larger |
Squadron Sport Full Pattern Guide
| Pattern | Lens | SKU |
|---|---|---|
| Driving/Combo | Clear | 557803 |
| Driving/Combo (this listing) | Amber | 557813 |
| Wide Cornering | Clear | 557805 |
| Work/Scene | Clear | 557806 |
Squadron Sport vs. S2 Sport Amber Driving/Combo
| Configuration | Best For |
|---|---|
| S2 Sport Amber Driving/Combo (547813) | Compact pod, bumper/grille, tight-clearance mounting |
| Squadron Sport Amber Driving/Combo (this listing) | Larger pod, higher output, roof rack/A-pillar, max amber output priority |
Why Amber Lens
Amber lens filters blue light wavelengths that scatter in dust, fog, sand, and rain. This reduces glare and eye fatigue and improves contrast in low-visibility conditions. In clear conditions, amber lens reduces total output compared to clear lens — for clear conditions, use 557803 instead.
Verified Application
| Configuration | Status |
|---|---|
| Universal mount — trucks, Jeeps, SUVs, UTVs | ✓ |
| Tube mount, bumper mount, or surface mount sized for Squadron Sport | ✓ — confirm sizing before ordering |
| S2 Sport-specific mounts | ✗ Not compatible — different pod size |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Mount sizing | Squadron Sport pods are larger than S2 Sport — confirm your mount is sized correctly |
| Clear-condition use | Amber lens reduces total output in clear conditions — use 557803 for general clear-weather use |
| Public road use | Amber auxiliary lighting legality may differ from white lighting by jurisdiction — verify compliance before street use |
| Product generation | A newer Squadron 2.0 Sport generation may apply with updated specs — confirm with current inventory |
Common Questions
Does this come with a wiring harness?
Yes, included with this pair. An upgraded harness (part 640117) is available separately if you'd prefer a different option.
Why choose amber over clear for this pattern?
Amber reduces glare and improves contrast in dust, fog, sand, or rain. If you mostly run in clear conditions, the clear-lens version (557803) delivers higher total output for the same use case.
What's the actual lumen output?
Sources vary depending on listing age (2,260 to 3,150 lumens). The most consistent current figure is approximately 3,150 lumens.
The Obsidian Take
The Squadron Sport Driving/Combo Amber (557813) is for the desert racer or dust/fog-prone off-roader who wants the larger Squadron Sport's output and forward reach with the amber lens benefit layered on top. Harness, brackets, and all hardware included, with an upgraded harness option available if needed.
If you primarily drive in clear conditions, the clear-lens version (557803) delivers more total output for the same pattern.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mount sizing and product generation before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Input data incorrectly stated the wiring harness is sold separately — confirmed included, with an upgraded harness (640117) available as an optional separate purchase. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
