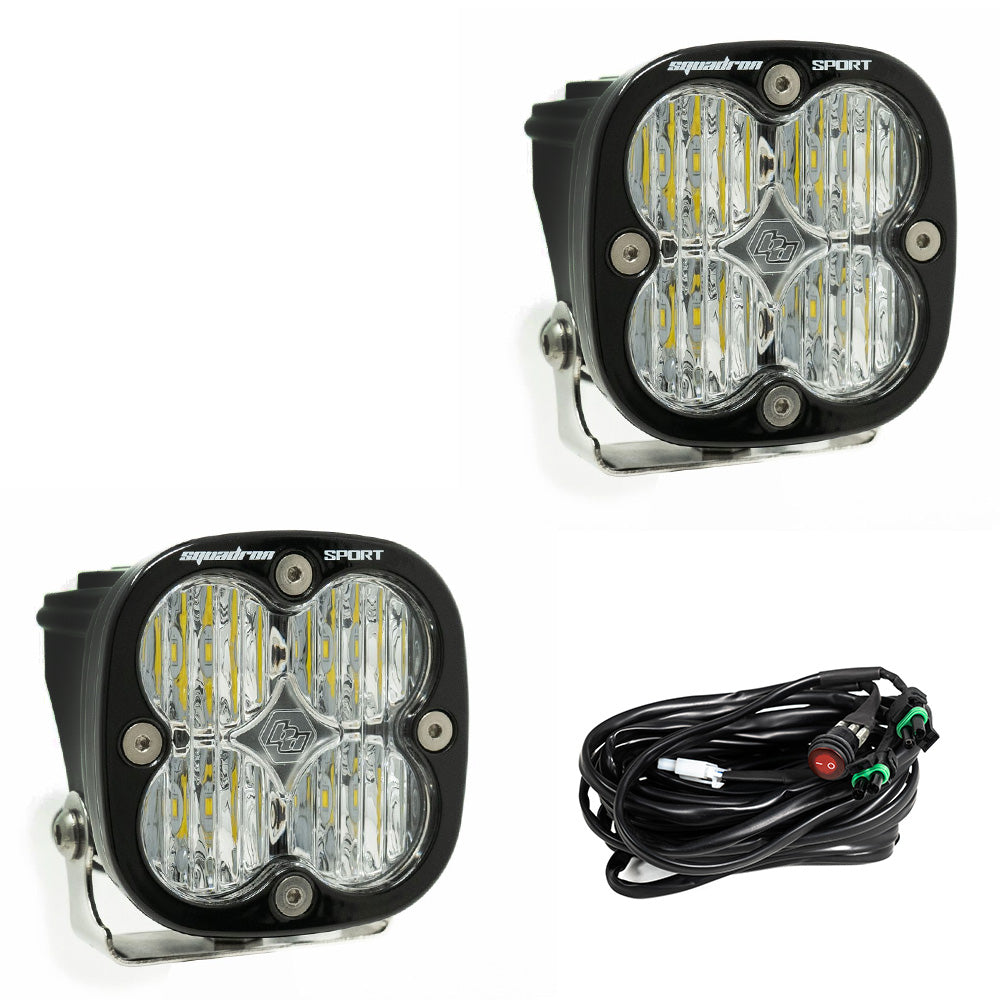

Baja Designs Squadron Sport LED Light Pod Pair | Wide Cornering | Clear Lens | Harness & Brackets Included | SKU 557805
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The Baja Designs Squadron Sport (SKU 557805) is a pair of high-output LED light pods in the Wide Cornering optic pattern with clear lens, producing approximately 3,162 lumens from next-generation LEDs. Baja Designs was first to develop a pattern specifically for cornering, dust, and/or fog conditions — this Wide Driving pattern delivers a 42° flattened horizontal beam (Lighting Zones 1 & 2) for maximum side spread and comfort lighting. Per Baja Designs' own published Effective Lighting Score: 124° beam angle, 114 ft throw. Best for slow-speed trail navigation, switchbacks, technical terrain, and cornering where side visibility is the priority over forward reach. Sleek black gloss powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated clear polycarbonate lens. CopperDrive circuitry, MoistureBlock waterproofing to 9 feet, uService replaceable lenses and optics, ClearView optical design. 5000K daylight color temperature. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection, stainless steel hardware. Includes wiring harness and mounting brackets. 30-day money-back guarantee, limited lifetime warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 557805 |
| Brand | Baja Designs |
| Model | Squadron Sport |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Wide Cornering — 42° flattened horizontal beam |
| Beam Angle (ELS) | 124° |
| Throw Distance (ELS) | 114 ft |
| Total Output | Approximately 3,162 lumens per pair (sources vary 1,800–3,162; confirm current figure) |
| LEDs | 4 LEDs per light |
| Pod Dimensions | 3.07" x 2.77" x 3.07" |
| Weight | 12 oz per light |
| LED Life Expectancy | 49,930 hours |
| Color Temperature | 5000K daylight white |
| Housing | Powder-coated cast aluminum, black gloss |
| Bezel | Billet-machined aluminum |
| Hardware Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) Squadron Sport LED light pods, clear lens | ✓ |
| Wiring harness | ✓ |
| (2) mounting brackets | ✓ |
| S2 Sport-compatible mount | ✗ NOT compatible — Squadron Sport pods are larger; confirm your mount is sized for Squadron Sport before ordering |
Wide Cornering Pattern — When to Choose It
- Maximum side spread with minimal forward throw. Illuminates the immediate sides of the vehicle. Best for slow-speed trail navigation, switchbacks, technical terrain, and cornering.
- Note on dust/fog use: Baja Designs' own description ties this pattern to "cornering, dust and/or fog conditions" even in clear lens form — for maximum low-visibility performance specifically, the amber S2 Sport Wide Cornering variant (547815) adds the amber lens benefit on top of this same beam geometry.
- vs. Work/Scene (557806): Wide Cornering has slightly more forward throw than Work/Scene, which is optimized for stationary area illumination.
- vs. Driving/Combo: Wide Cornering sacrifices forward throw for maximum side spread — use Driving/Combo if forward reach is also needed.
Squadron Sport Pattern Guide
| Pattern | SKU | Beam Angle (ELS) | Throw (ELS) |
|---|---|---|---|
| Wide Cornering — Clear (this listing) | 557805 | 124° | 114 ft |
| Work/Scene — Clear | 557806 | — | ~40 ft |
| Driving/Combo — Clear | 557803 | 112° | 183 ft |
| Spot — Clear | 557801 | 112° | 229 ft |
Squadron Sport vs. S2 Sport Wide Cornering
| Configuration | SKU | Best For |
|---|---|---|
| S2 Sport Wide Cornering — Amber | 547815 | Compact pod, dust/fog environments specifically |
| Squadron Sport Wide Cornering — Clear (this listing) | 557805 | Larger pod, higher output, general side illumination priority |
Verified Application
| Configuration | Status |
|---|---|
| Universal mount — trucks, Jeeps, SUVs, UTVs | ✓ |
| Tube mount, bumper mount, or surface mount sized for Squadron Sport | ✓ — confirm sizing before ordering |
| S2 Sport-specific mounts | ✗ Not compatible — different pod size |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Mount sizing | Squadron Sport pods are larger than S2 Sport — confirm your mount is sized correctly |
| Forward illumination need | This pattern sacrifices forward throw for side spread — use Driving/Combo if both are needed |
| Public road use | Auxiliary lighting legality varies by jurisdiction — verify compliance before street use |
Common Questions
Does this come with a wiring harness?
Yes. The wiring harness and mounting brackets are included.
Should I get this or the amber S2 Sport Wide Cornering (547815)?
This Squadron Sport version is larger and higher output, best when you want maximum side illumination output in general use. The amber S2 Sport version is purpose-built for dust and fog specifically, in a more compact pod.
What's the actual lumen output?
Sources vary depending on listing age (1,800 to 3,162 lumens), reflecting LED updates over product generations. The most consistent current figure is approximately 3,162 lumens.
Can I use my S2 Sport mounting brackets with this light?
No. Squadron Sport pods are larger and require a differently-sized mount.
The Obsidian Take
The Squadron Sport Wide Cornering Clear (557805) is for the trail rider who needs maximum side illumination through switchbacks and technical terrain — larger and higher output than the S2 Sport line, with the harness and brackets included in the box.
If dust or fog penetration specifically is the priority over raw output, the compact amber S2 Sport Wide Cornering (547815) may be the better-targeted choice instead.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mount sizing before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Input data incorrectly stated the wiring harness is sold separately — confirmed included. Lumen output varies across sources depending on listing age/LED generation — current figure of ~3,162 lumens used above. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
