Baja Designs Squadron Sport LED Light Pod Pair | Driving/Combo | Clear Lens | Harness & Brackets Included | SKU 557803
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

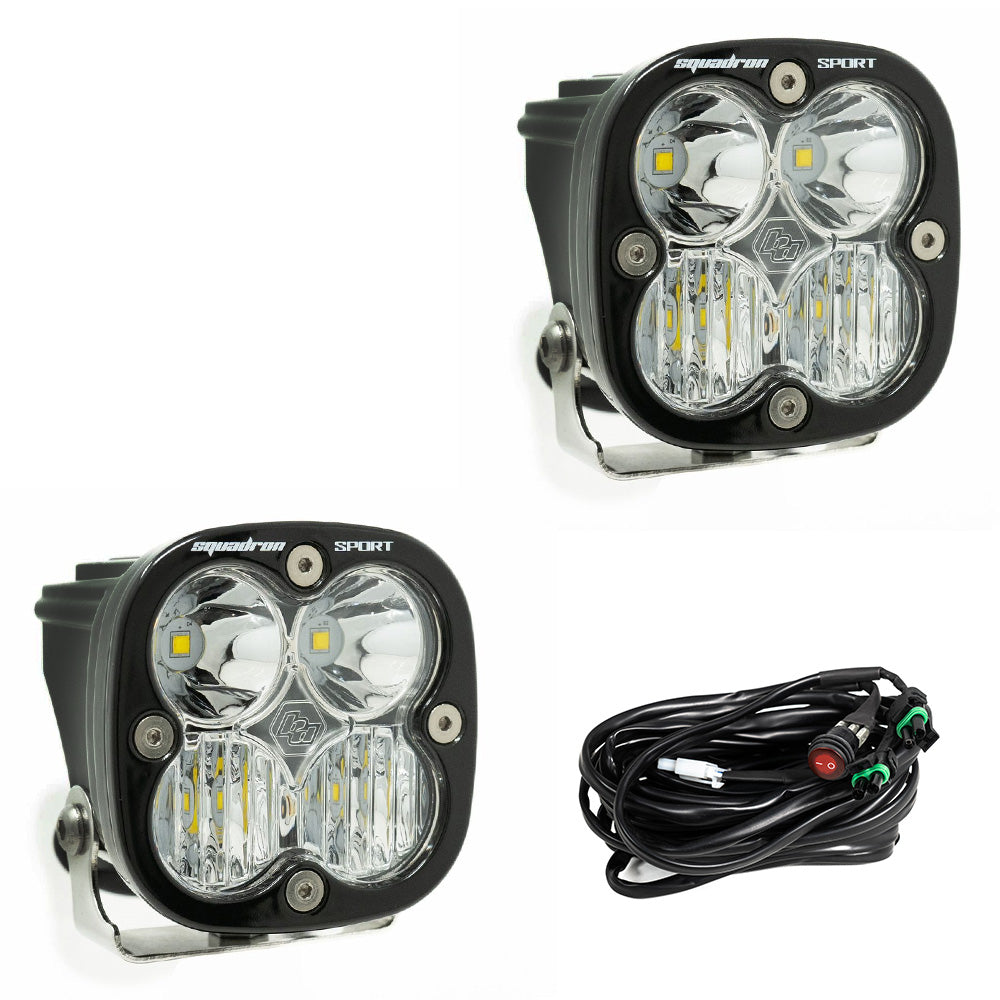

The Baja Designs Squadron Sport (SKU 557803) is a pair of high-output LED light pods in the Driving/Combo optic pattern with clear lens, producing approximately 3,162 lumens from next-generation LEDs (confirm generation — see note above). The Driving/Combo pattern combines Driving and Spot optics for a smooth blend of near-field and long-range light, balancing forward reach with peripheral spread — the best all-around pattern for trail, road, and work use. Per Baja Designs' own published Effective Lighting Score for this pattern family: approximately 112° beam angle, 183 ft throw. The Squadron Sport delivers higher output and a larger footprint than the S2 Sport Driving/Combo — best when maximum light output is the priority over compact pod size. Sleek black gloss powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated clear polycarbonate lens. CopperDrive circuitry, MoistureBlock waterproofing to 9 feet, uService replaceable lenses and optics, ClearView optical design. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection, stainless steel hardware. Includes wiring harness and mounting brackets. 30-day money-back guarantee, limited lifetime warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 557803 |
| Brand | Baja Designs |
| Model | Squadron Sport |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Driving/Combo — balanced forward throw and wide spread |
| Beam Angle (ELS) | ~112° |
| Throw Distance (ELS) | ~183 ft |
| Total Output | Approximately 3,162 lumens per pair (sources vary 1,800–3,200; confirm exact generation/figure) |
| LEDs | 4 LEDs per light |
| Pod Dimensions | 3.07" x 2.77" x 3.07" |
| Weight | 12 oz per light |
| LED Life Expectancy | 49,930 hours |
| Housing | Powder-coated cast aluminum, black gloss |
| Bezel | Billet-machined aluminum |
| Hardware Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) Squadron Sport LED light pods, clear lens | ✓ |
| Wiring harness | ✓ |
| (2) mounting brackets | ✓ |
| S2 Sport-compatible mount | ✗ NOT compatible — Squadron Sport pods are larger; confirm your mount is sized for Squadron Sport before ordering |
Squadron Sport Pattern Guide
| Pattern | SKU | Best For |
|---|---|---|
| Driving/Combo — Clear (this listing) | 557803 | Balanced forward throw and wide spread — best all-around |
| Wide Cornering — Clear | 557805 | Maximum side spread, minimal forward throw |
| Work/Scene — Clear | 557806 | Maximum area flood, zero forward throw |
Squadron Sport vs. S2 Sport Driving/Combo
| Configuration | Best For |
|---|---|
| S2 Sport Driving/Combo — Clear (547803) | Compact pod, bumper/grille, tight-clearance mounting |
| Squadron Sport Driving/Combo — Clear (this listing) | Larger pod, higher output, roof rack/A-pillar, max output priority |
Verified Application
| Configuration | Status |
|---|---|
| Universal mount — trucks, Jeeps, SUVs, UTVs | ✓ |
| Tube mount, bumper mount, or surface mount sized for Squadron Sport | ✓ — confirm sizing before ordering |
| S2 Sport-specific mounts | ✗ Not compatible — different pod size |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Mount sizing | Squadron Sport pods are larger than S2 Sport — confirm your mount is sized correctly |
| Product generation | A newer Squadron 2.0 Sport exists with different specs and connector type — confirm which generation is in current inventory |
| Public road use | Auxiliary lighting legality varies by jurisdiction — verify compliance before street use |
Common Questions
Does this come with a wiring harness?
Yes. The wiring harness and mounting brackets are included.
What's the actual lumen output?
Sources vary depending on listing age and generation (1,800 to 3,200 lumens). The most consistent current figure for the standard Squadron Sport is approximately 3,162 lumens — confirm which generation (original vs. Squadron 2.0) you're receiving.
Is there a newer version of this light?
Yes. Baja Designs has released a Squadron 2.0 Sport with 3,200 lumens, a color-selectable backlight, and an upgraded connector. Confirm with us which generation is currently stocked before ordering if this matters for your build.
Can I use my S2 Sport mounting brackets with this light?
No. Squadron Sport pods are larger and require a differently-sized mount.
The Obsidian Take
The Squadron Sport Driving/Combo Clear (557803) is the best all-around pattern in the larger Squadron Sport line — meaningful forward throw plus wide spread, for trail, road, and work use. Harness and brackets included.
Before ordering, confirm which generation you're actually getting — Baja Designs has released an updated Squadron 2.0 Sport with higher output and a new connector design, and the specs in this Blueprint may need updating if that's what's currently being stocked.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mount sizing and product generation before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Input data incorrectly stated the wiring harness is sold separately — confirmed included. A newer Squadron 2.0 Sport generation was identified during research with different specs — confirm which generation applies to your inventory before publishing. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
