Baja Designs Squadron Sport Spot A-Pillar Light Kit | Upfitter | With Bonus Lens Sets | 2021-2026 Ford Bronco & 2022-2026 Bronco Raptor | SKU 447755UP
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
This is the most information-rich and correction-heavy result in the entire Baja Designs catalog. Multiple major corrections and additions confirmed directly, including from Baja Designs' own product page.
- Critical correction: this kit includes bonus lens sets not in your input. This kit includes a pair of Squadron lights, custom vehicle-specific brackets, a wiring harness, hardware, and 2 extra pairs of lenses for switching to a different lighting beam pattern. Specifically: a pair of Squadron Sport LED auxiliary lights in spot, along with a set of wide cornering and driving/combo lenses in case you would like to change the pattern to a more near-field orientation. Your input never mentions the bonus lens sets, which is a significant omission — this kit ships with multiple interchangeable optic sets, not just the spot configuration. Stage3 MotorsportsAmazon
- Bronco Raptor compatibility confirmed — your input misses it. The kit fits Ford 2021-2026 Bronco and 2022-2026 Bronco Raptor. Your input limits fitment to standard Bronco only. Crucially, Baja Designs' own page notes: "The Bronco Raptor Upfitter wiring will have AUX1 and AUX3 colors switched when compared to the regular Bronco" — a real, actionable installation difference that affects wiring on Raptor models. Jack-ItJack-It
- Confirmed precise lumen output: 3,150 lumens per light — utilizing 4 high intensity Cree LEDs, these Squadron Sport A-Pillar lights have a 3,150 lumen output with a 5000K color temperature at 26 watts/2 amps. Your input never states a lumen figure. Skinnypedalracing
- IP rating confirmed IP69K — waterproof rating of IP69K. Your input correctly stated IP69K here (consistent, no correction needed). Skinnypedalracing
- Install time confirmed: under two hours, no cutting or drilling. Installation can normally be completed in under two hours. Skinnypedalracing
- Important clarification on the Upfitter harness: "This kit version includes the upfitter harness instead of the standard harness with built-in toggle switch. The upfitter wiring setup is meant for connecting directly to factory upfitter auxiliary switches on the vehicle, or for connecting to a switching system such as an sPOD." This is genuinely useful context — the toggle-switch variant exists for Broncos without Upfitter switches, and sPOD compatibility is specifically called out. Stage3 Motorsports
- All standard Baja Designs technologies confirmed: ClearView, MoistureBlock, CopperDrive, uService (replaceable lenses and optics — the extra lens sets included leverage this directly), limited lifetime warranty, 30-day money-back guarantee.
⚠️ Two Important Corrections
Your input omits both the bonus interchangeable lens sets included in the kit (Wide Cornering and Driving/Combo optics, in addition to the Spot pods) and the confirmed Bronco Raptor compatibility (2022-2026, with a specific AUX1/AUX3 wiring note for Raptor models).
Product Title: Baja Designs Squadron Sport Spot A-Pillar Light Kit | Upfitter | With Bonus Lens Sets | 2021-2026 Ford Bronco & 2022-2026 Bronco Raptor | SKU 447755UP
Page Title (60 chars): Baja Designs Squadron Sport A-Pillar Kit | Bronco UP
Meta Description (149 chars): Baja Designs Squadron Sport Spot A-pillar kit with upfitter harness for 2021-2026 Bronco & Raptor. Bonus lens sets included. SKU 447755UP.
URL Handle: baja-designs-squadron-sport-a-pillar-kit-447755up-ford-bronco-upfitter
The Baja Designs Squadron Sport A-Pillar Light Kit (SKU 447755UP) is engineered for the 2021–2026 Ford Bronco and 2022–2026 Bronco Raptor, mounting Squadron Sport pods to the A-pillars for maximum long-range forward spot beam projection. This lighting kit includes a pair of Squadron Sport LED auxiliary lights in Spot configuration, along with a set of Wide Cornering and Driving/Combo lenses in case you would like to change the pattern to a more near-field orientation. The Spot pattern delivers maximum long-range forward throw with a narrow beam — purpose-built for high-speed trail, desert, and open terrain. Each pod produces 3,150 lumens from 4 high-intensity Cree LEDs at 26 watts and 5000K color temperature. All kits include A-pillar brackets and an upfitter-type wiring harness, along with all the necessary mounting hardware. Installation can normally be completed in under two hours, with no cutting or drilling required. ClearView, MoistureBlock, CopperDrive, uService replaceable lenses and optics. IP69K rated, limited lifetime warranty. Jack-It + 4
Bronco Raptor owners note: The Bronco Raptor Upfitter wiring will have AUX1 and AUX3 colors switched when compared to the regular Bronco — confirm your Raptor's wiring diagram before connecting the harness. Jack-It
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 447755UP |
| Brand | Baja Designs |
| Model | Squadron Sport — Spot pattern |
| Mount Location | A-pillar — high-mounted forward facing |
| Lumens | 3,150 per light |
| LEDs | 4 Cree LEDs per light |
| Wattage / Amperage | 26W / 2A |
| Color Temperature | 5000K daylight white |
| IP Rating | IP69K — waterproof, submersible |
| Install Time | Under 2 hours, no cutting or drilling |
| Wiring | Upfitter switch bank harness — also compatible with sPOD |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Application | 2021–2026 Ford Bronco and 2022–2026 Bronco Raptor — Upfitter switch equipped |
| Sold As | Complete kit |

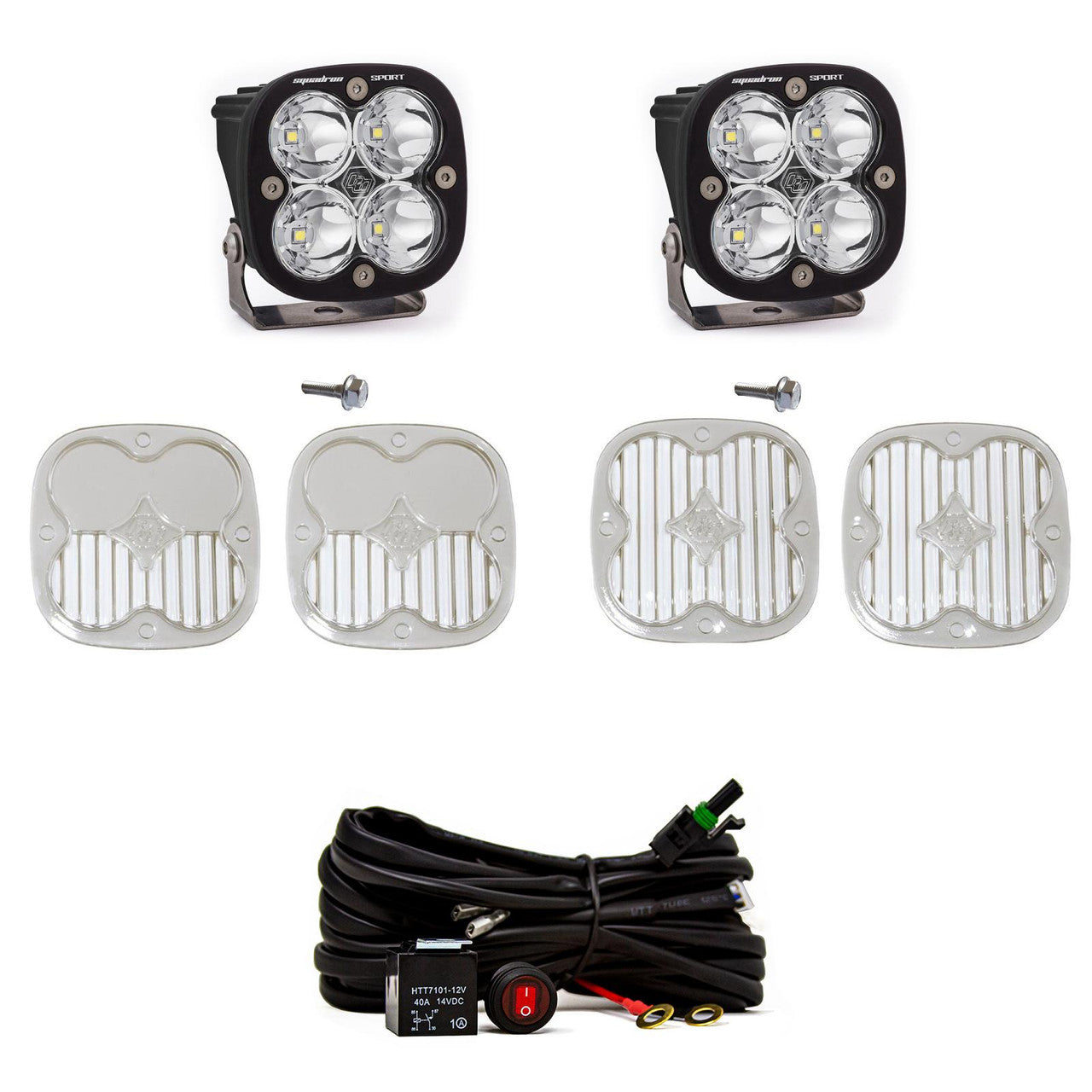

What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) Squadron Sport Spot LED pods | ✓ |
| (2) Wide Cornering lens set | ✓ — swap for near-field side coverage |
| (1) Driving/Combo lens set | ✓ — swap for balanced forward/spread pattern |
| Bronco A-pillar-specific mounting brackets | ✓ — bolt-on, no drilling |
| Upfitter wiring harness | ✓ |
| All mounting hardware | ✓ |
| Toggle-switch harness | ✗ NOT included — this kit uses the Upfitter harness variant |
A-Pillar Kit vs. Fog Pocket Kits — Bronco Lighting Positions
| Kit | Location | Pattern | Street Legal |
|---|---|---|---|
| This listing (447755UP) | A-pillar — high-mounted forward | Spot (plus bonus Wide Cornering and Driving/Combo lens sets) | Off-road only |
| Fog Pocket — Amber SAE (447762UP) | Factory fog pocket, standard bumper | SAE amber fog | Yes |
| Fog Pocket — S2 SAE Steel Bumper (448178UP) | Fog pocket, steel bumper | SAE fog | Yes |
Upfitter Switch Requirement
This kit version includes the upfitter harness instead of the standard harness with built-in toggle switch. The upfitter wiring setup is meant for connecting directly to factory upfitter auxiliary switches on the vehicle, or for connecting to a switching system such as an sPOD. Confirm your Bronco has the factory Upfitter switch panel before ordering — if not equipped, a different kit variant with a toggle harness is available. Stage3 Motorsports
Verified Fitment
| Vehicle | Years | Status |
|---|---|---|
| Ford Bronco (2-door and 4-door) | 2021–2026 | ✓ |
| Ford Bronco Raptor | 2022–2026 | ✓ — note AUX1/AUX3 wiring colors are switched vs. standard Bronco |
| Ford Bronco Sport | Any | ✗ Different platform and A-pillar configuration |
| Ford Bronco | 2020 and earlier | ✗ Not compatible |
| Ford F-150, Ranger, or other Ford models | Any | ✗ Different platform |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Broncos without Upfitter switches | This is the Upfitter harness variant — a toggle-switch harness variant exists for Broncos without Upfitter provisions |
| Bronco Raptor | Confirmed compatible, but AUX1 and AUX3 wiring colors are switched vs. regular Bronco — confirm your Raptor's wiring diagram before connecting |
| Public road use | A-pillar spot lights are off-road auxiliary lights — verify local regulations before use on public roads |
| Lens swapping | Kit includes Wide Cornering and Driving/Combo lens sets — swap using the uService design without tools |
Common Questions
What patterns can I run with this kit?
The pods ship in Spot configuration. The included Wide Cornering and Driving/Combo lens sets can be swapped in using Baja Designs' uService design — giving you three pattern options from one kit.
Does this fit the Bronco Raptor?
Yes, for 2022-2026. Note that the Bronco Raptor has AUX1 and AUX3 colors switched in the Upfitter wiring compared to the standard Bronco — confirm before connecting.
My Bronco doesn't have Upfitter switches. Does this kit work?
Not as-is. This kit uses the Upfitter harness variant. A different kit variant with a built-in toggle switch is available for Broncos without Upfitter provisions.
How long does installation take?
Under two hours for most installs, with no cutting or drilling required.
The Obsidian Take
The 447755UP is for the Bronco or Bronco Raptor owner who wants maximum forward reach from the A-pillar position — 3,150 lumens per pod in Spot configuration, with Wide Cornering and Driving/Combo lens sets included for easy pattern swapping. Upfitter-ready, no drilling, under two hours to install.
Two things to confirm before ordering: the Upfitter switch bank is present (otherwise you need the toggle-switch harness variant), and if you have a Raptor, verify the AUX1/AUX3 color swap in the wiring before connecting.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm Upfitter switch availability and Raptor wiring notes before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Input data omitted bonus lens sets (Wide Cornering and Driving/Combo) included in this kit, and did not include Bronco Raptor fitment (2022-2026) with the noted AUX1/AUX3 wiring difference. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
