Baja Designs Squadron SAE LED Auxiliary Light Pod Pair | Street-Legal SAE J583 | Clear | Aspheric Projector Optics | Harness Included | SKU 257801
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

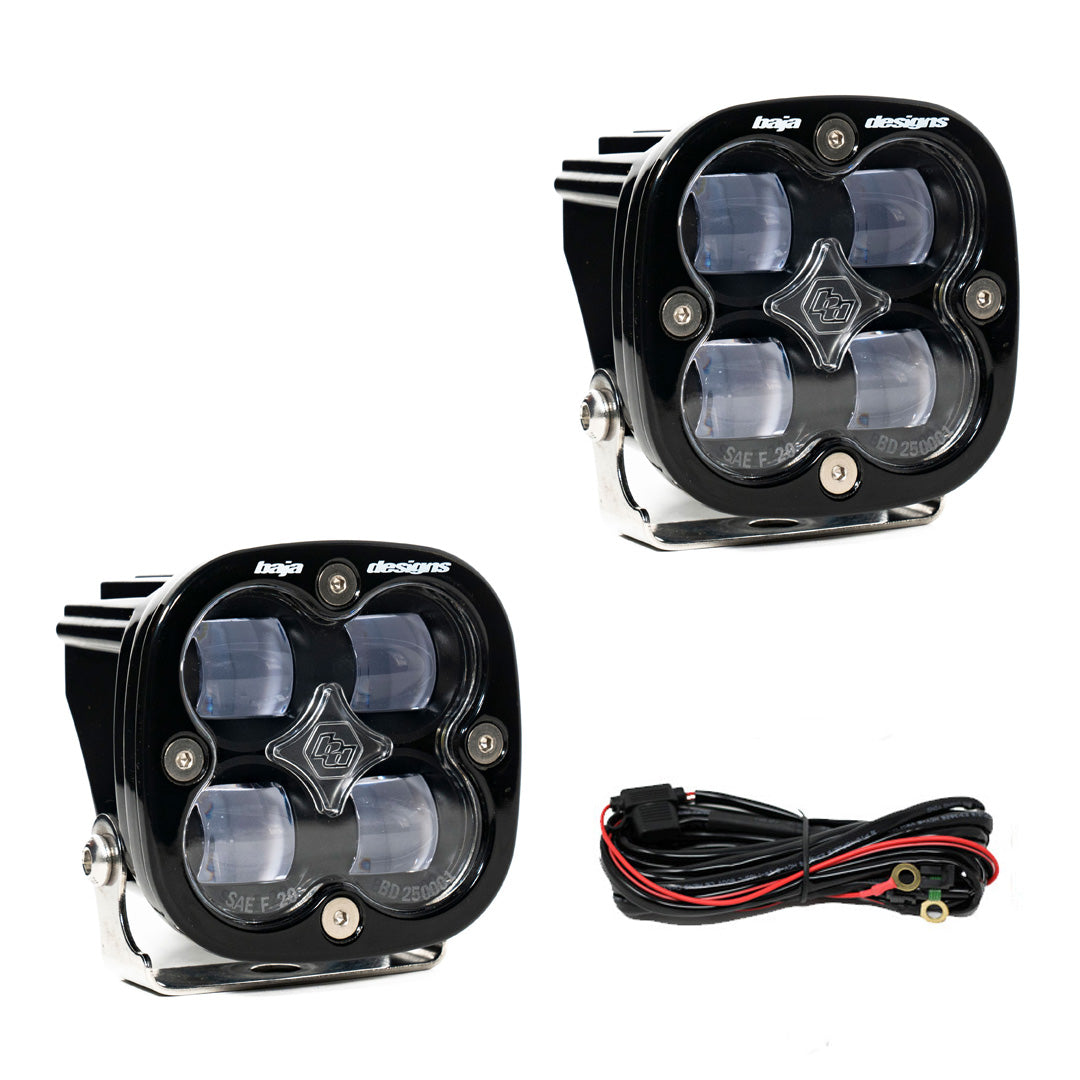

The Baja Designs Squadron SAE (SKU 257801) is a pair of next-generation SAE-compliant LED auxiliary light pods in clear lens — the perfect road-legal auxiliary fog light for trucks, SUVs, and off-road vehicles that see regular street use. Engineered with all-new aspheric projector optics, each pod delivers 2,420 lumens and up to 15,800 candela at just 29 watts, illuminating Lighting Zone 1 with a controlled, sharp cutoff that prevents glare to oncoming traffic. Designed and tested to meet SAE J583 fog lamp requirements — fully compliant with on-road regulations in most US jurisdictions when properly installed. This is a fundamentally different product from the off-road Squadron Sport — the Squadron Sport maximizes raw output without a regulated cutoff; the Squadron SAE is purpose-built for legal on-road use. Hard anodized and powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated clear polycarbonate lens, stainless steel hardware and brackets. ClearView optics, CopperDrive, MoistureBlock waterproofing to 9 feet. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection. Includes wiring harness and mounting brackets. 30-day money-back guarantee, limited lifetime warranty, USPTO Reg No. 5,766,659.
Important mounting note: If planning to mount this light upside down or sideways, contact Baja Designs to have the optics adjusted before ordering — incorrect orientation compromises the sharp cutoff pattern required for SAE J583 compliance.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 257801 |
| Brand | Baja Designs |
| Model | Squadron SAE |
| Lens | Clear, hardcoated polycarbonate |
| SAE Standard | SAE J583 fog lamp requirements |
| Optics | Aspheric projector — controlled sharp cutoff |
| Lumens | 2,420 per light |
| Peak Candela | Up to 15,800 per light |
| Wattage / Amperage | 29W / 2.1A |
| LEDs | 4 Cree LEDs per light |
| Dimensions | 3.48" x 3.48" x 2.77" |
| LED Life Expectancy | 49,930 hours |
| Housing | Hard anodized, powder-coated cast aluminum |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Street Legal | Yes — SAE J583 fog lamp compliant |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) Squadron SAE LED light pods, clear lens | ✓ |
| Wiring harness | ✓ |
| Mounting brackets | ✓ |
| Amber lens variant | ✗ NOT included — amber version available under SKU 257811 |
What SAE J583 Compliance Means
- SAE J583 is the specific DOT standard governing auxiliary fog lamps in the United States — this light is tested and compliant with that standard.
- Aspheric projector optics create a controlled, sharp beam cutoff that prevents glare to oncoming traffic — required for legal on-road auxiliary light use in most US states.
- Off-road lights (Squadron Sport, S2 Sport) do not meet SAE J583 and are not legal for use as auxiliary lights on public roads in most jurisdictions.
- Mounting orientation matters — inverted or sideways installation without factory optic adjustment compromises the cutoff. Contact Baja Designs before ordering if your mount requires a non-standard orientation.
- SAE J583 compliance does not guarantee legality in all jurisdictions — verify local regulations before installation.
Squadron SAE vs. Squadron Sport
| Configuration | SAE Compliant | Best For |
|---|---|---|
| Squadron Sport (off-road) | No | Maximum raw output — trail and off-road use only |
| Squadron SAE (this listing) | Yes — SAE J583 | Street-legal auxiliary fog use |
Common Questions
Does this come with a wiring harness?
Yes — wiring harness and mounting brackets are included.
What's the specific SAE standard this meets?
SAE J583 — the governing standard for auxiliary fog lamp compliance in the United States.
Can I mount this upside down?
Not without factory optic adjustment from Baja Designs — contact them before ordering if your mounting location requires an inverted or sideways orientation.
Is there an amber version available?
Yes — SKU 257811 is the same pod in amber lens for dust, fog, and low-visibility environments.
The Obsidian Take
The Squadron SAE Clear (257801) is for the daily driver, overlander, or trail rig that needs road-legal auxiliary fog lights without sacrificing Baja Designs' build quality. SAE J583 compliant, 2,420 lumens per light, sharp controlled cutoff, IP69K rated, harness and brackets included in the box.
The one mounting detail that matters most: if your location requires inverting or rotating the pod, contact Baja Designs first for factory optic adjustment — or the SAE cutoff won't perform as required.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mounting orientation and local regulations before ordering.
