Baja Designs Squadron Pro LED Light Pod Pair | Driving/Combo | Amber Lens | Harness Included | SKU 497813
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The Baja Designs Squadron Pro (SKU 497813) is a pair of high-output LED light pods in the Driving/Combo optic pattern with amber lens, packing significant output in the same compact 3" footprint as the Squadron Sport. The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation, reducing glare and improving contrast and depth perception in low-visibility conditions. The Driving/Combo pattern combines Driving (42°) and Spot (9°) optics for a smooth blend of near-field and long-range light — more forward reach than the Wide Cornering pattern while retaining the amber lens benefit for dust and fog environments. Sleek black gloss aluminum housing, hard anodized and powder-coated cast aluminum, billet-machined aluminum bezel, hardcoated amber polycarbonate lens, stainless steel hardware. CopperDrive circuitry, MoistureBlock waterproofing to 9 feet, uService replaceable lenses and optics, ClearView optical design. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection. Includes wiring harness with built-in switch and relay, plus mounting brackets — uses the same footprint as the Squadron Sport, so existing Squadron Sport mounts are compatible. 30-day money-back guarantee, limited lifetime warranty.
Note: The included harness has a built-in toggle switch and relay. If your vehicle has factory Upfitter auxiliary switches, you may prefer to purchase a separate Baja Designs "upfitter" harness instead.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 497813 |
| Brand | Baja Designs |
| Model | Squadron Pro |
| Lens | Amber, hardcoated polycarbonate |
| Pattern | Driving/Combo — 42° Driving + 9° Spot |
| Total Output | Approximately 4,900 lumens per light (confirm current generation) |
| LEDs | 4 Cree LEDs per light |
| Wattage / Amperage | 40W / 2.90A |
| Dimensions (per light) | 3.07" x 2.77" x 3.07" |
| Weight | 12 oz per light |
| LED Life Expectancy | 49,930 hours |
| Housing | Hard anodized, powder-coated cast aluminum, black gloss |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, submersible |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|

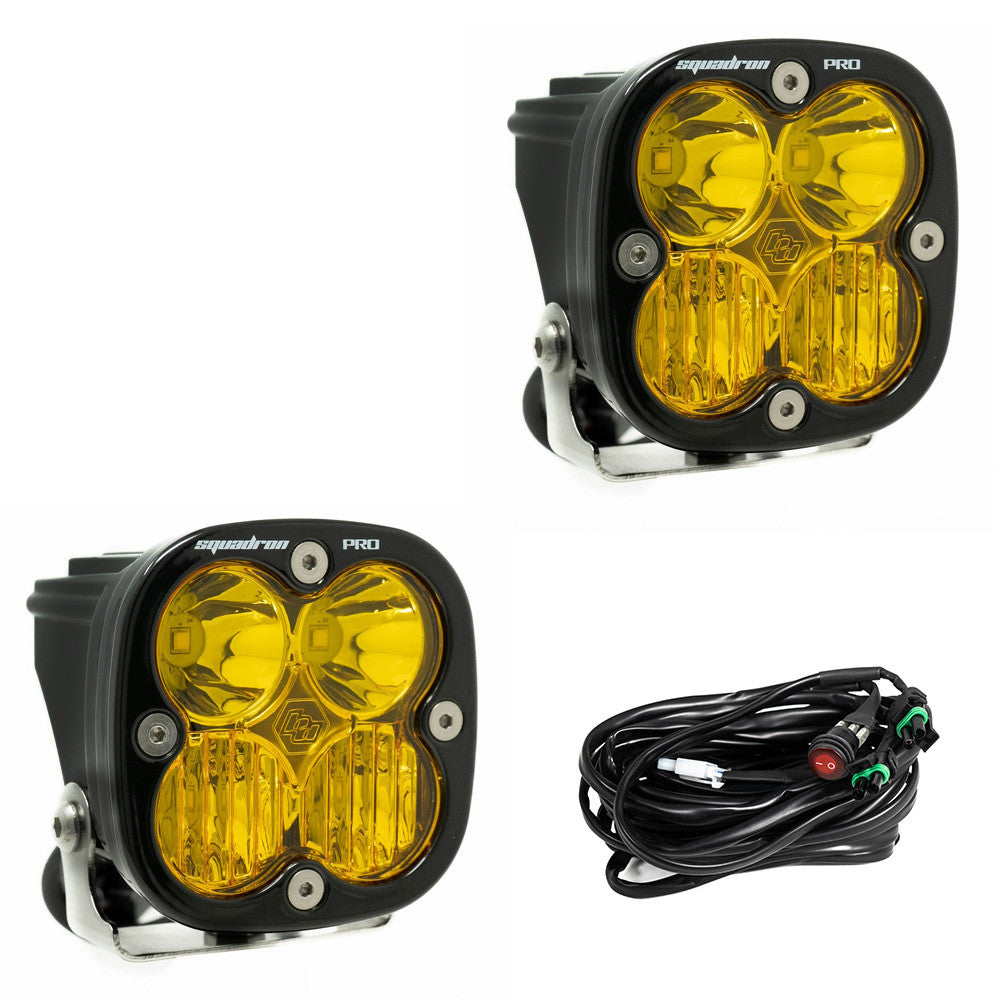

| (2) Squadron Pro LED light pods, amber lens | ✓ |
| Wiring harness with built-in toggle switch and relay | ✓ |
| Mounting brackets | ✓ |
| Upfitter-style harness | ✗ NOT included — sold separately for vehicles with factory Upfitter switches |
Squadron Pro vs. Squadron Sport — Amber Driving/Combo
| Model | LEDs | Output Tier | Footprint |
|---|---|---|---|
| Squadron Sport Amber Driving/Combo (557813) | 4 | High output | 3.07" x 2.77" x 3.07" |
| Squadron Pro Amber Driving/Combo (this listing) | 4 | Maximum output | 3.07" x 2.77" x 3.07" (identical) |
The Squadron Pro achieves higher output through advanced LED and driver technology at the same LED count and footprint as the Squadron Sport — not through a dual-row LED array.
Squadron Pro Complete Pattern and Lens Guide
| Pattern | Lens | SKU |
|---|---|---|
| Driving/Combo | Clear | 497803 |
| Driving/Combo (this listing) | Amber | 497813 |
| Wide Cornering | Amber | 497815 |
Amber Driving/Combo vs. Amber Wide Cornering — Which Pattern
| Configuration | Best For |
|---|---|
| Amber Driving/Combo (this listing) | Balanced forward throw and side spread — desert, dusty road, mixed terrain where forward visibility in dust matters |
| Amber Wide Cornering (497815) | Maximum side spread, minimal forward throw — slow-speed technical trail, switchbacks, cornering |
Verified Application
| Configuration | Status |
|---|---|

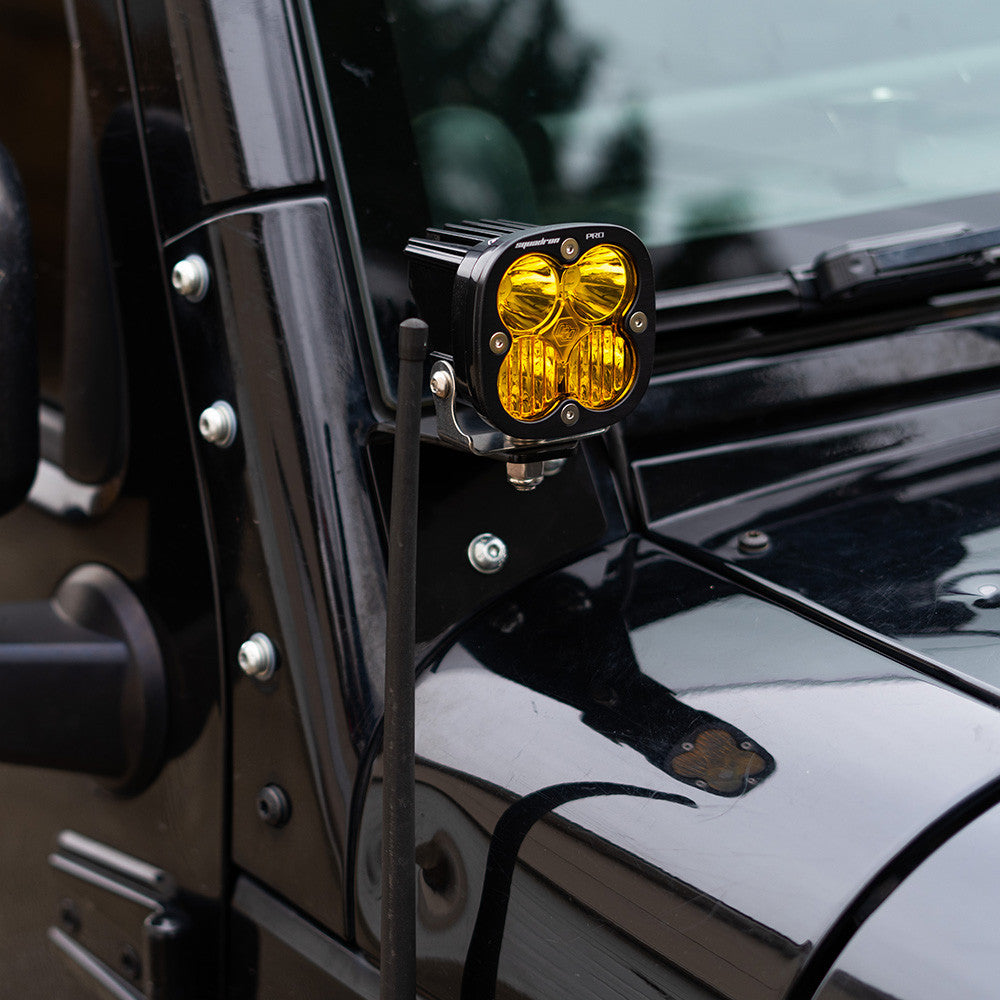

| Universal mount — trucks, Jeeps, SUVs, UTVs | ✓ |
| Existing Squadron Sport mounts | ✓ — same footprint, compatible |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Public road use | Amber auxiliary lighting legality may differ from white lighting by jurisdiction — verify compliance before street use |
| Mounting | Same footprint as Squadron Sport — existing Squadron Sport-compatible mounts work for this light |
| Vehicles with factory Upfitter switches | Consider a separate Upfitter-style harness instead of the included toggle-switch harness |
Common Questions
Does this come with a wiring harness?
Yes — a wiring harness with a built-in toggle switch and relay is included, along with mounting brackets.
Is this a dual-row LED light?
No. It uses 4 LEDs per light, the same count as the Squadron Sport — the higher output comes from more advanced LED and driver technology, not additional LEDs.
Will my existing Squadron Sport mount work for this light?
Yes — the Squadron Pro uses the identical footprint to the Squadron Sport.
Should I choose this or the Wide Cornering amber version (497815)?
This Driving/Combo version retains more forward throw alongside the amber benefit. The Wide Cornering version prioritizes side spread over forward reach.
The Obsidian Take
The Squadron Pro Driving/Combo Amber (497813) is for the desert racer or dust/fog-prone off-roader who wants the Squadron Pro's maximum output with meaningful forward reach alongside the amber lens benefit. Harness, brackets, and all hardware included.
If you already have Squadron Sport mounting brackets installed, this light drops right in as a direct output upgrade. And if your vehicle has factory Upfitter switches, consider swapping the included toggle harness for a dedicated Upfitter harness instead.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mounting compatibility before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Input data incorrectly described this as a dual-row LED light (confirmed 4 LEDs, same as Squadron Sport), incorrectly stated the wiring harness is sold separately (confirmed included), and significantly overstated weight. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
