Baja Designs Squadron Pro LED Light Pod Pair | Driving/Combo | Clear Lens | 4,900 Lumens | Harness Included | SKU 497803
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

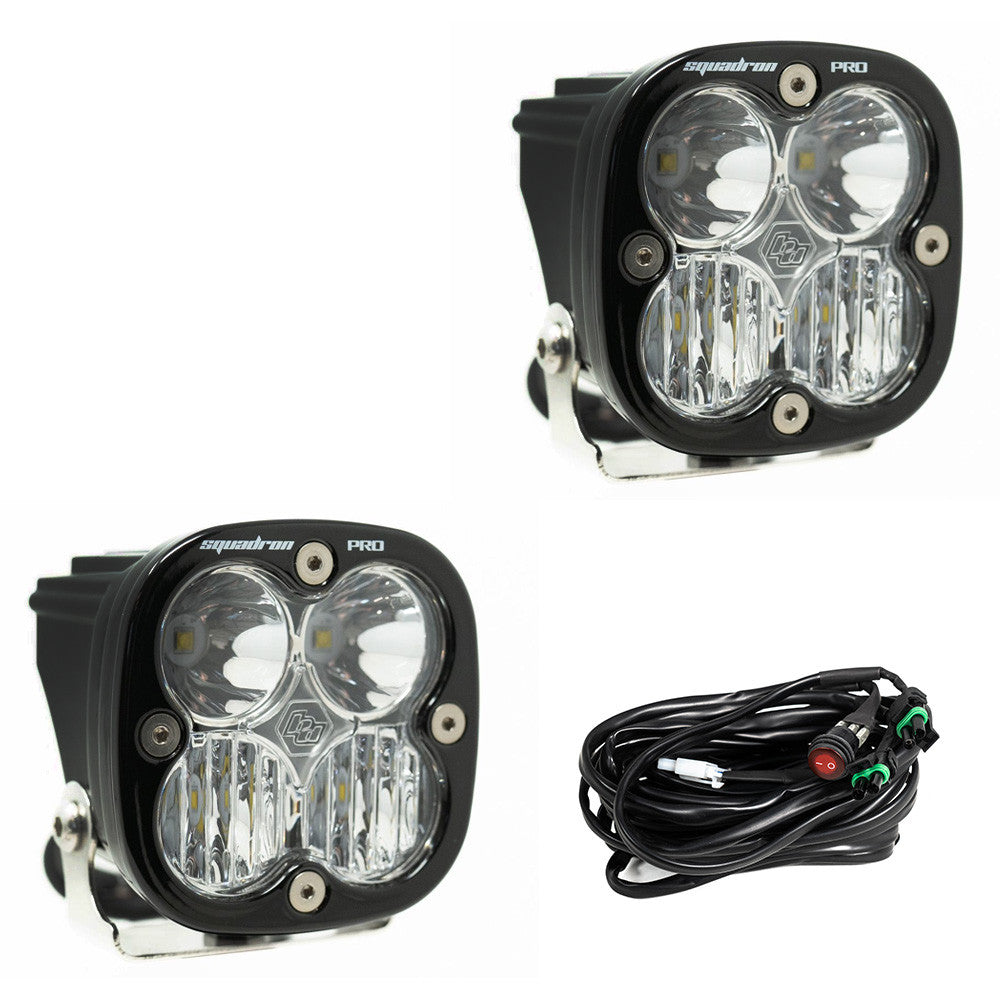

The Baja Designs Squadron Pro (SKU 497803) is a pair of high-output LED light pods in the Driving/Combo optic pattern with clear lens, packing 4,900 lumens at 40 watts in the same compact 3" footprint as the Squadron Sport. The Driving/Combo pattern combines Driving (42°) and Spot (9°) optics for a smooth blend of near-field and long-range light (Lighting Zone 3) — maximum trail coverage in a single light. Sleek black gloss aluminum housing, hard anodized and powder-coated cast aluminum, billet-machined aluminum bezel, hardcoated clear polycarbonate lens, stainless steel hardware. CopperDrive circuitry, MoistureBlock waterproofing to 9 feet, uService replaceable lenses and optics, ClearView optical design. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection. Includes wiring harness with built-in switch and relay, plus mounting brackets — uses the same footprint as the Squadron Sport, so existing Squadron Sport mounts are compatible. 30-day money-back guarantee, limited lifetime warranty, USPTO Reg No. 5,766,659.
Note: The included harness has a built-in toggle switch and relay. If your vehicle has factory Upfitter auxiliary switches (e.g., Bronco, JLU with Aux switches), you may prefer to purchase a separate Baja Designs "upfitter" harness instead.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 497803 |
| Brand | Baja Designs |
| Model | Squadron Pro |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Driving/Combo — 42° Driving + 9° Spot |
| Total Output | 4,900 lumens per light (sources vary 4,095–4,900; confirm current generation) |
| LEDs | 4 Cree LEDs per light |
| Wattage / Amperage | 40W / 2.90A |
| Dimensions (per light) | 3.07" x 2.77" x 3.07" |
| Weight | 12 oz per light |
| LED Life Expectancy | 49,930 hours |
| Housing | Hard anodized, powder-coated cast aluminum, black gloss |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, submersible |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) Squadron Pro LED light pods, clear lens | ✓ |
| Wiring harness with built-in toggle switch and relay | ✓ |
| Mounting brackets | ✓ |
| Upfitter-style harness | ✗ NOT included — sold separately for vehicles with factory Upfitter switches |
Squadron Pro vs. Squadron Sport — Same Footprint, Higher Output
| Model | LEDs | Lumens | Footprint |
|---|---|---|---|
| Squadron Sport | 4 | ~3,150–3,162 | 3.07" x 2.77" x 3.07" |
| Squadron Pro (this listing) | 4 | 4,900 | 3.07" x 2.77" x 3.07" (identical) |
The Squadron Pro achieves higher output through advanced LED and driver technology at the same LED count and footprint as the Squadron Sport — not through a dual-row LED array.
Baja Designs Pod Output Hierarchy
| Model | Footprint | Output Tier |
|---|---|---|
| S1 | Smallest, bracket included | Entry-level compact |
| S2 Sport | Mid-size compact | Mid-output, best value |
| S2 Pro | Same as S2 Sport | High-output compact |
| Squadron Sport | Larger Squadron body | High-output mid-size |
| Squadron Pro (this listing) | Same as Squadron Sport | Maximum-output mid-size |
| XL Sport | Largest pod body | Maximum output extended |
Verified Application
| Configuration | Status |
|---|---|
| Universal mount — trucks, Jeeps, SUVs, UTVs | ✓ |
| Existing Squadron Sport mounts | ✓ — same footprint, compatible |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Public road use | Auxiliary lighting legality varies by jurisdiction — verify compliance before street use |
| Mounting | Same footprint as Squadron Sport — existing Squadron Sport-compatible mounts work for this light |
| Vehicles with factory Upfitter switches | Consider a separate Upfitter-style harness instead of the included toggle-switch harness |
Common Questions
Does this come with a wiring harness?
Yes — a wiring harness with a built-in toggle switch and relay is included, along with mounting brackets.
Is this a dual-row LED light?
No. It uses 4 LEDs per light, the same count as the Squadron Sport — the dramatically higher output comes from more advanced LED and driver technology, not additional LEDs.
Will my existing Squadron Sport mount work for this light?
Yes — the Squadron Pro uses the identical footprint to the Squadron Sport.
My truck has factory Upfitter switches — should I use the included harness?
You can, but the included harness has its own toggle switch and relay, which may be redundant. Many owners with Upfitter-equipped vehicles purchase a separate Baja Designs Upfitter harness instead.
The Obsidian Take
The Squadron Pro (497803) is for the builder who wants maximum output in the Squadron body without stepping up to the larger XL Sport — 4,900 lumens from a 3" pod, harness and brackets included.
If you already have Squadron Sport mounting brackets installed, this light drops right in as a direct output upgrade. And if your vehicle has factory Upfitter switches, consider swapping the included toggle harness for a dedicated Upfitter harness instead.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mounting compatibility before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Input data incorrectly described this as a dual-row LED light (confirmed 4 LEDs, same as Squadron Sport), incorrectly stated the wiring harness is sold separately (confirmed included), and significantly overstated weight. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
