Baja Designs S8 50-Inch Amber LED Light Bar | Driving/Combo | Universal | SKU: 705013
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

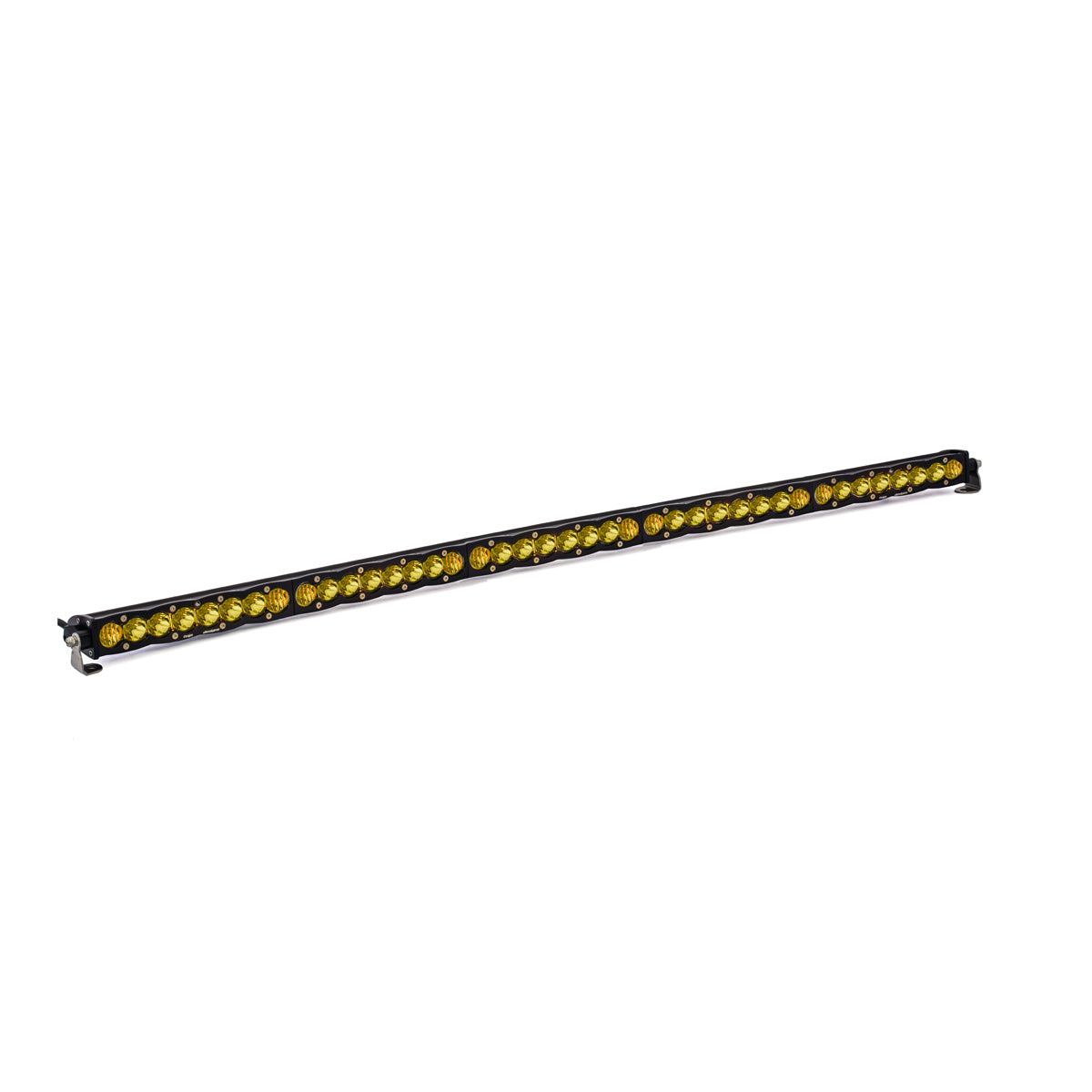

The Baja Designs S8 50-Inch Amber LED Light Bar (705013) is a 50-inch straight LED light bar in a driving/combo optic pattern with amber lens — the longest S8 bar in the OFAS catalog. The amber polycarbonate lens filters blue wavelengths that scatter in dust, fog, sand, and precipitation, delivering sharper contrast and usable forward throw in low-visibility conditions where a clear lens produces scatter-back. The driving/combo pattern gives you long-range forward projection with lateral spread across the full 50-inch width — purpose-built for wide roof racks, full-width chase racks, and any application requiring maximum amber coverage across the full vehicle or trailer width.
This is a web special — not a standard stocking item. Lead times may be longer than stocking products. Text (469) 407-7538 to confirm current availability and lead time before ordering.
If your rack accommodates 40 inches, see the S8 40-inch amber (704013) — a standard stocking item. If your primary environment is clean air and maximum white output is the priority, see the S8 40-inch clear (704003).
Universal mount. No brackets included. Wiring harness sold separately and required.
Component Specifications
| Component | Specification |
|---|---|
| SKU | 705013 |
| Brand | Baja Designs |
| Series | S8 — premium light bar |
| Length | 50 inches — straight profile |
| Lens | Amber — polycarbonate |
| Beam Pattern | Driving/Combo — long-range forward throw + lateral spread |
| IP Rating | IP69K — waterproof, dust-tight, pressure-wash rated |
| Color Temperature | Amber |
| Weight | 16 lbs |
| Mount | Universal — brackets sold separately, required |
| Wiring Harness | Sold separately — text (469) 407-7538 to confirm correct PN |
| Availability | Web Special — non-stocking item; confirm lead time before ordering |
| Fuel Type | Universal — no vehicle restriction |
| Application | Universal — wide roof racks, full-width chase racks, trailer-mounted lighting |
What Is and Is NOT Included
| Included | Not Included |
|---|---|
| S8 50-inch amber LED light bar | Mounting brackets — required, sold separately |
| Wiring harness — required, sold separately | |
| Vehicle-specific adapters |
Critical Compatibility
| Configuration | Compatibility |
|---|---|
| Roof rack or chase rack with mounting width under 50 inches | ❌ Not compatible — confirm your rack accommodates full 50-inch bar length before ordering |
| Any mount not structurally rated for 16 lbs plus vibration load at speed | ❌ Do not install — confirm structural rating before ordering |
| Factory wiring without relay harness | ❌ Not compatible — S8 draw exceeds factory switch circuit ratings |
| Clear-condition, clean-air primary use | ❌ Use-case mismatch — amber reduces output in clear air; see S8 40-inch clear 704003 |
| On-road use in amber-restricted jurisdictions | ❌ Verify compliance with your state DMV or DOT before road use |
| Buyers needing immediate availability | ⚠️ Web special — non-stocking item; text (469) 407-7538 to confirm lead time before ordering |
Availability, bracket, or harness question before you order? Text (469) 407-7538.
S8 Light Bar Length Reference
| SKU | Length | Lens | Pattern | Weight | Availability |
|---|---|---|---|---|---|
| 702003 | 20 inches | Clear | Driving/Combo | 7 lbs | Standard stock |
| 704003 | 40 inches | Clear | Driving/Combo | 13 lbs | Standard stock |
| 704013 | 40 inches | Amber | Driving/Combo | 13 lbs | Standard stock |
| 705013 | 50 inches | Amber | Driving/Combo | 16 lbs | Web special — confirm availability |
Installation Notes
Confirm availability and lead time before ordering. 705013 is a web special — not a standard stocking item. Text (469) 407-7538 to confirm current availability and lead time before placing your order. Do not order and assume immediate shipment.
Confirm your rack accommodates 50 inches before ordering. The S8 50-inch bar requires a wide roof rack or full-width chase rack with a mounting width of at least 50 inches. Measure your rack before purchasing — a 50-inch bar cannot be returned once mounting holes are drilled. If your rack accommodates 40 inches, see 704013.
Mounting brackets are required and not included. Confirm bracket compatibility with S8 50-inch bar mounting tab spacing before purchasing. Text (469) 407-7538 to confirm the correct bracket for your rack before ordering.
Relay harness is required before any wiring. The S8 50-inch amber bar draws more current than factory switch circuits are rated to handle. A relay harness rated for the S8 current draw must be purchased and installed before the bar connects to any power source. Text (469) 407-7538 to confirm the correct harness PN for the 50-inch bar before ordering.
Mount structural rating. At 16 lbs, confirm your roof rack or chase rack is structurally rated for the S8 50-inch system load and vibration forces at speed.
Aim before final torque. Set bar angle at your intended aim point before fully torquing mount hardware.
Connector sealing. Fully seat and weatherproof all wiring connectors after installation. IP69K rating applies to the bar housing — connector integrity is installer responsibility.
Road legality. Amber auxiliary lighting regulations vary by state. Verify compliance with your state DMV or DOT before on-road use.
Text (469) 407-7538 to confirm availability, lead time, harness PN, and bracket compatibility before ordering.
The Obsidian Take
The S8 50-Inch Amber is the correct bar for the build that needs full amber coverage across a wide rack or full-width chase rack in dust, fog, sand, or desert environments — 50 inches of S8 output in the lens built for conditions where white light works against you. If your rack is wide enough and your environment earns amber, this is the bar.
If your rack tops out at 40 inches, run 704013 — same amber lens, same driving/combo pattern, same S8 construction, standard stock availability without the lead time. If your environment is consistently clear and maximum white output is the priority, see 704003.
This is a web special. That means it does not ship off the shelf. Confirm availability with (469) 407-7538 before ordering — if the lead time does not work for your build timeline, 704013 is the right call while you wait.
The S8 50-Inch Amber is the bar for the widest builds in the worst visibility. If your rack is big enough and your environment is dusty enough, nothing else in this lineup covers the same ground.
Common Questions
How do I confirm my rack can accommodate a 50-inch bar?
Measure the usable mounting width on your roof rack or chase rack. The bar requires at least 50 inches of mounting width plus clearance for the mounting tabs. If your rack is under 50 inches, see 704013 for the 40-inch amber variant.
What is the lead time on this bar?
705013 is a web special — lead time varies and is not guaranteed. Text (469) 407-7538 before ordering to confirm current availability and expected ship date.
What harness do I need?
Harness PN depends on your vehicle and wiring configuration. Text (469) 407-7538 with your vehicle and mounting location to confirm the correct harness PN before ordering.
What is the difference between the S8 50-inch amber and the S8 40-inch amber?
The 50-inch bar (705013) covers wider rack and chase rack applications — 16 lbs, web special, non-stocking lead time. The 40-inch bar (704013) covers standard-width applications — 13 lbs, standard stock. Same amber lens, same driving/combo pattern, same S8 construction. Choose based on your rack width and availability requirements.
Is amber lighting legal on public roads?
Amber auxiliary lighting regulations vary by state. Verify compliance with your state DMV or DOT before on-road use.
Verified Fitment
Universal mount application. Compatible with any vehicle, truck, trailer, or equipment with a flat mounting solution that accommodates the S8 50-inch straight bar length and mounting tab spacing. Bracket selection, mount structural rating, and wiring harness compatibility are buyer's responsibility.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs product documentation and authorized distributor data. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
⚠️ Non-Returnable Notice: Electrical components that have been wired or powered are non-returnable. Confirm bracket, harness, and availability before ordering.
