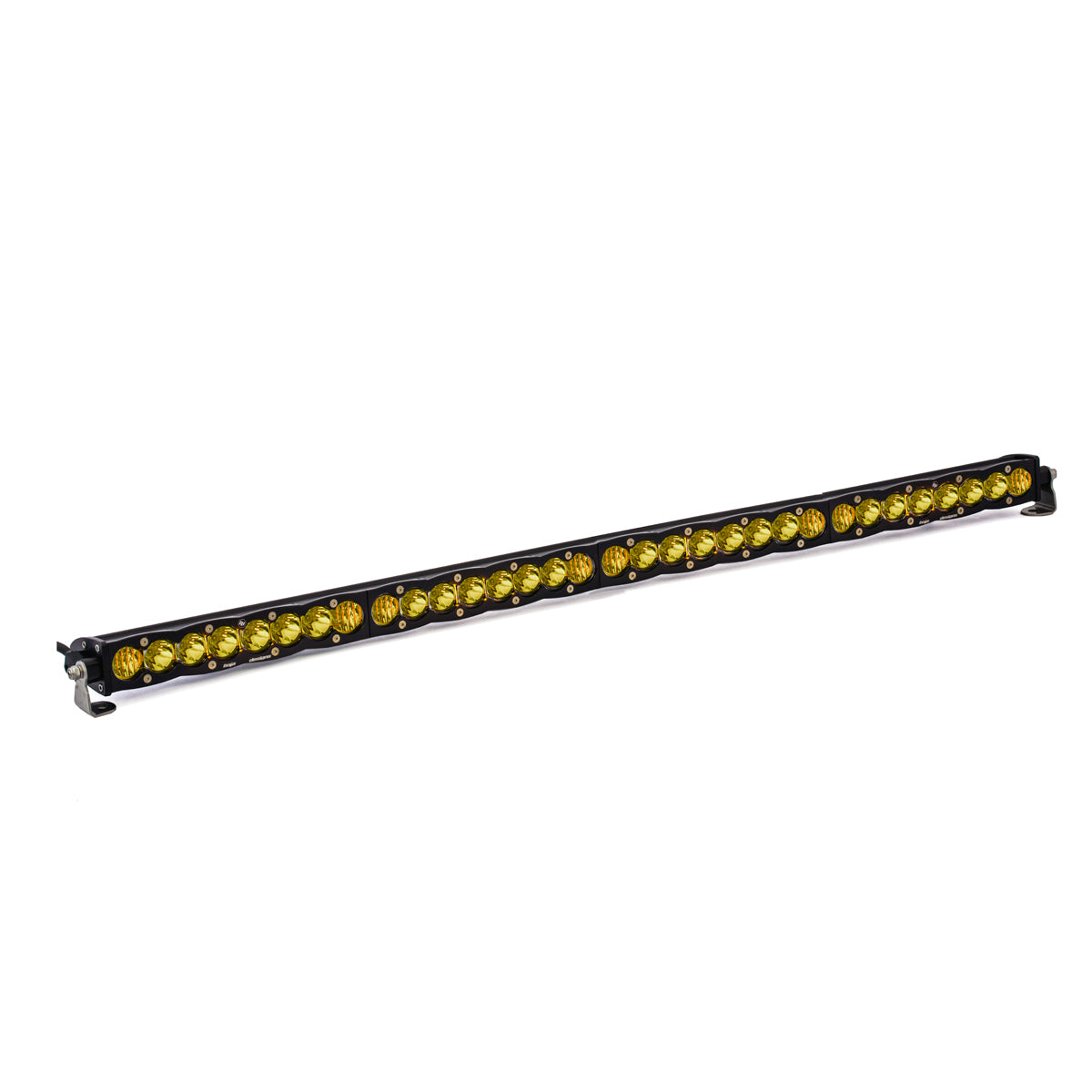

The Baja Designs S8 Amber (704013) is a 40-inch full amber LED light bar built for dust, fog, sand, and rain — environments where white light scatters back off airborne particulate and reduces effective visibility rather than extending it. Every primary LED in this bar outputs amber. There is no white output, no clear backlight, no mixed-spectrum operation. The amber lens filters the blue wavelengths responsible for scatter-back, delivering sharper contrast, better depth perception, and usable forward throw at speed in conditions that defeat a clear bar.
This is not the S8 with an amber backlight accent strip. The S8 Clear with Amber Backlight runs white primary LEDs with a secondary amber running light strip — maximum white output in clear conditions with amber accent. This bar is full amber output across every primary LED. If your primary environment is clear conditions and you want maximum white output, that is the correct bar, not this one.
The driving/combo pattern delivers long-range forward projection with lateral spread — more forward reach than a pure wide pattern, purpose-built for desert running, dusty trail, and low-visibility environments where both distance and peripheral coverage matter simultaneously.
Universal mount. Brackets sold separately. Wiring harness sold separately and required.
Component Specifications
| Component | Specification |
|---|---|
| SKU | 704013 |
| Brand | Baja Designs |
| Series | S8 — top-tier light bar series |
| Length | 40 inches |
| Beam Pattern | Driving/Combo — long-range forward throw + lateral spread |
| LED Output | Full amber — all primary LEDs output amber. Zero white output. |
| IP Rating | IP69K — waterproof, dust-tight, pressure-wash rated |
| Weight | 13 lbs |
| Mount | Universal — brackets sold separately |
| Wiring Harness | Sold separately — required |
| Fuel Type | Universal — no vehicle restriction |
| Application | Universal — truck, UTV, chase rack, roof rack, bumper |
What Is and Is NOT Included
| Included | Not Included |
|---|---|
| S8 40-inch amber LED light bar | Mounting brackets — required, sold separately |
| Wiring harness — required, sold separately | |
| Vehicle-specific adapters |
Critical Compatibility
| Configuration | Compatibility |
|---|---|
| Any mount not confirmed for 40-inch bar length and S8 mounting tab spacing | ❌ Measure before ordering — a 40-inch bar cannot be returned once mounting holes are drilled |
| Roof rack, bumper, or chase rack with opening under 40 inches | ❌ Not compatible — confirm your mounting location accommodates full bar length before ordering |
| Factory wiring without relay harness | ❌ Not compatible — S8 draw exceeds factory switch circuit ratings; relay harness required |
| Clear-condition, clean-air primary use | ❌ Use-case mismatch — full amber output is lower than clear in clean air; see S8 Clear variants |
| On-road use in amber-restricted jurisdictions | ❌ Verify compliance with your state DMV or DOT before road use |
| S8 Clear + Amber Backlight buyers wanting full amber output | ❌ Different product — S8 Clear Amber Backlight runs white primary LEDs with amber accent strip only |
Mounting or wiring question before you order? Text (469) 407-7538.
Full Amber vs. Clear with Amber Backlight — Critical Distinction
| S8 Full Amber — 704013 | S8 Clear + Amber Backlight | |
|---|---|---|
| Primary LED Output | Full amber — every LED | White/clear — every primary LED |
| Amber Coverage | Entire bar | Secondary accent strip only |
| Best For | Dust, fog, desert, sand, rain | Mixed conditions — white primary, amber accent |
| Output in Clear Conditions | Reduced vs. clear | Maximum |
| Scatter Control in Dust/Fog | High — full amber spectrum | Low on primary LEDs |
Installation Notes
Measure your mounting location before ordering. The S8 is 40 inches long. Confirm your roof rack, bumper, or chase rack opening accommodates the full bar length and S8 mounting tab spacing before purchasing. A 40-inch bar cannot be returned once mounting holes are drilled — measure first.
Mounting brackets are required and not included. Order vehicle-specific or universal S8 mounting brackets separately. Confirm bracket compatibility with S8 mounting tab dimensions before purchasing.
Relay harness is required before any wiring. The S8 Amber draws more current than factory light switch circuits are rated to handle. A relay harness rated for the S8 current draw must be purchased and installed before the bar connects to any power source. Do not wire direct. Not included.
Aim before final torque. Set beam angle at your intended aim point before fully torquing mount hardware.
Connector sealing. Fully seat and weatherproof all wiring connectors after installation. IP69K rating applies to the bar housing — connector integrity is installer responsibility.
Road legality. Amber auxiliary lighting regulations vary by state. Off-highway use is unrestricted. For on-road use, verify compliance with your state DMV or DOT before mounting.
Text (469) 407-7538 to confirm the correct bracket and harness for your application before ordering.
The Obsidian Take
If your rig runs desert, dusty trail, sand, or fog with regularity and you need amber output across the entire bar — not an accent strip, not a backlight, every primary LED — the S8 Amber is the correct bar. IP69K housing, 40 inches of full amber output, driving/combo pattern that gives you both the forward throw to navigate at speed and the lateral spread to read the terrain off centerline. This is Baja Designs' top-tier light bar series running the correct lens for the environment it was built for.
If your environment is consistently clear and your priority is maximum raw white output, this is the wrong bar. The S8 Clear delivers full white output in clean conditions — amber sacrifices raw output in exchange for low-visibility performance that clean air does not require.
If you want white primary output with an amber running light strip for mixed-condition use, the S8 Clear with Amber Backlight is the correct configuration — the primary LEDs run white, the amber accent handles the low-visibility presence light.
The S8 Amber is purpose-built for one thing: environments where the air is never clean and every foot of forward throw has to fight through what's in it.
Common Questions
What is the difference between the S8 Amber and the S8 Clear with Amber Backlight?
The S8 Amber (704013) outputs amber from every primary LED — zero white output, full amber spectrum across the entire bar. The S8 Clear with Amber Backlight runs white primary LEDs with a secondary amber strip for running light or accent use. If you need full amber output for dedicated dust and fog use, this is the correct bar. If you need white primary output with an amber accent, that is the correct bar.
Are mounting brackets included?
No. Universal or vehicle-specific S8 mounting brackets are sold separately. Confirm bracket compatibility with S8 mounting tab spacing before purchasing.
Is the wiring harness included?
No. A relay harness rated for the S8 current draw is required and sold separately. Do not wire the S8 to factory switch circuits without a relay harness.
Will this fit my roof rack / bumper / chase rack?
Confirm your mounting location accommodates 40 inches of bar length and S8 mounting tab spacing before ordering. Measure first — a 40-inch bar cannot be returned once mounting holes are drilled.
Is amber lighting legal on public roads?
Amber auxiliary lighting is legal for off-highway use. On-road legality varies by state — verify compliance with your state DMV or DOT before road use.
Verified Fitment
Universal mount application. Compatible with any vehicle, truck, UTV, or equipment with a mounting solution that accommodates the S8 40-inch bar length and mounting tab spacing. Bracket selection and wiring harness compatibility are buyer's responsibility.
