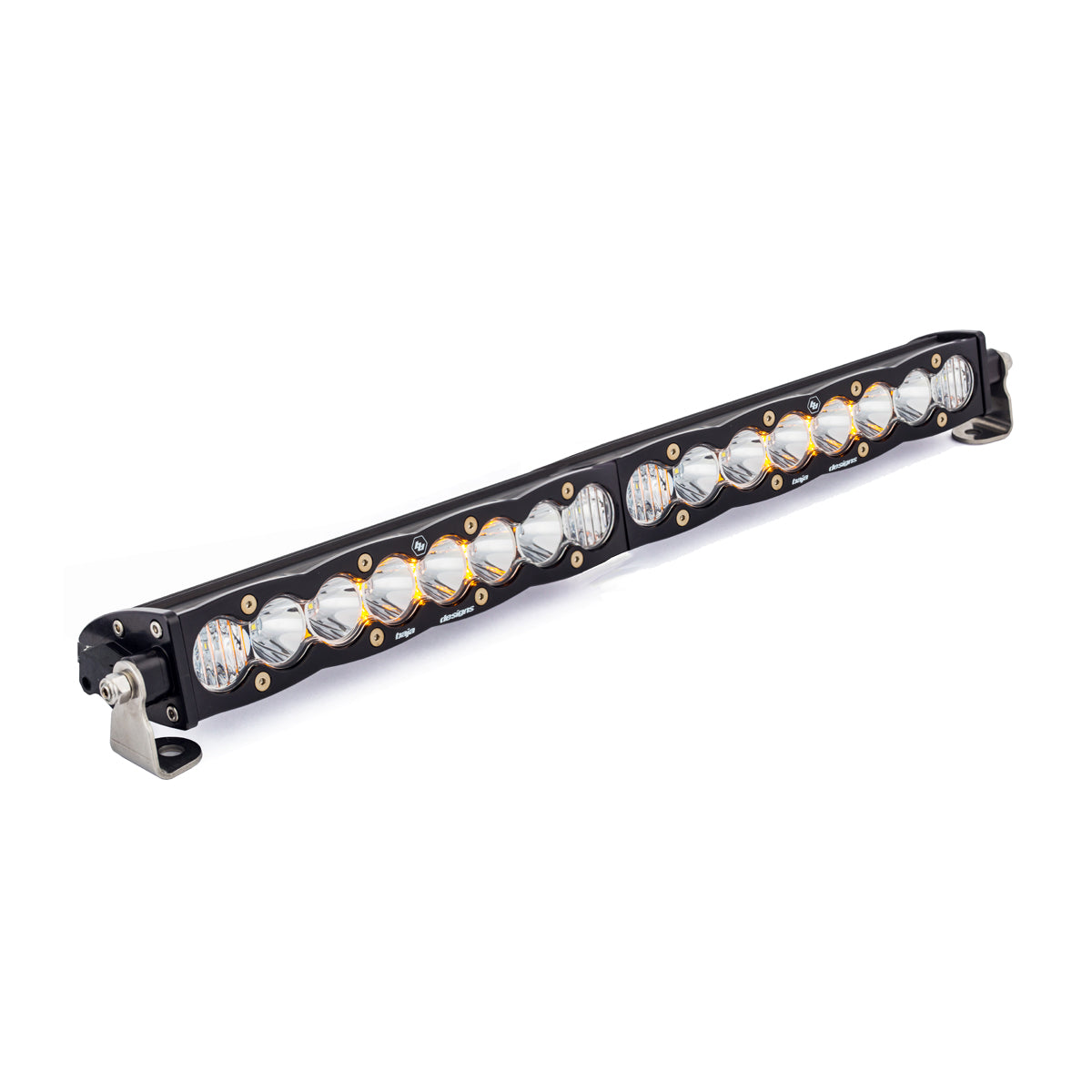

Baja Designs S8 20" LED Light Bar | Single Straight | Driving/Combo | Amber Backlight | 12,700 Lumens | Universal | SKU 702003
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The Baja Designs S8 20" LED Light Bar (SKU 702003) is a single straight light bar in the Driving/Combo optic pattern, delivering 12,700 lumens from 16 Cree XP-G2 LEDs at just 8.00 amps — the highest lumen output available in a 20" light bar, with HID-like distance projection and the smooth spread of an LED. The Driving/Combo pattern combines Driving (42°) and Spot (9°) optics for a smooth blend of near-field and long-range light (Lighting Zone 3). A one-of-a-kind user-changeable optics system lets you swap patterns — Driving/Combo, Spot, or Wide Cornering — without voiding the warranty. Features an amber backlit accent and a distinctive scalloped housing design. Aircraft-grade aluminum housing with mil-spec hard anodize, billet-machined aluminum bezel, hardcoated polycarbonate lens, stainless steel hardware. Integrated thermal heat management system. CopperDrive circuitry, MoistureBlock waterproofing, uService replaceable lenses and optics, ClearView optical design. 5000K daylight color temperature. IP69K rated, submersible to 9 feet, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection. Mounting brackets included. 30-day money-back guarantee, limited lifetime warranty.
This light does not come with a wiring harness. Compatible harnesses: PN 640115 (on/off, 3-pin, for one light 10"-30") or PN 640122 (on/off with mode switch, enables independent amber backlight control) — sold separately.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 702003 |
| Brand | Baja Designs |
| Series | S8 — premium light bar |
| Length | 20 inches — single straight |
| Pattern | Driving/Combo — 42° Driving + 9° Spot |
| Total Output | 12,700 lumens |
| LEDs | 16 Cree XP-G2 LEDs |
| Wattage / Amperage | 120W / 8.00A |
| Dimensions | 20" x 3" x 1.6" |
| Weight | 4.5 lbs |
| LED Life Expectancy | 49,930 hours |
| Backlight | Amber, accent feature |
| Housing | Aircraft-grade aluminum, mil-spec hard anodize |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| Optics | User-changeable — Driving/Combo, Spot, Wide Cornering |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| S8 20" LED light bar (clear or amber lens option) | ✓ |
| Mounting brackets | ✓ |
| Wiring harness | ✗ NOT included — order PN 640115 or 640122 separately |
S8 Light Bar Length Guide
| Length | SKU | Best For |
|---|---|---|
| S8 10-Inch — RZR Hood Mount Kit | 447072 | Vehicle-specific, Polaris RZR XP Turbo/Turbo S |
| S8 20-Inch (this listing) | 702003 | Bumper, grille guard, mid-width roof rack |
| S8 40-Inch — Clear | 704003 | Full roof rack/chase rack coverage |
| S8 40-Inch — Amber | 704013 | Full coverage, dust/fog environments |
Wiring Harness Options — Sold Separately
| Harness PN | Function |
|---|---|
| 640115 | On/off, 3-pin — for one S8 or OnX6+ light, 10"-30" |
| 640122 | On/off with mode switch — enables independent amber backlight control |
Verified Application
| Application | Status |
|---|---|
| Universal mount — trucks, Jeeps, UTVs, ATVs | ✓ |
| Bumper, grille guard, roof rack, A-pillar mounts sized for 20" bar | ✓ — confirm mounting tab spacing |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Wiring harness | Not included — order 640115 or 640122 separately depending on whether backlight mode control is desired |
| Public road use | Auxiliary lighting legality varies by jurisdiction — verify compliance before street use |
Common Questions
Does this come with mounting brackets?
Yes — mounting brackets are included.
Does this come with a wiring harness?
No. Order harness PN 640115 (basic on/off) or 640122 (on/off with backlight mode switch) separately.
Can I change the beam pattern later?
Yes — this bar uses a user-changeable optics system, letting you swap between Driving/Combo, Spot, and Wide Cornering without voiding the warranty.
What's the amber backlight for?
It's an accent feature built into the bar's design — for independent control of this function, use harness PN 640122 instead of the basic 640115.
The Obsidian Take
The S8 20" (702003) is for the builder who wants the highest lumen output available in this bar length — 12,700 lumens, HID-like distance projection with LED spread, a swappable optics system for changing beam patterns down the road, and an amber backlight accent.
Budget for the wiring harness separately, and choose 640122 over the basic 640115 if you want independent control of the amber backlight feature.
