Baja Designs S2 Sport LED Light Pair | Wide Cornering | Amber Lens | Harness & Brackets Included | SKU 547815
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

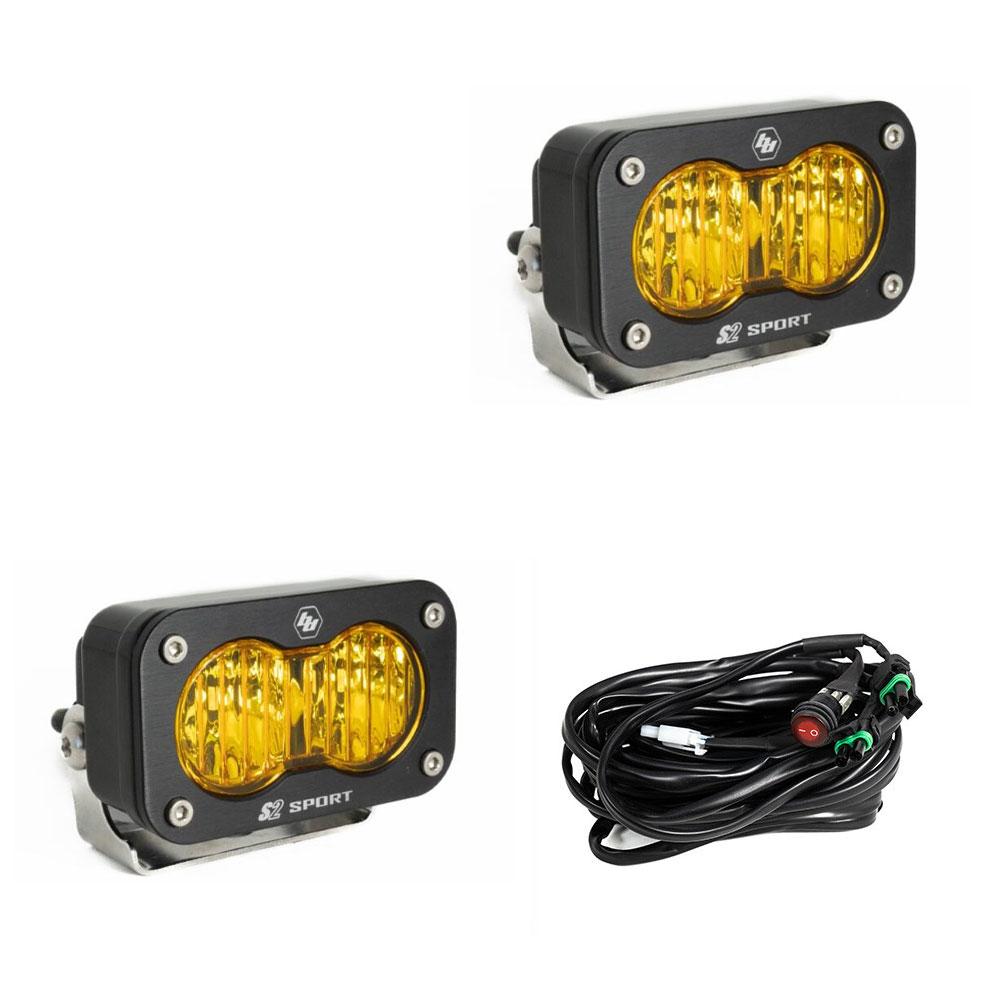

The Baja Designs S2 Sport (SKU 547815) is a pair of compact, high-output LED auxiliary lights in the Wide Cornering optic pattern with amber lens. Baja Designs was first to develop a pattern specifically for cornering, dust, snow, rain, and fog conditions — this Wide Driving pattern delivers a 42° flattened horizontal beam (Lighting Zones 1 & 2) for maximum side spread and comfort lighting at slow speeds. The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation, reducing glare and improving contrast in low-visibility conditions — it does not improve visibility in clear conditions; for that, use the clear-lens Driving/Combo pattern (SKU 547803). Hard anodized and powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated polycarbonate amber lens. MoistureBlock waterproof to 9 feet, CopperDrive circuitry, uService replaceable lenses and optics, ClearView optical design. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection, stainless steel hardware and brackets. Includes wiring harness and mounting brackets. 30-day money-back guarantee, limited lifetime warranty (or 49,930 hours, whichever comes first).
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 547815 |
| Brand | Baja Designs |
| Model | S2 Sport |
| Lens | Amber, hardcoated polycarbonate |
| Pattern | Wide Cornering / Wide Driving — 42° flattened horizontal beam |
| Total Output | 1,581 lumens per light (some sources cite 1,130 — confirm before publishing) |
| Wattage / Amperage | 12.42W / 0.9A |
| Dimensions (per light) | 2.93" x 1.76" x 1.68" |
| Weight | 8 oz per light (0.5 lbs) |
| LED Life Expectancy | 49,930 hours |
| Housing | Hard anodized, powder-coated cast aluminum |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime or 49,930 hours, whichever comes first |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) S2 Sport LED light pods, amber lens | ✓ |
| Wiring harness | ✓ |
| (2) mounting brackets, stainless steel | ✓ |
| Vehicle-specific mounting bracket | ✗ NOT included — universal mount; vehicle-specific brackets sold separately if needed |
Why Amber Lens + Wide Cornering
- Amber lens: Filters blue light wavelengths that scatter in dust, fog, sand, and rain. Reduces glare and eye fatigue in low-visibility conditions. Does not improve visibility in clear conditions — for clear conditions, use the clear-lens version (SKU 547803).
- Wide cornering/driving pattern: 42° flattened horizontal beam for maximum side spread with minimal forward throw. Best for slow-speed trail navigation, cornering, switchbacks, dust, snow, rain, and fog conditions.
- Combined use case: Purpose-built for desert racing, dust environments, fog, and any condition where forward scatter reduces visibility with a clear lens.
S2 Sport Optic Pattern Guide
| Pattern | Lens | SKU | Best For |
|---|---|---|---|
| Driving/Combo | Clear | 547803 | All-around trail, road, work use in clear conditions |
| Wide Cornering (this listing) | Amber | 547815 | Low-visibility, slow-speed, dust/fog/precipitation environments |
Verified Application
| Configuration | Status |
|---|---|
| Universal mount — trucks, SUVs, UTVs, off-road vehicles | ✓ |
| Standard tube mount, bumper mount, or surface mount | ✓ — confirm specific mounting solution compatibility |
| Vehicle-specific direct-fit kits (e.g., Tacoma ditch light brackets) | ✓ — available separately for specific platforms |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Clear-condition visibility | Amber lens does not improve clear-condition visibility — use clear lens (547803) instead |
| Public road use | Amber auxiliary lighting legality may differ from white lighting by jurisdiction — verify compliance before use on public roads |
| Aim direction | Aim to maximize side spread per your specific application before final torque |
Common Questions
Does this come with a wiring harness?
Yes, included with this pair.
Why amber instead of clear?
Amber filters blue light wavelengths that scatter in dust, fog, sand, and rain, reducing glare and improving contrast — it's purpose-built for low-visibility conditions, not for general clear-weather use.
Is amber lighting legal on the road?
Varies by jurisdiction — amber auxiliary lights may have different legal status than white lights. Verify your local regulations before street use.
What's the actual lumen output?
Most detailed manufacturer spec sheets show 1,581 lumens per light for this amber variant; some retailer listings show 1,130. Confirm directly with Baja Designs if exact lumen output is critical for your application.
The Obsidian Take
The S2 Sport Wide Cornering Amber (547815) is for the desert racer, fog-prone trail rider, or dust-heavy off-roader who needs side visibility and reduced glare in low-visibility conditions — not a general-purpose light. Amber lens, 42° wide cornering pattern, harness and brackets included.
If you primarily run in clear conditions, the clear-lens Driving/Combo (547803) is the better-suited light — amber won't add value there.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mounting compatibility before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
