Baja Designs S2 Sport LED Light Pair | Driving/Combo | Amber Lens | Harness & Bracket Included | SKU 547813
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

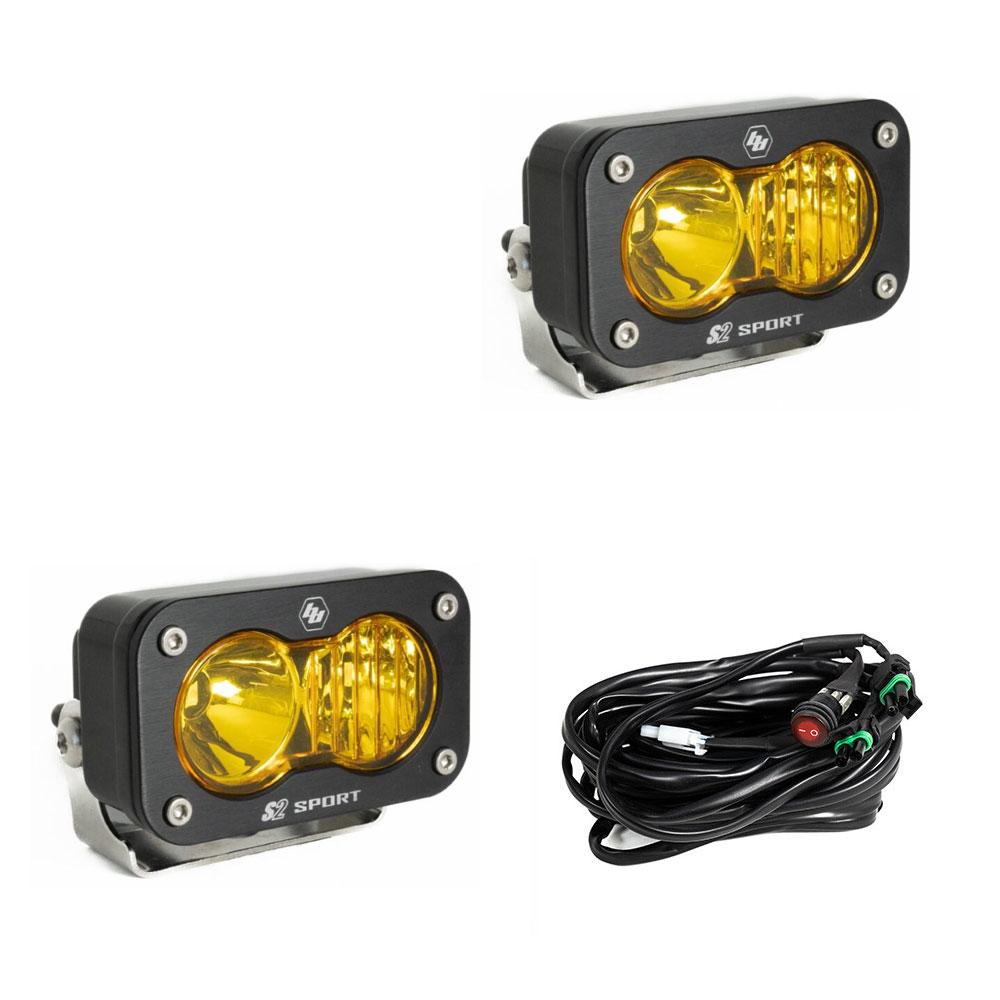

The Baja Designs S2 Sport (SKU 547813) is a pair of compact, high-output LED auxiliary lights in the Driving/Combo optic pattern with amber lens. The Driving/Combo pattern combines Driving (42°) and Spot (9°) optics for a smooth blend of near-field and long-range light (Lighting Zone 3) — more forward reach than the Wide Cornering pattern while retaining the amber lens benefit. The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation, reducing glare and improving contrast in low-visibility conditions; in clear conditions, amber reduces total output compared to clear lens — for clear conditions, use the clear-lens Driving/Combo (SKU 547803) instead. Hard anodized and powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated polycarbonate amber lens. MoistureBlock waterproof to 9 feet, CopperDrive circuitry, uService replaceable lenses and optics, ClearView optical design. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection, stainless steel hardware and brackets. Includes wiring harness and mounting brackets. 30-day money-back guarantee, limited lifetime warranty (or 49,930 hours, whichever comes first).
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 547813 |
| Brand | Baja Designs |
| Model | S2 Sport |
| Lens | Amber, hardcoated polycarbonate |
| Pattern | Driving/Combo — 42° Driving + 9° Spot |
| Total Output | 1,581 lumens per light (some sources cite 1,130 — confirm before publishing) |
| Wattage / Amperage | 12.42W / 0.9A |
| Dimensions (per light) | 2.93" x 1.76" x 1.68" |
| Weight | 8 oz per light |
| LED Life Expectancy | 49,930 hours |
| Housing | Hard anodized, powder-coated cast aluminum |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime or 49,930 hours, whichever comes first |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) S2 Sport LED light pods, amber lens | ✓ |
| Wiring harness | ✓ |
| (2) mounting brackets, stainless steel | ✓ |
| Vehicle-specific mounting bracket | ✗ NOT included — universal mount; vehicle-specific brackets sold separately if needed |
Amber Driving/Combo vs. Other S2 Sport Variants
| Configuration | SKU | Best For |
|---|---|---|
| Clear lens + Driving/Combo | 547803 | Maximum output in clear conditions — best all-around |
| Amber lens + Driving/Combo (this listing) | 547813 | Long-range forward throw with amber benefit — dust/fog with forward reach still needed |
| Amber lens + Wide Cornering | 547815 | Maximum side spread with amber benefit — slow-speed, cornering, dust |
Why Amber Lens
Amber lens filters blue light wavelengths that scatter in dust, fog, sand, and rain. This reduces glare and eye fatigue and improves contrast in low-visibility conditions. In clear conditions, amber lens reduces total output compared to clear lens — for clear conditions, use 547803 (clear Driving/Combo) instead.
Verified Application
| Configuration | Status |
|---|---|
| Universal mount — trucks, SUVs, UTVs, off-road vehicles | ✓ |
| Standard tube mount, bumper mount, or surface mount | ✓ — confirm specific mounting solution compatibility |
| Vehicle-specific direct-fit kits | ✓ — available separately for specific platforms |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Clear-condition use | Amber lens reduces total output in clear conditions compared to clear lens — use 547803 for general clear-weather use |
| Public road use | Amber auxiliary lighting legality may differ from white lighting by jurisdiction — verify compliance before use on public roads |
Common Questions
Does this come with a wiring harness?
Yes, included with this pair.
Why choose this over the amber Wide Cornering version (547815)?
This Driving/Combo version retains more forward throw alongside the amber lens benefit, useful when you still need distance lighting in dust or fog. The Wide Cornering version prioritizes side spread over forward reach.
What's the actual lumen output?
Most detailed manufacturer spec sheets show 1,581 lumens per light for this amber variant; some retailer listings show 1,130. Confirm directly with Baja Designs if exact lumen output is critical for your application.
Is amber lighting legal on the road?
Varies by jurisdiction. Verify your local regulations before street use.
The Obsidian Take
The S2 Sport Driving/Combo Amber (547813) is for the desert racer or dust/fog-prone off-roader who still wants meaningful forward throw alongside the amber lens benefit — a middle ground between the maximum side-spread amber Wide Cornering version and the clear-lens, clear-conditions Driving/Combo. Harness and brackets included.
If you primarily drive in clear conditions, the clear-lens version (547803) delivers more total output for the same use case.
