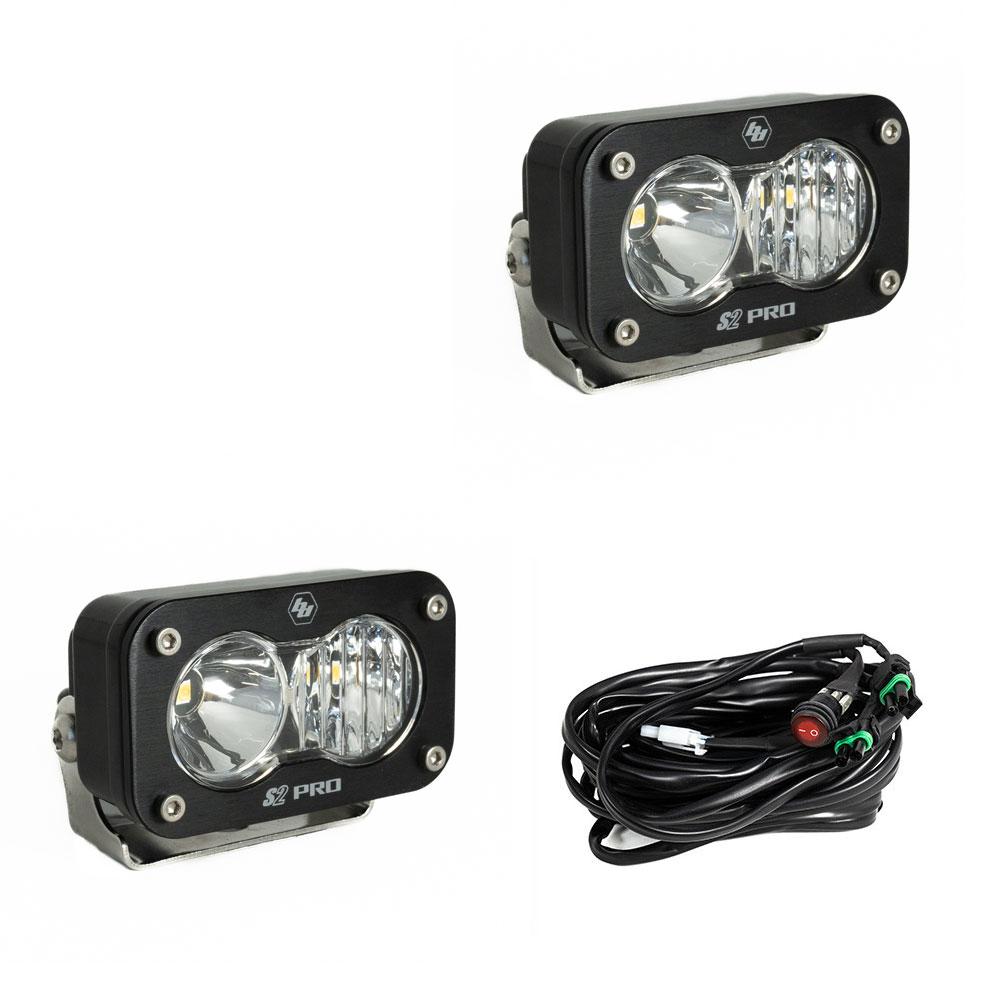

Baja Designs S2 Pro LED Light Pod Pair | Driving/Combo | Clear Lens | 2,450 Lumens | Harness Included | SKU 487803
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The Baja Designs S2 Pro (SKU 487803) is a pair of high-output LED light pods in the Driving/Combo optic pattern with clear lens, delivering 2,450 lumens from a tiny 3" x 2" housing — quite literally the brightest LED light ounce-for-ounce on the market. The S2 Pro is the premium tier of the S2 lineup, drawing on advanced LED technology to deliver significantly more output than the S2 Sport in the exact same compact footprint, while only drawing 24 watts. The Driving/Combo pattern combines Driving (42°) and Spot (9°) optics for a smooth blend of near-field and long-range light (Lighting Zone 3), making it the best all-around pattern for trail, desert, and road use. Hard anodized and powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated clear polycarbonate lens, stainless steel hardware. CopperDrive circuitry, MoistureBlock waterproofing to 9 feet, uService replaceable lenses and optics, ClearView optical design. 5000K daylight color temperature. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection. Includes wiring harness and mounting brackets — uses the same footprint as the S2 Sport, so existing S2 Sport mounts are compatible. 30-day money-back guarantee, limited lifetime warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 487803 |
| Brand | Baja Designs |
| Model | S2 Pro |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Driving/Combo — 42° Driving + 9° Spot |
| Total Output | 2,450 lumens per light |
| LEDs | 2 LEDs per light |
| Wattage / Amperage | 24W / 1.70A |
| Dimensions (per light) | 2.93" x 1.76" x 1.68" |
| Weight | 8 oz per light |
| LED Life Expectancy | 49,930 hours |
| Housing | Hard anodized, powder-coated cast aluminum |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) S2 Pro LED light pods, clear lens | ✓ |
| Wiring harness | ✓ |
| Mounting brackets | ✓ |
S2 Pro vs. S2 Sport — Same Footprint, Higher Output
| Model | LEDs | Lumens | Footprint |
|---|---|---|---|
| S2 Sport | 2 | Up to ~1,581 | 2.93" x 1.76" x 1.68" |
| S2 Pro (this listing) | 2 | 2,450 | 2.93" x 1.76" x 1.68" (identical) |
The S2 Pro achieves higher output through advanced LED and driver technology at the same LED count and footprint as the S2 Sport — not through additional LEDs or a larger pod.
Baja Designs Pod Output Hierarchy
| Model | Footprint | Output Tier |
|---|---|---|
| S1 | Smallest, bracket included | Entry-level compact |
| S2 Sport | Mid-size compact | Mid-output, best value |
| S2 Pro (this listing) | Same as S2 Sport | High-output compact |
| Squadron Sport | Largest pod body | Highest output |
Verified Application
| Configuration | Status |
|---|---|
| Universal mount — trucks, Jeeps, SUVs, UTVs, motorcycles | ✓ |
| Existing S2 Sport mounts | ✓ — same footprint, compatible |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Public road use | Auxiliary lighting legality varies by jurisdiction — verify compliance before street use |
| Mounting | Same footprint as S2 Sport — existing S2 Sport-compatible mounts work for this light |
Common Questions
Does this come with a wiring harness?
Yes — wiring harness and mounting brackets are included.
Is this a dual-row LED light?
No. It uses 2 LEDs per light, the same count as the S2 Sport — the higher output comes from more advanced LED and driver technology, not additional LEDs.
Will my existing S2 Sport mount work for this light?
Yes — the S2 Pro uses the identical footprint to the S2 Sport.
How does this compare to the S2 Sport?
Significantly higher output (2,450 vs. up to ~1,581 lumens) in the exact same compact size.
The Obsidian Take
The S2 Pro (487803) is for the builder who wants maximum output without stepping up to the larger Squadron Sport body — 2,450 lumens from a 3" x 2" housing, the same footprint as the S2 Sport, harness and brackets included.
If you already have S2 Sport mounting brackets installed, this light drops right in as a direct output upgrade without any mount changes.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm mounting compatibility before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
