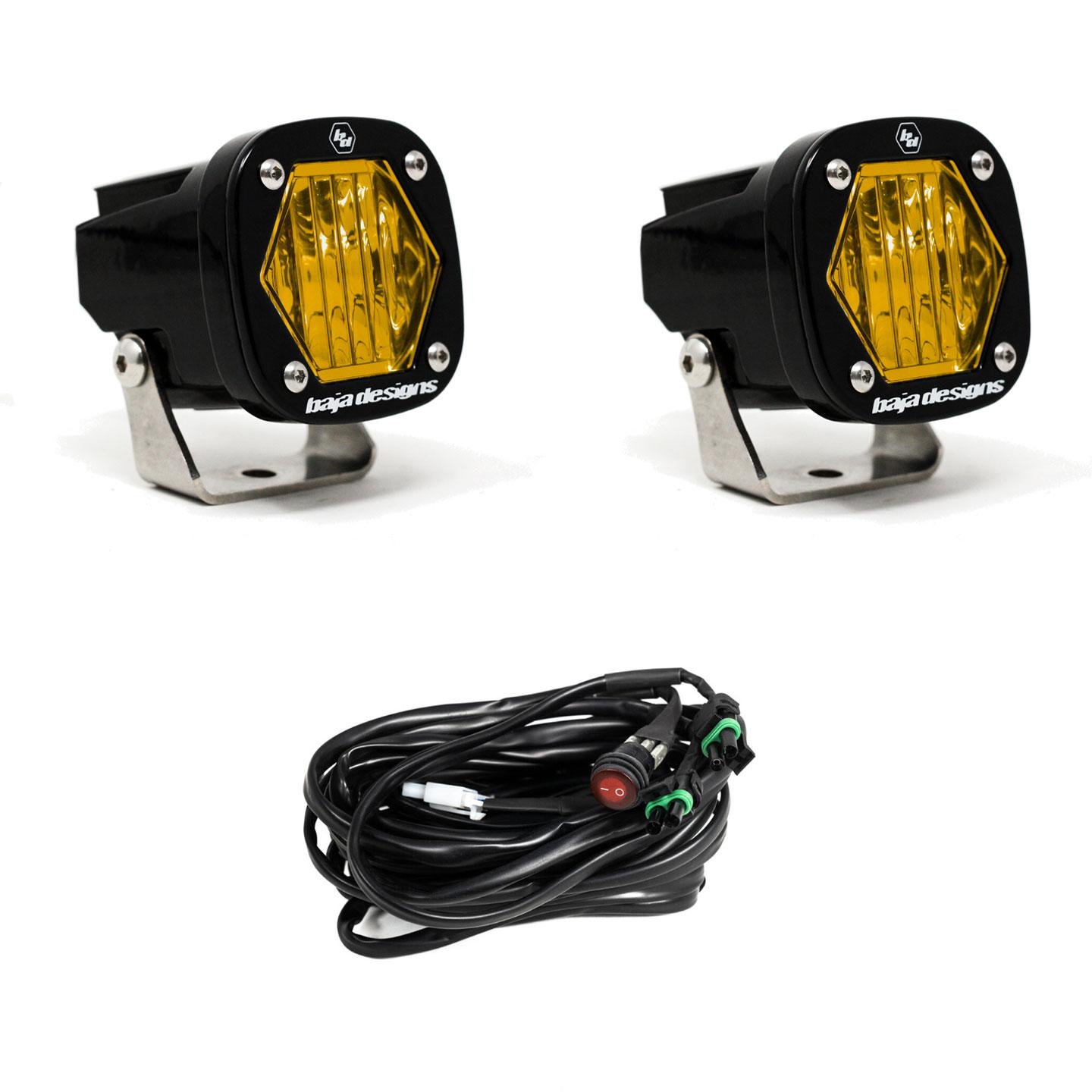

The Baja Designs S1 (SKU 387815) is a pair of ultra-compact LED light pods in the Wide Cornering optic pattern with amber lens, including mounting brackets. Designed from the ground up, the S1 fills the shoes of a large light in a small package — a true 2.1" cube using a single, highly specialized LED and reflector combination to deliver 2,375 lumens per light. Baja Designs was first to develop the Wide Cornering pattern specifically for cornering, dust, fog, rain, and snow conditions — a 42° flattened horizontal beam (Lighting Zones 1 & 2). The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and rain, reducing glare and improving contrast in low-visibility conditions. Hard anodized and powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated polycarbonate amber lens, stainless steel hardware. IP69K rated — waterproof up to 9 feet and pressure-washable. IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection. Safe voltage range 9-28V. Patent pending. Mounting brackets included. Wiring harness sold separately — Baja Designs recommends harness 640139 for this light. 30-day money-back guarantee, limited lifetime warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 387815 |
| Brand | Baja Designs |
| Model | S1 |
| Lens | Amber, hardcoated polycarbonate |
| Pattern | Wide Cornering — 42° flattened horizontal beam |
| Lumens | 2,375 per light |
| LEDs | 1 specialized LED per light |
| Wattage / Amperage | 20W / 1.45A |
| Dimensions (per light) | 2.1" x 2.1" x 2.1" |
| Weight | 0.4 lbs per light |
| Safe Voltage Range | 9-28V |
| LED Life Expectancy | 49,930 hours |
| Housing | Hard anodized, powder-coated cast aluminum |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Patent Status | Patent pending |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights + brackets) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) S1 LED light pods, amber lens | ✓ |
| Mounting brackets | ✓ |
| Wiring harness | ✗ NOT included — sold separately, Baja Designs harness 640139 recommended |
Why S1 + Amber + Wide Cornering
- S1 compact pod: The most compact pod in the Baja Designs lineup — a true 2.1" cube. Ideal for tight mounting locations, steering knuckles, low-profile bumper mounts, and applications where pod size is a hard constraint.
- Single-LED engineering: Uses one highly specialized LED and reflector combination to deliver 2,375 lumens — large-light output in a genuinely small package.
- Amber lens: Filters blue light scatter in dust, fog, sand, and rain, reducing glare and eye fatigue. For clear conditions, a clear lens delivers higher output.
- Wide cornering pattern: Maximum side spread, minimal forward throw. Best for slow-speed trail navigation, switchbacks, and cornering.
- Bracket included: Mounting brackets included in the kit.
Baja Designs Pod Size Guide
| Model | Dimensions | Output | Notes |
|---|---|---|---|
| S1 (this listing) | 2.1" x 2.1" x 2.1" | 2,375 lumens (1 LED) | Smallest footprint, bracket included, harness sold separately |
| S2 Sport | ~2.93" x 1.76" x 1.68" | Up to ~1,581 lumens (2 LEDs) | Mid-size, multiple patterns/lenses, harness included |
| Squadron Sport | ~3.07" x 2.77" x 3.07" | ~3,162 lumens (4 LEDs) | Largest pod, highest output, harness included |
Installation Notes
- Wiring harness required separately. Baja Designs harness 640139 is a recommended, weatherproof option for powering this light.
- Bracket confirmation. Confirm the included bracket is compatible with your mounting surface — third-party aftermarket mounts (e.g., steering knuckle mounts) may require additional washers depending on hole sizing.
- Wire length. The factory pigtail wiring has limited length — plan your run from the mounting location to your switch location accordingly, or add a jumper extension if needed.
- Aim before final torque. Aim to maximize side spread for your specific application before torquing mount hardware.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
Critical Compatibility
| Configuration | Notes |
|---|---|
| Public road use | Amber auxiliary lighting may have different legal status than white lights — verify compliance before use on public roads |
| Clear-condition visibility | Amber lens does not maximize output in clear conditions — a clear lens delivers higher output for general use |
| Wiring harness | Not included — purchase a compatible Baja Designs harness (e.g., 640139) separately |
Common Questions
Does this come with a wiring harness?
No. A wiring harness is sold separately — Baja Designs harness 640139 is a recommended option.
How many LEDs does each light use?
Just one, highly specialized LED and reflector combination, producing 2,375 lumens.
Is this actually waterproof?
Yes — IP69K rated, meaning it's rated for submersion up to 9 feet and is pressure-washable.
Does this come with mounting brackets?
Yes, included in the kit.
The Obsidian Take
The S1 (387815) is for the builder who needs genuine output in the smallest possible footprint — a true 2.1" cube delivering 2,375 lumens from a single specialized LED, IP69K rated, mounting bracket included. The amber lens and Wide Cornering pattern make it purpose-built for dust, fog, and side visibility in tight mounting spots like steering knuckles or low-profile bumper locations.
Budget for a wiring harness separately — this is the one Baja Designs light in this catalog where the harness genuinely isn't included.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm bracket compatibility before ordering.
