Baja Designs S1 LED Light Pair | Single-LED | Clear Lens | Wide Cornering | Mounting Bracket Included | SKU 387805
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

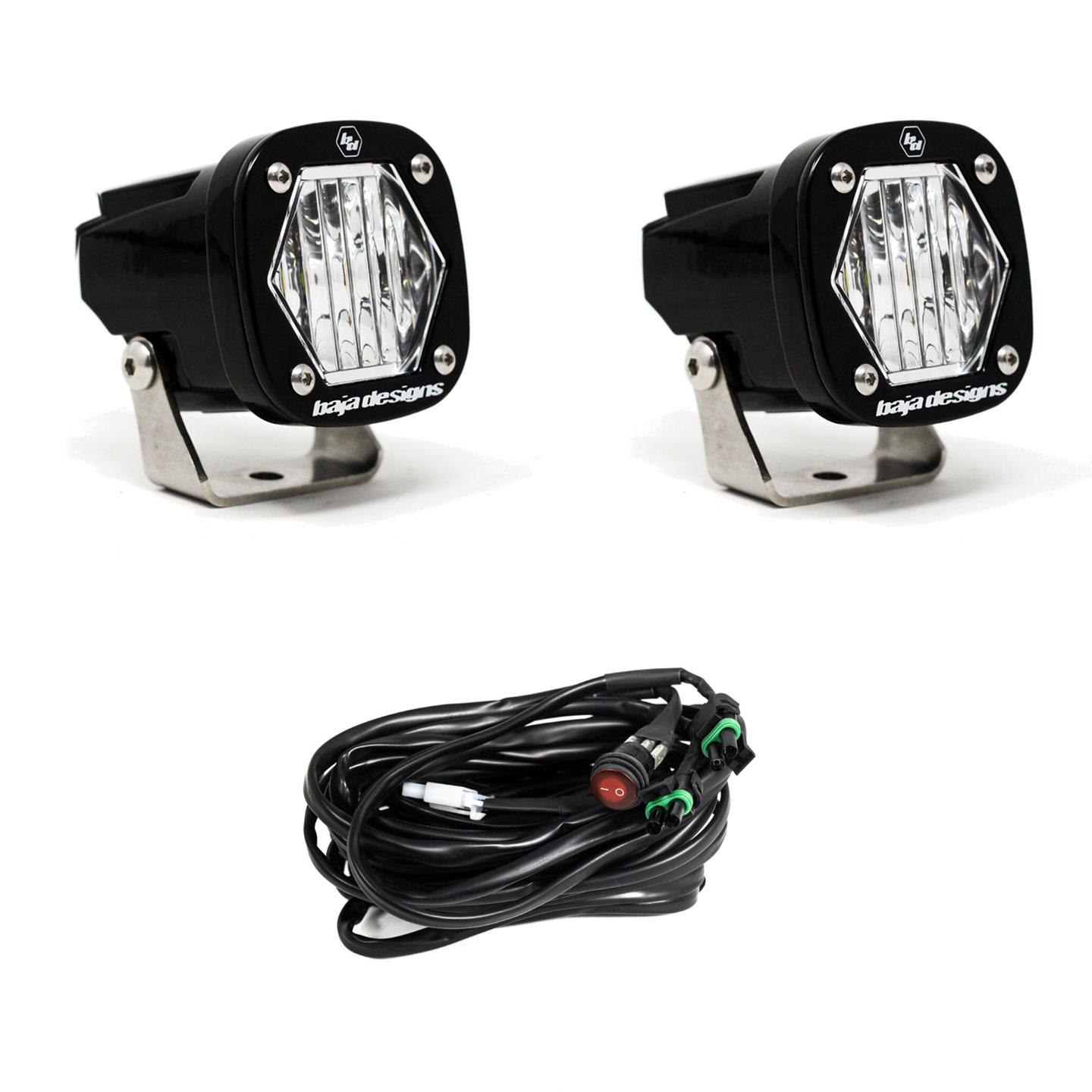

The Baja Designs S1 (SKU 387805) is a pair of ultra-compact LED light pods in the Wide Cornering optic pattern with clear lens, including mounting brackets. A true 2.1" cube, the S1 uses a single, highly specialized 20-watt LED paired with ClearView optics to deliver 2,375 lumens, projecting light into Lighting Zones 1, 2, and 4 for performance normally reserved for much larger lights — bright enough to be used as a standalone driving light. Clear lens delivers maximum output in clear conditions; for dust, fog, or precipitation environments, the amber lens variant (SKU 387815) reduces glare and scatter. Wide Cornering pattern offers a 42° flattened horizontal beam, reducing blind spots and enhancing peripheral visibility. uService technology allows easy swapping of lenses and optics to customize your setup. Hard anodized and powder-coated cast aluminum housing, billet-machined aluminum bezel, hardcoated clear polycarbonate lens, stainless steel hardware. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, built-in overvoltage protection. Safe voltage range 9-28V. Mounting brackets included. Wiring harness sold separately. Estimated install time approximately 1.5 hours. 30-day money-back guarantee, limited lifetime warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 387805 |
| Brand | Baja Designs |
| Model | S1 |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Wide Cornering — 42° flattened horizontal beam |
| Lumens | 2,375 per light |
| LEDs | 1 specialized LED per light |
| Wattage / Amperage | 20W / 1.45A |
| Dimensions (per light) | 2.1" x 2.1" x 2.1" |
| Weight | 0.4 lbs per light |
| Safe Voltage Range | 9-28V |
| LED Life Expectancy | 49,930 hours |
| Housing | Hard anodized, powder-coated cast aluminum |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Estimated Install Time | ~1.5 hours |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Pair (2 lights + brackets) |
| Sold As | Pair |
What Is and Is NOT Included
| Item | Included |
|---|---|
| (2) S1 LED light pods, clear lens | ✓ |
| Mounting brackets | ✓ |
| Wiring harness | ✗ NOT included — sold separately |
Clear vs. Amber Lens — S1 Wide Cornering
| Configuration | SKU | Best For |
|---|---|---|
| Clear Lens (this listing) | 387805 | Maximum output in clear conditions — trail, overlanding, work |
| Amber Lens | 387815 | Reduced glare and scatter in dust, fog, sand, rain |
Note: Baja Designs' own description ties the Wide Cornering beam pattern itself to "cornering, dust and/or fog conditions," even in clear-lens form — the amber lens adds further glare reduction on top of this same beam geometry.
Baja Designs Pod Size Guide
| Model | Dimensions | Output | Harness |
|---|---|---|---|
| S1 (this listing) | 2.1" x 2.1" x 2.1" | 2,375 lumens (1 LED) | Sold separately |
| S2 Sport | ~2.93" x 1.76" x 1.68" | Up to ~1,581 lumens (2 LEDs) | Included |
| Squadron Sport | ~3.07" x 2.77" x 3.07" | ~3,162 lumens (4 LEDs) | Included |
Installation Notes
- Wiring harness required separately. A wiring harness or equivalent relay harness is required for proper installation.
- Bracket confirmation. Confirm the included bracket is compatible with your mounting surface before ordering.
- Aim before final torque. Aim to maximize side spread for your specific application.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
- uService swapping. Lenses and optics can be swapped using Baja Designs' uService design if you want to change pattern or lens color later.
Critical Compatibility
| Configuration | Notes |
|---|---|
| Wiring harness | Not included — purchase separately |
| Public road use | Auxiliary lighting legality varies by jurisdiction — verify compliance before street use |
| Dust/fog environments | Amber lens (387815) offers reduced glare in these conditions — clear lens delivers maximum output otherwise |
Common Questions
Does this come with a wiring harness?
No. A wiring harness is sold separately.
Can I use this as my main driving light?
Yes — Baja Designs describes the S1 as bright enough to be used as a standalone driving light, projecting into multiple lighting zones for trail coverage.
Can I swap the lens later?
Yes, using Baja Designs' uService design, lenses and optics are easily replaceable if you want to switch to amber or a different pattern later.
How long does installation take?
Approximately 1.5 hours, per manufacturer estimates.
The Obsidian Take
The S1 Clear Wide Cornering (387805) is for the builder who wants genuine driving-light output in the smallest possible footprint — a true 2.1" cube delivering 2,375 lumens from a single specialized LED, IP69K rated, mounting bracket included, with uService lens swapping for future flexibility.
Budget for a wiring harness separately, and if you expect to run in dust or fog regularly, consider the amber version (387815) instead for reduced glare in those conditions.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm bracket compatibility before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Input data incorrectly stated IP67 (confirmed IP69K) and omitted lumen output, LED count, and accurate weight. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
