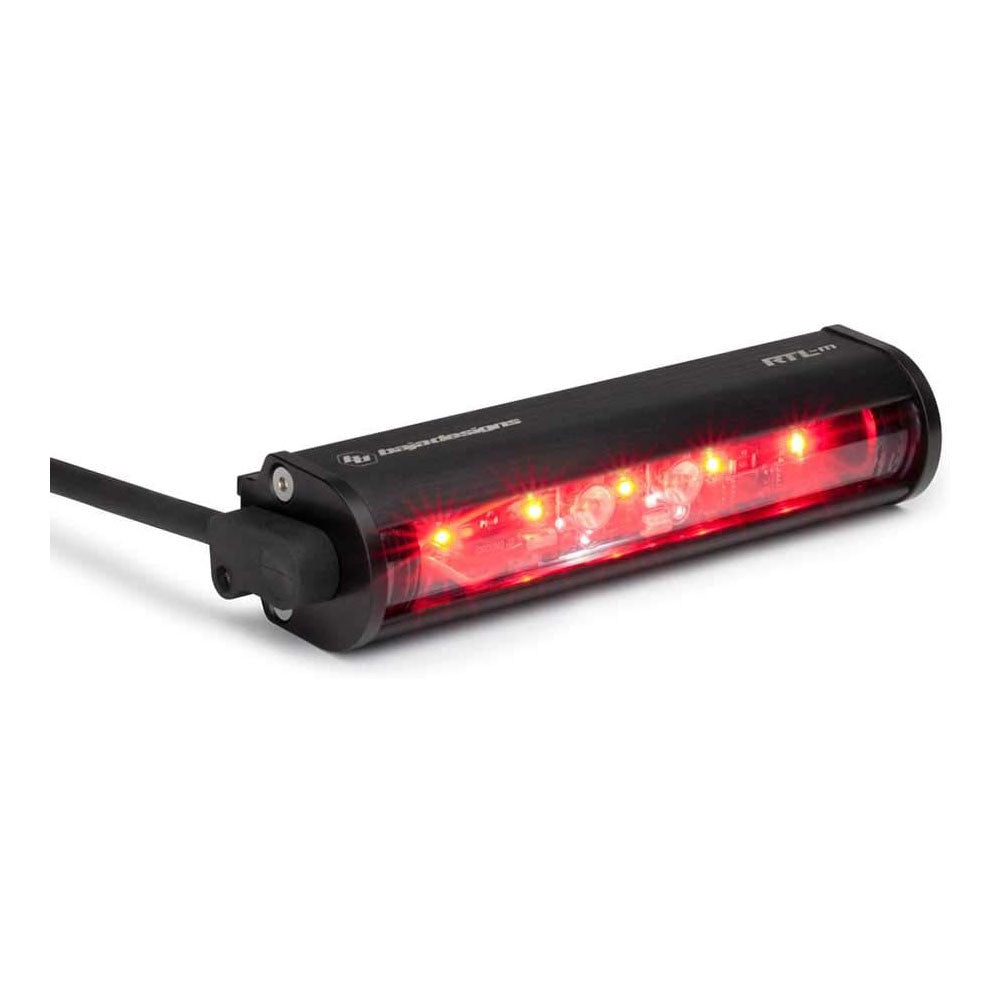

The Baja Designs RTL-M (Rear Tail Light – Mini, SKU 100601) is a compact 6-inch multi-function rear light bar — a miniature version of Baja Designs' full-size RTL — exceptionally useful on vehicles where space is limited, including Jeeps, motorcycles, UTVs, and ATVs. Five red LEDs function as running and brake lights, providing high-visibility rear safety for the casual weekend warrior or the dedicated racer. A pair of central white LEDs (8.5W, 312 lumens) provide cargo and scene lighting — perfect for grabbing gear from the toolbox or lighting the camp area. An optional license plate illuminator is also built in, compatible with Baja Designs' Universal License Plate Mount or Jeep JK Spare Tire Mount. CopperDrive circuitry drives LEDs at 100%; MoistureBlock technology delivers waterproof, rainproof, submersible performance. Stainless steel hardware and bracket material. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, salt spray certified, built-in overvoltage protection. Mounting hardware included. Wiring harness not included — a Baja Designs harness or compatible relay harness is required separately. 30-day money-back guarantee, limited lifetime warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 100601 |
| Brand | Baja Designs |
| Model | RTL-M (Rear Tail Light – Mini) |
| Size | 6 inches (6.69" x 1.56" x 2.5") |
| LED Functions | 5 red LEDs (running/brake), 2 white LEDs (cargo/scene) |
| Taillight | 0.75W |
| License Plate Light | 2W |
| Brake Light | 5.5W |
| Cargo/Scene Light | 8.5W, 312 lumens |
| Weight | 1.1 lbs |
| LED Life Expectancy | 49,930 hours |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G, salt spray certified |
| Overvoltage Protection | Built-in |
| License Plate Compatibility | Optional illuminator — works with Universal License Plate Mount or Jeep JK Spare Tire Mount |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Single bar |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| RTL-M 6" light bar | ✓ |
| Mounting hardware | ✓ |
| Wiring harness | ✗ NOT included — sold separately |
RTL-M Multi-Function Explained
- Red LEDs — Running light: Constant red illumination when the vehicle is running, providing rear visibility for following vehicles on trail, road, and race course.
- Red LEDs — Brake light: Intensified output when brakes are applied, signaling deceleration to following vehicles.
- White LEDs — Scene/cargo light: Wide-angle white illumination aimed rearward, useful for camp setup, recovery, cargo access, and pit operations.

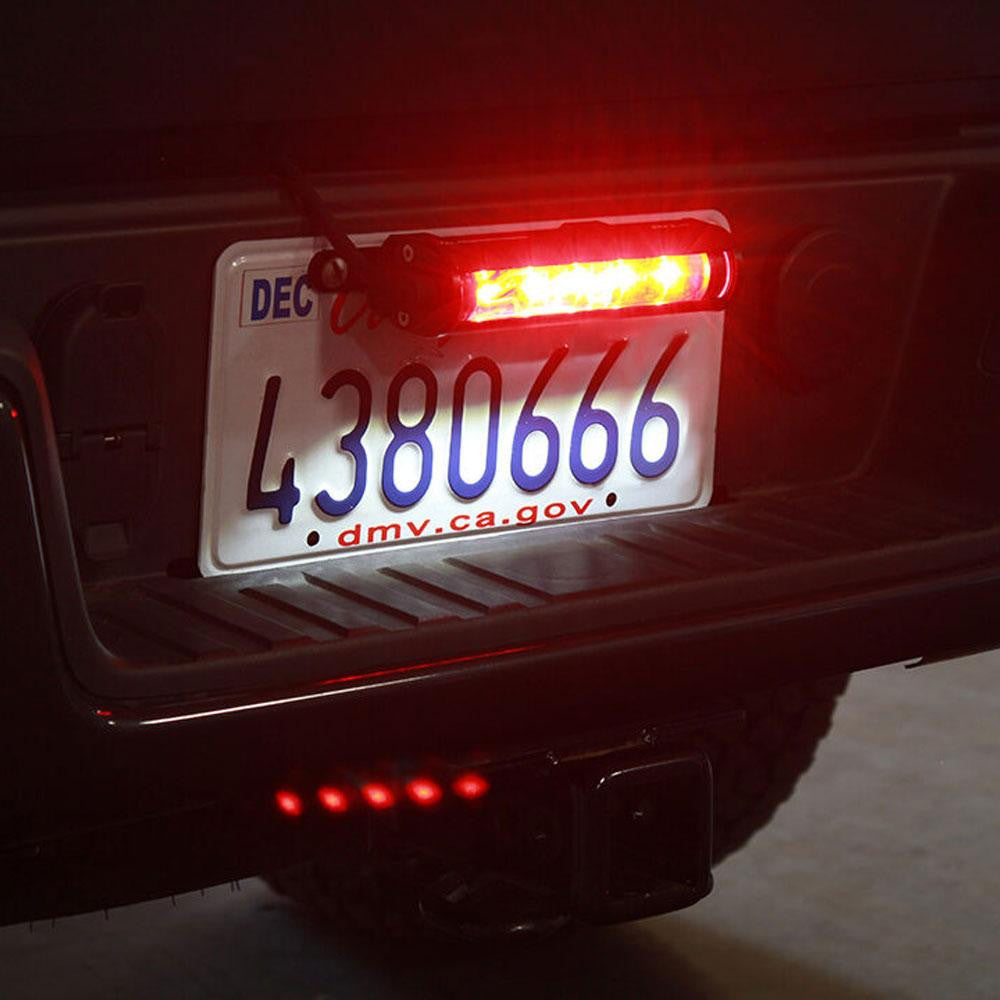

- Optional license plate illuminator: Compatible with Baja Designs' Universal License Plate Mount or Jeep JK Spare Tire Mount for those wanting to use this bar as a license plate light as well.
Typical Mounting Locations
- UTV rear cage or bumper — rear safety visibility on trail and race course
- Chase truck rear bumper or tailgate — rear running and brake light for convoy use
- Overland rig rear rack or bumper — camp and recovery scene lighting plus rear safety
- Trailer tongue or rear — supplemental brake and running light
Installation Notes
- Wiring harness required. A relay harness or vehicle-specific Baja Designs harness is required — not included with this bar.
- Brake signal wiring. The brake light function requires connection to your vehicle's brake signal wire. Confirm location in your vehicle's wiring diagram before installation.
- Rear-facing installation only. Do not install as a forward-facing light.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
- Legal notice. Rear auxiliary lighting and brake light modifications are subject to state and local regulations — verify compliance before use on public roads.
Critical Compatibility
| Configuration | Notes |
|---|---|
| Wiring harness | Not included — purchase separately, confirm vehicle-specific or relay harness compatibility |
| Forward-facing use | Not designed for this — rear-facing installation only |
| Brake signal connection | Required for brake function — incorrect wiring causes constant illumination or no brake signal |
| Public road use | Rear lighting and brake modifications are subject to state and local regulations — verify before street use |
Common Questions
Does this come with a wiring harness?
No. A wiring harness or compatible relay harness is required separately.
Can I use this as a license plate light?

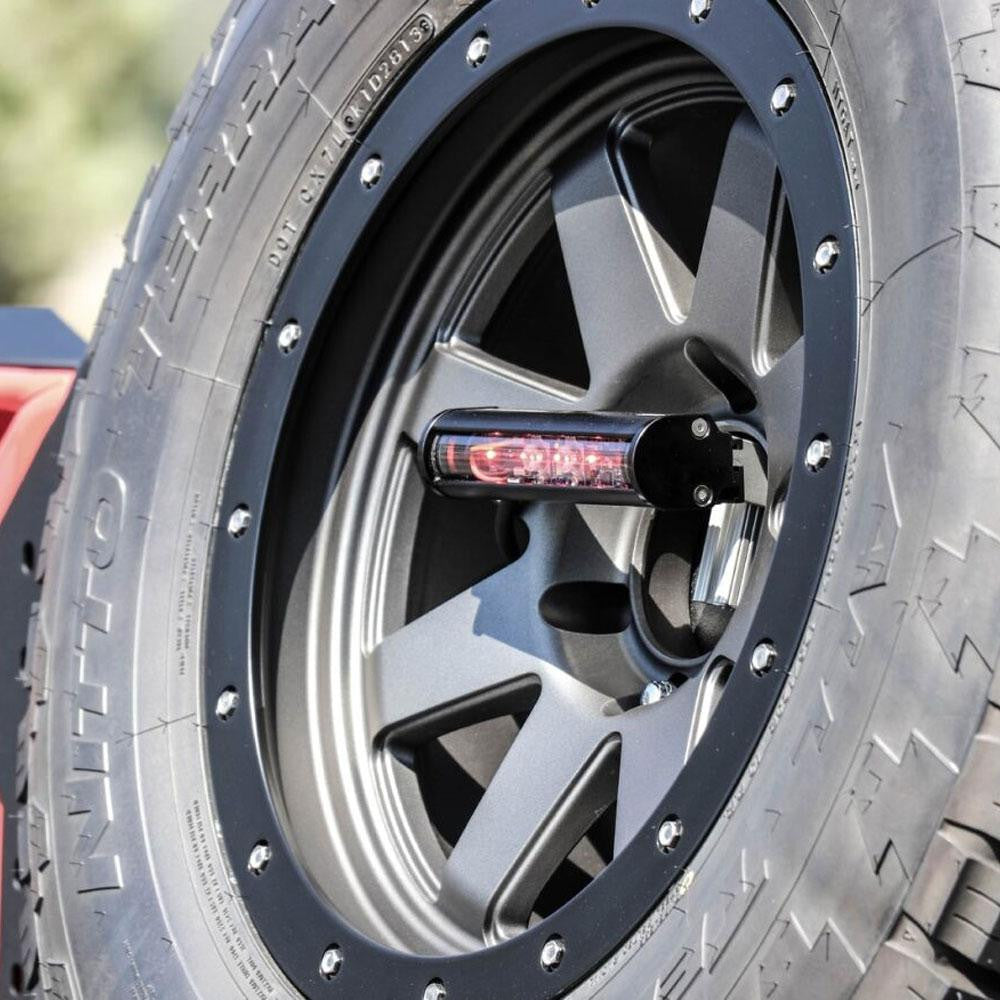

Yes — it includes an optional license plate illuminator function, compatible with Baja Designs' Universal License Plate Mount or Jeep JK Spare Tire Mount.
Is this waterproof?
Yes — IP69K rated, meaning it's rated for submersion up to 9 feet and is pressure-washable, plus salt spray certified for corrosion resistance.
Can I mount this facing forward?
No. This is a rear-facing light only — do not install as a forward driving light.
The Obsidian Take
The RTL-M (100601) is for the UTV, chase truck, or overland builder who needs a compact, genuinely durable rear safety and scene light in one 6" bar — five red running/brake LEDs plus dedicated white cargo/scene LEDs, IP69K rated, salt spray certified, with an optional license plate illuminator built in.
Budget for a wiring harness separately, and confirm your vehicle's brake signal wire location before installation — incorrect brake wiring is the most common install mistake on this type of light.
