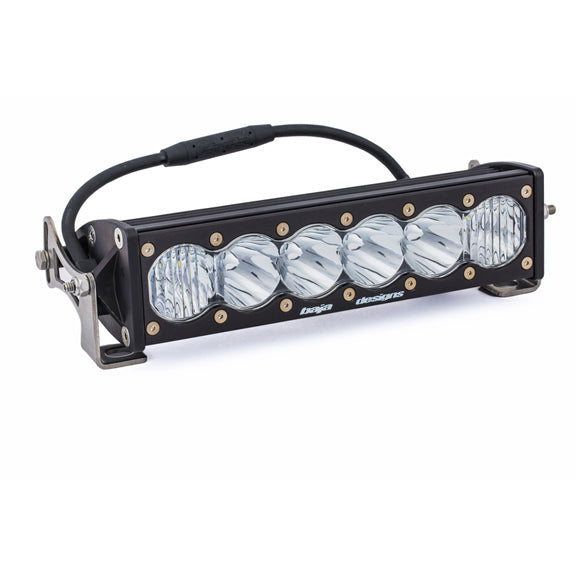

Baja Designs OnX6+ 10-Inch LED Light Bar | Driving/Combo Pattern | Universal | SKU 451003
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The Baja Designs OnX6+ (SKU 451003) is a 10-inch LED light bar in the Driving/Combo optic pattern — the pinnacle of off-road lighting in this size class, integrating Baja Designs' trademarked High Speed Spot reflectors with next-generation LED technology for increased performance and versatility. This 10-inch bar delivers 10,817 total raw lumens (figures vary by listing generation, ranging 7,350–12,460), illuminating Lighting Zone 3 with both Wide Cornering (44°) and Spot (6°) optics for a smooth blend of near-field and distance light. Battery Management Technology (BMT) — an industry-first feature — regulates light bar output based on your vehicle's available electrical output, protecting your electrical system from current spikes, eliminating LED flickering under low voltage, and prolonging battery life. Aircraft-grade aluminum housing with mil-spec hard anodize, billet-machined aluminum bezel, hardcoated polycarbonate lens, stainless steel hardware. uService lets you swap lenses and change beam pattern or color without voiding the warranty. MoistureBlock waterproofing, ClearView optical design. IP69K rated, IK10 impact compliant, exceeds MIL-STD810G, salt spray certified, built-in overvoltage protection. Adopts industry-standard sizing, compatible with aftermarket mounting systems. Includes mounting brackets usable in any application. 30-day money-back guarantee, limited lifetime warranty.
This light does NOT come with a wiring harness. The applicable harness is PN 640115 — compatible with OnX6+ bars 10"-20" and S8 bars 10"-30" — sold separately.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 451003 |
| Brand | Baja Designs |
| Series | OnX6+ |
| Length | 10 inches |
| Pattern | Driving/Combo — 44° Wide Cornering + 6° Spot (Lighting Zone 3) |
| Total Output | 10,817 raw lumens (confirm current generation; sources range 7,350–12,460) |
| Dimensions | 10" x 4.29" x 2.69" |
| Weight | 4.25 lbs |
| LED Life Expectancy | 49,930 hours |
| Special Technology | Battery Management Technology (BMT) — regulates output based on vehicle electrical capacity |
| Housing | Aircraft-grade aluminum, mil-spec hard anodize |
| Bezel | Billet-machined aluminum |
| Hardware/Bracket Material | Stainless steel |
| IP Rating | IP69K — waterproof to 9 ft, pressure-washable |
| Impact Rating | IK10 compliant |
| Durability Standard | Exceeds MIL-STD810G, salt spray certified |
| Overvoltage Protection | Built-in |
| Wiring Harness | NOT included — PN 640115 required separately |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| OnX6+ 10" LED light bar | ✓ |
| Mounting brackets — usable in any application | ✓ |
| Hi-Low dongle (where applicable to this size) | ✓ |
| Wiring harness | ✗ NOT included — purchase harness PN 640115 separately |
OnX6+ vs. S8 — Light Bar Tier Comparison
| Series | 10" Output | Notes |
|---|---|---|
| OnX6+ (this listing) | 10,817 lumens | Universal mount, BMT technology, industry-standard sizing |
| S8 10-Inch (447072 kit) | 6,350 lumens | Premium series, vehicle-specific RZR hood mount kit available |
At the 10" size, OnX6+ delivers higher confirmed output than the S8 10" bar — confirm current generation specs directly with us if exact lumen output is critical for your application.
Required Accessories — Sold Separately
- Wiring Harness PN 640115 — compatible with OnX6+ bars 10"-20" and S8 bars 10"-30". Includes toggle switch, momentary button for dust/strobe modes, battery ring terminals, relay, fuse, and 100" of wire length.
- Confirm harness compatibility before ordering if running a different bar length.
Installation Notes
- Harness PN 640115 required. This light does not include a wiring harness — order separately.
- Mounting brackets included. Usable in a wide range of applications — bumper, grille, roof rack, A-pillar, UTV cage mounts.
- Aim before final torque. Aim the bar at the desired beam angle before torquing mount hardware.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
- Legal notice. Auxiliary lighting use on public roads is subject to state and local regulations — verify compliance before use on public roads.
Verified Application
| Application | Status |
|---|---|
| Universal mount — trucks, Jeeps, UTVs, ATVs, SUVs | ✓ |
| Industry-standard mounting tab spacing | ✓ — compatible with aftermarket mounting systems |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Wiring harness | Not included — must purchase PN 640115 separately |
| 50" OnX6+ bars | Do not have a Hi-Lo function (pre-dimmed) — does not apply to this 10" bar |
| Public road use | Auxiliary lighting legality varies by jurisdiction — verify compliance before street use |
Common Questions
Does this come with mounting brackets?
Yes — universal mounting brackets are included and usable in a wide range of applications.
Does this come with a wiring harness?
No. Harness PN 640115 must be purchased separately.
What does Battery Management Technology do?
It regulates the light bar's output based on your vehicle's available electrical capacity, protecting your electrical system from current spikes, preventing LED flickering under low voltage, and helping prolong battery life.
How does this compare to the S8 10" bar?
The OnX6+ 10" bar delivers higher confirmed lumen output (10,817) than the S8 10" bar (6,350) — confirm current generation specs with us if exact output matters for your build.
The Obsidian Take
The OnX6+ 10-Inch (451003) is for the builder who wants serious, race-proven output in a compact universal-mount light bar — 10,817 lumens, Battery Management Technology that protects your electrical system, mounting brackets included, industry-standard sizing for aftermarket compatibility.
Budget for the wiring harness (PN 640115) separately — it's not included, but it's the correct harness for this bar and also works with S8 bars up to 30".
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm harness PN and mounting solution before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
