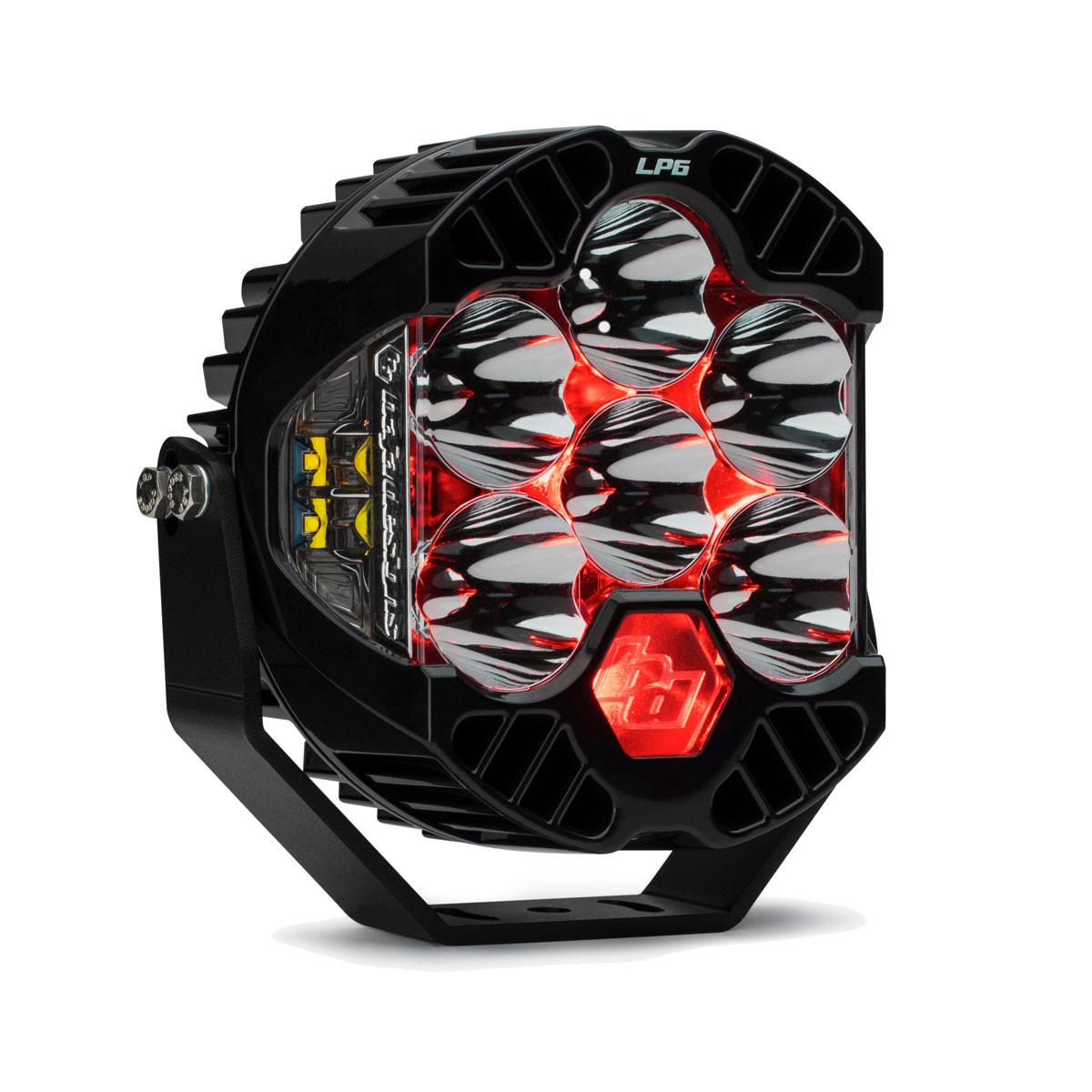

Baja Designs LP6 Pro LED Auxiliary Light Pod | Clear Lens | Driving/Combo | Red Backlight (Exhibition Use Only) | Single Unit | SKU 270014
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The Baja Designs LP6 Pro (SKU 270014) is a single high-output LED auxiliary light pod with clear lens in the Driving/Combo optic pattern, delivering a total of 11,225 lumens and a 200° spread of usable light through Baja Designs' patented Integrated Peripheral Technology (IPT) — combining forward-projecting and dedicated peripheral illumination in one pod. The Driving/Combo pattern blends Driving (42°) and Spot (8°) optics for near-field and distance coverage across Lighting Zones 1, 2, and 3. Direct Ducted Cooling (DDC) technology channels air through the housing and over the rear heat sinks for sustained thermal performance. This unit includes a red backlight option alongside standard high beam, low beam, and daytime running backlighting modes. Hard anodized machined aluminum housing, billet-machined aluminum bezel, hardcoated clear polycarbonate lens, stainless steel mounting hardware (included). CopperDrive circuitry, MoistureBlock waterproofing, uService replaceable lenses and optics, ClearView optical design. 5000K daylight color temperature (main LEDs). IP69K rated, exceeds MIL-STD810G, built-in overvoltage protection. DT06-4S Deutsch terminal connector. 30-day money-back guarantee, limited lifetime warranty.
Red backlight is for exhibition use only. Never use on public roads — red, blue, and green LP series backlights can be confused with law enforcement or emergency vehicle lighting. The owner/driver is solely responsible for observing all highway equipment laws and safety regulations.
Wiring harness sold separately — PN 640172. This harness is rated for the LP6/LP9 Pro series and supports dual-circuit operation for independent backlight control.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 270014 |
| Brand | Baja Designs |
| Model | LP6 Pro |
| Form Factor | Rectangular pod |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Driving/Combo — 42° Driving + 8° Spot |
| Total Output | 11,225 lumens (forward-projecting + IPT peripheral) |
| Secondary/Peripheral Output | 1,972 lumens via IPT |
| Backlight | Red — exhibition use only |
| Lighting Modes | High Beam / Low Beam / Daytime Running Backlighting |
| Dimensions | 6.5" H x 6.5" L x 3.2" D |
| Weight | 4.2 lbs |
| Terminal Connector | DT06-4S Deutsch |
| Housing | Hard anodized machined aluminum |
| Bezel | Billet-machined aluminum |
| Mounting Hardware | Included — stainless steel |
| LED Life Expectancy | 49,930 hours |
| IP Rating | IP69K — waterproof, submersible |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Wiring Harness | NOT included — PN 640172 required separately |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Single unit (1 pod) |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x LP6 Pro light pod, clear lens, red backlight | ✓ |
| Stainless steel mounting hardware | ✓ |
| Wiring harness | ✗ NOT included — purchase harness PN 640172 separately |
| Vehicle-specific bracket kit (if needed) | ✗ NOT included — confirm separately for specific applications |
Red Backlight — Exhibition Use Only
- Red backlight provides a distinctive accent and aesthetic feature for shows, photo shoots, and off-road display use.
- Never use on public roads. Baja Designs' own disclaimer is explicit: red, blue, and green LP series backlights are for exhibition use only, to avoid confusion with law enforcement or emergency vehicle lighting.
- The main white Driving/Combo LEDs and the red backlight require dual-circuit wiring for independent control — confirm harness 640172 supports this before ordering.
- The owner/driver is solely responsible for observing all applicable highway equipment laws and safety regulations.
LP6 Pro vs. LP6 Auxiliary Pod vs. DOT LP6 Headlight
| Product | Use | Notes |
|---|---|---|
| LP6 Auxiliary Pod — Vehicle-Specific Kits | Bumper kit component | Jeep JL/JT Rubicon steel bumper specific |
| DOT LP6 Headlight | Primary headlight replacement | FMVSS 108 compliant, not an auxiliary light |
| LP6 Pro Auxiliary Pod (this listing) | Universal auxiliary driving light | Maximum LP6 output with red exhibition backlight |
LP6 Pro vs. LP4 Pro
| Model | Output | Notes |
|---|---|---|
| LP4 Pro | 8,750–8,857 lumens | Smaller rectangular pod, lighter weight |
| LP6 Pro (this listing) | 11,225 lumens | Larger rectangular pod, maximum output |
Installation Notes
- Harness PN 640172 required. This light does not include a wiring harness — order separately. This harness supports dual-circuit operation for independent backlight control.
- Dual-circuit wiring. Red backlight and main white LEDs require separate circuits for independent control.
- Rectangular mount required. Confirm your mounting solution is designed for the LP6 Pro rectangular footprint — round pod mounts are not compatible.
- Aim before final torque. Aim the light at the desired beam angle before torquing mount hardware.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
- Legal notice — exhibition use only for colored backlight. Never use red, blue, or green LP series backlights on public roads.
Verified Application
| Application | Status |
|---|---|
| Universal mount — trucks, Jeeps, motorcycles, UTVs | ✓ |
| Round pod mounts (S2/Squadron/XL Sport style) | ✗ Not compatible — LP6 Pro is rectangular |
Critical Compatibility
| Configuration | Notes |
|---|---|
| LP6 harness for headlight applications (640172 vs. DOT LP6's 640172) | Confirm exact circuit configuration matches this specific auxiliary application — not a headlight harness |
| Round pod mounts | Not compatible — LP6 Pro uses a rectangular footprint |
| Public road use of red backlight | Never — exhibition use only |
Common Questions
Can I use the red backlight while driving on the street?
No. Baja Designs explicitly restricts red, blue, and green LP series backlights to exhibition use only — never on public roads, due to potential confusion with law enforcement or emergency vehicles.
Does this come with a wiring harness?
No. Harness PN 640172 must be purchased separately, and supports the dual-circuit wiring needed for independent backlight control.
Does this come with mounting hardware?
Yes — stainless steel mounting hardware is included with the unit itself.
What's the actual light output?
11,225 total lumens, combining forward-projecting and IPT peripheral lighting for a 200° spread.
The Obsidian Take
The LP6 Pro (270014) is for the builder who wants serious 6" pod output — 11,225 lumens, 200° IPT spread, Direct Ducted Cooling — with a red backlight accent for shows, photo shoots, or off-road display use.
The one rule that can't be bent: the red backlight is exhibition use only. Never run it on public roads — this isn't a regional legal nuance, it's an absolute manufacturer restriction tied to emergency vehicle confusion.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm harness PN and mounting application before ordering.
