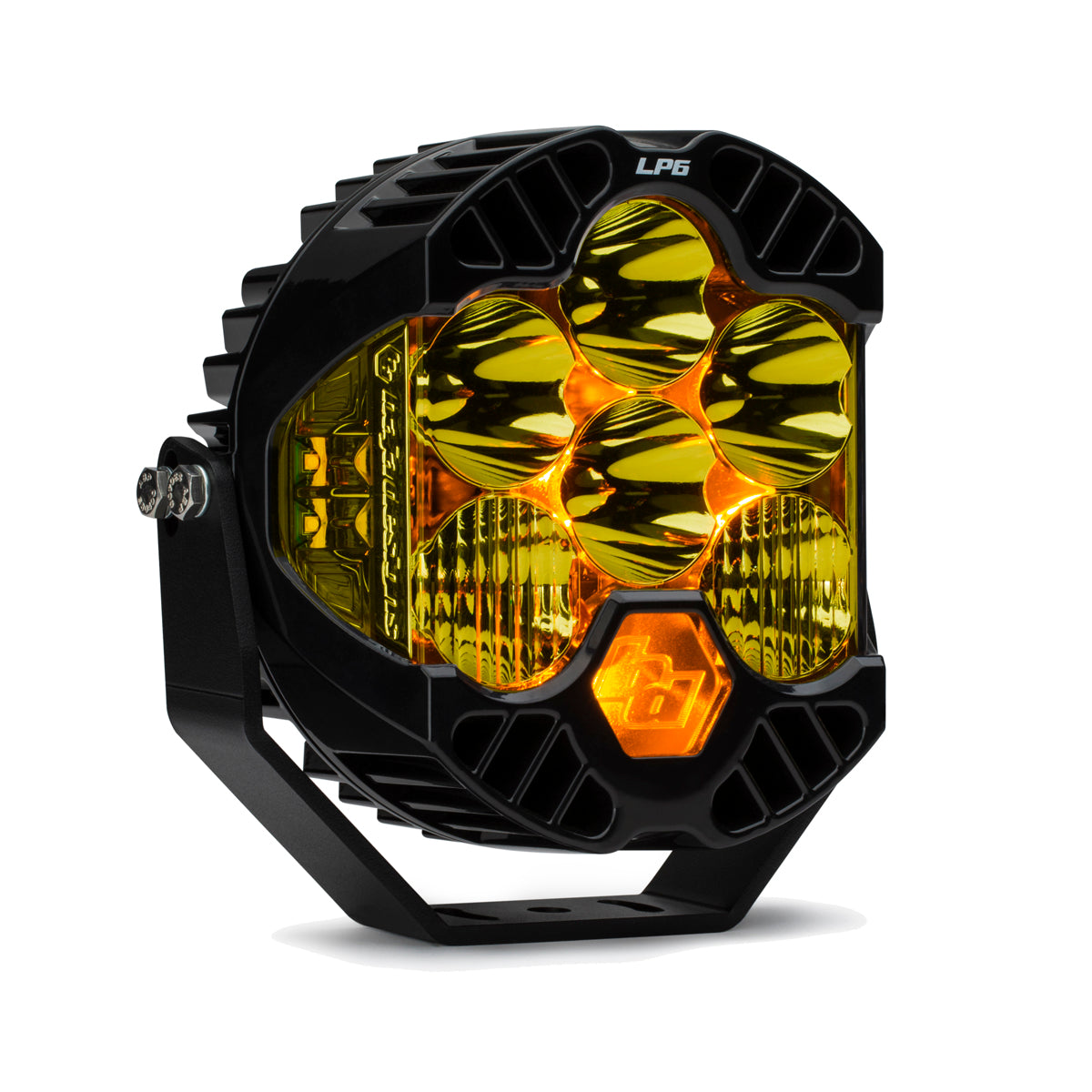

The Baja Designs LP6 Pro (SKU 270013) is a single high-output LED auxiliary light pod with amber lens in the Driving/Combo optic pattern, delivering a total of 11,225 lumens through Baja Designs' patented Integrated Peripheral Technology (IPT) — combining forward-projecting and dedicated peripheral illumination in one pod. The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation, reducing glare and improving contrast in low-visibility conditions. The Driving/Combo pattern blends Driving (42°) and Spot (8°) optics for near-field and distance coverage across Lighting Zones 1, 2, and 3 — maximum amber output with meaningful forward reach for dust, fog, and demanding off-road environments. Direct Ducted Cooling (DDC) technology channels air through the housing and over the rear heat sinks for sustained thermal performance. Hard anodized machined aluminum housing, billet-machined aluminum bezel, hardcoated amber polycarbonate lens, stainless steel mounting hardware (included). CopperDrive circuitry, MoistureBlock waterproofing, uService replaceable lenses and optics, ClearView optical design. IP69K rated, exceeds MIL-STD810G, built-in overvoltage protection. DT06-4S Deutsch terminal connector. 30-day money-back guarantee, limited lifetime warranty.
Wiring harness sold separately — PN 640172. This is the correct harness for the LP6 Pro series.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 270013 |
| Brand | Baja Designs |
| Model | LP6 Pro |
| Form Factor | Rectangular pod |
| Lens | Amber, hardcoated polycarbonate |
| Pattern | Driving/Combo — 42° Driving + 8° Spot |
| Total Output | 11,225 lumens (forward-projecting + IPT peripheral) |
| Secondary/Peripheral Output | 1,972 lumens via IPT |
| Backlight | None |
| Dimensions | 6.5" H x 6.5" L x 3.2" D |
| Weight | 4.2 lbs |
| Terminal Connector | DT06-4S Deutsch |
| Housing | Hard anodized machined aluminum |
| Bezel | Billet-machined aluminum |
| Mounting Hardware | Included — stainless steel |
| LED Life Expectancy | 49,930 hours |
| IP Rating | IP69K — waterproof, submersible |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Wiring Harness | NOT included — PN 640172 required separately |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Single unit (1 pod) |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x LP6 Pro light pod, amber lens, Driving/Combo | ✓ |
| Stainless steel mounting hardware | ✓ |
| Wiring harness | ✗ NOT included — purchase harness PN 640172 separately |
| Vehicle-specific bracket kit (if needed) | ✗ NOT included — confirm separately for specific applications |
LP6 Pro Complete Pattern and Lens Guide
| Pattern | Lens | SKU | Backlight |
|---|---|---|---|
| Spot | Clear | 270001 | None |
| Driving/Combo | Clear | 270003 | None |
| Driving/Combo (this listing) | Amber | 270013 | None |
| Driving/Combo | Clear | 270014 | Red — exhibition use only |
Amber Lens — When to Choose
- Amber lens (this listing): Filters blue light scatter in dust, fog, mud, and rain — reduces glare and improves contrast in low-visibility conditions. Reduced raw output vs. clear in clear conditions.
- Clear lens (270003): Maximum raw output in clear conditions. Use amber instead when dust, fog, or precipitation is a primary factor in your environment.
LP6 Pro vs. LP6 Auxiliary Pod vs. DOT LP6 Headlight
| Product | Use | Notes |
|---|---|---|
| LP6 Auxiliary Pod — Vehicle-Specific Kits | Bumper kit component | Jeep JL/JT Rubicon steel bumper specific |
| DOT LP6 Headlight | Primary headlight replacement | FMVSS 108 compliant, not an auxiliary light |
| LP6 Pro Auxiliary Pod (this listing) | Universal auxiliary driving light | Maximum amber output for dust and fog environments |
Installation Notes
- Harness PN 640172 required. This light does not include a wiring harness — order separately.
- Rectangular mount required. Confirm your mounting solution is designed for the LP6 Pro rectangular footprint — round pod mounts are not compatible.
- Aim before final torque. Aim the light at the desired beam angle before torquing mount hardware.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
- Legal notice. Amber auxiliary lighting may have different legal status than white lights in your jurisdiction — verify compliance before use on public roads.
Verified Application
| Application | Status |
|---|---|
| Universal mount — trucks, Jeeps, motorcycles, UTVs | ✓ |
| Bumper, A-pillar applications in dust/fog environments | ✓ |
| Round pod mounts (S2/Squadron/XL Sport style) | ✗ Not compatible — LP6 Pro is rectangular |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Round pod mounts | Not compatible — LP6 Pro uses a rectangular footprint |
| Clear-condition use | Amber reduces raw output in clear conditions — consider clear lens (270003) if dust/fog isn't a regular factor |
Common Questions
Why choose amber over clear for this pattern?
Amber filters blue light scatter in dust, fog, mud, and rain, improving contrast in those conditions — at the cost of some raw output compared to clear in clear weather.
Does this come with a wiring harness?
No. Harness PN 640172 must be purchased separately.
Does this come with mounting hardware?
Yes — stainless steel mounting hardware is included with the unit itself.
What if I want a backlight function too?
This variant has no backlight. The red backlight option (270014) is clear lens only — there is no amber-plus-backlight combination in this lineup as currently confirmed.
The Obsidian Take
The LP6 Pro Amber Driving/Combo (270013) is for the desert racer or dust/fog-prone off-roader who wants the LP6 Pro's full 11,225-lumen output with the amber lens benefit layered on top — meaningful forward reach plus wide peripheral spread, purpose-built for low-visibility conditions.
If you primarily run in clear conditions, the clear-lens version (270003) delivers more total output for the same pattern.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm harness PN and mounting application before ordering.
