Baja Designs LP6 Pro 6-Inch LED Auxiliary Light Pod | Clear Lens | Driving/Combo | No Backlight | Single Unit | SKU 270003
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

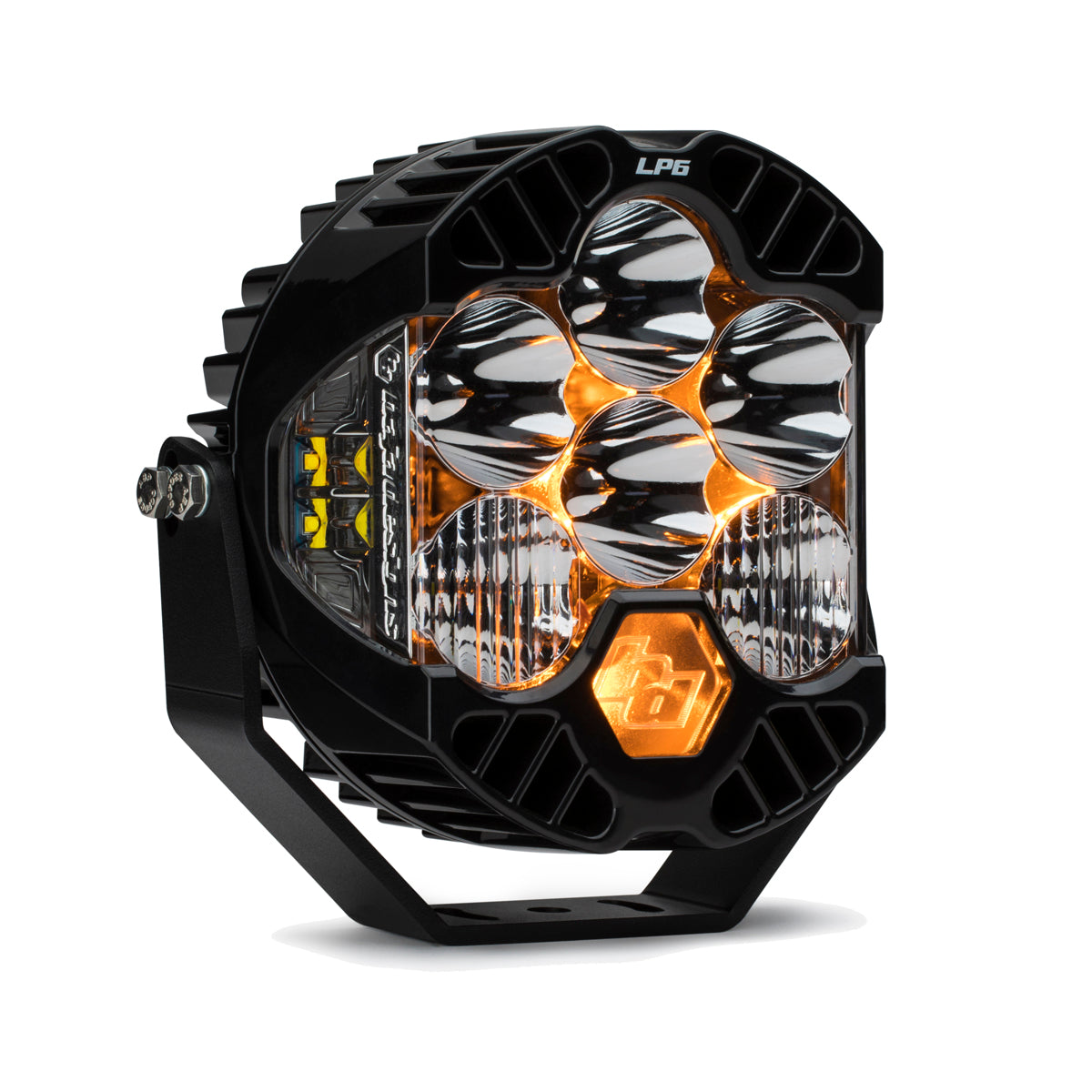

The Baja Designs LP6 Pro (SKU 270003) is a single high-output LED auxiliary light pod with clear lens in the Driving/Combo optic pattern, delivering a total of 11,225 lumens and a 200° spread of usable light through Baja Designs' patented Integrated Peripheral Technology (IPT) — combining forward-projecting and dedicated peripheral illumination in one pod. The Driving/Combo pattern blends Driving (42°) and Spot (8°) optics for near-field and distance coverage across Lighting Zones 1, 2, and 3. Direct Ducted Cooling (DDC) technology channels air through the housing and over the rear heat sinks for sustained thermal performance. This variant does not include a backlight — for the LP6 Pro with integrated red backlight, see SKU 270014. Hard anodized machined aluminum housing, billet-machined aluminum bezel, hardcoated clear polycarbonate lens, stainless steel mounting hardware (included). CopperDrive circuitry, MoistureBlock waterproofing, uService replaceable lenses and optics, ClearView optical design. 5000K daylight color temperature. IP69K rated, exceeds MIL-STD810G, built-in overvoltage protection. DT06-4S Deutsch terminal connector. 30-day money-back guarantee, limited lifetime warranty.
Wiring harness sold separately — PN 640172. This is the correct harness for the LP6 Pro series.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 270003 |
| Brand | Baja Designs |
| Model | LP6 Pro |
| Form Factor | Rectangular pod |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Driving/Combo — 42° Driving + 8° Spot |
| Total Output | 11,225 lumens (forward-projecting + IPT peripheral) |
| Secondary/Peripheral Output | 1,972 lumens via IPT |
| Backlight | None |
| Dimensions | 6.5" H x 6.5" L x 3.2" D |
| Weight | 4.2 lbs |
| Terminal Connector | DT06-4S Deutsch |
| Housing | Hard anodized machined aluminum |
| Bezel | Billet-machined aluminum |
| Mounting Hardware | Included — stainless steel |
| LED Life Expectancy | 49,930 hours |
| IP Rating | IP69K — waterproof, submersible |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Wiring Harness | NOT included — PN 640172 required separately |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Single unit (1 pod) |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x LP6 Pro light pod, clear lens, no backlight | ✓ |
| Stainless steel mounting hardware | ✓ |
| Wiring harness | ✗ NOT included — purchase harness PN 640172 separately |
| Vehicle-specific bracket kit (if needed) | ✗ NOT included — confirm separately for specific applications |
LP6 Pro Variant Guide — With vs. Without Backlight
| Variant | SKU | Backlight |
|---|---|---|
| LP6 Pro — No Backlight (this listing) | 270003 | None |
| LP6 Pro — Red Backlight | 270014 | Red — exhibition use only, never on public roads |
LP6 Pro vs. LP6 Auxiliary Pod vs. DOT LP6 Headlight
| Product | Use | Notes |
|---|---|---|
| LP6 Auxiliary Pod — Vehicle-Specific Kits | Bumper kit component | Jeep JL/JT Rubicon steel bumper specific |
| DOT LP6 Headlight | Primary headlight replacement | FMVSS 108 compliant, not an auxiliary light |
| LP6 Pro Auxiliary Pod (this listing) | Universal auxiliary driving light | Maximum LP6 output, no backlight |
LP6 Pro vs. LP4 Pro
| Model | Output | Notes |
|---|---|---|
| LP4 Pro | 8,750–8,857 lumens | Smaller rectangular pod, lighter weight |
| LP6 Pro (this listing) | 11,225 lumens | Larger rectangular pod, maximum output |
Installation Notes
- Harness PN 640172 required. This light does not include a wiring harness — order separately.
- Rectangular mount required. Confirm your mounting solution is designed for the LP6 Pro rectangular footprint — round pod mounts are not compatible.
- Aim before final torque. Aim the light at the desired beam angle before torquing mount hardware.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
- Legal notice. Auxiliary lighting use on public roads is subject to state and local regulations — verify compliance before use on public roads.
Verified Application
| Application | Status |
|---|---|
| Universal mount — trucks, Jeeps, motorcycles, UTVs | ✓ |
| Round pod mounts (S2/Squadron/XL Sport style) | ✗ Not compatible — LP6 Pro is rectangular |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Round pod mounts | Not compatible — LP6 Pro uses a rectangular footprint |
| Want a backlight function? | Order the red backlight variant (270014) instead — no backlight can be added to this SKU after purchase |
Common Questions
Does this have a backlight?
No. This variant has no backlight. For the LP6 Pro with an integrated red backlight, order SKU 270014 instead.
Does this come with a wiring harness?
No. Harness PN 640172 must be purchased separately.
Does this come with mounting hardware?
Yes — stainless steel mounting hardware is included with the unit itself.
What's the actual light output?
11,225 total lumens, combining forward-projecting and IPT peripheral lighting for a 200° spread.
The Obsidian Take
The LP6 Pro (270003) is for the builder who wants serious 6" pod output — 11,225 lumens, 200° IPT spread, Direct Ducted Cooling — without the added complexity of a secondary backlight circuit. Simple, maximum-output clear lens driving/combo lighting for bumper or A-pillar applications.
If you want a running/chase light accent function down the road, the red backlight variant (270014) is the one to consider instead — this variant can't be retrofitted with that feature.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm harness PN and mounting application before ordering.
