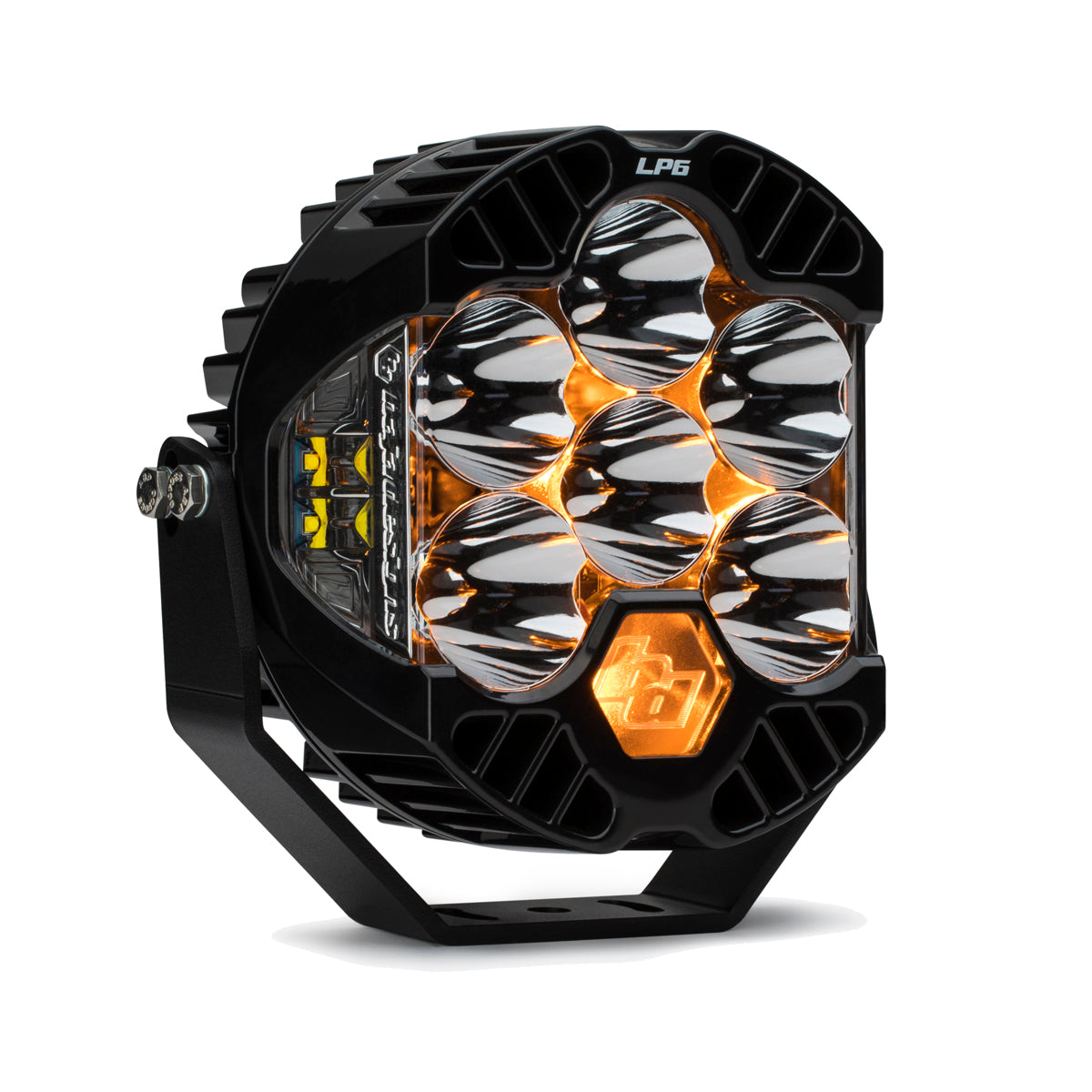

Baja Designs LP6 Pro 6-Inch LED Auxiliary Light Pod | Clear Lens | Spot Pattern | Single Unit | SKU 270001
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The Baja Designs LP6 Pro (SKU 270001) is a single high-output LED auxiliary light pod with clear lens in the Spot optic pattern, delivering a total of 11,225 lumens through Baja Designs' patented Integrated Peripheral Technology (IPT) — combining a tight, long-range forward beam with dedicated peripheral illumination. The Spot pattern uses a longer, narrower 8° beam focus that reaches further down the trail or road than the Driving/Combo pattern, ideal for high-speed desert use, long-range trail scanning, and any application where maximum forward reach at distance is the priority over peripheral spread — best used alongside additional Wide Cornering or Driving/Combo auxiliary lights in Lighting Zones 4 & 5, not as a sole light source. Direct Ducted Cooling (DDC) technology channels air through the housing and over the rear heat sinks for sustained thermal performance. Hard anodized machined aluminum housing, billet-machined aluminum bezel, hardcoated clear polycarbonate lens, stainless steel mounting hardware (included). CopperDrive circuitry, MoistureBlock waterproofing, uService replaceable lenses and optics, ClearView optical design. 5000K daylight color temperature. IP69K rated, exceeds MIL-STD810G, built-in overvoltage protection. DT06-4S Deutsch terminal connector. 30-day money-back guarantee, limited lifetime warranty.
Wiring harness sold separately — PN 640172. This is the correct harness for the LP6 Pro series.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 270001 |
| Brand | Baja Designs |
| Model | LP6 Pro |
| Form Factor | Rectangular pod |
| Lens | Clear, hardcoated polycarbonate |
| Pattern | Spot — 8° narrow beam, long-range throw |
| Total Output | 11,225 lumens (forward-projecting + IPT peripheral) |
| Secondary/Peripheral Output | 1,972 lumens via IPT |
| Backlight | None |
| Dimensions | 6.5" H x 6.5" L x 3.2" D |
| Weight | 4.2 lbs |
| Terminal Connector | DT06-4S Deutsch |
| Housing | Hard anodized machined aluminum |
| Bezel | Billet-machined aluminum |
| Mounting Hardware | Included — stainless steel |
| LED Life Expectancy | 49,930 hours |
| IP Rating | IP69K — waterproof, submersible |
| Durability Standard | Exceeds MIL-STD810G |
| Overvoltage Protection | Built-in |
| Wiring Harness | NOT included — PN 640172 required separately |
| Warranty | Limited lifetime |
| Guarantee | 30-day money-back |
| Quantity | Single unit (1 pod) |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x LP6 Pro light pod, clear lens, Spot pattern | ✓ |
| Stainless steel mounting hardware | ✓ |
| Wiring harness | ✗ NOT included — purchase harness PN 640172 separately |
| Vehicle-specific bracket kit (if needed) | ✗ NOT included — confirm separately for specific applications |
LP6 Pro Pattern Guide — Complete
| Pattern | SKU | Backlight | Best For |
|---|---|---|---|
| Spot (this listing) | 270001 | None | Long-range throw, high-speed desert, center-mount |
| Driving/Combo, no backlight | 270003 | None | All-around trail, desert, road use |
| Driving/Combo, red backlight | 270014 | Red — exhibition use only | All-around use plus running/chase light accent |
Spot vs. Driving/Combo — Which Pattern
- Spot (this listing): Pencil beam — maximum distance reach, minimal peripheral spread. Best for high-speed use where seeing far ahead is the priority. Not ideal as a sole light source — pair with a Driving/Combo pod for peripheral coverage.
- Driving/Combo (270003 / 270014): Balanced beam — meaningful forward reach with wide peripheral spread. Best all-around pattern for most trail, desert, and road applications.
LP6 Pro vs. LP6 Auxiliary Pod vs. DOT LP6 Headlight
| Product | Use | Notes |
|---|---|---|
| LP6 Auxiliary Pod — Vehicle-Specific Kits | Bumper kit component | Jeep JL/JT Rubicon steel bumper specific |
| DOT LP6 Headlight | Primary headlight replacement | FMVSS 108 compliant, not an auxiliary light |
| LP6 Pro Auxiliary Pod (this listing) | Universal auxiliary driving light | Maximum long-range reach, center-mount applications |
Installation Notes
- Harness PN 640172 required. This light does not include a wiring harness — order separately.
- Spot pattern aim is critical. Minimal side spread means precise aim matters more than with Driving/Combo — a misaimed Spot pod delivers significantly less usable light.
- Rectangular mount required. Confirm your mounting solution is designed for the LP6 Pro rectangular footprint — round pod mounts are not compatible.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
- Legal notice. Auxiliary lighting use on public roads is subject to state and local regulations — verify compliance before use on public roads.
Verified Application
| Application | Status |
|---|---|
| Universal mount — trucks, Jeeps, motorcycles, UTVs | ✓ |
| Center-mount bumper, roof rack center positions | ✓ — ideal for this pattern's long-range throw |
| Round pod mounts (S2/Squadron/XL Sport style) | ✗ Not compatible — LP6 Pro is rectangular |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Round pod mounts | Not compatible — LP6 Pro uses a rectangular footprint |
| Using as a sole light source | Not recommended — pair with a Driving/Combo or Wide Cornering light for peripheral coverage |
Common Questions
Should I use this as my only auxiliary light?
Not ideal. The Spot pattern is designed to complement additional Wide Cornering or Driving/Combo lights, not replace them — it maximizes distance but leaves peripheral areas dark.
Does this come with a wiring harness?
No. Harness PN 640172 must be purchased separately.
How does this differ from the Driving/Combo version?
Spot uses a narrower 8° beam focused entirely on distance. Driving/Combo balances forward reach with wide peripheral spread — better as a standalone light.
Does this come with mounting hardware?
Yes — stainless steel mounting hardware is included with the unit itself.
The Obsidian Take
The LP6 Pro Spot (270001) is for the high-speed desert runner or long-range trail scanner who needs maximum forward throw — 11,225 lumens focused into a narrow 8° beam, Direct Ducted Cooling for sustained performance.
Pair this with a Driving/Combo or Wide Cornering pod for peripheral coverage — running Spot alone leaves the sides of your vehicle dark, which matters more at trail speeds than on a long desert straightaway.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm harness PN and mounting application before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
