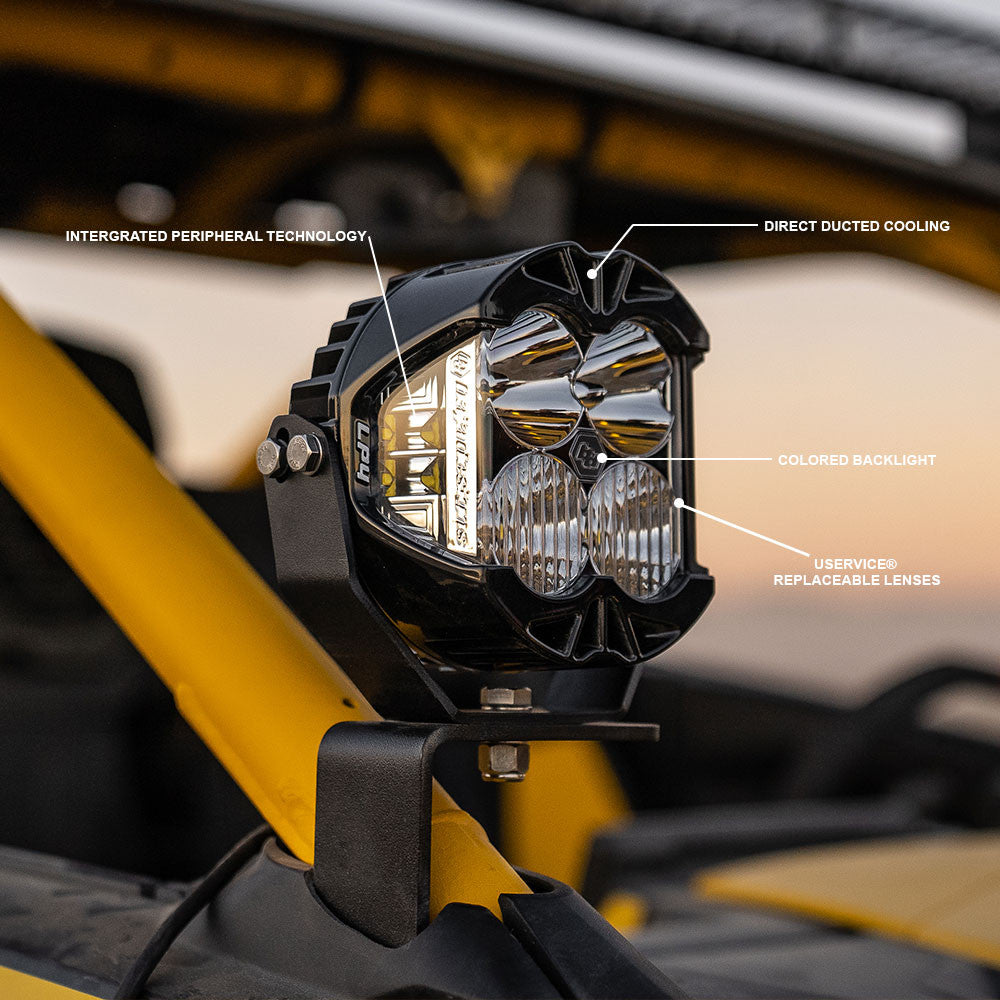

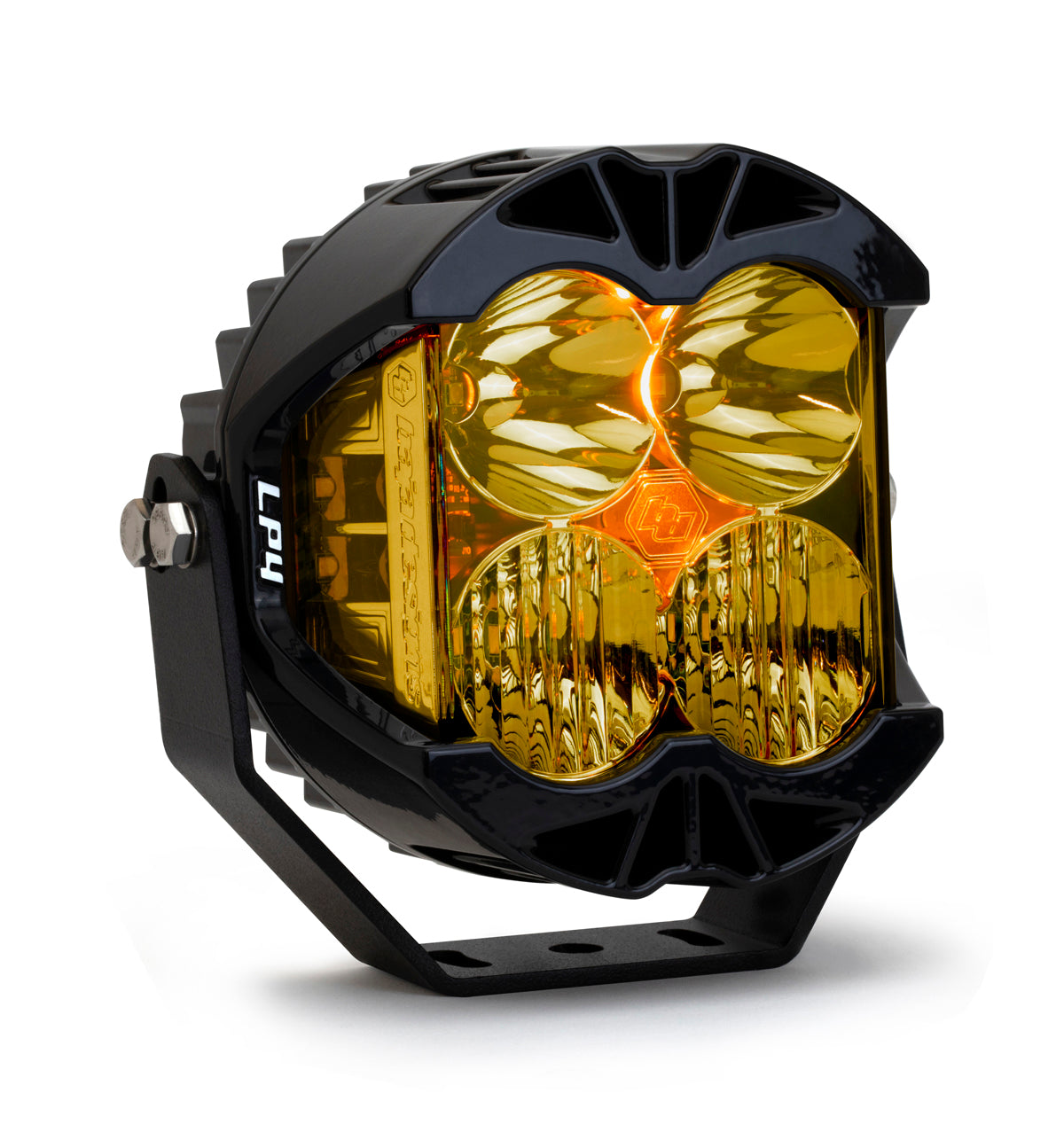

The Baja Designs LP4 Pro (SKU 290013) is a single high-output LED light pod with an amber lens in the Driving/Combo optic pattern. The LP4 is the smallest variant in the LP lineup but retains all the power and features of its larger siblings, featuring a total of 8,857 raw lumens — 6,885 forward-projecting lumens plus 1,972 lumens of dedicated peripheral lighting from Baja Designs' patented Integrated Peripheral Technology (IPT), providing a 200° spread of usable light that illuminates Lighting Zones 1, 2, and 3, with reach into Zone 4 spot. The Driving/Combo pattern combines a 42° wide cornering beam with 9° spot optics for a smooth blend of near-field and distance illumination. Proprietary Direct Ducted Cooling (DDC) technology channels air through the front of the housing and over the rear heat sinks, drastically improving cooling capacity and sustained performance. The amber lens filters blue light wavelengths that scatter in dust, fog, sand, and precipitation, reducing glare and improving contrast in low-visibility conditions. Die-cast aluminum housing, IP69K rated. uService replaceable lenses and optics, ClearView optical design. 30-day money-back guarantee, limited lifetime warranty (or 49,930 hours, whichever comes first).
This is a single unit — one LP4 Pro pod. For a pair of two amber pods, order BAJ297813 instead. This light does not come with a wiring harness — the applicable harness is PN 640175, sold separately and required for installation. Do not use the LP6 harness (640172) — different connector and circuit configuration.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 290013 |
| Brand | Baja Designs |
| Model | LP4 Pro |
| Form Factor | Rectangular pod |
| Lens | Amber, polycarbonate |
| Pattern | Driving/Combo — 42° wide cornering + 9° Spot |
| Total Output | 8,857 raw lumens (6,885 forward-projecting + 1,972 peripheral via IPT) |
| Lighting Technology | Integrated Peripheral Technology (IPT), Direct Ducted Cooling (DDC) |
| Lighting Zones | 1, 2, 3, with reach into Zone 4 |
| Housing | Die-cast aluminum |
| IP Rating | IP69K — waterproof, dust-tight, pressure wash safe |
| Wiring Harness | NOT included — PN 640175 required separately |
| Warranty | Limited lifetime or 49,930 hours, whichever comes first |
| Guarantee | 30-day money-back |
| Quantity | Single unit (1 pod) |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x LP4 Pro amber light pod | ✓ |
| Wiring harness | ✗ NOT included — purchase harness PN 640175 separately |
| Mount for rectangular pod body | ✗ NOT included — confirm LP4-compatible mount before ordering |
Single Unit vs. Pair — LP4 Pro Amber
| Configuration | SKU |
|---|---|
| Single Unit — Amber (this listing) | 290013 |
| Pair — Amber | 297813 |
| Pair — Clear | 297803 |
LP4 Pro Form Factor — Rectangular vs. Round Pods
| Pod Family | Body Shape | Mount Compatibility |
|---|---|---|
| S2 Sport / S2 Pro / Squadron Sport / Squadron Pro / XL Sport | Round | Standard tube, bumper, surface mounts |
| LP4 Pro (this listing) | Rectangular | LP4-specific mounts only — round pod mounts not compatible |
Required Accessories — Sold Separately
- Wiring Harness PN 640175 — required for proper circuit connections. Do not substitute the LP6 harness (640172); it uses a different connector and circuit configuration.
- LP4-compatible mounting solution — round pod mounts will not fit this rectangular body.
Installation Notes
- Harness 640175 required. Do not use LP6 harness (640172) — confirm the correct PN before ordering.
- Rectangular mount required. Confirm your mounting solution is designed for the LP4 rectangular footprint.
- Aim before final torque. Aim the light at the desired beam angle before torquing mount hardware.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
- Legal notice. Amber auxiliary lighting may have different legal status than white lights in your jurisdiction — verify compliance before use on public roads.
- Colored backlight note: Other backlight color options exist in the broader LP4 Pro family (red, blue, green) for exhibition use only — never for public road use, due to potential confusion with law enforcement or emergency vehicle lighting. This specific SKU is the standard amber backlight.
Verified Application
| Application | Status |
|---|---|
| Universal mount — trucks, UTVs, equipment with LP4-compatible rectangular mount | ✓ |
| Round pod mounts (S2/Squadron/XL Sport style) | ✗ Not compatible |
Critical Compatibility
| Configuration | Notes |
|---|---|
| LP6 wiring harness (640172) | Not compatible — different connector and circuit configuration than the LP4 Pro's required harness (640175) |
| Round pod mounts | Not compatible — LP4 Pro uses a rectangular footprint |
| Public road use of colored exhibition backlights | Not applicable to this amber SKU, but relevant if exploring red/blue/green variants in the broader LP4 Pro line — exhibition use only |
Common Questions
Does this come with a wiring harness?
No. Harness PN 640175 must be purchased separately. Do not substitute the LP6 harness (640172) — it's not compatible.
Can I use my round S2 or Squadron mount with this light?
No. The LP4 Pro has a rectangular body and requires an LP4-specific mount.
What does Integrated Peripheral Technology actually do?
It splits the light output between forward-projecting beam (6,885 lumens) and dedicated peripheral illumination (1,972 lumens), together creating a 200° spread that covers more of your surroundings than a typical single-beam pod.
Should I buy the single unit or the pair?
The single unit is for asymmetric builds or replacing one failed pod. For a standard two-pod installation, the pair (297813) offers better value.
The Obsidian Take
The LP4 Pro (290013) is for the builder who wants serious forward and peripheral light output in a compact rectangular pod — 8,857 raw lumens combining forward-projecting and dedicated peripheral IPT lighting, Direct Ducted Cooling for sustained performance, amber lens for dust and fog.
Two things to confirm before ordering: you'll need the specific 640175 harness (not the LP6's 640172), and you'll need an LP4-compatible rectangular mount — round pod mounts from other Baja Designs lines won't work here.
Non-Returnable Notice: Electrical lighting products that have been installed or wired are non-returnable. Confirm harness PN and mount compatibility before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Input data incorrectly described this as a "dual-row LED" design — confirmed as patented Integrated Peripheral Technology (IPT) with separate forward and peripheral light outputs. Stated weight (5 lbs) could not be independently confirmed and has been removed. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
