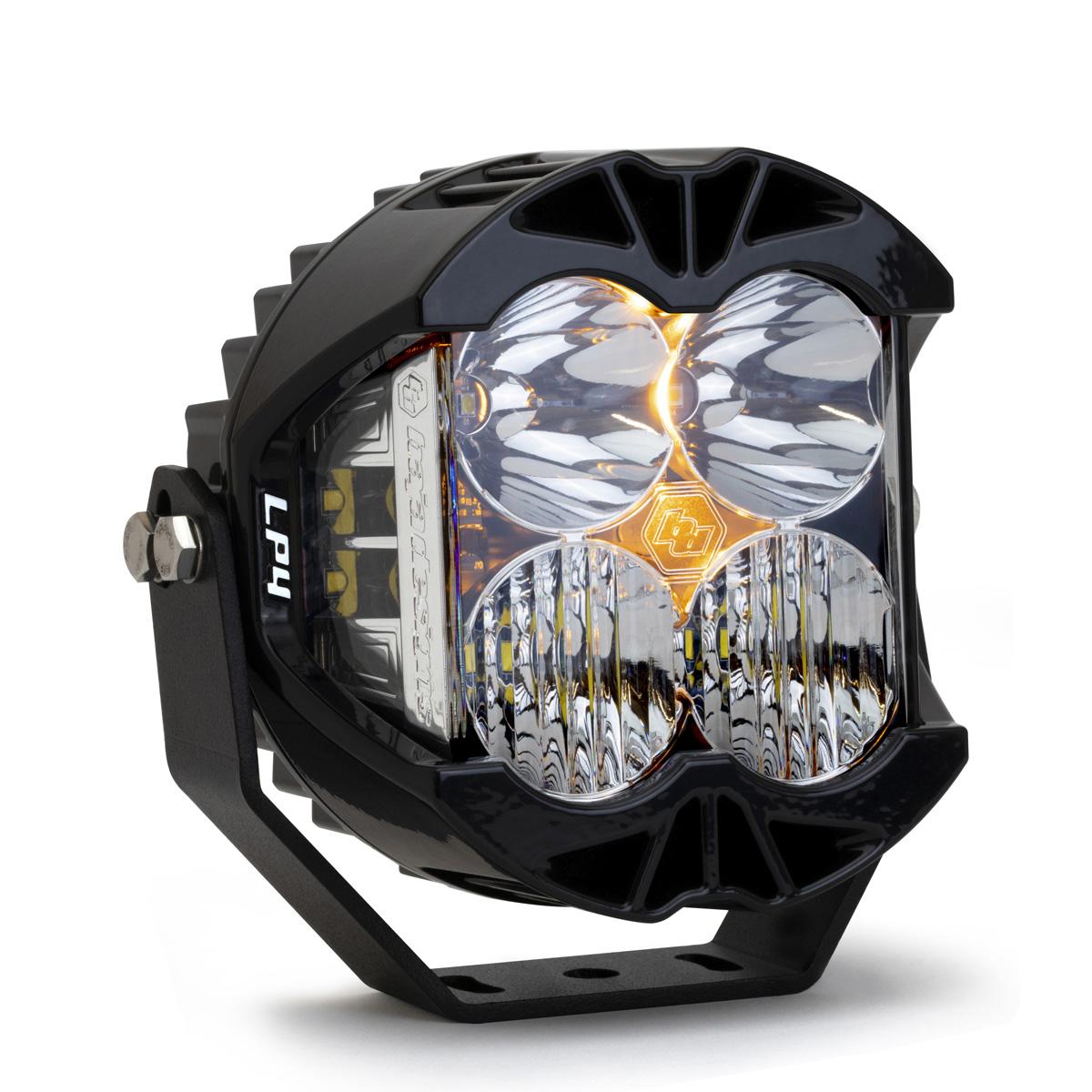

The Baja Designs LP4 Pro (SKU 290003) is a single high-output LED light pod with a clear lens in the Driving/Combo optic pattern. The LP4 is the smallest variant in the LP lineup but retains all the power and features of its larger siblings, combining forward-projecting lumens with dedicated peripheral lighting from Baja Designs' patented Integrated Peripheral Technology (IPT), providing a 200° spread of usable light that illuminates Lighting Zones 1, 2, and 3, with reach into Zone 4 spot. The Driving/Combo pattern combines a 42° wide cornering beam with 9° spot optics for a smooth blend of near-field and distance illumination. Proprietary Direct Ducted Cooling (DDC) technology channels air through the front of the housing and over the rear heat sinks, drastically improving cooling capacity and sustained performance. Clear lens delivers maximum output in clear conditions — for dust, fog, or precipitation environments, the amber lens variant (SKU 290013) reduces glare and scatter. Die-cast aluminum housing, IP69K rated. uService replaceable lenses and optics, ClearView optical design. 5000K daylight color temperature. 30-day money-back guarantee, limited lifetime warranty (or 49,930 hours, whichever comes first).
This is a single unit — one LP4 Pro pod. For a pair of two clear pods, order BAJ297803 instead. This light does not come with a wiring harness — the applicable harness is PN 640175, sold separately and required for installation. Do not use the LP6 harness (640172) — different connector and circuit configuration.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 290003 |
| Brand | Baja Designs |
| Model | LP4 Pro |
| Form Factor | Rectangular pod |
| Lens | Clear, polycarbonate |
| Pattern | Driving/Combo — 42° wide cornering + 9° Spot |
| Lighting Technology | Integrated Peripheral Technology (IPT), Direct Ducted Cooling (DDC) |
| Lighting Zones | 1, 2, 3, with reach into Zone 4 |
| Color Temperature | 5000K daylight white |
| Housing | Die-cast aluminum with advanced thermal management |
| IP Rating | IP69K — waterproof, dust-tight, pressure wash safe |
| Wiring Harness | NOT included — PN 640175 required separately |
| Warranty | Limited lifetime or 49,930 hours, whichever comes first |
| Guarantee | 30-day money-back |
| Quantity | Single unit (1 pod) |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x LP4 Pro clear light pod | ✓ |
| Wiring harness | ✗ NOT included — purchase harness PN 640175 separately |
| Mount for rectangular pod body | ✗ NOT included — confirm LP4-compatible mount before ordering |
Single Unit vs. Pair — LP4 Pro Clear
| Configuration | SKU |
|---|---|
| Single Unit — Clear (this listing) | 290003 |
| Pair — Clear | 297803 |
| Single Unit — Amber | 290013 |
| Pair — Amber | 297813 |
LP4 Pro Form Factor — Rectangular vs. Round Pods
| Pod Family | Body Shape | Mount Compatibility |
|---|---|---|
| S2 Sport / S2 Pro / Squadron Sport / Squadron Pro / XL Sport | Round | Standard tube, bumper, surface mounts |
| LP4 Pro (this listing) | Rectangular | LP4-specific mounts only — round pod mounts not compatible |
Required Accessories — Sold Separately
- Wiring Harness PN 640175 — required for proper circuit connections. Do not substitute the LP6 harness (640172); it uses a different connector and circuit configuration.
- LP4-compatible mounting solution — round pod mounts will not fit this rectangular body.
Installation Notes
- Harness 640175 required. Do not use LP6 harness (640172) — confirm the correct PN before ordering.
- Rectangular mount required. Confirm your mounting solution is designed for the LP4 rectangular footprint.
- Thermal management. Ensure adequate airflow around the pod housing for optimal cooling — do not mount in fully enclosed spaces without ventilation.
- Aim before final torque. Aim the light at the desired beam angle before torquing mount hardware.
- Connector sealing. Ensure all wiring connectors are fully seated and sealed after installation.
- Legal notice. Auxiliary lighting use on public roads is subject to state and local regulations — verify compliance before use on public roads.
Verified Application
| Application | Status |
|---|---|
| Universal mount — trucks, UTVs, equipment with LP4-compatible rectangular mount | ✓ |
| Round pod mounts (S2/Squadron/XL Sport style) | ✗ Not compatible |
Critical Compatibility
| Configuration | Notes |
|---|---|
| LP6 wiring harness (640172) | Not compatible — different connector and circuit configuration than the LP4 Pro's required harness (640175) |
| Round pod mounts | Not compatible — LP4 Pro uses a rectangular footprint |
| Enclosed mounting locations | Avoid — adequate airflow is needed for the DDC cooling system to function properly |
Common Questions
Does this come with a wiring harness?
No. Harness PN 640175 must be purchased separately. Do not substitute the LP6 harness (640172) — it's not compatible.
Can I use my round S2 or Squadron mount with this light?
No. The LP4 Pro has a rectangular body and requires an LP4-specific mount.
Should I get clear or amber?
Clear delivers maximum output in clear conditions. If you regularly run in dust, fog, or precipitation, the amber lens variant (290013) reduces glare and improves contrast in those conditions instead.
Should I buy the single unit or the pair?
The single unit is for asymmetric builds or replacing one failed pod. For a standard two-pod installation, the pair (297803) offers better value.
The Obsidian Take
The LP4 Pro Clear (290003) is for the builder who wants serious forward and peripheral light output in a compact rectangular pod, in clear conditions — combining forward-projecting and dedicated peripheral IPT lighting, Direct Ducted Cooling for sustained performance.
Two things to confirm before ordering: you'll need the specific 640175 harness (not the LP6's 640172), and you'll need an LP4-compatible rectangular mount — round pod mounts from other Baja Designs lines won't work here.
