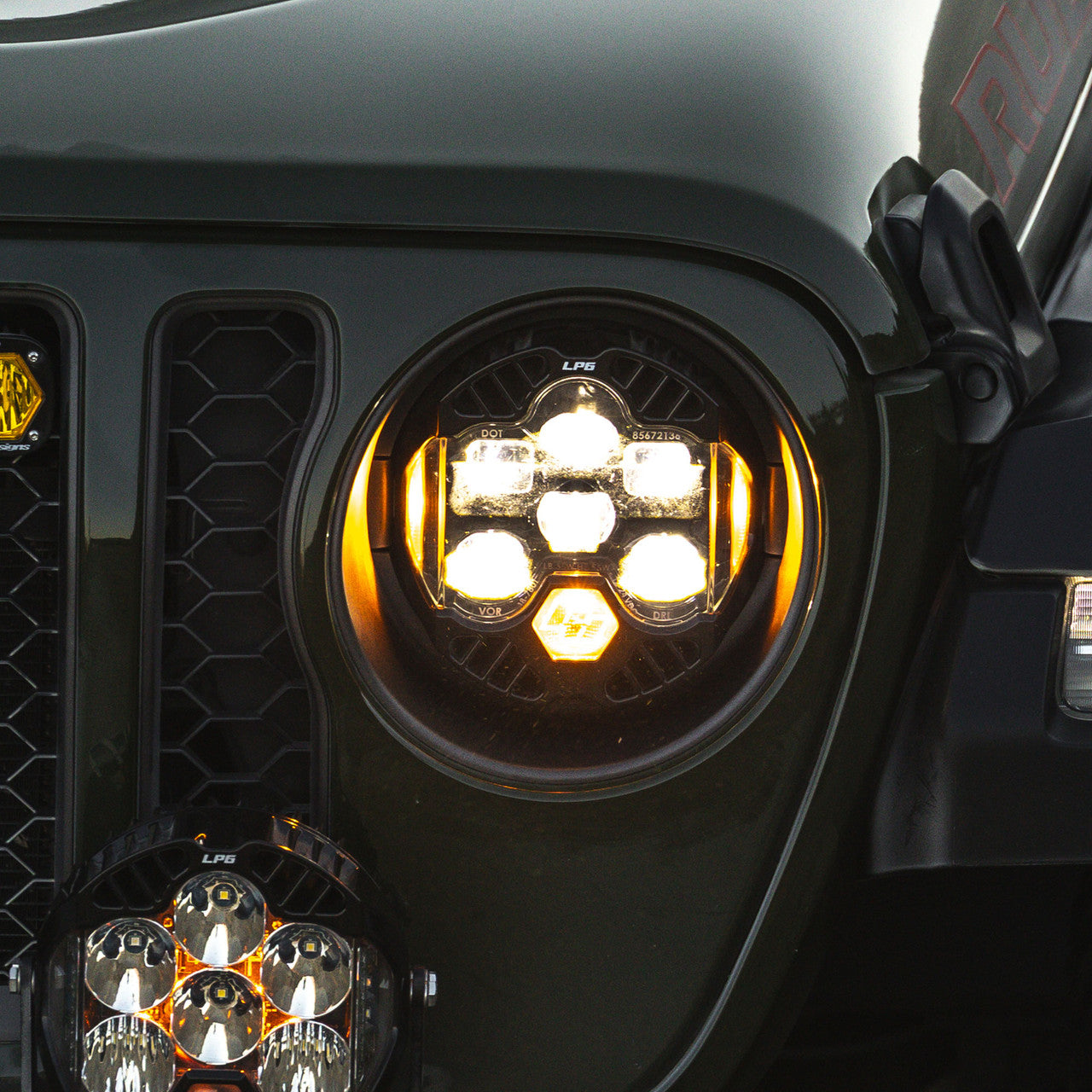

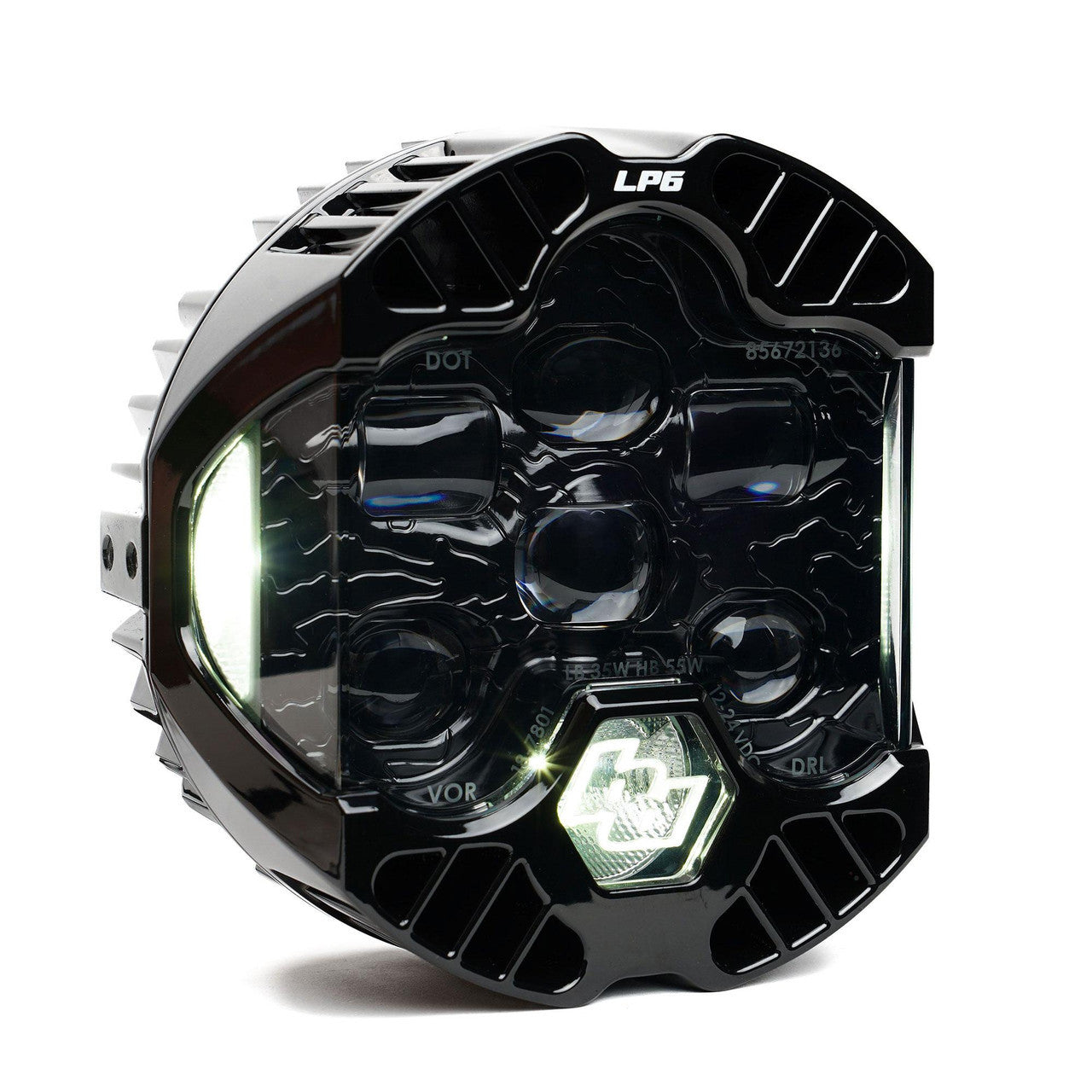

The Baja Designs DOT LP6 (SKU 180002) is Baja Designs' first-ever road-legal LED headlight replacement, built on the foundation of the race-proven LP6 Pro off-road light and re-engineered for on-road use. It is fully compliant with FMVSS 108 standards for both automotive and motorcycle applications — the federal standard governing headlight compliance in the United States. Six advanced projector optics deliver precise, focused output that maximizes visibility while keeping oncoming traffic safe, with integrated high and low beam functionality at Baja Designs' signature 5000K color temperature. Output is rated at 3,480 lumens low beam and 5,280 lumens high beam. This unit includes an integrated amber DRL ring — a separate clear/white DRL option is also available under a different SKU. Hard-coated polycarbonate lens, anodized aluminum housing, billet aluminum bezel, stainless steel hardware and bracket. Exceeds MIL-STD810G testing. 30-day satisfaction guarantee, limited lifetime warranty.
This single light does not come with a wiring harness or mounting brackets. You will need to purchase separately the appropriate vehicle harness PN:640172 — this harness is only for vehicles and will not work on motorcycles — and universal mounting brackets, available within Baja Designs' LP6 parts bag PN:65-0286. Important: uService is NOT a feature of DOT products. Tampering with or attempting to service the sealed optics will void the warranty — unlike Baja Designs' off-road S1, S2, and Squadron lines, this headlight's optics are not user-replaceable.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 180002 |
| Brand | Baja Designs |
| Model | DOT LP6 — headlight replacement |
| Compliance Standard | FMVSS 108 (automotive and motorcycle) |
| DRL | Amber, integrated ring |
| Low Beam Output | 3,480 lumens |
| High Beam Output | 5,280 lumens |
| Color Temperature | 5000K |
| Optics | Six advanced projector optics |
| Lens | Hard-coated polycarbonate |
| Housing | Anodized aluminum |
| Bezel | Billet aluminum |
| Hardware/Bracket Material | Stainless steel |
| Durability Standard | Exceeds MIL-STD810G |
| uService | NOT available — sealed optics, tampering voids warranty |
| Warranty | Lifetime Limited |
| Guarantee | 30-Day Satisfaction Guarantee |
| Quantity | Single unit |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x DOT LP6 LED headlight unit, amber DRL | ✓ |
| Wiring harness | ✗ NOT included — purchase harness PN:640172 separately (vehicle applications only — not for motorcycles) |
| Mounting brackets | ✗ NOT included — available in Baja Designs LP6 parts bag PN:65-0286 |
DOT LP6 Headlight vs. LP6 Auxiliary Pod
| Product | Use | DOT/FMVSS Compliant |
|---|---|---|
| LP6 Auxiliary Pod (off-road) | Bumper or fog pocket auxiliary light | No — off-road use only |
| DOT LP6 Headlight (this listing) | Primary headlight bucket replacement | Yes — FMVSS 108 |
Important Notes on Wiring Harness 640172
- This headlight is rated for both automotive and motorcycle applications under FMVSS 108.
- However, harness 640172 specifically is built for vehicle (automotive) installations only and will not work on motorcycles.
- Motorcycle installers need a different, motorcycle-compatible harness — confirm the correct part with Baja Designs before ordering.
- Harness 640172 includes a 3-position, 30-amp DC-rated DPDT On-Off-On switch operating high and low beam independently, plus a separate wire lead with splice connector for the amber DRL function, and a 15-foot length from instrument cluster to light mounting location.
uService Limitation — Different From Baja Designs' Off-Road Lights
Unlike Baja Designs' S1, S2 Sport, S2 Pro, and Squadron Sport off-road auxiliary lights — which all feature uService replaceable lenses and optics — uService is not a feature of DOT-compliant products like this headlight. The optics are sealed for regulatory compliance. Tampering with or attempting to service them voids the warranty.
Installation Notes
- Harness and brackets required separately. Order harness 640172 (vehicle use) and mounting brackets (LP6 parts bag PN:65-0286) before installation.
- Headlight aim mandatory. After installation, aim the headlight per FMVSS 108/DOT requirements. Incorrect aim causes glare to oncoming traffic and is both a safety hazard and a legal violation. Verify aim with a headlight aiming tool or at a qualified shop.
- DRL wiring. Confirm the DRL circuit is wired correctly per Baja Designs installation instructions — incorrect wiring can cause the amber ring to illuminate at incorrect times.
- Do not attempt to service the optics. uService does not apply to this product — tampering voids the warranty.
- Legal notice. FMVSS 108 compliance does not guarantee legality in all jurisdictions. Verify local headlight replacement regulations before installation and use on public roads.
Verified Application
| Application | Status |
|---|---|
| Vehicles with compatible 7" round or rectangular headlight buckets (Jeep JK/TJ/YJ and others) | ✓ — confirm bucket size |
| Jeep Wrangler JL, Gladiator JT | ✓ — vehicle-specific mounting solutions available, confirm current options |
| Motorcycles (headlight itself) | ✓ — FMVSS 108 compliant for motorcycle use |
| Motorcycles (with harness 640172) | ✗ This harness is vehicle-only — a different harness is required for motorcycle installs |
Common Questions
Does this come with a wiring harness?
No. Harness PN:640172 must be purchased separately for vehicle installations. This harness does not work on motorcycles — a different harness is needed for that application.
Can I service or swap the lens/optics later like Baja Designs' off-road lights?
No. uService is not a feature of DOT-compliant products. Attempting to tamper with or service the sealed optics will void the warranty.
What's the actual light output?
3,480 lumens on low beam, 5,280 lumens on high beam.
Is amber the only DRL color available?
No — a clear/white DRL version is also available under a different SKU if you prefer that look.
The Obsidian Take
The DOT LP6 (180002) is for the Jeep or off-road truck owner who wants Baja Designs' performance look and output in a primary headlight that's actually FMVSS 108 compliant for street use — six projector optics, 3,480/5,280 lumens, amber DRL, lifetime limited warranty.
Two things that matter most before ordering: budget for the harness (640172, vehicle-only — confirm a separate harness if installing on a motorcycle) and mounting brackets separately, and understand this headlight's optics are sealed — unlike Baja Designs' off-road lights, there's no user-serviceable lens swapping here.
Non-Returnable Notice: Once installed, this unit is non-returnable. Confirm headlight bucket compatibility, harness, and mounting brackets before ordering. Headlight aim verification is required after installation.
