Baja Designs DOT LP6 LED Headlight Pair | Amber DRL | Universal | Street-Legal | SKU 187802
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

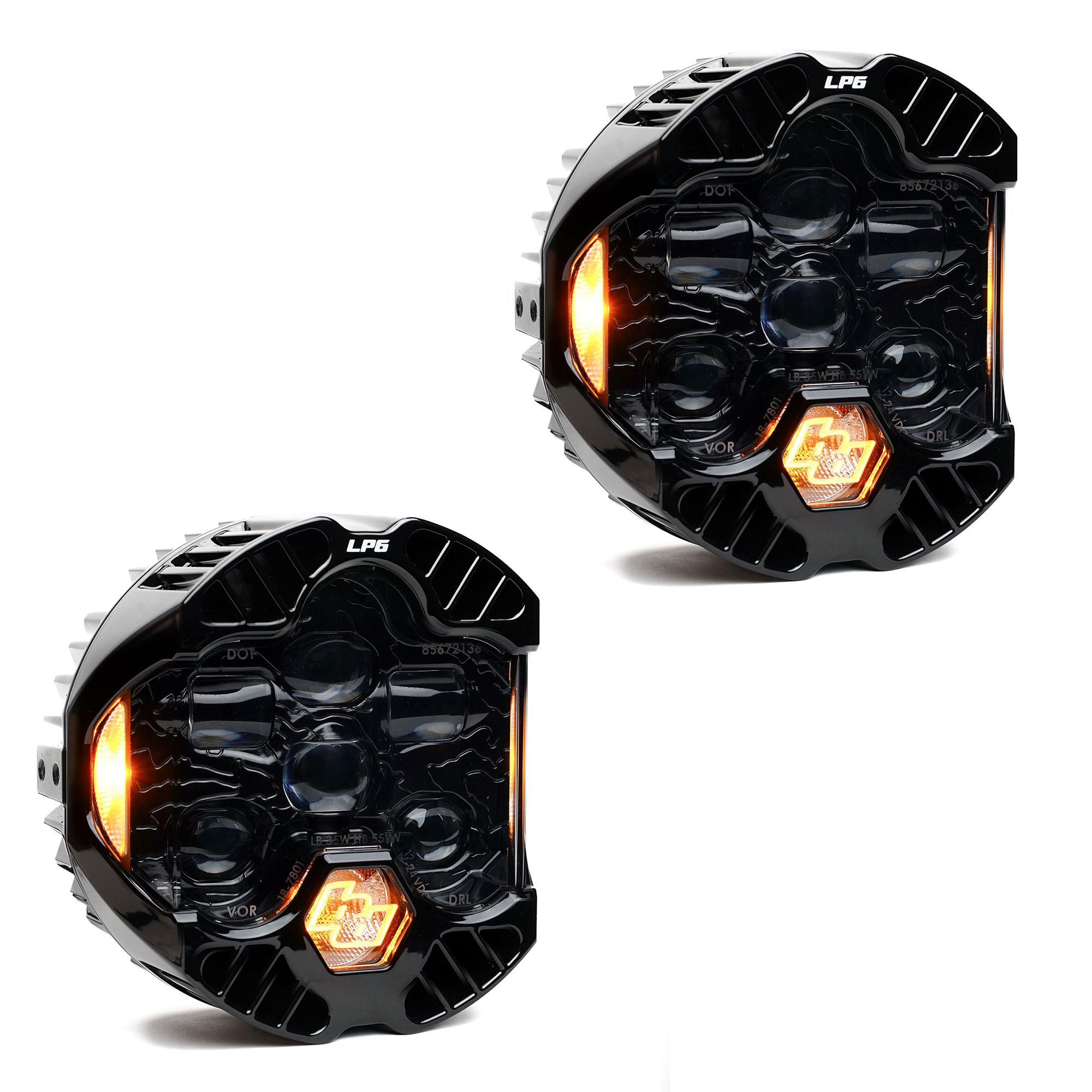

The Baja Designs DOT LP6 (SKU 187802) is a pair of FMVSS 108-compliant LED headlight replacement units with integrated amber daytime running light rings — built on the foundation of the race-proven LP6 Pro off-road light and re-engineered for on-road use. This is a primary headlight replacement pair, not an auxiliary pod. Six advanced projector optics per unit deliver 3,480 lumens low beam and 5,280 lumens high beam at Baja Designs' signature 5000K color temperature. FMVSS 108 compliance applies for both automotive and motorcycle applications, though the required wiring harness (below) is vehicle-only. Hard-coated polycarbonate lens, anodized aluminum housing, billet aluminum bezel, stainless steel hardware. Exceeds MIL-STD810G testing. 30-day satisfaction guarantee, limited lifetime warranty.
No mounting brackets or wiring harness included. This pair requires harness PN 640172 and bracket kit PN 65-0286, both sold separately. uService is not a feature of DOT products — the optics are sealed for regulatory compliance, and tampering voids the warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 187802 |
| Brand | Baja Designs |
| Model | DOT LP6 — headlight replacement |
| Compliance Standard | FMVSS 108 (automotive and motorcycle) |
| DRL | Amber, integrated ring |
| Low Beam Output | 3,480 lumens per unit |
| High Beam Output | 5,280 lumens per unit |
| Color Temperature | 5000K |
| Optics | Six advanced projector optics per unit |
| Lens | Hard-coated polycarbonate |
| Housing | Anodized aluminum |
| Bezel | Billet aluminum |
| Hardware/Bracket Material | Stainless steel |
| Durability Standard | Exceeds MIL-STD810G |
| uService | NOT available — sealed optics, tampering voids warranty |
| Warranty | Lifetime Limited |
| Guarantee | 30-Day Satisfaction Guarantee |
| Quantity | Pair (2 units) |
| Sold As | Pair |
Critical Compatibility
| Configuration | Status |
|---|---|
| Wiring harness | NOT included — requires PN 640172 |
| Mounting brackets | NOT included — requires universal bracket kit PN 65-0286 |
| Harness 640172 on motorcycles | Does NOT work — this harness is vehicle-only; motorcycle installs need a different harness |
| uService lens/optic swapping | Not available on this product — attempting to service the sealed optics voids the warranty |
| Clear DRL alternative | Available under SKU 187801 — same units, white DRL ring instead of amber |
Which DOT LP6 Product Do You Actually Need?
| Configuration | SKU | Includes Brackets/Harness |
|---|---|---|
| Single unit, amber DRL | 180002 | No |
| Single unit, clear DRL | 180001 | No |
| Pair, amber DRL (this listing) | 187802 | No |
| Pair, clear DRL | 187801 | No |
| Complete kit, Jeep JL/JT, amber DRL | 448303 | Yes — direct-fit 2019–2026 |
| Complete kit, Jeep JK, amber DRL | 448311 | Yes — direct-fit 2007–2018 |
If you're installing on a Jeep JK or JL/JT and want a direct-fit solution, the complete kits (448303/448311) include the correct brackets and harness already matched to your vehicle — this universal pair does not.
Installation Notes
Harness PN 640172 required. Includes a 3-position, 30-amp DC-rated DPDT switch operating high and low beam independently, a separate wire lead with splice connector for the amber DRL function, and 15 feet of wire from instrument cluster to light mounting location. Do not wire directly to factory connectors without this harness — incorrect wiring causes circuit faults or damage. This harness is vehicle-only; it will not work on a motorcycle installation.

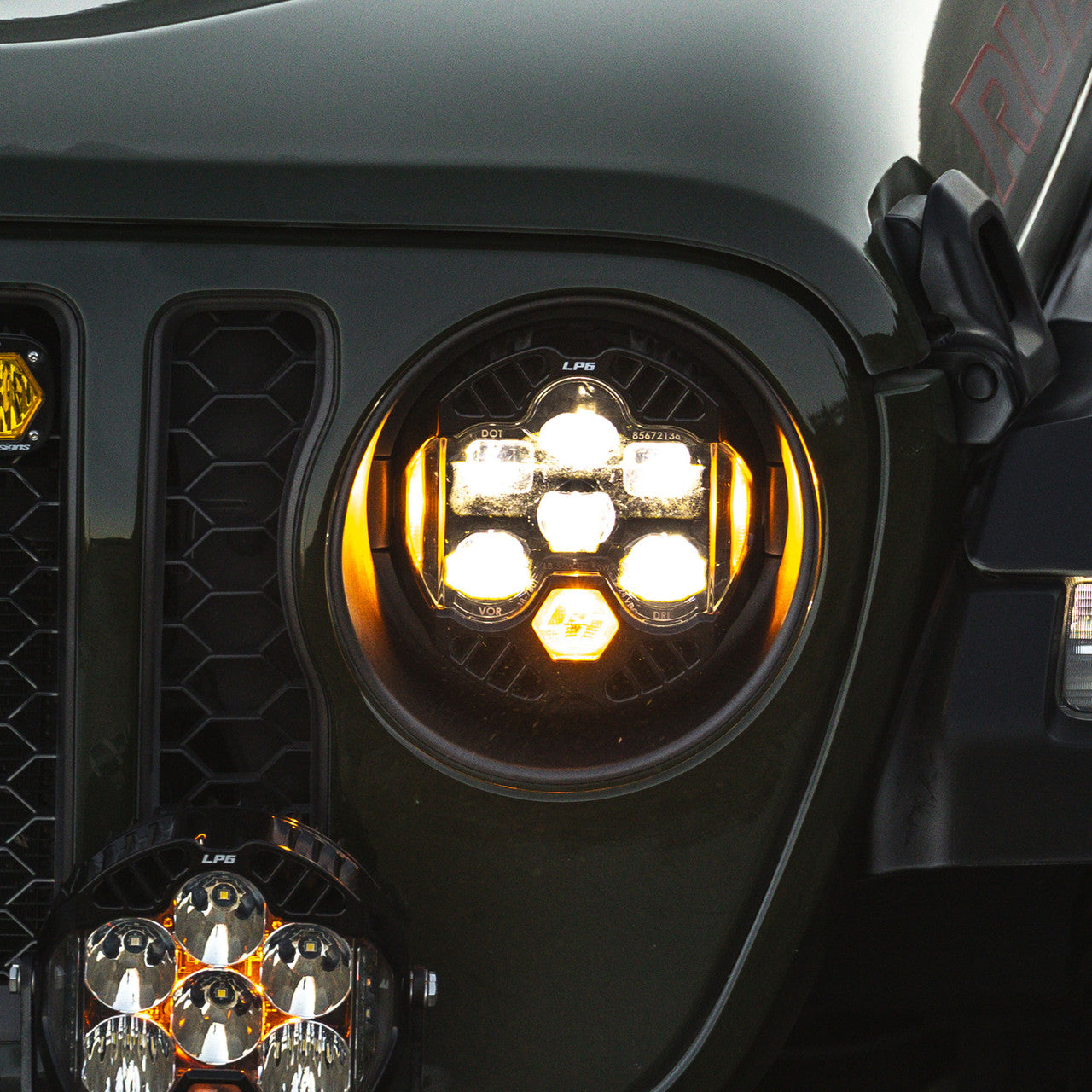

Bracket kit PN 65-0286 required. Confirm this universal bracket kit fits your specific headlight bucket size and shape before ordering — most common fitment is 7" round buckets on Jeep JK/TJ/YJ and older trucks/off-road vehicles, but confirm before purchase.
Headlight aim is mandatory after installation, per FMVSS 108/DOT requirements. Incorrect aim causes glare to oncoming traffic and is both a safety hazard and a legal violation — verify with a headlight aiming tool or at a qualified shop.
Do not attempt to service the optics. uService does not apply to this product line — tampering voids the warranty.
Legal notice. FMVSS 108 compliance does not guarantee legality in all jurisdictions. Amber DRL specifically may carry different legal status than white DRL in some areas — verify local regulations before installation and use on public roads.
Common Questions
Does this pair come with brackets and a harness?
No. Both are sold separately — harness PN 640172 and bracket kit PN 65-0286.
Can I use this on a motorcycle?
The headlight units themselves are FMVSS 108 rated for motorcycle use, but harness 640172 is vehicle-only — a different harness is needed for motorcycle installs.
Can I service or swap the lens/optics later?
No. uService is not available on DOT-compliant products — the optics are sealed, and tampering voids the warranty.
Should I buy this pair or a complete kit?
If your vehicle is a Jeep JK or JL/JT, the complete kits (448303/448311) include vehicle-specific brackets and harness already matched — buying this universal pair plus separate accessories may cost more and take more fitting work.
The Obsidian Take
This universal pair is for the custom builder or non-standard-bucket application that needs two FMVSS 108-compliant LP6 headlight units without being locked into a specific vehicle's bracket kit — 3,480/5,280 lumens per unit, six projector optics, lifetime limited warranty.
It is not the right buy for a stock Jeep JK, JL, or JT owner — the complete direct-fit kits (448303 for JL/JT, 448311 for JK) already bundle the correct brackets and harness for those platforms, and will likely cost less and install cleaner than assembling this pair plus separate accessories.
Two things to lock down before ordering: confirm bracket kit 65-0286 actually matches your headlight bucket shape, and if this is going on a motorcycle, source a motorcycle-compatible harness instead of 640172.
Non-Returnable Notice: Once installed, these units are non-returnable. Confirm headlight bucket compatibility, harness, and mounting brackets before ordering. Headlight aim verification is required after installation.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Manufacturer Data Disclaimer: Specifications sourced from Baja Designs and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Baja Designs dealer. Manufacturer specifications are subject to change without notice.
