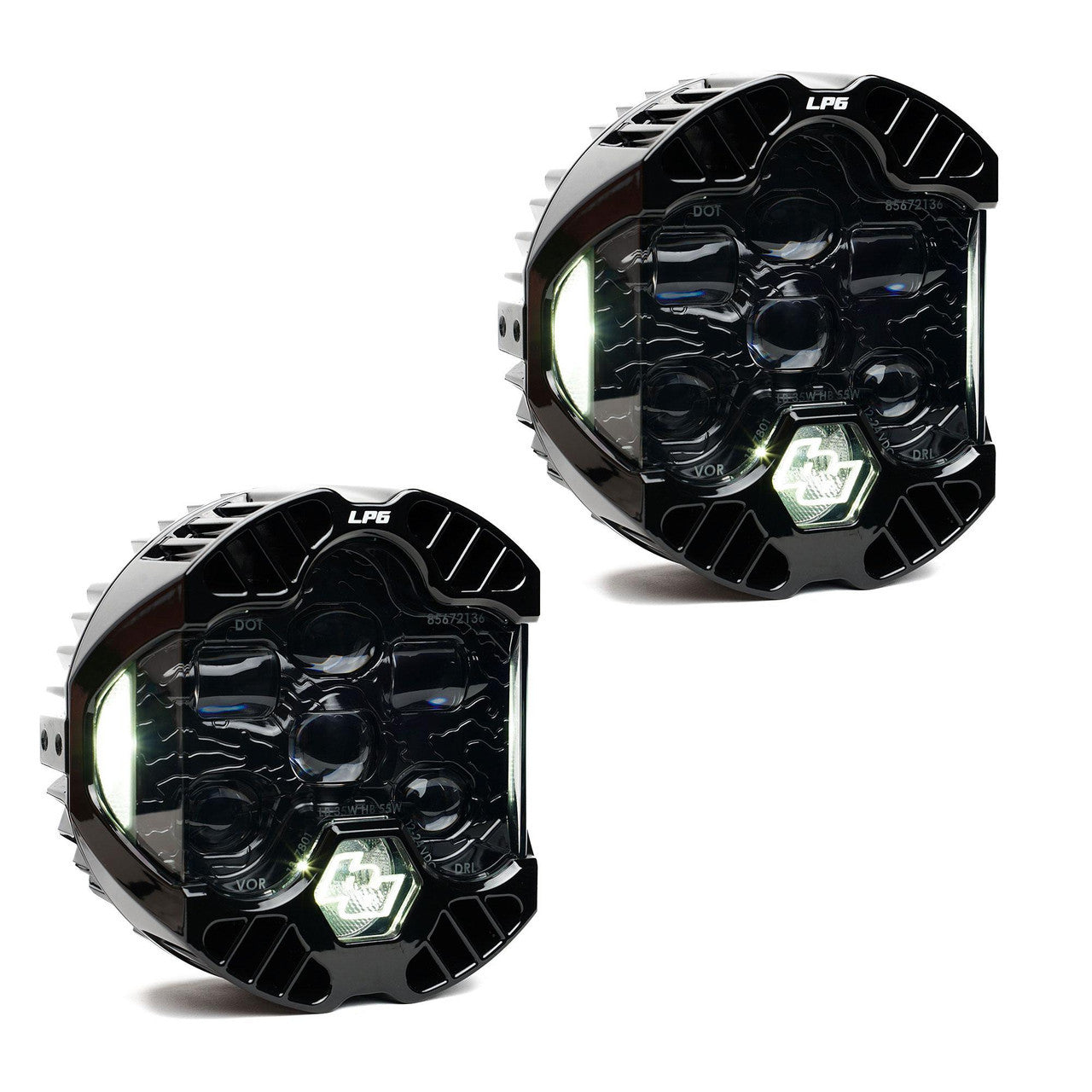

The Baja Designs DOT LP6 (SKU 187801) is a pair of FMVSS 108-compliant LED headlight replacement units with integrated clear (white) daytime running light rings — built on the foundation of the race-proven LP6 Pro off-road light and re-engineered for on-road use. This is a primary headlight replacement pair, not an auxiliary pod. Six advanced projector optics per unit deliver 3,480 lumens low beam and 5,280 lumens high beam at Baja Designs' signature 5000K color temperature. FMVSS 108 compliance applies for both automotive and motorcycle applications, though the required wiring harness (below) is vehicle-only. Clear DRL gives a clean, modern white running-light appearance that's standard in most jurisdictions. Hard-coated polycarbonate lens, anodized aluminum housing, billet aluminum bezel, stainless steel hardware. Exceeds MIL-STD810G testing. 30-day satisfaction guarantee, limited lifetime warranty.
No mounting brackets or wiring harness included. This pair requires harness PN 640172 and a bracket kit sized to your headlight bucket, both sold separately. uService is not a feature of DOT products — the optics are sealed for regulatory compliance, and tampering voids the warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 187801 |
| Brand | Baja Designs |
| Model | DOT LP6 — headlight replacement |
| Compliance Standard | FMVSS 108 (automotive and motorcycle) |
| DRL | Clear (white), integrated ring |
| Low Beam Output | 3,480 lumens per unit |
| High Beam Output | 5,280 lumens per unit |
| Color Temperature | 5000K |
| Optics | Six advanced projector optics per unit |
| Lens | Hard-coated polycarbonate |
| Housing | Anodized aluminum |
| Bezel | Billet aluminum |
| Hardware/Bracket Material | Stainless steel |
| Durability Standard | Exceeds MIL-STD810G |
| uService | NOT available — sealed optics, tampering voids warranty |
| Warranty | Lifetime Limited |
| Guarantee | 30-Day Satisfaction Guarantee |
| Quantity | Pair (2 units) |
| Sold As | Pair |
Critical Compatibility
| Configuration | Status |
|---|---|
| Wiring harness | NOT included — requires PN 640172 |
| Mounting brackets | NOT included — requires a bracket kit sized to your headlight bucket |
| Harness 640172 on motorcycles | Does NOT work — this harness is vehicle-only; motorcycle installs need a different harness |
| uService lens/optic swapping | Not available on this product — attempting to service the sealed optics voids the warranty |

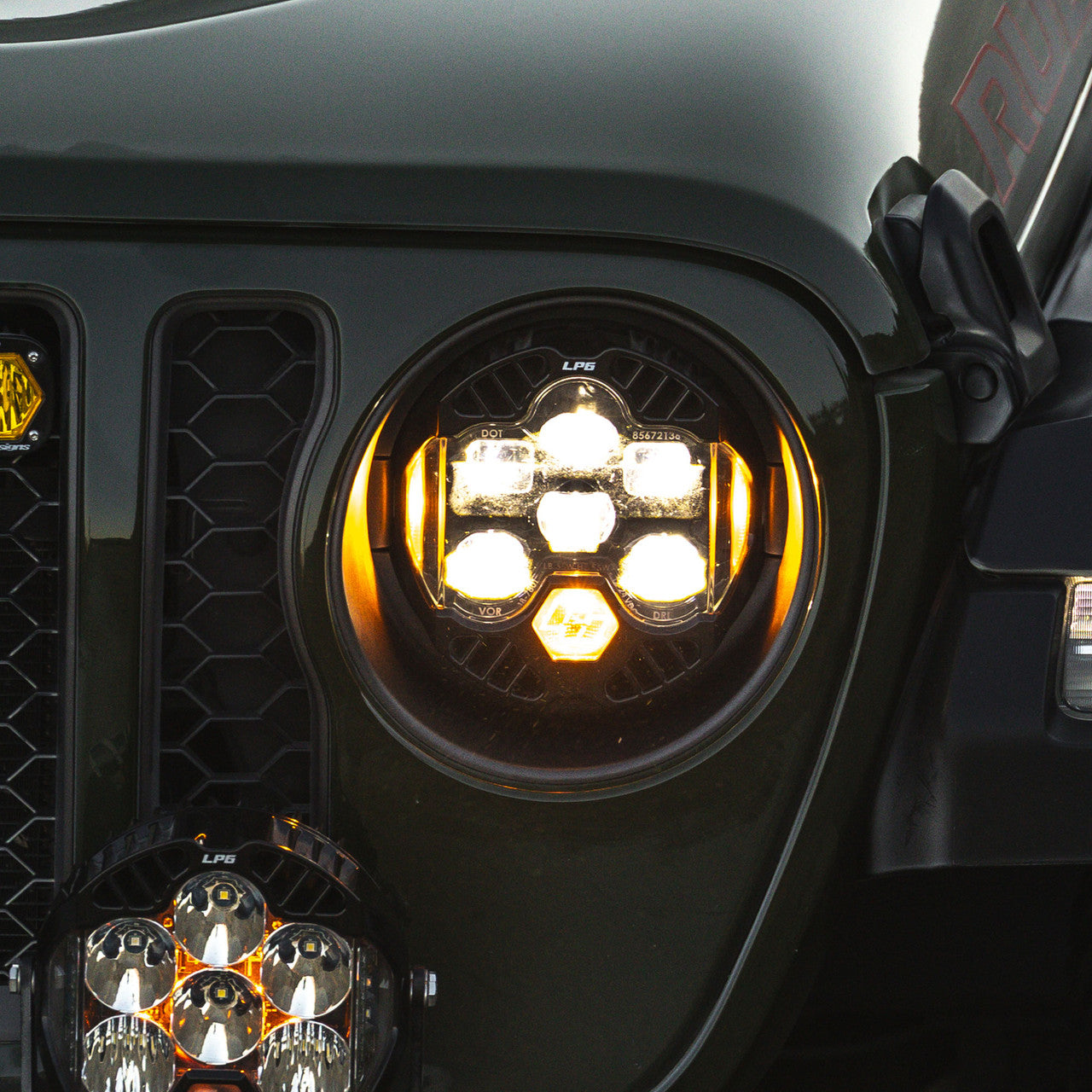

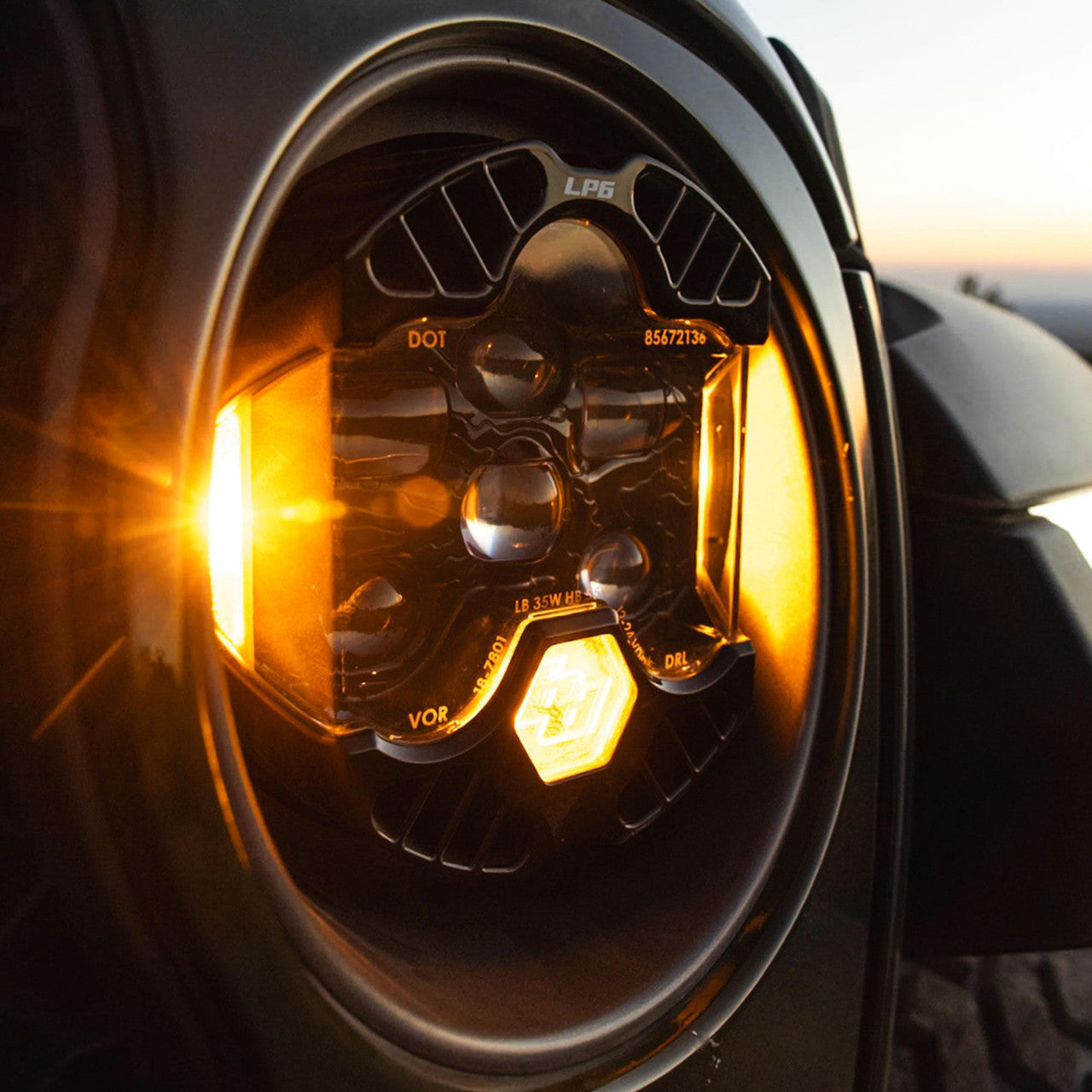

| Amber DRL alternative | Available under SKU 187802 — same units, amber DRL ring instead of clear |
Which DOT LP6 Product Do You Actually Need?
| Configuration | SKU | Includes Brackets/Harness |
|---|---|---|
| Single unit, clear DRL | 180001 | No |
| Single unit, amber DRL | 180002 | No |
| Pair, clear DRL (this listing) | 187801 | No |
| Pair, amber DRL | 187802 | No |
| Complete kit, Jeep JL/JT, clear DRL | 448309 | Yes — direct-fit 2019–2026 |
| Complete kit, Jeep JK, clear DRL | 448310 | Yes — direct-fit 2007–2018 |
If you're installing on a Jeep JK or JL/JT, the complete kits (448309/448310) already include the correct brackets and a plug-and-play harness matched to your vehicle — this universal pair does not, and will require you to source both separately.
Installation Notes
Harness PN 640172 required. Includes a 3-position, 30-amp DC-rated DPDT switch operating high and low beam independently, a separate wire lead with splice connector for the DRL function, and 15 feet of wire from instrument cluster to light mounting location. Do not wire directly to factory connectors without this harness — incorrect wiring causes circuit faults or damage. This harness is vehicle-only; it will not work on a motorcycle installation.
Mounting brackets required, sold separately. Confirm your headlight bucket accepts the LP6 unit dimensions and order the correct bracket for your application before ordering — most common fitment is 7" round buckets on Jeep JK/TJ/YJ and older trucks/off-road vehicles, but confirm before purchase.
Headlight aim is mandatory after installation, per FMVSS 108/DOT requirements. Incorrect aim causes glare to oncoming traffic and is both a safety hazard and a legal violation — verify with a headlight aiming tool or at a qualified shop.
Do not attempt to service the optics. uService does not apply to this product line — tampering voids the warranty.
Legal notice. FMVSS 108 compliance does not guarantee legality in all jurisdictions — verify local regulations before installation and use on public roads.
Common Questions
Does this pair come with brackets and a harness?
No. Both are sold separately — harness PN 640172, plus a mounting bracket sized to your specific headlight bucket.
Can I use this on a motorcycle?
The headlight units themselves are FMVSS 108 rated for motorcycle use, but harness 640172 is vehicle-only — a different harness is needed for motorcycle installs.
Can I service or swap the lens/optics later?
No. uService is not available on DOT-compliant products — the optics are sealed, and tampering voids the warranty.
Should I buy this pair or a complete kit?
If your vehicle is a Jeep JK or JL/JT, the complete kits (448309/448310) include vehicle-specific brackets and a plug-and-play harness already matched — buying this universal pair plus separate accessories may cost more and take more fitting work.
Is there an amber DRL version?
Yes — SKU 187802 is the same units with an amber DRL ring instead of clear.
The Obsidian Take
This universal pair is for the custom builder or non-standard-bucket application that needs two FMVSS 108-compliant LP6 headlight units with a clean white DRL, without being locked into a specific vehicle's bracket kit — 3,480/5,280 lumens per unit, six projector optics, lifetime limited warranty.
It is not the right buy for a stock Jeep JK, JL, or JT owner — the complete direct-fit kits (448309 for JL/JT, 448310 for JK) already bundle the correct brackets and plug-and-play harness for those platforms, and will likely cost less and install cleaner than assembling this pair plus separate accessories.
Two things to lock down before ordering: confirm your headlight bracket actually matches your bucket shape, and if this is going on a motorcycle, source a motorcycle-compatible harness instead of 640172.
Non-Returnable Notice: Once installed, these units are non-returnable. Confirm headlight bucket compatibility, harness, and mounting brackets before ordering. Headlight aim verification is required after installation.
