Axiom Supply Stage 1 Leveling System | Billet Aluminum Strut Spacers | 2" Front Lift | 2007-2018 GM 1500 4WD | SKU AXGM07STAGE1
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The Axiom Supply Stage 1 Leveling System (SKU AXGM07STAGE1) provides up to 2" of front lift on GM 1500 trucks and SUVs equipped with factory front strut suspension — eliminating the factory nose-down rake while preserving factory ride quality. At the center of the system are two precision CNC-machined, aircraft-grade billet aluminum strut spacers, engineered to deliver accurate lift without altering the factory spring or strut assembly. Unlike low-cost cast or fabricated spacer kits, these are machined from premium billet aluminum for superior structural integrity and long-term durability, finished in a durable black powder coat. Direct bolt-on installation using factory mounting locations — no cutting, welding, or permanent modification. Accommodates tire sizes up to approximately 33", depending on wheel offset and tire dimensions. Lifetime warranty to the original purchaser.
Designed for use with factory front struts or OE-equivalent replacement struts only. Do not install with extended-length aftermarket struts or shocks.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | AXGM07STAGE1 |
| Brand | Axiom Supply |
| System Type | Strut spacer leveling system (not torsion keys) |
| Front Lift | Up to 2" |
| Rear Lift | None — front leveling only |
| Construction | CNC-machined, aircraft-grade billet aluminum |
| Finish | Black powder coat |
| Strut Compatibility | Factory front struts or OE-equivalent replacement struts ONLY |
| Drivetrain | 4WD only |
| Max Tire Size | Approximately 33" — depends on wheel offset and tire dimensions |
| MagneRide Vehicles | May require custom bracket relocation or fabrication — relocation brackets not included |
| Warranty | Lifetime — original purchaser |
| Price | $69.99 |
| Sold As | Complete kit |
What Is and Is NOT Included
| Item | Included |
|---|---|

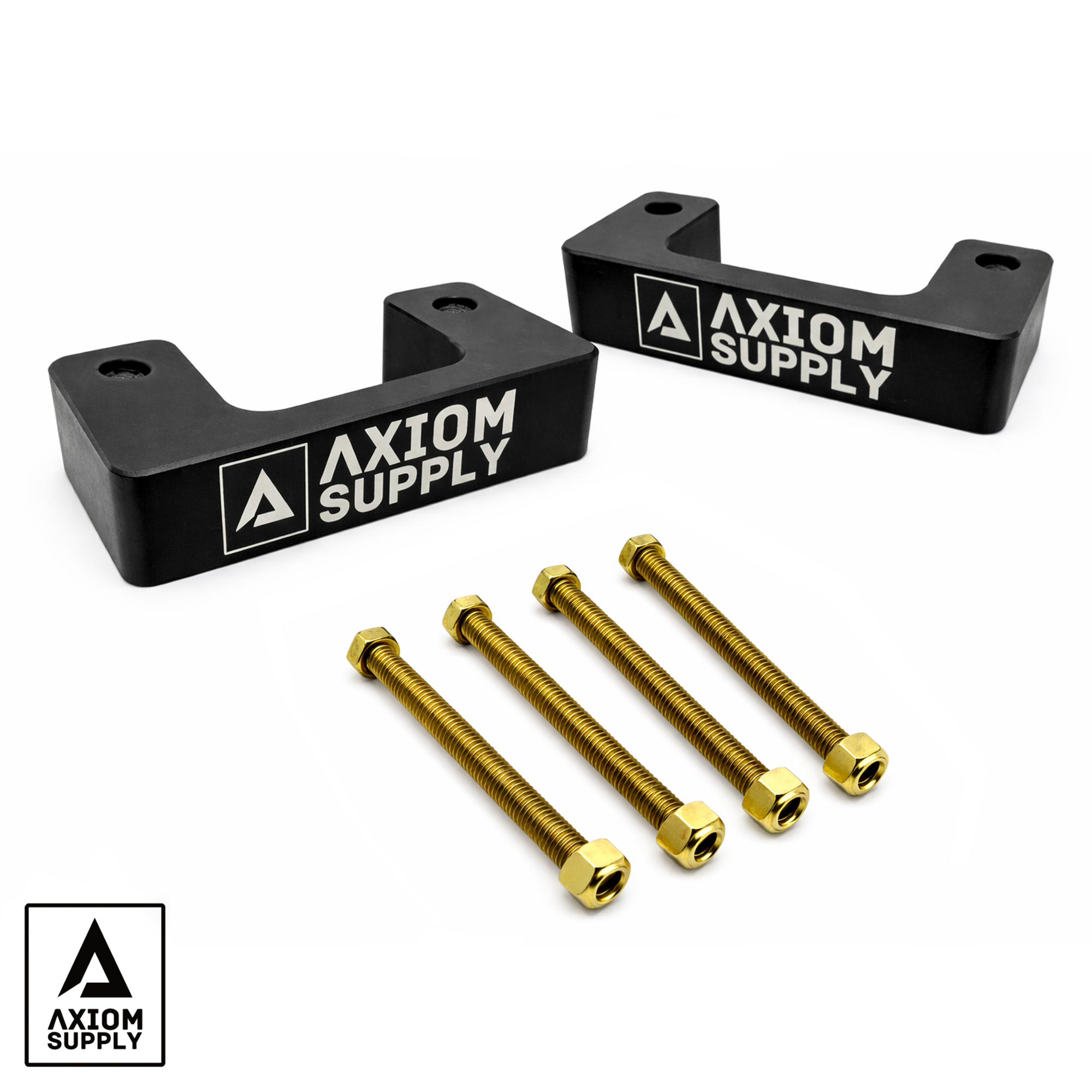

| (2) CNC-machined billet aluminum front strut spacers | ✓ |
| Complete installation hardware kit | ✓ |
| Installation instructions | ✓ |
| Upper control arms | ✗ NOT included — Axiom Heavy-Duty UCAs recommended for optimal suspension geometry and alignment capability |
| MagneRide relocation brackets | ✗ NOT included — required separately if your vehicle has Magnetic Ride Control |
| Extended-length aftermarket strut compatibility | ✗ NOT supported — factory or OE-equivalent length struts only |
Verified Fitment
| Vehicle | Years | Status |
|---|---|---|
| Chevrolet Silverado 1500 4WD | 2007–2018 | ✓ |
| Chevrolet Avalanche 1500 4WD | 2007–2013 | ✓ |
| Chevrolet Tahoe 4WD | 2007–2018 | ✓ |
| Chevrolet Suburban 1500 4WD | 2007–2018 | ✓ |
| Chevrolet Silverado 1500 Hybrid 4WD | 2009–2013 | ✓ |
| GMC Sierra 1500 4WD | 2007–2018 | ✓ |
| GMC Yukon 4WD | 2007–2018 | ✓ |
| GMC Yukon XL 1500 4WD | 2007–2018 | ✓ |
| GMC Sierra 1500 Hybrid 4WD | 2009–2013 | ✓ |
| Cadillac Escalade AWD/4WD | 2007–2018 | ✓ |
| Cadillac Escalade ESV AWD/4WD | 2007–2018 | ✓ |
| Cadillac Escalade EXT AWD/4WD | 2007–2013 | ✓ |
| GM 1500 / SUV platform | 2WD | ✗ 4WD models only |
| GM 1500 / SUV platform with MagneRide | 2007–2018 | ⚠️ May require custom bracket relocation or fabrication — not included |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Extended-length aftermarket struts or shocks | NOT compatible — designed for factory front struts or OE-equivalent length only |
| MagneRide-equipped vehicles | May require custom bracket relocation or fabrication, not included with this kit |
| 2WD models | Not compatible — this system is for 4WD only |
| Tire size above ~33" | Confirm wheel offset and tire dimensions before assuming clearance |
Common Questions
Does this use torsion keys?
No. This platform uses factory front strut suspension, not torsion bars. The Stage 1 system uses precision-machined billet aluminum strut spacers instead.
Will this work with aftermarket extended struts?
No. This kit is designed for factory-length struts or OE-equivalent replacements only — extended-length aftermarket struts are not compatible.
Does this fit my Escalade?
Yes — confirmed for Cadillac Escalade, Escalade ESV (2007-2018), and Escalade EXT (2007-2013).
What if my truck has MagneRide?
You may need custom bracket relocation or fabrication. Relocation brackets are not included with this kit — plan accordingly before ordering.
Do I need new upper control arms with this?
Not strictly required, but Axiom recommends pairing with their Heavy-Duty Upper Control Arm System for optimal suspension geometry and increased alignment capability.
The Obsidian Take
The AXGM07STAGE1 is for the 2007-2018 GM 1500 4WD owner — Silverado, Sierra, Tahoe, Suburban, Yukon, Yukon XL, or Escalade — who wants to eliminate the factory rake and clear up to roughly 33" tires without touching the factory strut or spring. Billet aluminum spacers, not cast or fabricated, with a lifetime warranty.
Two checks matter before ordering. First, confirm your struts are factory-length or OE-equivalent — extended aftermarket struts aren't compatible with this spacer system. Second, if your vehicle has MagneRide, budget for separate bracket relocation or fabrication, since that's not included.
Non-Returnable Notice: Once installed, this kit is non-returnable. Confirm strut type and MagneRide equipment before ordering.
Manufacturer Data Disclaimer: Specifications sourced directly from Axiom Supply's own product page. Obsidian Forged Auto Supply is an authorized Axiom Supply dealer. Manufacturer specifications are subject to change without notice.
