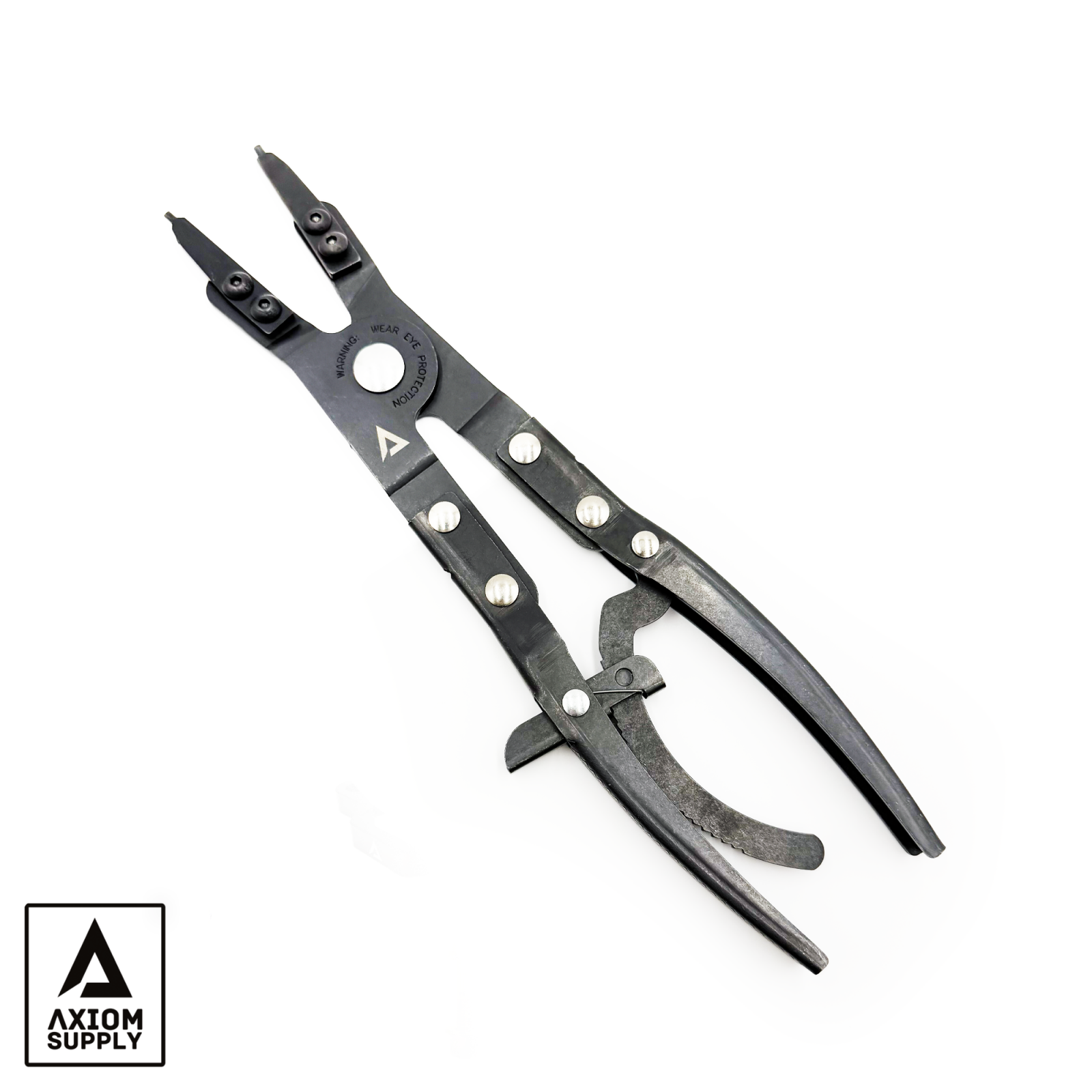

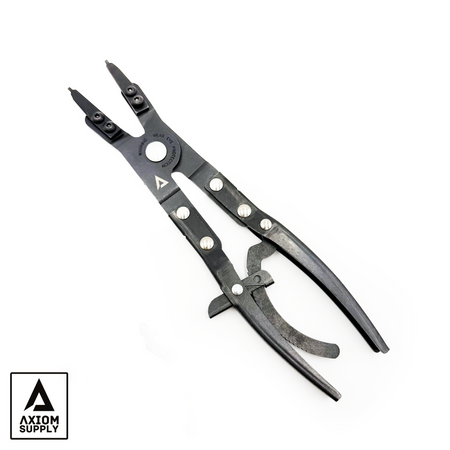

The Axiom Snap Ring Pliers (SKU AXTL03) are a purpose-built spindle snap ring tool for 2007–2022 Ford F-250 and F-350 Super Duty 4WD front hub service. Standard snap ring pliers are often too small or lack the reach to access the large spindle snap ring buried deep inside the Super Duty hub. Angled, deep-reach jaws are engineered to access snap rings inside the 2.5-inch hub bore with proper control and leverage. Built-in ratcheting lock holds the snap ring open for safer, hands-free operation. Heat-treated tips resist bending or spreading under the high tension of these large, heavy-duty snap rings. Eliminates the need for screwdrivers or improvised tools that can damage critical components during wheel bearing service, front axle rebuilds, or general front-end repair. Lifetime warranty.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | AXTL03 |
| Brand | Axiom Supply |
| Type | Spindle snap ring pliers — internal, spreading style |
| Jaw Design | Angled, deep-reach |
| Hub Bore Compatibility | 2.5" inside diameter |
| Locking Mechanism | Built-in ratcheting lock — holds snap ring open hands-free |
| Tips | Heat-treated — resists bending or spreading under high tension |
| Application | 2007–2022 Ford F-250/F-350 Super Duty 4WD — front hub spindle snap ring service |
| Warranty | Lifetime |
| Price | $44.99–$55.24 (varies by retailer) |
| Quantity | Single tool |
| Sold As | Each |
Where This Tool Is Used in Super Duty Hub Service
- Front hub spindle assembly — accessing the large snap ring buried inside the 2.5" hub bore
- Wheel bearing replacement
- Front axle rebuilds
- General front-end service requiring spindle snap ring removal/installation
Usage Notes
- This is a fixed-purpose internal/spreading tool. It is engineered specifically for the spindle snap ring inside the Super Duty hub bore — it is not a general-purpose convertible internal/external plier set.
- Tip engagement. Seat the plier tips fully into the snap ring holes before applying force. Partial engagement will cause the tips to slip and can deform the snap ring or damage the bore.
- Use the ratcheting lock. Engage the ratchet to hold the snap ring open hands-free during removal or installation, rather than holding compression manually.
- Controlled force. Spread only enough to clear the groove — over-stressing a snap ring will deform it. A deformed snap ring must be replaced before reassembly.
- Installation confirmation. After installing a snap ring, verify it is fully seated in the groove before reassembling the hub. A partially seated snap ring will dislodge under load and cause hub or bearing failure.
- Safety glasses. Wear safety glasses during snap ring removal and installation — snap rings can release suddenly and with significant force.
Verified Fitment
| Vehicle | Years | Drivetrain | Status |
|---|---|---|---|
| Ford F-250 Super Duty | 2007–2022 | 4WD | ✓ |
| Ford F-350 Super Duty | 2007–2022 | 4WD | ✓ |
| Ford F-250/F-350 Super Duty | Any | 2WD | ✗ Different hub assembly — no equivalent spindle snap ring application |
| Ford F-150 | Any | Any | ✗ Different platform |
| Ford Super Duty | 2006 and earlier | Any | ✗ Confirm snap ring specification before assuming compatibility |
Critical Compatibility
| Configuration | Notes |
|---|---|
| 2WD Super Duty | Not applicable — 2WD doesn't use this hub/snap ring configuration |
| Snap ring release force | Snap rings release suddenly under tension — always wear safety glasses during use |
| Over-stressed snap rings | A deformed snap ring must be replaced, not reused, after over-spreading |
| Partially seated snap rings | Will dislodge under load and can cause hub or bearing failure — verify full seating before reassembly |
Common Questions
Is this an internal or external snap ring tool?
Internal — it's purpose-built to spread the spindle snap ring inside the 2.5" hub bore on Super Duty trucks. It is not a switchable or general-purpose set.
Why can't I just use a standard set of snap ring pliers?
Standard pliers are often too small or don't have the reach to access the deep, large spindle snap ring inside the Super Duty hub. This tool's angled, deep-reach jaws and ratcheting lock are specifically engineered for that application.
What does the ratcheting lock do?
It holds the snap ring open hands-free once you've spread it, so you're not fighting to maintain compression while you work on the hub.
Does this fit a 2WD Super Duty?
No. 2WD trucks use a different hub configuration without this same spindle snap ring application.
The Obsidian Take
The AXTL03 is for the Super Duty 4WD owner doing their own front hub or wheel bearing service who's discovered that generic snap ring pliers either can't reach the spindle snap ring or aren't strong enough to spread it without bending. Angled deep-reach jaws sized for the 2.5" hub bore, a ratcheting lock for hands-free control, heat-treated tips that won't deform under the heavy tension these rings hold.
This is a single-purpose tool — it's not a general internal/external convertible plier set, so don't expect it to double as a universal snap ring tool for other jobs.
