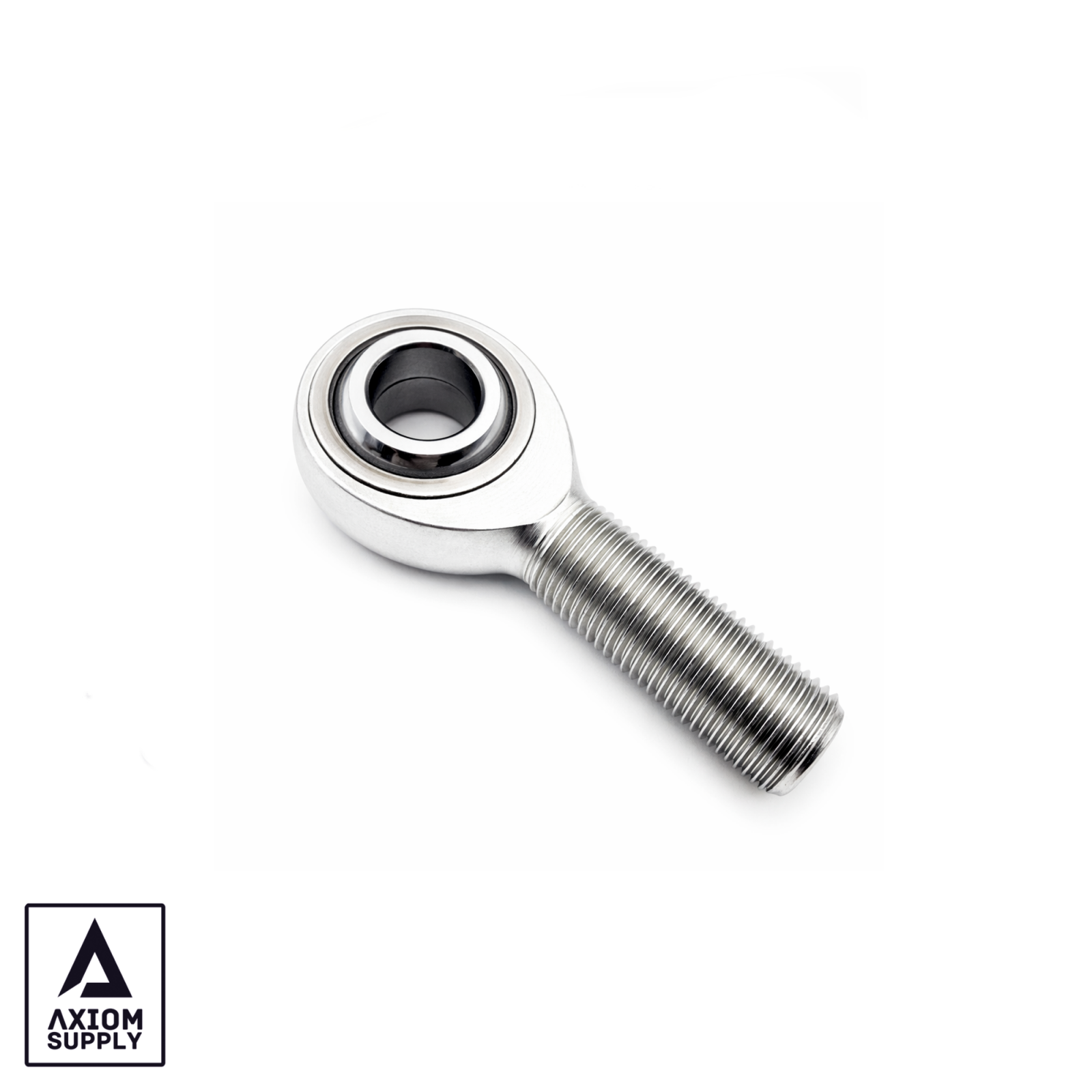

Axiom Supply Heavy Duty Heim Joint | 3/4" Shank x 5/8" Bore | Oversized | Chromoly Body | Kevlar-Lined | Right-Hand | Zinc Plated | UTV | SKU JMXR10-12T-F-XXVEZ
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
The Axiom Heavy Duty Heim Joint (SKU JMXR10-12T-F-XXVEZ) is a high-strength oversized spherical rod end for UTV suspension and steering linkage applications requiring a 3/4" shank thread, 5/8" bore, and right-hand thread. This "oversized" configuration uses a larger 3/4" thread shank for extra strength at the tube connection while the 5/8" bore matches a 5/8" mounting bolt or pin — used in custom fabrication and suspension builds where the tube thread is larger than the mounting hardware diameter. Center ball crafted from 52100 bearing steel, heat-treated and hard-chromed for long service life. Chromoly steel body with Kevlar-lined internals absorbs impact and vibration while keeping steering response tight. 3-piece rod end construction. Zinc-plated finish resists corrosion in mud, sand, rock, and trail environments. Fits Axiom Supply systems and many other aftermarket tie rod and radius rod setups — not compatible with OEM tie rods. This is a wear item; inspect and replace as needed. Sold individually — order the quantity required for your application.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | JMXR10-12T-F-XXVEZ |
| Brand | Axiom Supply |
| Type | Spherical rod end (heim joint) — oversized, reducing bore, 3-piece construction |
| Shank Thread | 3/4" |
| Bore Size | 5/8" |
| Thread Direction | Right-hand |
| Center Ball | 52100 bearing steel, heat-treated, hard-chromed |
| Body | Chromoly steel |
| Internal Liner | Kevlar-lined |
| Finish | Zinc plated — corrosion-resistant |
| OEM Compatibility | Not compatible with OEM tie rods |
| Jam Nut Included | No — sold separately, must be right-hand thread |
| Quantity | Single (sold individually) |
| Wear Status | Wear item — inspect and replace as needed |
| Application | UTV suspension arms, steering linkage, long-travel suspension, custom fabrication with 3/4" tube thread and 5/8" mounting hardware |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x heim joint, 3/4" shank x 5/8" bore, RH thread | ✓ |
| Right-hand thread jam nut | ✗ NOT included — required for proper installation, purchase separately |
| Tie rod or radius rod tube | ✗ NOT included — sold separately |
Axiom HD Heim Joint Selection Guide
| Configuration | SKU |
|---|---|
| 5/8" Shank x 5/8" Bore — Right-Hand Thread | JMXR10T-F1 |
| 3/4" Shank x 3/4" Bore — Right-Hand Thread, Zinc | JMXR12T-F1-XXVEZ |
| 3/4" Shank x 3/4" Bore — Left-Hand Thread, Zinc | JMXL12T-F1-XXVEZ |
| 3/4" Shank x 5/8" Bore — Left-Hand Thread, Zinc | JMXL10-12T-F-XXVEZ |
| 3/4" Shank x 5/8" Bore — Right-Hand Thread, Zinc (this listing) | JMXR10-12T-F-XXVEZ |
Why "Oversized"?
In an oversized heim joint, the shank thread diameter is larger than the bore diameter — here, a 3/4" thread paired with a 5/8" bore. This provides extra strength at the shank-to-tube connection while still accepting standard 5/8" mounting hardware. This configuration is common when upgrading a tie rod or radius rod tube to a stronger thread size without needing to also change every mounting bolt and bracket to match.
Symptoms of a Worn Heim Joint
- Steering wander or vague on-center feel
- Clunking or knocking from suspension or steering linkage over rough terrain
- Visible play or slop in the joint when checked by hand
- Uneven or accelerated tire wear
- Vibration through the steering wheel or chassis at speed
Verified Fitment
| Application | Status |
|---|---|
| UTV suspension/steering linkage requiring 3/4" shank, 5/8" bore, RH thread | ✓ |
| Aftermarket tie rod and radius rod systems (Axiom and many other brands) | ✓ |
| OEM tie rods | ✗ Not compatible |
| Applications requiring left-hand thread | ✗ Not interchangeable — order JMXL10-12T-F-XXVEZ |
| Applications requiring 3/4" bore (not 5/8") | ✗ Order JMXR12T-F1-XXVEZ instead |
Critical Compatibility
| Configuration | Notes |
|---|---|
| OEM tie rods | Not compatible — this joint is for aftermarket tie rod and radius rod systems only |
| Left-hand thread applications | Not interchangeable with this right-hand part — installing the wrong direction will not allow correct adjustment and can back out under load |
| Missing or improperly torqued right-hand jam nut | The joint will back out under vibration and load — never operate without one properly installed |
| Mismatched shank/bore dimensions | Will not fit correctly and can cause joint failure under load — verify exact dimensions before ordering |
Common Questions
What does "oversized" mean for this heim joint?
The shank thread (3/4") is larger than the bore (5/8"). This gives extra strength at the connection to your tube while still using standard 5/8" mounting hardware — useful when upgrading tube strength without changing every mounting bolt to match.
Will this work on my factory tie rod?
No. This joint is built for aftermarket tie rod and radius rod systems, not OEM factory hardware.
Does this come with a jam nut?
No. A right-hand thread jam nut is required and must be purchased separately.
What if I need the left-hand version instead?
Order JMXL10-12T-F-XXVEZ, the same 3/4" shank x 5/8" bore configuration in left-hand thread.
The Obsidian Take
The JMXR10-12T-F-XXVEZ is for the UTV builder running an oversized 3/4" tube thread who still needs to mate up to existing 5/8" mounting hardware — a real, established configuration in the heim joint world, not a custom oddity. 52100 hard-chromed ball, chromoly body, Kevlar-lined internals, right-hand thread paired with a matching left-hand joint on the opposite end of the same link.
This is a wear item by the manufacturer's own description — inspect it regularly and replace at the first sign of play, not after it's already caused steering slop. And confirm twice before ordering: thread direction (right-hand) and the actual shank/bore combination (3/4" x 5/8", not 3/4" x 3/4").
Non-Returnable Notice: Installed steering and suspension components are non-returnable. Confirm thread direction and dimensions match your application before ordering.
Manufacturer Data Disclaimer: Specifications sourced from Axiom Supply and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Axiom Supply dealer. Manufacturer specifications are subject to change without notice.
