Axiom Supply Heavy Duty Heim Joint | 3/4"-16 Thread | Chromoly Body | Kevlar-Lined | Left-Hand | Zinc Plated | UTV Suspension & Steering | SKU JMXL12T-F1-XXVEZ
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

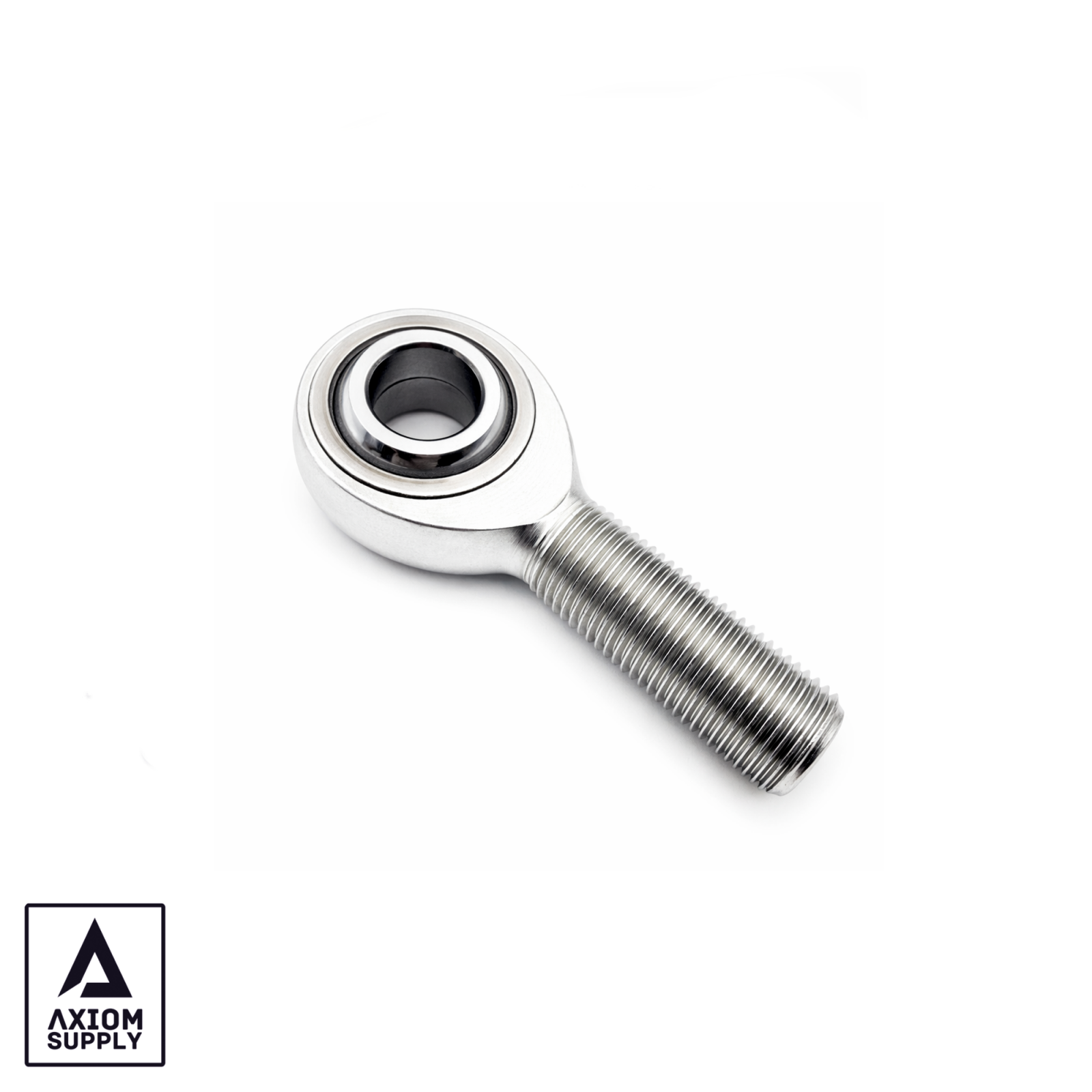

The Axiom Heavy Duty Heim Joint (SKU JMXL12T-F1-XXVEZ) is a high-strength spherical rod end for UTV suspension and steering linkage applications requiring a 3/4" shank diameter, 3/4" bore, and 3/4"-16 left-hand thread. Heat-treated steel chromoly body with Kevlar-lined internals reduces metal-on-metal wear and noise compared to a standard bare-metal joint. 3-piece rod end construction for high strength. Zinc-plated finish resists corrosion in mud, sand, rock, and trail environments. Left-hand thread heim joints are paired with right-hand thread joints on the opposite end of a tie rod or suspension link, allowing the link length to be adjusted by rotating the center tube without backing either joint out — the correct adjustment method for turnbuckle-style links. Sold individually — order the quantity required for your application. Jam nut not included; must be a left-hand thread jam nut, purchased separately and torqued after adjustment.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | JMXL12T-F1-XXVEZ |
| Brand | Axiom Supply |
| Type | Spherical rod end (heim joint) — 3-piece construction |
| Shank Diameter | 3/4" |
| Bore Size | 3/4" |
| Thread | 3/4"-16, left-hand |
| Body | Chromoly steel, heat-treated |
| Internal Liner | Kevlar-lined |
| Finish | Zinc plated — corrosion-resistant |
| Jam Nut Included | No — sold separately, must be left-hand thread |
| Quantity | Single (sold individually) |
| Application | UTV suspension arms, steering linkage, long-travel suspension, custom fabrication |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x heim joint, 3/4" x 3/4", LH thread | ✓ |
| Left-hand thread jam nut | ✗ NOT included — required for proper installation, purchase separately |
| Grease | ✗ NOT included — apply at installation if joint has a grease fitting |
Axiom HD Heim Joint Selection Guide
| Size / Thread | SKU |
|---|---|
| 5/8" x 5/8" Right-Hand Thread | JMXR10T-F1 |
| 3/4" x 3/4" Right-Hand Thread, Zinc Plated | JMXR12T-F1-XXVEZ |
| 3/4" x 3/4" Left-Hand Thread, Zinc Plated (this listing) | JMXL12T-F1-XXVEZ |
Symptoms of a Worn Heim Joint
- Steering wander or vague on-center feel
- Clunking or knocking from suspension or steering linkage over rough terrain
- Visible play or slop in the joint when checked by hand
- Uneven or accelerated tire wear
- Vibration through the steering wheel or chassis at speed
Verified Fitment
| Application | Status |
|---|---|
| UTV suspension/steering linkage requiring 3/4" x 3/4", 3/4"-16 LH thread | ✓ |
| Applications requiring right-hand thread | ✗ Not interchangeable — order JMXR12T-F1-XXVEZ |
| Applications requiring 5/8" x 5/8" | ✗ Different size — order the corresponding 5/8" LH part |
| Metric thread applications | ✗ Confirm compatibility before ordering |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Right-hand thread applications | Not interchangeable with this left-hand part — installing in a right-hand application will cross-thread and damage the rod end or tube |
| Missing or improperly torqued left-hand jam nut | The joint will back out under vibration and load — never operate without one properly installed |
| Incorrect shank/bore dimensions | Will not fit correctly and can cause joint failure under load — verify exact dimensions before ordering |
Common Questions
Why does my application need a left-hand thread joint?
Left-hand thread joints pair with right-hand thread joints on the opposite end of a tie rod or suspension link. Rotating the center tube changes the link length without removing either joint — this is the standard turnbuckle-style adjustment method.
What's the actual thread pitch?
3/4"-16 — 16 threads per inch, left-hand direction.
Does this come with a jam nut?
No. A left-hand thread jam nut is required to secure the joint after adjustment and must be purchased separately — a right-hand jam nut will not work here.
What if I need the right-hand version instead?
Order JMXR12T-F1-XXVEZ, the 3/4" x 3/4" right-hand thread version.
The Obsidian Take
The JMXL12T-F1-XXVEZ is the left-hand counterpart for a UTV builder or repairer replacing a turnbuckle-style tie rod or suspension link — chromoly body, Kevlar-lined internals, 3-piece construction, zinc plated for trail durability. Pairs with the right-hand version on the opposite end of the same link.
Confirm your exact thread direction (left-hand) and dimensions (3/4" x 3/4") before ordering, and budget for a left-hand thread jam nut separately — this joint will back out under load without one properly torqued.
Non-Returnable Notice: Installed steering and suspension components are non-returnable. Confirm thread direction and dimensions match your application before ordering.
Manufacturer Data Disclaimer: Specifications sourced from Axiom Supply and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Axiom Supply dealer. Manufacturer specifications are subject to change without notice.
