Axiom Supply Heavy Duty Heim Joint | 5/8" x 5/8" | Chromoly Body | Kevlar-Lined | Left-Hand | Zinc Plated | UTV Suspension & Steering | SKU JMXL10T-F1
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

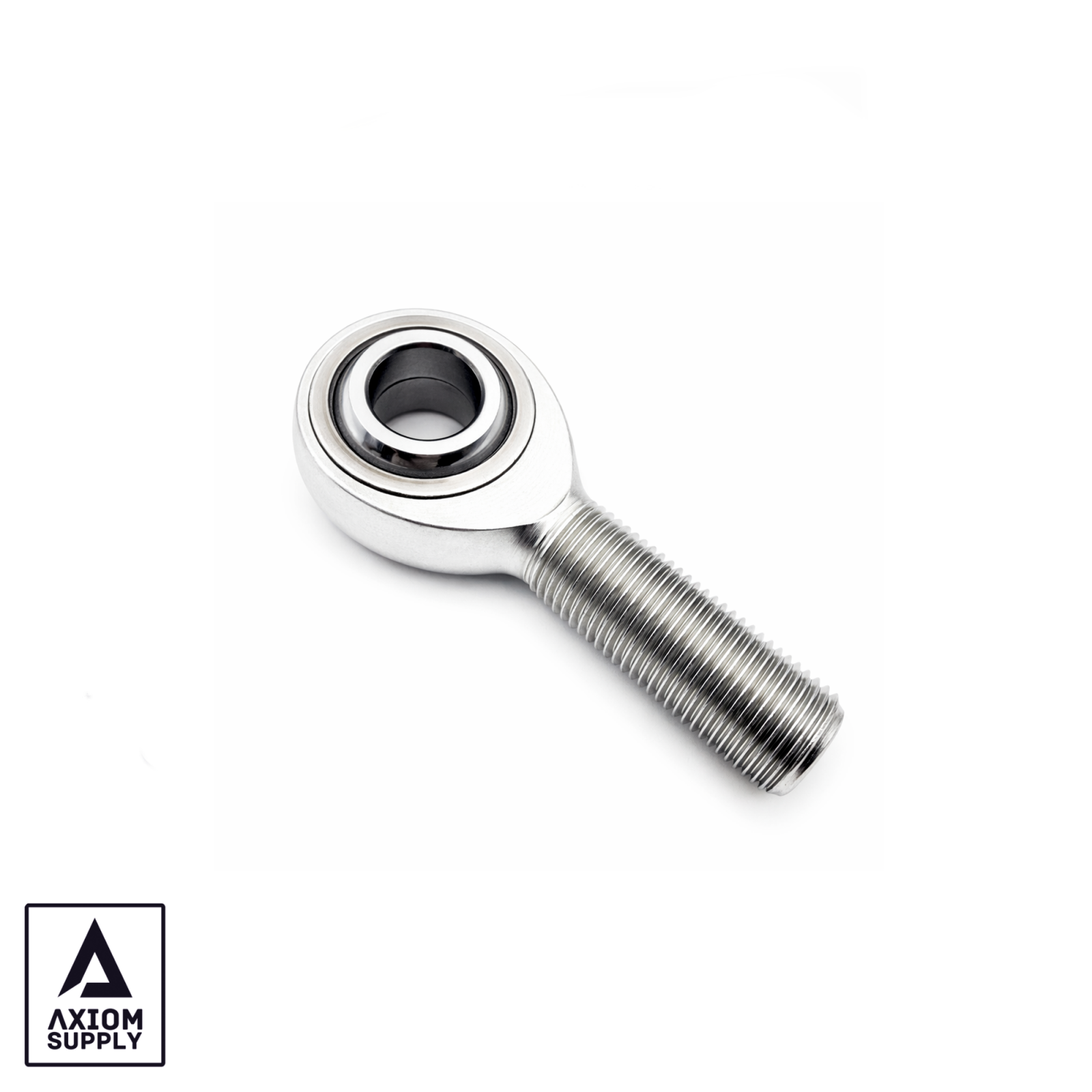

The Axiom Heavy Duty Heim Joint (SKU JMXL10T-F1) is a high-strength spherical rod end for UTV suspension and steering linkage applications requiring a 5/8" shank diameter, 5/8" bore, and left-hand thread. Center ball crafted from 52100 bearing steel, heat-treated and hard-chromed for long service life. Chromoly steel body with Kevlar-lined internals absorbs impact and vibration while keeping steering response tight. 3-piece rod end construction for high strength. Zinc-plated finish resists corrosion in mud, sand, rock, and trail environments. Left-hand thread heim joints pair with right-hand thread joints on the opposite end of a tie rod or suspension link, allowing the link length to be adjusted by rotating the center tube without backing either joint out — the correct adjustment method for turnbuckle-style links. Fits Axiom Supply systems and many other aftermarket tie rod and radius rod setups — not compatible with OEM tie rods. This is a wear item; inspect and replace as needed. Sold individually — order the quantity required for your application.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | JMXL10T-F1 |
| Brand | Axiom Supply |
| Type | Spherical rod end (heim joint) — 3-piece construction |
| Shank Diameter | 5/8" |
| Bore Size | 5/8" |
| Thread Direction | Left-hand |
| Center Ball | 52100 bearing steel, heat-treated, hard-chromed |
| Body | Chromoly steel |
| Internal Liner | Kevlar-lined |
| Finish | Zinc plated — corrosion-resistant |
| OEM Compatibility | Not compatible with OEM tie rods |
| Jam Nut Included | No — sold separately, must be left-hand thread |
| Quantity | Single (sold individually) |
| Wear Status | Wear item — inspect and replace as needed |
| Application | UTV suspension arms, steering linkage, long-travel suspension, custom fabrication |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x heim joint, 5/8" x 5/8", LH thread | ✓ |
| Left-hand thread jam nut | ✗ NOT included — required for proper installation, purchase separately |
| Tie rod or radius rod tube | ✗ NOT included — sold separately |
Axiom HD Heim Joint Selection Guide
| Configuration | SKU |
|---|---|
| 5/8" x 5/8" — Right-Hand Thread, Standard | JMXR10T-F1 |
| 5/8" x 5/8" — Right-Hand Thread, Zinc Plated | JMXR10T-F1 |
| 5/8" x 5/8" — Left-Hand Thread, Zinc Plated (this listing) | JMXL10T-F1 |
| 3/4" x 3/4" — Right-Hand Thread, Zinc | JMXR12T-F1 |
| 3/4" x 3/4" — Left-Hand Thread, Zinc | JMXL12T-F1 |
| 3/4" Shank x 5/8" Bore — Left-Hand Thread, Zinc | JMXL10-12T-F |
| 3/4" Shank x 5/8" Bore — Right-Hand Thread, Zinc | JMXR10-12T-F |
Symptoms of a Worn Heim Joint
- Steering wander or vague on-center feel
- Clunking or knocking from suspension or steering linkage over rough terrain
- Visible play or slop in the joint when checked by hand
- Uneven or accelerated tire wear
- Vibration through the steering wheel or chassis at speed
Verified Fitment
| Application | Status |
|---|---|
| UTV suspension/steering linkage requiring 5/8" x 5/8", LH thread | ✓ |
| Aftermarket tie rod and radius rod systems (Axiom and many other brands) | ✓ |
| OEM tie rods | ✗ Not compatible |
| Applications requiring right-hand thread | ✗ Not interchangeable — order JMXR10T-F1 |
| Applications requiring 3/4" shank or bore | ✗ See selection guide above for correct sizing |
Critical Compatibility
| Configuration | Notes |
|---|---|
| OEM tie rods | Not compatible — this joint is for aftermarket tie rod and radius rod systems only |
| Right-hand thread applications | Not interchangeable with this left-hand part — cross-threading will damage the rod end or tube |
| Missing or improperly torqued left-hand jam nut | The joint will back out under vibration and load — never operate without one properly installed |
| Mismatched shank/bore dimensions | Will not fit correctly and can cause joint failure under load — verify exact dimensions before ordering |
Common Questions
Why does my application need a left-hand thread joint?
Left-hand thread joints pair with right-hand thread joints on the opposite end of a tie rod or suspension link. Rotating the center tube changes the link length without removing either joint — the standard turnbuckle-style adjustment method.
Will this work on my factory tie rod?
No. This joint is built for aftermarket tie rod and radius rod systems, not OEM factory hardware.
Does this come with a jam nut?
No. A left-hand thread jam nut is required and must be purchased separately.
What if I need the right-hand version instead?
Order JMXR10T-F1, the 5/8" x 5/8" right-hand thread, zinc-plated version.
The Obsidian Take
The JMXL10T-F1 is the left-hand counterpart at the 5/8" x 5/8" size for a UTV builder or repairer replacing a turnbuckle-style tie rod or suspension link — 52100 hard-chromed ball, chromoly body, Kevlar-lined internals, 3-piece construction, zinc plated for trail durability. Pairs with the right-hand version on the opposite end of the same link.
This is a wear item by the manufacturer's own description — inspect it regularly and replace at the first sign of play. Confirm thread direction (left-hand) and both dimensions before ordering.
Non-Returnable Notice: Installed steering and suspension components are non-returnable. Confirm thread direction and dimensions match your application before ordering.
Manufacturer Data Disclaimer: Specifications sourced from Axiom Supply and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Axiom Supply dealer. Manufacturer specifications are subject to change without notice.
