Axiom Supply Alignment Cam Pin Set | 8-Pin Kit | Gold Zinc | 1999-2026 Chevy Silverado/GMC Sierra 1500/2500HD/3500HD | SKU AXGM86325
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
This cam pin set will NOT work with the factory plastic cam guides installed. The plastic guides must be removed before this pin set will install and function correctly.

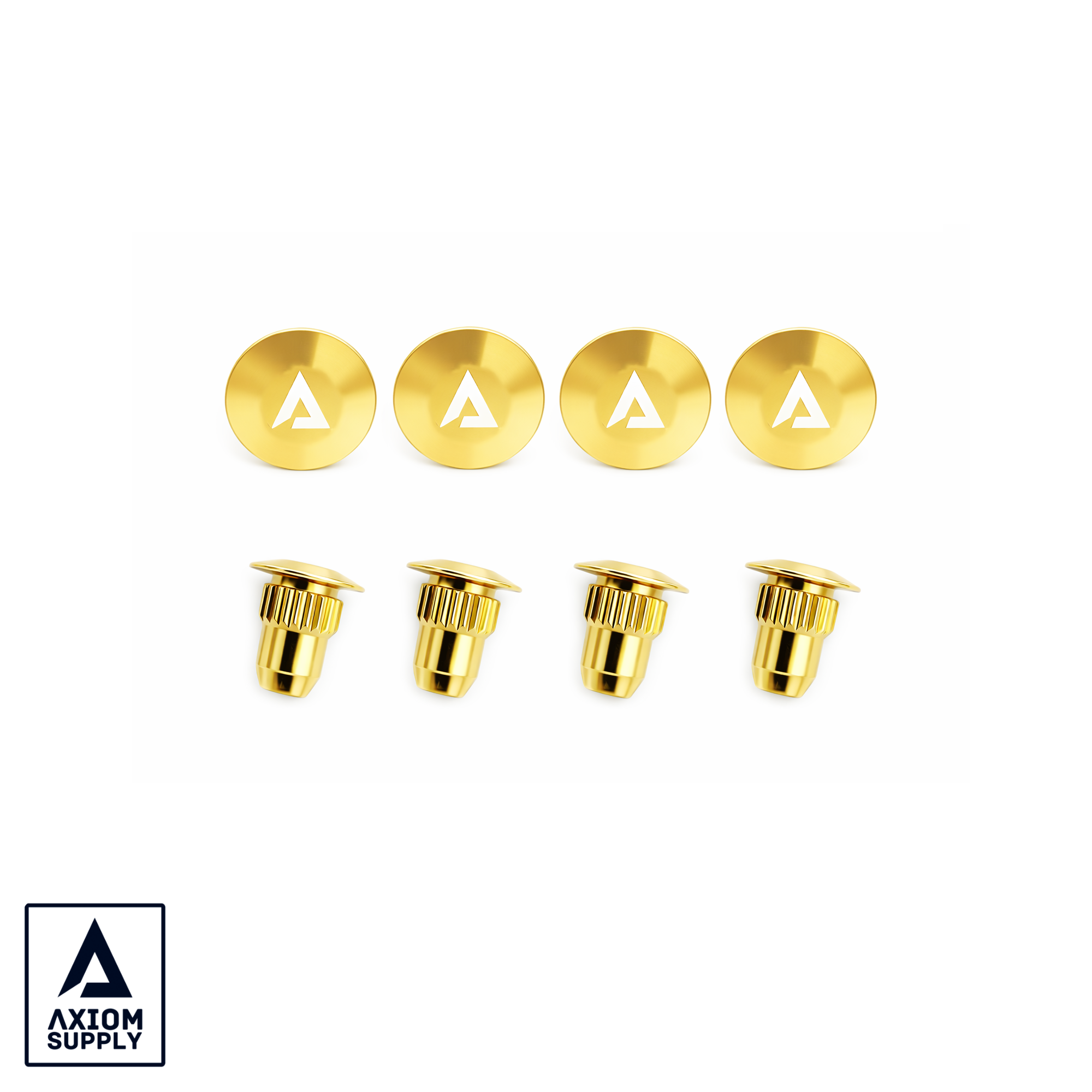

The Axiom Alignment Cam Pin Set (SKU AXGM86325) is a direct-fit replacement cam pin set for the upper control arm alignment slots on 1999–2026 Chevrolet Silverado and GMC Sierra 1500, 2500HD, and 3500HD trucks. Cam pins lock the upper control arm in the correct caster and camber position, preventing alignment drift under heavy load, towing, and rough terrain. Worn, corroded, or missing cam pins allow the upper control arm to shift position, causing caster and camber to drift out of spec — resulting in steering wander, uneven tire wear, and inconsistent handling. Includes 8 gold zinc-plated cam pins total — enough for both sides. Heavy-duty metal construction resists corrosion. Will not work with factory plastic cam guides — these must be removed before installation. Front-end alignment is required after installation. Lifetime warranty to the original purchaser.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | AXGM86325 |
| Brand | Axiom Supply |
| Type | Alignment cam pin set — upper control arm caster and camber lock |
| Construction | Heavy-duty metal, gold zinc-plated finish |
| Quantity | 8 cam pins total — both sides |
| Compatibility Requirement | Will NOT work with factory plastic cam guides — must be removed first |
| Warranty | Lifetime — original purchaser |
| Application | Front-end alignment lock — 1999–2026 GM 1500/2500HD/3500HD |
| Sold As | Set (8 pins) |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 8x gold zinc-plated cam pins | ✓ |
| Cam bolts | ✗ NOT included — see Axiom AXGM0026 if cam bolts are also worn or seized |
| Removal of factory plastic cam guides | ✗ NOT included — must be done separately before installation |
When to Replace Cam Pins
- During any front-end alignment service on 1999–2026 GM trucks
- When cam pins are visibly corroded, worn, or damaged on inspection
- After installing a leveling kit, lift kit, or upper control arms that require alignment correction
- When alignment cannot be held or drifts after service — worn pins allow UCA movement
- As a preventive replacement during front suspension rebuilds on high-mileage trucks
Verified Fitment
| Vehicle | Years | Status |
|---|---|---|
| Chevrolet Silverado 1500 | 1999–2026 | ✓ |
| Chevrolet Silverado 2500HD | 1999–2026 | ✓ |
| Chevrolet Silverado 3500HD | 1999–2026 | ✓ |
| GMC Sierra 1500 | 1999–2026 | ✓ |
| GMC Sierra 2500HD | 1999–2026 | ✓ |
| GMC Sierra 3500HD | 1999–2026 | ✓ |
| Silverado/Sierra | 1998 and earlier | ✗ Different UCA configuration |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Factory plastic cam guides | Must be removed before installing this pin set — will not work with plastic guides in place |
| Worn or seized cam bolts | Replace concurrently with Axiom AXGM0026 cam bolt kit for a complete alignment hardware refresh in one visit |
| Worn or elongated UCA slots | Will not retain the new cam pins correctly — inspect before installing |
| Mismatched pin condition left/right | Causes unequal caster/camber settings — replace both sides simultaneously |
Common Questions
Will this work with my factory cam guides still installed?
No. The factory plastic cam guides must be removed before this pin set will install and function correctly. This is a mandatory step, not optional.
How many pins are in the set?
8 total — enough to service both sides of the vehicle.
Do I need an alignment after installing this?
Yes. A full front-end alignment (caster, camber, toe) is required after cam pin replacement. Do not drive until aligned by a qualified technician.
Should I replace my cam bolts at the same time?
If your cam bolts are also worn or seized, yes — Axiom's AXGM0026 cam bolt kit pairs with this set so both critical alignment hardware pieces get replaced in one alignment appointment.
The Obsidian Take
The AXGM86325 is for the 1999-2026 Silverado/Sierra 1500/2500HD/3500HD owner whose alignment won't hold — bent, crushed, or corroded cam pins are a common, overlooked cause of caster and camber drift. 8 gold zinc-plated pins, lifetime warranty, broad platform coverage across four chassis generations.
The one step that can't be skipped: remove the factory plastic cam guides first. This kit physically will not install or function with them in place.
Non-Returnable Notice: Once installed, this kit is non-returnable. A full front-end alignment is required after installation — do not drive until completed.
Manufacturer Data Disclaimer: Specifications sourced from Axiom Supply and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Axiom Supply dealer. Manufacturer specifications are subject to change without notice.
