Axiom Supply Heavy Duty Ball Joint Removal Tool Kit | 23-Piece | Forged Steel | Universal | SKU AXTL23
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

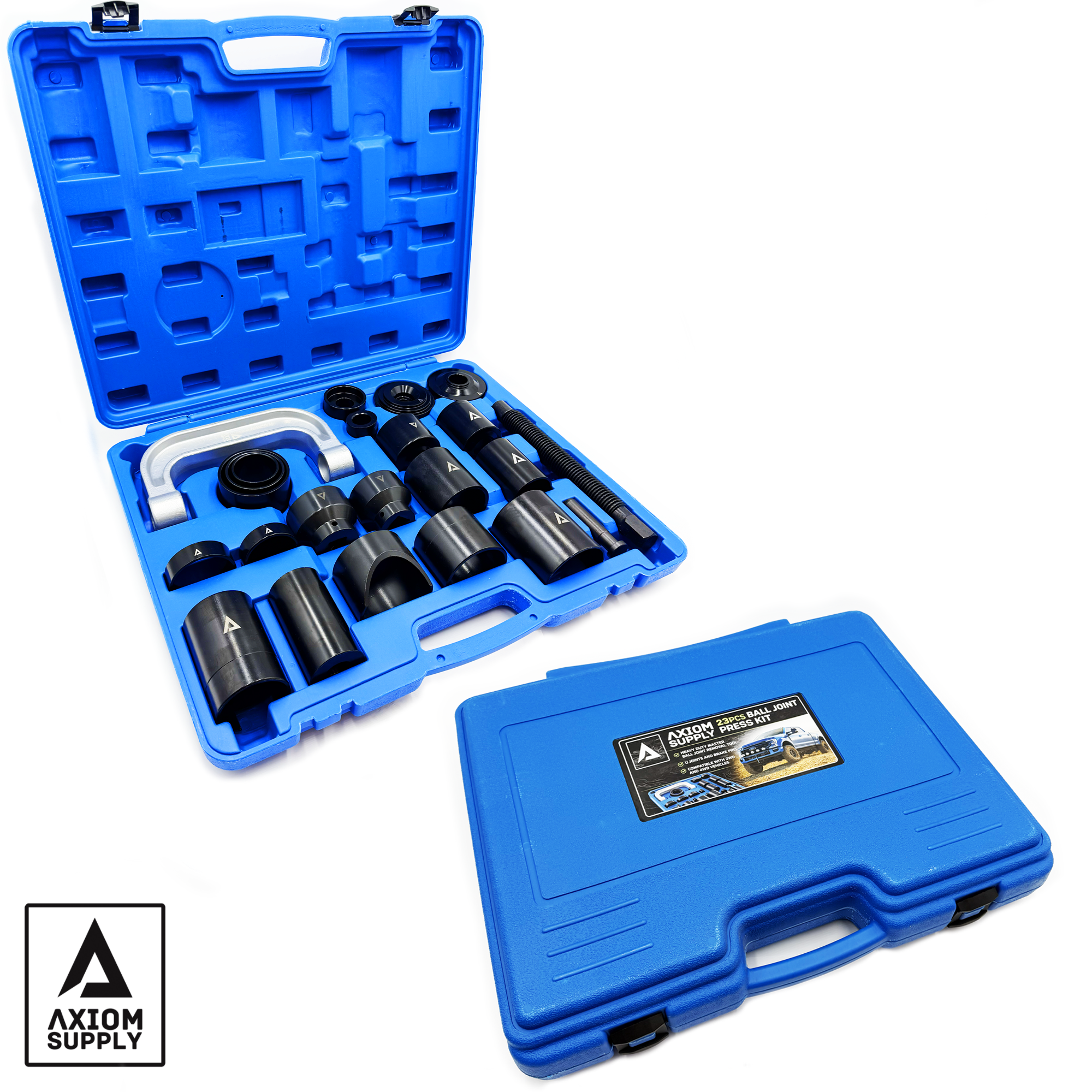

The Axiom Supply 23-Piece Ball Joint Removal Tool Kit (SKU AXTL23) is a professional-grade press tool kit for efficiently removing and installing ball joints, U-joints, and brake anchor pins — without removing the control arm from the vehicle. Heavy-duty forged steel construction handles high press loads without bending or deformation. The kit includes a press frame and a wide range of adapters for maximum compatibility across most 2WD and 4WD cars, trucks, SUVs, and vans. Precision press operation provides controlled, straight pressing force to prevent component damage. Considered a heavy-duty, mid-sized press with approximately 0.5" more clearance than a standard parts-store rental tool. Ships in a durable storage case to keep all components organized, protected, and easy to transport. Axiom No-Nonsense Lifetime Warranty.
Adapter coverage does not include the Dana 50. Confirm your specific axle is covered before ordering.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | AXTL23 |
| Brand | Axiom Supply |
| Configuration | 23-piece master kit |
| Type | Ball joint, U-joint, and brake anchor pin press tool kit |
| Construction | Heavy-duty forged steel |
| Press Clearance | Mid-sized — approximately 0.5" more clearance than a standard parts-store rental |
| Vehicle Coverage | Most 2WD and 4WD cars, trucks, SUVs, and vans |
| Control Arm Removal | Not required |
| Storage | Durable storage case included |
| Warranty | Lifetime — Axiom No-Nonsense Warranty |
| Sold As | Complete kit |
What Is and Is NOT Included
| Item | Included |
|---|---|
| Press frame | ✓ |
| Full range of adapters (23 pieces total) | ✓ |
| Storage case | ✓ |
| Dana 50 specific adapter | ✗ NOT included |
Multi-Purpose Capability
This kit isn't limited to ball joints. It's also designed for:
- Ball joint removal and installation
- U-joint removal and installation
- Brake anchor pin service
Installation Notes
- Adapter selection. Select the correct adapter for your ball joint housing diameter, U-joint, or brake anchor pin before applying force. An undersized or oversized adapter will damage the housing or the tool.
- No control arm removal needed. This kit is designed to service ball joints, U-joints, and brake anchor pins with the control arm still on the vehicle.
- Seized joints. Apply penetrating oil and allow to soak before pressing. Heat applied to the housing (not the joint itself) can assist with severely seized components.
- Press direction. Confirm press direction (removal vs. installation) before applying force.
- Force limits. Do not exceed the tool's rated capacity. Use a breaker bar or torque wrench for controlled force — never an impact wrench to drive the press screw.
- Safety equipment. Wear safety glasses and gloves — components under press load can release suddenly.
- New joint installation. Ensure the new joint is fully seated and flush before reassembly. Verify any snap ring or retaining clip is fully seated.
Verified Fitment
| Application | Status |
|---|---|
| Press-fit ball joints — most 2WD/4WD cars, trucks, SUVs, vans | ✓ |
| U-joints | ✓ |
| Brake anchor pins | ✓ |
| Bolt-in or screw-in ball joints | ✗ Not applicable — no pressing required for these designs |
| Dana 50 axle applications | ✗ Not included in adapter set |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Bolt-in or screw-in ball joints | This press tool is not applicable — these don't require pressing |
| Severely seized heavy-duty truck joints | Verify tool capacity against the joint's press-fit force requirements — a dedicated hydraulic press may be needed |
| Dana 50 axles | Not included in the adapter set |
| Impact wrench use | Do not use to drive the press screw — use a breaker bar or torque wrench for controlled force |
Common Questions
Do I need to remove the control arm to use this?
No. This kit is specifically designed to service ball joints, U-joints, and brake anchor pins with the control arm still mounted on the vehicle.
How does this compare to a parts-store rental tool?
It's considered a heavy-duty, mid-sized press with about 0.5" more clearance than a standard DIY parts-store rental — useful extra room for certain housing configurations.
Does this work on Dana 50 axles?
No. The adapter set does not include Dana 50 coverage.
What if my ball joint is severely seized?
Apply penetrating oil and allow it to soak, and consider heat applied to the housing. For severely seized heavy-duty truck applications beyond this tool's rated capacity, a dedicated hydraulic press may be required instead.
The Obsidian Take
The AXTL23 is for the shop or experienced DIY technician who needs to service ball joints, U-joints, or brake anchor pins across a wide range of vehicles without pulling the control arm — forged steel construction, 23-piece adapter coverage, more clearance than a typical rental tool, and a lifetime warranty behind it.
The one fitment gap worth knowing up front: Dana 50 axles aren't covered by this adapter set. If that's your application, this isn't the right kit.
Manufacturer Data Disclaimer: Specifications sourced directly from Axiom Supply's own product page. Obsidian Forged Auto Supply is an authorized Axiom Supply dealer. Manufacturer specifications are subject to change without notice.
