Apex Chassis ProLock Drag Link | 2" Polished 7075-T6 Aluminum | 2014-2026 Ram 2500 / 2013-2026 Ram 3500 4WD | SKU KIT387-POL
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

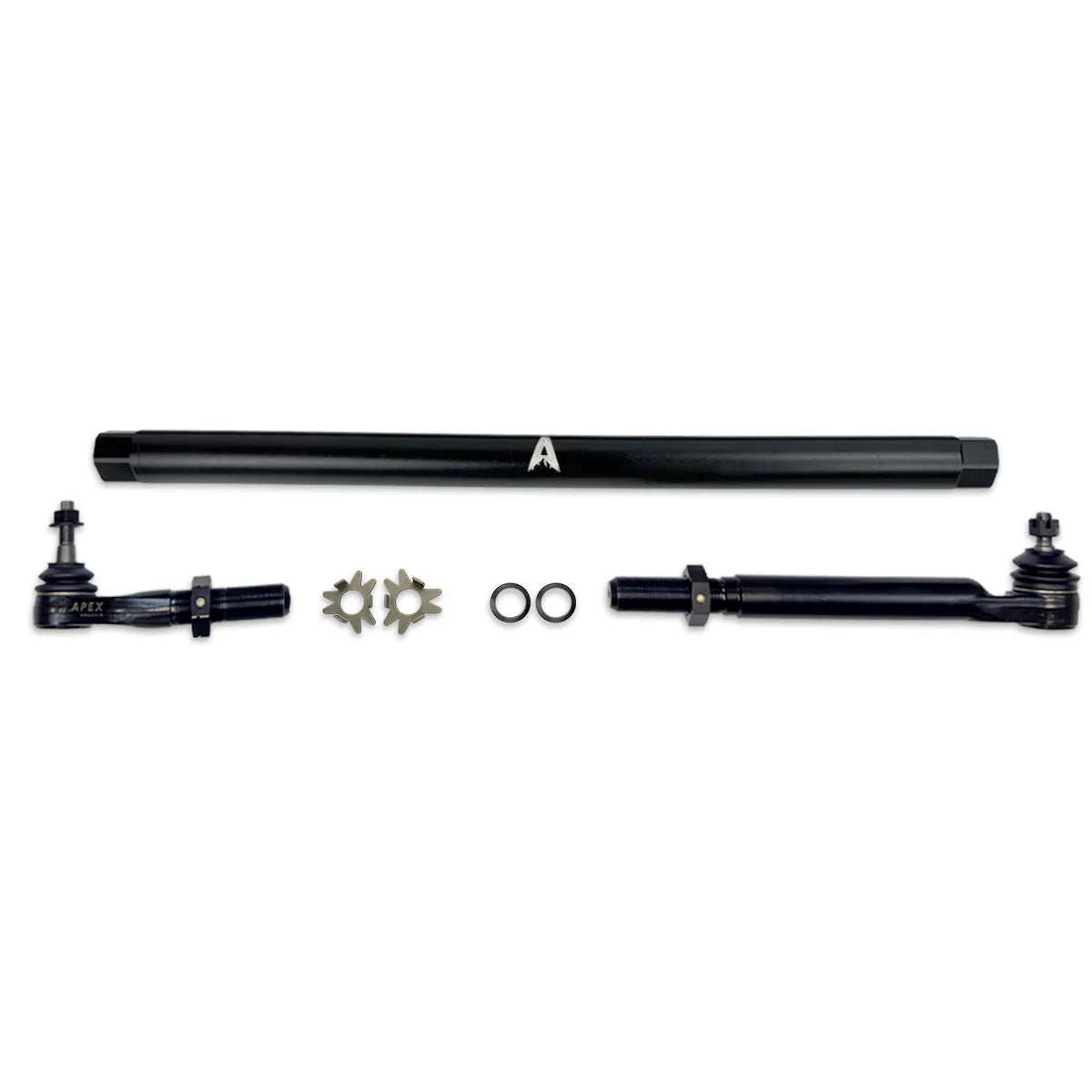

The Apex Chassis ProLock Drag Link (KIT387-POL) is a direct-replacement extreme-duty drag link for the 2014–2026 Ram 2500 and 2013–2026 Ram 3500 4WD SRW. 2" 7075-T6 aircraft-grade aluminum adjusting rod with raw polished finish, SAE 1045 CNC-machined forged steel housings, SAE 4140 hot-forged induction heat-treated chromoly ball studs, ProLock™ machined keyway washers, jam nuts with 3 wrench-flat set screws, internal Flopper Stoppers (27° left/right, 2° front/back), reversible stainless steel taper sleeve for flip applications. Gas and 6.7L Cummins diesel. 2–6" lift range. Full front-end alignment required post-install.
Drag link only — tie rod sold separately as KIT386-POL. Complete master kit KIT385-POL bundles both for one installation and one alignment fee. 2013 Ram 2500 does NOT fit. Ram 3500 DRW requires a different SKU.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | KIT387-POL |
| Brand | Apex Chassis |
| Platform | 2014–2026 Ram 2500 4WD / 2013–2026 Ram 3500 4WD SRW |
| Component | Drag link only — tie rod sold separately (KIT386-POL) |
| Complete Kit | KIT385-POL — drag link + tie rod bundled |
| Adjusting Rod | 2" 7075-T6 aircraft-grade aluminum |
| Housings | SAE 1045 solid steel forged — CNC machined |
| Ball Studs | SAE 4140 hot-forged chromoly — induction heat treated, rolled step threads |
| Adjustment System | ProLock™ machined keyway washers + jam nuts with 3 wrench-flat set screws |
| Joint Type | High-misalignment ends with internal Flopper Stoppers |
| Flopper Stoppers | 27° left/right stud travel · 2° front/back — metal-to-metal, no rubber |
| Stabilizer Mount | Straight-bored with reversible stainless steel taper sleeve — supports drag link flip without losing stabilizer mount |
| Minimum Engagement Mark | Laser-etched — must remain hidden after adjustment; visible mark indicates unsafe thread engagement |
| Bearings | Rugged metal-to-metal |
| Boots | CR rubber accordion boots |
| Hardware | Grade 8 / Class 10.9 — castle nut at high-vibration load points |
| Lubrication | Pre-threaded Zerk housing, greaseable, pre-greased, gull-winged grease grooves |
| Finish | Raw highly polished mirror aluminum |
| Lift Range | 2–6" |
| Weight | 21 lbs |
| Engine Compatibility | Gas & 6.7L Cummins diesel |
| BDS Trackbar | Not compatible — confirmed by Apex and authorized distributors |
| Rough Country Dual Stabilizer | Not compatible — component interference with drag link rod ends |
| Carli High Mount Stabilizer | Must use 2019+ Carli high mount regardless of truck year (2014–2018 trucks inclusive) |
| Ram 3500 DRW | Not compatible — SRW only |
| Alignment Required | Yes — full front-end alignment mandatory post-install |
| Install Difficulty | Intermediate — professional alignment required |
| Warranty | Apex Chassis manufacturer limited warranty — registration required |
| Country of Origin | United States |
| Sold As | Each — drag link only |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 2" polished 7075-T6 aluminum drag link assembly | ✓ |
| ProLock washers and proprietary jam nuts with set screws | ✓ |
| Reversible stainless steel taper sleeve | ✓ |
| Grade 8 / Class 10.9 hardware | ✓ |
| Installation sheet with torque specs | ✓ |
| Tie rod | ✗ NOT included — sold separately as KIT386-POL |
| Steering stabilizer | ✗ NOT included |
| Track bar relocation bracket | ✗ NOT included — recommended for lifts exceeding 4" |
| Dropped pitman arm | ✗ NOT included — may be required for lifts exceeding 4" |
KIT387 Finish/Material Options
| SKU | Adjusting Rod | Finish | Notes |
|---|---|---|---|
| KIT387-POL (this listing) | 2" 7075-T6 aluminum | Raw polished mirror | Visible, maintenance-upkeep finish |
| KIT387-BLK | 2" 7075-T6 aluminum | Black anodized | Same rod material, zero-maintenance finish |
| KIT387-STL | 1.75" DOM SAE 1020 steel | Matte black powdercoat | Maximum rigidity, no flex/memory under impact |
Drag Link Only vs. Complete Master Kit
| SKU | Contents | Best For |
|---|---|---|
| KIT387-POL (this listing) | Drag link only | Tie rod already upgraded or confirmed in good condition |
| KIT386-POL | Tie rod only | Drag link already upgraded or confirmed in good condition |
| KIT385-POL | Drag link + tie rod bundled | Both components need replacement — one install, one alignment |
Verified Fitment
| Vehicle | Years | Config | Status |
|---|---|---|---|
| Ram 2500 4WD — gas & 6.7L Cummins | 2014–2026 | SRW | ✓ |
| Ram 3500 4WD — gas & 6.7L Cummins | 2013–2026 | SRW | ✓ |
| Ram 2500 4WD | 2013 | Any | ✗ Retained legacy trailing-arm geometry — radius-arm update came in 2014 on 2500 |
| Ram 3500 4WD | 2012 and earlier | Any | ✗ Different steering geometry |
| Ram 3500 DRW | Any | DRW | ✗ Axle widths and track lengths differ — contact us for correct SKU |
| Ram 2500/3500 | 2WD | Any | ✗ No solid front axle or drag link on 2WD |
| Ram 1500 | Any | Any | ✗ Different platform |
| Ford, GM, Toyota trucks | Any | Any | ✗ Not compatible |
Critical Compatibility
| Configuration | Notes |
|---|---|
| 2013 Ram 2500 | Does not fit — radius-arm suspension update came in 2014 on the 2500, one year after the 3500 |
| Ram 3500 DRW | Does not fit this SKU — text (469) 407-7538 to confirm correct SKU for a dually |
| BDS Adjustable Trackbar | Not compatible — confirmed by Apex Chassis and multiple authorized distributors |
| Rough Country Dual Stabilizer | Not compatible — component interference with drag link rod ends |
| Carli High Mount or Dual Opposing Stabilizer | Must use the 2019+ Carli high mount regardless of truck year — applies to 2014–2018 trucks as well |
| Minimum engagement mark visible after adjustment | Indicates unsafe thread engagement — may require a flip kit or sleeve redistribution between ends |
| Lifts exceeding 4" | Track bar relocation bracket strongly recommended; verify pitman arm drop compatibility |
| Ninja washers installation | Installation manual does not clearly indicate where to install ninja washers during assembly — install with flat side to bar, tabs to lock nut, Apex logo facing outward; set screw sequence addressed at the end of the instructions |
Common Questions
Will this fix death wobble on my Ram 2500 or 3500 Cummins?
It eliminates the flex, joint slop, and adjusting sleeve rotation that heavily contribute to death wobble. The 2" 7075-T6 rod, ProLock system, and internal Flopper Stoppers remove the slop that allows wobble to develop. When paired with healthy ball joints, a solid track bar, and a proper alignment, it completely addresses the front tracking. If your tie rod is also OEM, the KIT385-POL complete kit addresses both ends in one session with one alignment fee.
What are the Flopper Stoppers?
Metal-to-metal bearing restrictors built directly inside the forged steel housing — 27° of left/right steering travel with only 2° of front-to-back deflection. No wearable rubber parts or external hardware. The restriction is built into the structure.
Can I flip this drag link on a high-clearance lift setup?
Yes. The straight-bored stabilizer hole and included reversible stainless steel taper sleeve allow you to flip the link geometry at the pitman arm without losing the stabilizer mounting point. No fabrication required.
I have a Carli high mount stabilizer on a 2016 Ram — do I need to change anything?
Yes. To run this drag link with a Carli high mount or dual opposing stabilizer, you must use the 2019+ Carli high mount regardless of your truck's model year. This applies to all 2014–2018 trucks.
What does the minimum engagement mark mean?
A laser-etched safety reference line on the drag link threads. After adjusting the sleeve, this mark must remain hidden inside the sleeve. If it's visible, thread engagement is unsafe — redistribute the sleeve between the two ends, or the truck may need a flip kit.
The Obsidian Take
The KIT387-POL is for the lifted Ram HD owner who wants the steering fixed and wants the polished finish to match the build. The 2" 7075-T6 rod is the correct spec for the Ram radius-arm platform's clearance envelope. ProLock adjustment retention, internal Flopper Stoppers, and the reversible taper sleeve for flip applications make this a complete solution rather than a basic upgrade.
If the polished finish requires more upkeep than a working truck justifies, the KIT387-BLK is the same rod material in black anodized. For maximum rigidity under sustained extreme off-road impact with zero flex memory, the KIT387-STL steel variant is the call. If your tie rod is also OEM, order KIT385-POL and correct both in one session.
Confirm three things before ordering: 2013 Ram 2500 does not fit, Ram 3500 DRW requires a different SKU, and if you're running a BDS adjustable trackbar or Rough Country dual stabilizer, those are hard incompatibilities.
Non-Returnable Notice: Steering components that have been installed are non-returnable. Confirm model year, SRW vs. DRW, trackbar and stabilizer configuration before ordering.
Manufacturer Data Disclaimer: Specifications sourced from Apex Chassis's own product page and authorized distributor documentation. Input data incorrectly stated adjusting rod diameter as 1.75" — confirmed correct diameter is 2" for the aluminum POL variant per Apex Chassis's own product documentation. Obsidian Forged Auto Supply is an authorized Apex Chassis dealer. Product registration required for warranty coverage. Manufacturer specifications are subject to change without notice.
