Apex Chassis KIT380-POL ProLock Complete Steering Kit | 2" Polished 7075-T6 Aluminum | 2003-2013 Dodge Ram 2500/3500 4WD | T-Link | SKU KIT380-POL
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

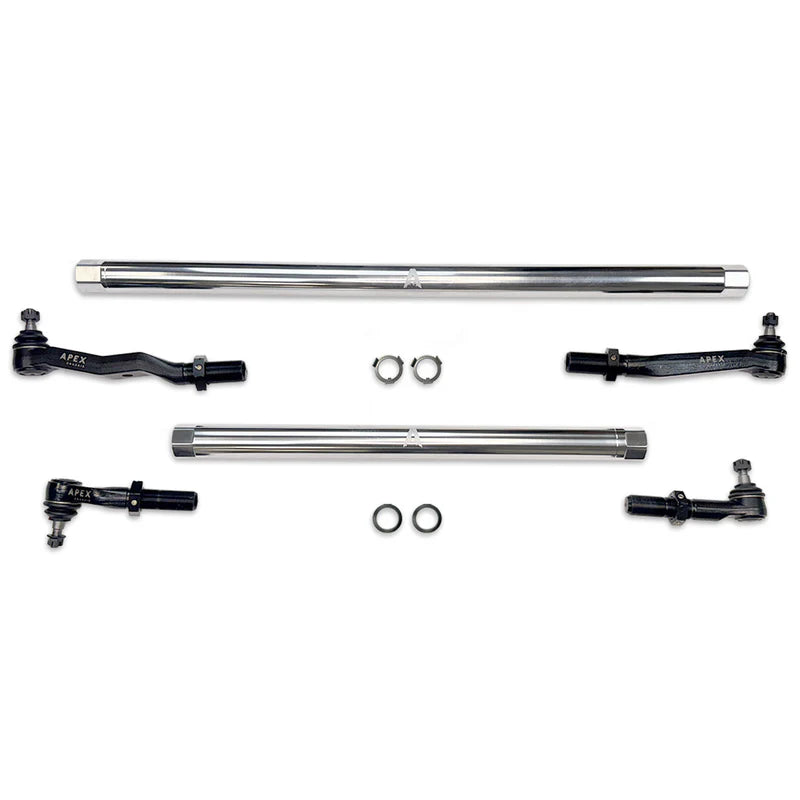

The Apex Chassis KIT380-POL is the complete ProLock T-link steering kit for the 2003–2013 Dodge Ram 2500 and 3500 4WD — 2" tie rod and 2" drag link in polished 7075-T6 aluminum, both in one session with one alignment fee. SAE 1045 CNC-machined forged steel housings, SAE 4140 hot-forged chromoly ball studs, ProLock™ machined keyway washers, Ninja Lock Washers, jam nuts with set screws, greaseable high-articulation spherical bushing on the passenger side tie rod. Raw mirror-polished finish. Gas, 5.9L Cummins, and 6.7L Cummins diesel.
Factory stabilizer clamp will not fit — a 2" ID aftermarket stabilizer clamp is required and sold separately. BDS trackbar and PSC gearbox replacements are not compatible.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | KIT380-POL |
| Brand | Apex Chassis |
| Platform | 2003–2013 Dodge Ram 2500 & 3500 4WD |
| Configuration | Complete master kit — tie rod + drag link, T-link geometry |
| Tie Rod Rod Material | 2" 7075-T6 aluminum |
| Drag Link Rod Material | 2" 7075-T6 aluminum |
| Housings | SAE 1045 solid steel forged — CNC machined |
| Ball Studs | SAE 4140 hot-forged chromoly — induction heat treated, rolled step threads |
| Passenger Side Tie Rod | Greaseable high-articulation spherical bushing |
| Adjustment System | ProLock™ Ninja Lock Washers + jam nuts with 3 wrench-flat set screws |
| Bearings | Rugged metal-to-metal |
| Boots | CR rubber accordion boots |
| Hardware | Grade 8 / Class 10.9 |
| Lubrication | Pre-threaded Zerk housing, greaseable, pre-greased, gull-winged grease grooves |
| Finish | Raw highly polished mirror aluminum |
| Lift Range | 2–6" |
| Engine Compatibility | Gas · 5.9L Cummins (2003–2007) · 6.7L Cummins (2007.5–2013) |
| Required Stabilizer Clamp | 2" ID aftermarket clamp (DC2.0-B or DC2.0-Z or equivalent) — NOT included, sold separately |
| BDS Trackbar | Not compatible |
| PSC Gearbox Replacement | Not compatible — PSC requires a 3/4" shorter drag link |
| Rough Country Dual Stabilizer | Not compatible |
| Dual Stabilizer Kits | May require modification to tie rod end brackets |
| 2003–2008 Pitman Arm | KIT380-POL only if 2009–2013 pitman arm already installed — otherwise order KIT380P-POL |
| 2013 Ram 3500 | T-style only — crossover steering does not fit |
| Camber Note | Camber is fixed on this solid axle platform — post-install alignment corrects toe and steering center only |
| Alignment Required | Yes — full front-end alignment mandatory post-install |
| Install Difficulty | Intermediate — professional alignment required |
| Warranty | Apex Chassis manufacturer limited warranty — registration required |
| Country of Origin | United States |
| Sold As | Complete kit — tie rod + drag link |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 2" polished 7075-T6 aluminum tie rod | ✓ |
| 2" polished 7075-T6 aluminum drag link | ✓ |
| ProLock washers, Ninja Lock Washers, and jam nuts | ✓ |
| Grade 8 / Class 10.9 hardware | ✓ |
| Installation sheet with torque specs | ✓ |
| 2" ID steering stabilizer clamp | ✗ NOT included — required; order DC2.0-B or DC2.0-Z or equivalent separately |
| Pitman arm (2003–2008 trucks without 2009–2013 upgrade) | ✗ NOT included in KIT380-POL — order KIT380P-POL to include Mopar pitman arm |
| Track bar relocation bracket | ✗ NOT included — recommended for lifts exceeding 4" |
2003–2008 Y-Style to T-Link — Which SKU Do You Need?
| Your Situation | Order |
|---|---|
| 2009–2013 Ram 2500/3500 | KIT380-POL (this listing) |
| 2003–2008 truck — already has 2009–2013 pitman arm installed | KIT380-POL (this listing) |
| 2003–2008 truck — no pitman arm upgrade yet | KIT380P-POL — includes the Mopar pitman arm |
| 2003–2008 truck — running a drop pitman arm | Replace drop pitman arm with 2009–2013 style from your lift supplier first, then order KIT380-POL |
KIT380 Finish/Material Options
| SKU | Material | Finish | Best For |
|---|---|---|---|
| KIT380-POL (this listing) | 2" 7075-T6 aluminum | Raw mirror polished | Show builds — restores with aluminum polish |
| KIT380-BLK | 2" 7075-T6 aluminum | Black anodized | Zero-maintenance working trucks — road salt environments |
| KIT380-STL | 1.75" DOM SAE 1020 steel | Matte black powdercoat | Rock crawling with direct bar contact — no flex memory; requires 1.75" ID stabilizer clamp |
Verified Fitment
| Vehicle | Years | Steering Style | Status |
|---|---|---|---|
| Dodge Ram / Ram 2500 4WD | 2003–2013 | T-style (2009–2013) or Y-to-T conversion (2003–2008) | ✓ |
| Dodge Ram / Ram 3500 4WD | 2003–2012 | T-style or Y-to-T conversion | ✓ |
| Ram 3500 4WD | 2013 (early production) | T-style | ✓ |
| Ram 3500 4WD | 2013 (late production) | Crossover steering | ✗ Does not fit |
| Ram 2500/3500 4WD | 2014–2026 | Radius-arm platform | ✗ Different geometry — order KIT385-POL |
| Ram 2500/3500 | 2WD | Any | ✗ No solid front axle |
| Ram 1500 | Any | Any | ✗ Different platform |
| Ram 2500/3500 | 2002 and earlier | Any | ✗ Different steering geometry |
Critical Compatibility
| Configuration | Notes |
|---|---|
| 2003–2008 trucks without 2009–2013 pitman arm | Requires KIT380P-POL — standard kit will not complete the Y-to-T conversion |
| 2013 Ram 3500 crossover steering | Does not fit — T-style only |
| Factory OE steering stabilizer clamp | Will not fit 2" aluminum tube — order 2" ID clamp (DC2.0-B or DC2.0-Z) separately |
| BDS Trackbar | Not compatible |
| PSC Gearbox Replacement | Not compatible — requires 3/4" shorter drag link |
| Rough Country Dual Stabilizer | Not compatible |
| Dual stabilizer kits | May require modification to tie rod end brackets |
| 2014+ Ram HD | Does not fit — order KIT385-POL |
| Lifts exceeding 4" | Track bar relocation bracket strongly recommended |
Common Questions
Do I need the standard kit or the pitman arm bundle for my 2003–2008 truck?
If you already have the 2009–2013 pitman arm installed, order KIT380-POL. If you do not, order KIT380P-POL which includes the Mopar pitman arm for the Y-to-T conversion. If running a drop pitman arm, replace it with the 2009–2013 style from your lift supplier first.
What's the difference between KIT380-POL and KIT380-BLK?
Mechanically identical — same 2" 7075-T6 bars, same ProLock system. POL is raw mirror polished — show-quality finish that restores with aluminum polish. BLK is black anodized — zero maintenance, better corrosion protection for road salt environments. Same performance.
Will this fit a 2013 Ram 3500?
Only if it's early production T-style. Late 2013 Ram 3500 uses crossover steering and this kit does not fit. Look under the truck to confirm before ordering.
Does camber adjustment happen at the same time as alignment?
Camber is fixed on this solid front axle platform — it cannot be adjusted without aftermarket offset ball joints. Post-install alignment corrects toe and centers the steering wheel. Camber remains as-built by the axle.
Why won't my factory stabilizer clamp fit?
The factory clamp is sized for the narrow OEM tie rod. The Apex 2" aluminum tube requires a 2" ID clamp. Order DC2.0-B (black) or DC2.0-Z (zinc) separately, or text (469) 407-7538 with your stabilizer brand and we'll confirm the right clamp.
The Obsidian Take
The KIT380-POL is for the 3rd-gen Ram HD owner who lifted their truck, put real tires under it, and wants both the steering locked down permanently and a mirror-finish undercarriage to show for it. 2" solid 7075-T6 on both bars, ProLock adjustment, greaseable spherical bushing, natural flex memory that handles trail impacts without permanent deformation.
For a working truck in road salt conditions, the mechanically identical KIT380-BLK is the zero-maintenance call. For maximum rigidity under direct rock contact, KIT380-STL in DOM steel is correct. For 2003–2008 Y-style trucks, confirm whether you need KIT380P-POL with the Mopar pitman arm. For 2014+ Ram HD, stop here and order KIT385-POL.
Non-Returnable Notice: Steering components that have been installed are non-returnable. Confirm steering style (T-style vs. crossover), pitman arm status, stabilizer clamp size, and model year before ordering.
Specifications sourced from Apex Chassis manufacturer documentation and authorized distributor data. Obsidian Forged Auto Supply is an authorized Apex Chassis dealer. Product registration required for warranty coverage. Manufacturer specifications are subject to change without notice.
