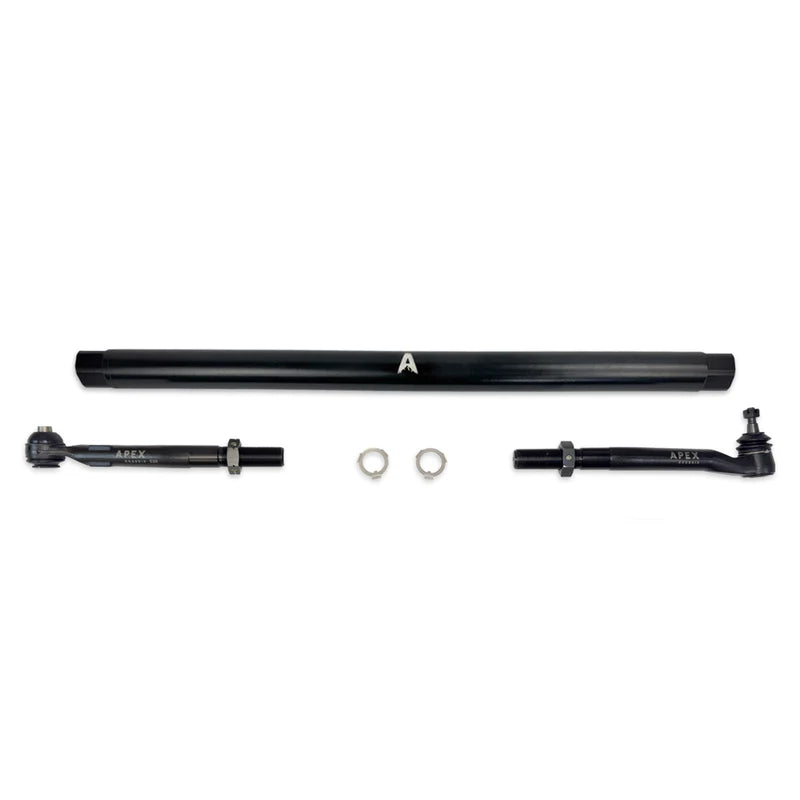

Apex Chassis KIT372-BLK ProLock Tie Rod — 2" Black Powdercoat 7075-T6 Aluminum | 2005–2026 Ford F-250 / F-350 Super Duty 4WD | P221 · P558 · P702 | SRW & DRW | 2–6" Lift
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
All three generations. Lighter than steel. Protected better than polished.
Three generations of Super Duty — P221, P558, P702 — and every one of them has the same problem under a lift with bigger tires. The OEM tie rod was engineered for stock geometry. At lift height the angle breaks down, bump steer develops, and the steering response disappears into flex and deflection that builds over time.
The Apex Chassis KIT372-BLK is the correction — and the choice that doesn't make you pick between performance and practicality. A massive 2" solid 7075-T6 aircraft-grade aluminum tie rod with overbuilt 1.25" threaded shanks, ProLock high-misalignment ends, and a zero-maintenance black powdercoat finish — covering all three Super Duty generations in a single SKU. 6.7 lbs lighter than the steel version. Built to work. Built to last.
| Spec | Detail |
|---|---|
| SKU | KIT372-BLK |
| Brand | Apex Chassis |
| Platform | 2005–2026 Ford F-250 / F-350 Super Duty 4WD |
| Generations covered | P221 (2005–2016) · P558 (2017–2022) · P702 (2023–2026) |
| Material | 2" diameter solid 7075-T6 aircraft-grade aluminum rod |
| Thread shank | 1.25" diameter ultra-thick — anti-flex, anti-wobble |
| Joint housings | Hot-forged solid steel |
| Ball studs | Induction heat-treated SAE 4140 chromoly — rolled threads |
| Adjustment system | ProLock™ machined thread keyway washers + dual-thread jam nuts with 3 wrench-flat set screws |
| Joint type | ProLock™ high-misalignment ends |
| Finish | Industrial textured black powdercoat |
| Lift range | 2–6" |
| Weight | 32.3 lbs — 6.7 lbs lighter than KIT372-STL |
| SRW / DRW | Both confirmed — F-450 / F-550 NOT compatible |
| Application | Street · daily driver · trail use — for extreme rock crawl see KIT372-STL |
| Companion drag link 2005–2016 | KIT371-BLK (black powdercoat) |
| Companion drag link 2017–2026 | KIT373-BLK (black powdercoat) |
| Polished alternative | KIT372-POL — same 2" 7075-T6 aluminum, mirror finish |
| Steel alternative | KIT372-STL — solid high-strength steel for maximum impact resistance |
| Warranty | Apex Chassis limited lifetime manufacturer warranty |
| Alignment required | Yes — full front-end alignment mandatory post-install |
| Install difficulty | Intermediate — professional alignment required |
Why 2" aluminum instead of 1.5" like the steel version: Aluminum has a different modulus of elasticity than steel — the diameter must scale up to a full 2" to match the structural yield strength of the 1.5" solid steel bar. Same geometry correction, same ProLock system, different physics, different diameter. At 32.3 lbs the aluminum version is 6.7 lbs lighter — less unsprung mass means faster suspension response and improved pavement tracking on heavy 35" or 37" tire packages.
Why black powdercoat over polished on a working truck: The textured black powdercoat finish adds a physical barrier that raw polished aluminum doesn't have. On a working Super Duty that sees winter road salt, thick mud, and heavy weather cycles year-round, the powdercoat keeps the 7075-T6 aluminum underneath clean and corrosion-free without a maintenance or polishing schedule. Same aluminum performance underneath — zero upkeep on top.
KIT372-BLK vs the lineup — which one: Same ProLock system, same three-generation coverage, same geometry correction across all three variants. The BLK is black powdercoat aluminum — aluminum weight savings, zero-maintenance protection, the daily driver's choice. The POL is mirror-polished aluminum — same weight, show-truck aesthetic, requires occasional polish. The STL is solid high-strength steel — 39 lbs, maximum impact resistance for extreme rock crawling and direct boulder contact.
✅ This unit fits — all three Super Duty generations
| Year | F-250 Super Duty 4WD | F-350 Super Duty 4WD SRW | F-350 Super Duty 4WD DRW | Generation |
|---|---|---|---|---|
| 2005 | ✅ | ✅ | ✅ | P221 |
| 2006 | ✅ | ✅ | ✅ | P221 |
| 2007 | ✅ | ✅ | ✅ | P221 |
| 2008 | ✅ | ✅ | ✅ | P221 |
| 2009 | ✅ | ✅ | ✅ | P221 |
| 2010 | ✅ | ✅ | ✅ | P221 |
| 2011 | ✅ | ✅ | ✅ | P221 |
| 2012 | ✅ | ✅ | ✅ | P221 |
| 2013 | ✅ | ✅ | ✅ | P221 |
| 2014 | ✅ | ✅ | ✅ | P221 |
| 2015 | ✅ | ✅ | ✅ | P221 |
| 2016 | ✅ | ✅ | ✅ | P221 |
| 2017 | ✅ | ✅ | ✅ | P558 |
| 2018 | ✅ | ✅ | ✅ | P558 |
| 2019 | ✅ | ✅ | ✅ | P558 |
| 2020 | ✅ | ✅ | ✅ | P558 |
| 2021 | ✅ | ✅ | ✅ | P558 |
| 2022 | ✅ | ✅ | ✅ | P558 |
| 2023 | ✅ | ✅ | ✅ | P702 |
| 2024 | ✅ | ✅ | ✅ | P702 |
| 2025 | ✅ | ✅ | ✅ | P702 |
| 2026 | ✅ | ✅ | ✅ | P702 |
❌ This unit does NOT fit — read before ordering
| Vehicle | Reason | Correct Unit |
|---|---|---|
| 2004 and earlier Ford Super Duty | Different steering geometry | — |
| Ford F-450 / F-550 | Different track widths and steering geometry | — |
| Ford Super Duty 2WD | Independent front suspension — no solid front axle tie rod assembly | — |
| Ford F-150 | Different platform entirely | — |
| GM, Ram, Toyota trucks | Not compatible | — |
Drag link pairing — generation-specific: This tie rod covers all three Super Duty generations in one SKU. Your drag link does not. Ford updated steering box geometry between generations — confirm the correct companion drag link. For 2005–2016: KIT371-BLK. For 2017–2026: KIT373-BLK. Text (469) 407-7538 with your year and we'll confirm your complete black powdercoat steering package.
Supporting mod requirements:
- Lifts 2–4": Direct bolt-on. No additional hardware required beyond the unit.
- Lifts exceeding 4": Track bar relocation bracket strongly recommended. Verify pitman arm drop compatibility before ordering.
- Complete black powdercoat steering system: Pair with KIT371-BLK (2005–2016) or KIT373-BLK (2017–2026) drag link for a fully matched zero-maintenance front steering overhaul in one session.
Before You Buy — Questions We Get Asked
Q: What's the difference between KIT372-BLK, KIT372-POL, and KIT372-STL?
All three share the same ProLock system, same platform coverage, and same geometry correction. The KIT372-BLK is 2" 7075-T6 aluminum in black powdercoat — 32.3 lbs, reduced unsprung weight, textured finish that seals out the elements for daily and trail use with zero maintenance. The KIT372-POL is the identical aluminum bar in polished mirror finish — same weight, show-truck aesthetic, requires occasional polish to maintain. The KIT372-STL is solid high-strength steel — 39 lbs, maximum impact resistance for extreme rock crawling and direct boulder contact. The black powdercoat is the daily driver's choice — aluminum performance, protected finish, no upkeep.
Q: Can I build a complete black powdercoat steering system?
Yes. The KIT372-BLK tie rod paired with the KIT371-BLK drag link (2005–2016) or KIT373-BLK drag link (2017–2026) gives you a complete zero-maintenance black powdercoat front steering overhaul on your Super Duty platform. Text (469) 407-7538 with your year and we'll confirm the complete package before it ships.
Q: Does this fit my F-350 dually?
Yes — SRW and DRW both confirmed across all three generations 2005–2026. F-450 and F-550 wide-track commercial chassis are not compatible. Confirm 4WD before ordering.
Q: How hard is this install and what will I need?
Intermediate difficulty. Standard hand tools, a torque wrench, and a floor jack are required. A full front-end alignment — caster, camber, and toe — immediately after installation is mandatory. ProLock jam nuts must be torqued to Apex specification to fully engage the keyway locking feature. Budget one garage session and one same-day alignment appointment.
The Obsidian Take
The KIT372-BLK is the right call for the Super Duty owner who wants aluminum weight savings and zero-maintenance surface protection in the same unit — without choosing between performance and practicality. The 2" 7075-T6 construction matches the structural yield strength of the 1.5" solid steel bar at 6.7 lbs less unsprung weight — faster suspension response, better pavement tracking on heavy 35" or 37" tire packages, and the same ProLock geometry correction that eliminates factory shank flex and death wobble triggers. The black powdercoat finish seals the aluminum against road salt, brine, and weather year-round with zero upkeep — the right specification for any Super Duty that earns its miles in real conditions. SRW and DRW both confirmed across all 22 model years and all three platform generations in one SKU.
This unit is not for F-450 or F-550 owners. It is not for 2WD Super Duty owners. It is not for dedicated rock crawlers who will scrape the tie rod against boulder faces under load — the KIT372-STL in solid high-strength steel handles localized crushing forces that aluminum cannot. If the mirror finish matters more than zero maintenance, the KIT372-POL in polished aluminum is the right call instead. And your drag link is generation-specific — it is the other half of the system. For 2005–2016 pair with KIT371-BLK. For 2017–2026 pair with KIT373-BLK. Text (469) 407-7538 with your year and lift height and we'll confirm the complete package before it ships.
Product information is compiled from manufacturer-provided data. Obsidian Forged Auto Supply is not responsible for manufacturer-driven specification updates, metadata changes, or accuracy discrepancies in the foundational data sheets.
2005–2026 Ford F-250 / F-350 Super Duty 4WD. P221 · P558 · P702. SRW & DRW. 2–6" lift. Drag link is generation-specific — text us your year for the right combination.
