AMP Research BedStep | Frame-Mounted | Foot-Activated | 2019-2024 Ram 1500 DT New Body | SKU 75322-01A
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

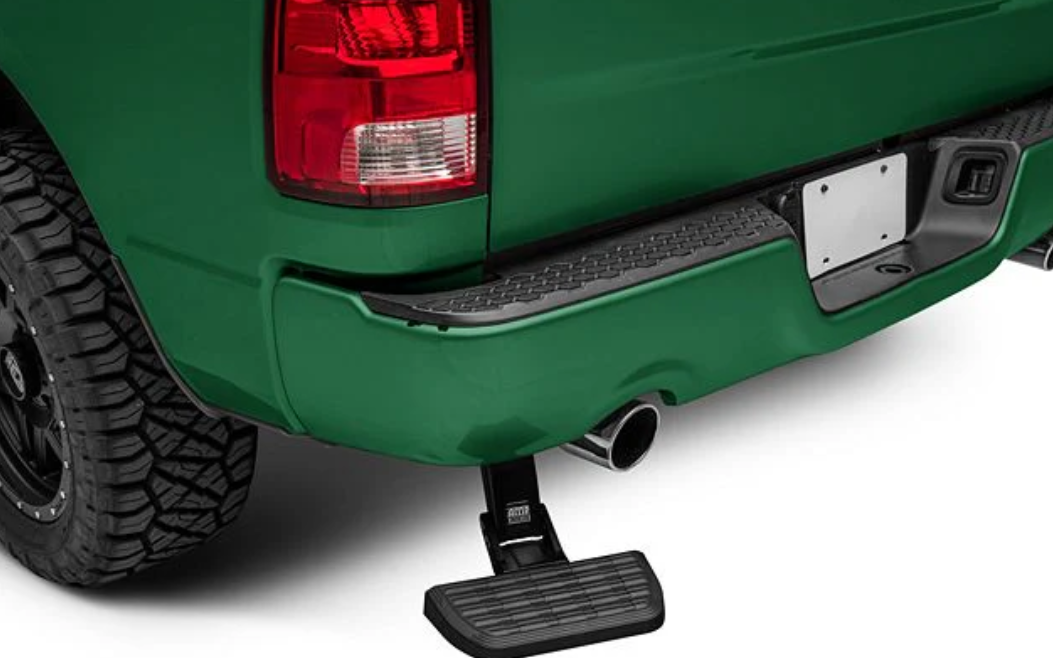

The AMP Research BedStep (SKU 75322-01A) is the frame-mounted, foot-activated retractable bumper step for the 2019–2024 Ram 1500 New Body (DT platform), excluding TRX. Die-cast aluminum alloy construction, black-anodized and PTFE-coated for corrosion resistance, self-lubricating bushings, stainless steel pivot pins. Mounts under the rear bumper — works with an open tailgate or while towing. Glass-reinforced, slip-resistant resin step pad. Supports up to 300 lbs. No drilling required — installs using existing mounting holes. 11 lbs.
This is the DT (New Body) platform only. The Ram 1500 Classic (DS platform) and TRX require different SKUs.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 75322-01A |
| Brand | AMP Research |
| Type | BedStep — frame-mounted retractable bumper step |
| Platform | Ram 1500 New Body (DT) |
| Mount Type | Frame-mounted, driver or passenger side — under rear bumper |
| Activation | Foot-activated deploy/retract |
| Construction | Die-cast aluminum alloy linkage assembly |
| Finish | Black-anodized + PTFE coating — corrosion resistant |
| Bushings | Self-lubricating — maintenance-free all-weather performance |
| Pivot Pins | Stainless steel |
| Load Rating | 300 lbs |
| Step Surface | Glass-reinforced, slip-resistant resin step pad |
| Installation | No drilling required — uses existing factory mounting holes |
| Cab/Bed Compatibility | All cabs, all bed lengths |
| Weight | 11 lbs |
| Shipping Dimensions | 21" L x 9" W x 9" H |
| Country of Origin | United States |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| BedStep unit with mounting hardware | ✓ |
| Vehicle-specific installation instructions | ✓ |
Verified Fitment — 2019–2024 Ram 1500 DT
| Vehicle | Years | Status |
|---|---|---|
| Ram 1500 DT — Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, HFE | 2019–2024 | ✓ |
| Ram 1500 TRX | Any | ✗ Different rear frame and exhaust routing — requires a TRX-specific unit |
| Ram 1500 Classic (DS platform) | 2019–2024 | ✗ Different rear frame geometry — requires a DS-specific BedStep unit |
| Ram 1500 | 2018 and earlier | ✗ Different generation — requires a generation-specific BedStep unit |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Ram 1500 TRX | Does not fit — different rear frame and exhaust routing |
| Ram 1500 Classic (DS platform) | Does not fit — different rear frame geometry despite similar appearance to DT |
| Aftermarket rear bumpers, rear armor, or tow sensor brackets | May interfere with frame mount or step travel path — verify clearance before ordering |
Common Questions
How do I know if I have the DT or the Classic (DS)?
Both were sold alongside each other from 2019–2024 and look similar. The DS (Classic) uses the previous-generation rear frame and is not compatible with this BedStep. Check your build sheet or VIN to confirm DT platform before ordering.
Does this fit a TRX?
No. The TRX uses different rear frame and exhaust routing that is not compatible with this unit.
Does installation require drilling?
No. This BedStep installs using existing factory mounting holes — no drilling or frame modification required.
The Obsidian Take
The BedStep (75322-01A) is for the 2019–2024 Ram 1500 DT owner who wants reliable foot-activated bed access at the rear bumper — die-cast aluminum, glass-reinforced step pad, 300-lb rating, no-drill install, self-lubricating bushings for genuine maintenance-free operation.
Confirm before ordering: your Ram is the DT New Body, not the Classic (DS) or TRX, since all three were sold in overlapping years and look similar from a distance.
Non-Returnable Notice: Once installed, this unit is non-returnable per AMP Research policy. Confirm platform (DT vs. DS vs. TRX) before ordering.
Manufacturer Data Disclaimer: Specifications sourced from AMP Research manufacturer documentation and authorized distributor pages. Obsidian Forged Auto Supply is an authorized AMP Research dealer. Manufacturer specifications are subject to change without notice.
