Zone Offroad 6-Inch Lift Kit | Fox Adventure Shocks | 2019-2024 Ram 1500 4WD

Zone Offroad 6-Inch Front / 5-Inch Rear Lift Kit | Fox Adventure Shocks | 2019–2024 Ram 1500 4WD | SKU: D96F

Is This for You?

This kit is for the 2019–2024 Ram 1500 DT platform 4WD owner who wants 6 inches of front lift and 5 inches of rear lift with corrected suspension geometry and Fox Adventure Series shocks. If your Ram 1500 is a Classic (DS platform, 1994–2024 with the older body style and leaf-spring rear suspension), this kit will not fit. If your truck is 2WD, this kit will not fit. If your truck has factory 4-corner air suspension, confirm compatibility before ordering. This is a complete system — crossmembers, knuckles, strut spacers, differential drop brackets, rear coil springs, and Fox shocks are all included.

The Result

The Zone Offroad 6/5 system re-establishes correct caster, camber, and scrub radius geometry at 6 inches of front lift via heavy-duty crossmembers and steering knuckles. Differential drop brackets correct CV axle angles to reduce vibration and premature wear. Rear coil spring replacement (not add-a-leaf or blocks) provides 5 inches of rear lift on the DT platform’s coil-spring rear suspension. The 1-inch front-to-rear differential creates a slight nose-up rake — standard practice for trucks that carry bed loads, as payload compresses the rear under load and levels the truck. Fox Adventure Series shocks are valved specifically for the lifted geometry of this system.

Verified Fitment (OFAS Standard)

• 2019–2024 Ram 1500 4WD — DT Platform (New Body) ✓
• Does NOT fit: Ram 1500 Classic (DS platform, 1994–2024) — older body style, leaf-spring rear suspension, completely different architecture
• Does NOT fit: 2025–2026 Ram 1500 — Zone Offroad application caps at 2024
• Does NOT fit: 2WD / RWD Ram 1500 — 4WD only
• Does NOT fit: 2018 or earlier Ram 1500 DT — DT platform launched 2019
• Does NOT fit: Ram 2500 or 3500
• Air suspension: If your Ram 1500 DT is equipped with factory 4-corner air suspension, confirm compatibility before ordering

Ram 1500 DT vs. Ram 1500 Classic — Platform Identification

• Ram 1500 DT (2019–2024): New body style, coil-spring rear suspension, air suspension available — this kit fits
• Ram 1500 Classic (DS, 1994–2024): Older body style, leaf-spring rear suspension — this kit does NOT fit
• Both platforms were sold simultaneously through 2024. Verify your body style before ordering.

System Specifications

• SKU / Part Number: D96F
• Brand: Zone Offroad
• Front Lift: 6 inches
• Rear Lift: 5 inches
• Shock Type: Fox Adventure Series — front and rear
• Rear Suspension Type: Coil spring replacement (DT platform)
• Drivetrain: 4WD only
• Application: 2019–2024 Ram 1500 4WD DT platform
• Shipping Weight: 182 lbs

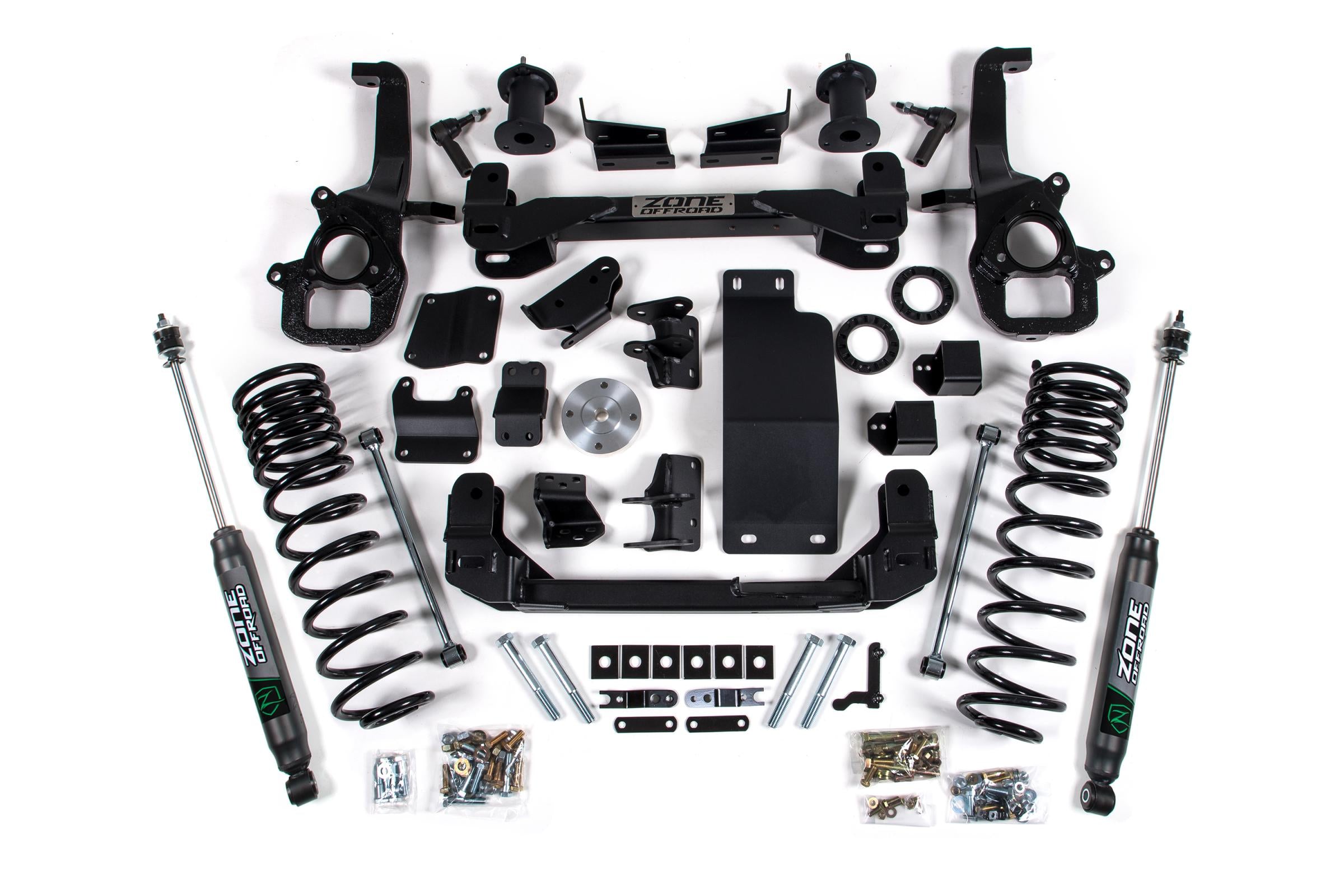

Kit Contents

• Heavy-duty front crossmembers
• Steering knuckles
• Strut spacers
• Differential drop brackets
• Rear coil springs (5-inch lift)
• Fox Adventure Series shocks — front and rear
• All required hardware

Fox Adventure Series Shocks

• Fox’s performance entry-level shock — above OEM replacement quality, engineered for lifted applications
• Improved damping consistency across uneven terrain vs. factory shocks
• Valved specifically for the lifted suspension geometry of this Zone Offroad system
• Unsprung weight added by heavy-duty knuckles is accounted for in Fox valving spec

Installation Notes

• Professional installation required. This system involves front crossmembers, steering knuckles, differential brackets, and rear coil spring replacement.
• Full 4-wheel alignment mandatory post-installation. Budget for alignment at time of install.
• Torque all fasteners to Zone Offroad specification included with the kit. Do not estimate torque on steering or suspension fasteners.
• Verify tire and wheel clearance with your specific offset and tire combination before ordering.
• If equipped with factory 4-corner air suspension, confirm compatibility before ordering.
• Re-torque all suspension fasteners after 500 miles of break-in.

⚠️ LTL Freight Notice: This item ships via freight carrier due to size and weight. Residential delivery is included. Freight carrier will contact you to schedule.

Engineering Question: Have you confirmed your Ram 1500 is the DT platform (2019–2024 new body style) with 4WD and coil-spring rear suspension? Ram 1500 Classic (DS) owners, 2WD owners, and 2025–2026 Ram 1500 owners — this kit does not fit your truck. Verify your platform and drivetrain before ordering.
