Axiom Snap Ring Pliers | 2007–2022 Ford F-250 / F-350 Super Duty 4WD | Hub & Axle Bearing Service

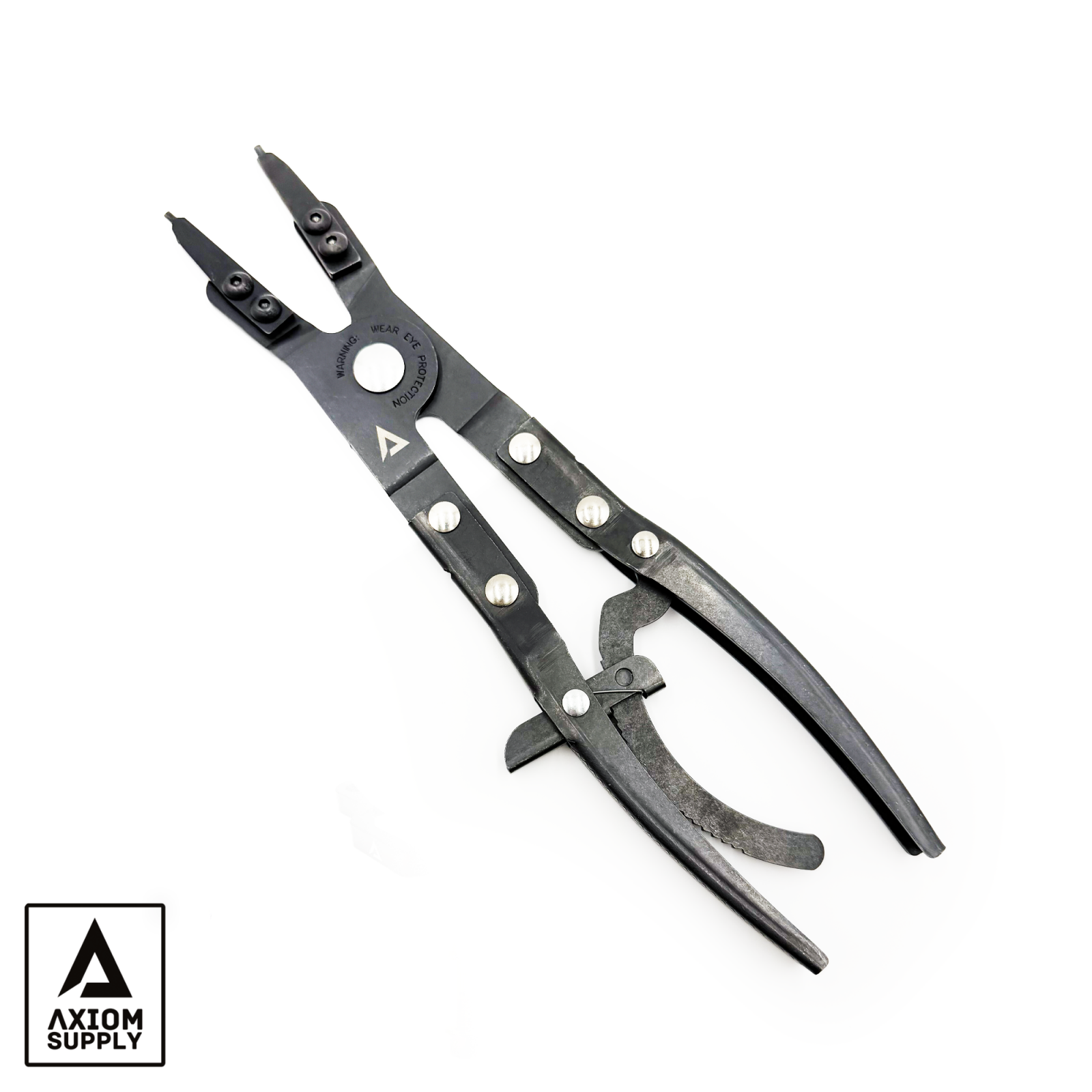

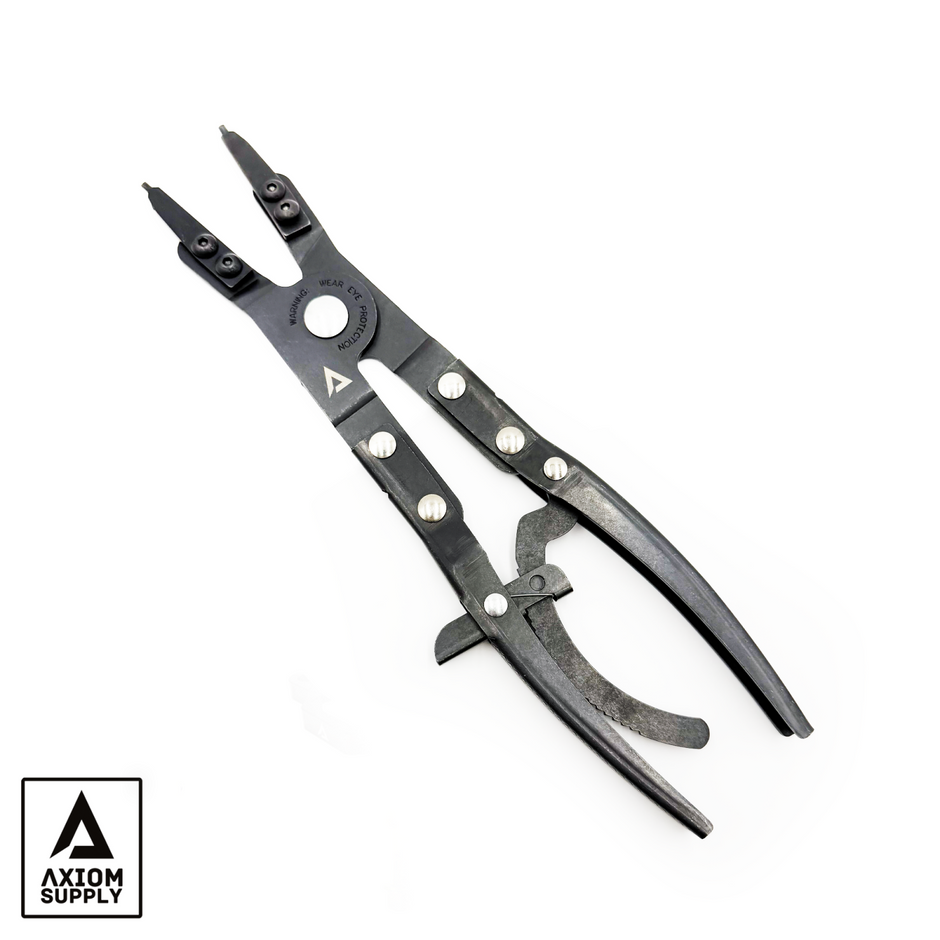

The Axiom Snap Ring Pliers (SKU: AXTL03) are a vehicle-specific snap ring plier set engineered for 2007–2022 Ford F-250 and F-350 Super Duty 4WD front hub and axle bearing service. Standard snap ring pliers are often too large or lack the tip geometry to engage cleanly in the tight bore of the Super Duty hub assembly — these pliers are sized and tipped for the specific snap ring dimensions used in the Ford Super Duty 4WD hub. Hardened steel construction. Non-slip ergonomic handles. Confirm your application requires internal or external snap ring pliers before ordering — internal and external snap rings require opposite tip orientation.

Application

Designed for 2007–2022 Ford F-250 and F-350 Super Duty 4WD front hub and axle service. Confirm your specific model year and 4WD configuration before ordering.

Does NOT fit: 2WD F-250/F-350 Super Duty — 2WD does not use the same hub assembly snap ring configuration. Does not fit F-150. Does not fit 2006 or earlier Super Duty without confirming snap ring specification. Confirm 4WD and snap ring type (internal or external) before ordering.

Technical Specifications

• SKU: AXTL03
• Type: Snap ring pliers — Ford Super Duty 4WD hub and axle service
• Construction: Hardened steel jaws — non-slip ergonomic handles
• Application: 2007–2022 Ford F-250/F-350 Super Duty 4WD — front hub, axle shaft, wheel bearing, and suspension snap rings
• Quantity: Single tool
• Weight: 7 lbs

Where Snap Ring Pliers Are Used in Super Duty Hub Service

• Front hub assembly — snap ring retains the hub bearing in the knuckle bore
• Axle shaft — snap ring retains the axle shaft in the differential or hub
• Wheel bearing — snap ring retains the bearing race in the hub bore
• Suspension components — snap rings used at various pivot and retention points

Usage Notes

• Internal vs. external snap ring confirmation: Confirm whether your application uses an internal snap ring (fits inside a bore — requires spreading tips) or external snap ring (fits around a shaft — requires compressing tips). Internal and external snap rings require opposite tip orientation — confirm before ordering.
• Tip engagement: Seat the plier tips fully into the snap ring holes before applying force. Partial engagement will cause the tips to slip and can deform the snap ring or damage the bore.
• Controlled force: Compress or expand only enough to clear the groove — over-stressing a snap ring will deform it. A deformed snap ring must be replaced before reassembly.
• Installation confirmation: After installing a snap ring, verify it is fully seated in the groove before reassembling the hub. A partially seated snap ring will dislodge under load and cause hub or bearing failure.
• Safety glasses: Wear safety glasses during snap ring removal and installation — snap rings can release suddenly and with significant force.

Safety Warning

Snap rings release suddenly under tension — always wear safety glasses. Do not over-stress snap rings — a deformed snap ring must be replaced before reassembly. Verify snap ring is fully seated before returning the vehicle to service — a dislodged snap ring in a hub or axle application can cause wheel separation. Once used, the tool is non-returnable.

Engineering Question: Have you confirmed your F-250/F-350 is 4WD (2007–2022), and do you need internal or external snap ring pliers? Confirm snap ring type (internal = inside a bore, external = around a shaft) for your specific service location before ordering — the tip orientation is opposite between the two types.
