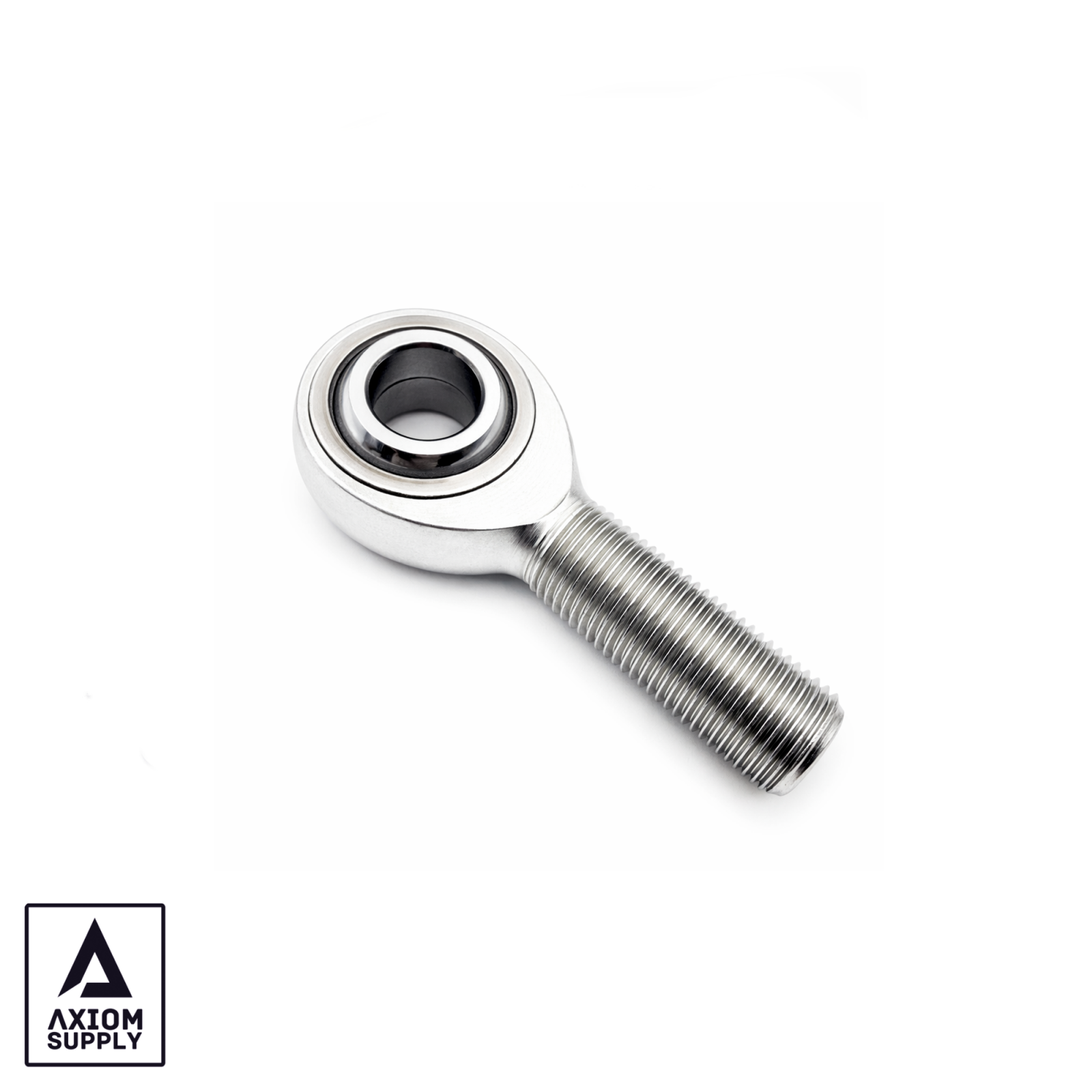

The Axiom Heavy Duty Heim Joint (SKU: JMXR12T-F1-XXVEZ) is a high-strength spherical rod end (heim joint) for UTV suspension and steering linkage applications requiring a 3/4" shank diameter, 3/4" bore, and right-hand thread. Zinc-plated finish for corrosion resistance in mud, sand, rock, and trail environments. Heim joints allow precise multi-axis articulation at suspension and steering pivot points — worn or damaged joints introduce play that causes steering wander, vibration, and accelerated wear on surrounding components. High-strength housing and ball. Smooth, consistent pivoting under high-load and high-impact off-road conditions. Sold individually — order the quantity required for your application.

Application (OFAS Standard)

Universal fit — compatible with any UTV suspension or steering linkage application requiring a 3/4" x 3/4" right-hand thread heim joint. Confirm all three dimensions before ordering.

Does NOT fit: Applications requiring left-hand thread — right-hand and left-hand heim joints are not interchangeable. Does not fit applications requiring a different shank diameter or bore size — see JMXR10T-F1 for 5/8" x 5/8" right-hand thread. Does not fit metric thread applications without confirming thread compatibility.

Heim Joint Size Guide

• 5/8" x 5/8" Right-Hand Thread: JMXR10T-F1
• 3/4" x 3/4" Right-Hand Thread (Zinc Plated): JMXR12T-F1-XXVEZ (this listing)

Technical Specifications

• SKU: JMXR12T-F1-XXVEZ
• Type: Spherical rod end (heim joint)
• Shank Diameter: 3/4"
• Bore Size: 3/4"
• Thread: Right-hand
• Finish: Zinc plated — corrosion-resistant
• Housing: High-strength metal
• Quantity: Single (sold individually)
• Weight: 7 lbs
• Application: UTV suspension arms, steering linkage, long-travel suspension, custom fabrication

Symptoms of a Worn Heim Joint

• Steering wander or vague on-center feel
• Clunking or knocking from suspension or steering linkage over rough terrain
• Visible play or slop in the joint when checked by hand
• Uneven or accelerated tire wear
• Vibration through the steering wheel or chassis at speed

Installation Notes

• Thread direction confirmation required: Confirm the application requires right-hand thread before ordering. Right-hand and left-hand heim joints are not interchangeable — installing the wrong thread direction will not allow correct adjustment and can back out under load.
• Dimension confirmation: Verify shank diameter (3/4"), bore size (3/4"), and thread pitch match your application before installation. Incorrect dimensions will not fit correctly and can cause joint failure under load.
• Jam nut required: Heim joints must be secured with a jam nut after adjustment. Do not operate the vehicle without a properly torqued jam nut — the joint will back out under vibration and load.
• Torque specs: Torque heim joint shank and jam nut to manufacturer specification for your UTV suspension or steering system (verify in UTV service manual or aftermarket suspension manufacturer spec sheet).
• Inspection interval: Inspect heim joints for play, binding, or corrosion at regular service intervals. Off-road and high-impact applications accelerate wear — inspect more frequently than street applications. Replace immediately if play is detected.
• Grease fitting: If the joint includes a grease fitting, grease at installation and at regular service intervals per manufacturer recommendation.

Installation Warning

Do not install without confirming thread direction is right-hand — a left-hand thread joint installed in a right-hand application will back out under load and cause loss of steering or suspension control. Do not operate without a properly torqued jam nut. Replace immediately if play is detected — a failed heim joint in a steering or suspension application can cause loss of vehicle control. Once installed, the unit is non-returnable.

What UTV make and model, which suspension or steering location, and confirm thread direction is right-hand and shank/bore is 3/4" x 3/4" — need 5/8" instead? See JMXR10T-F1.
