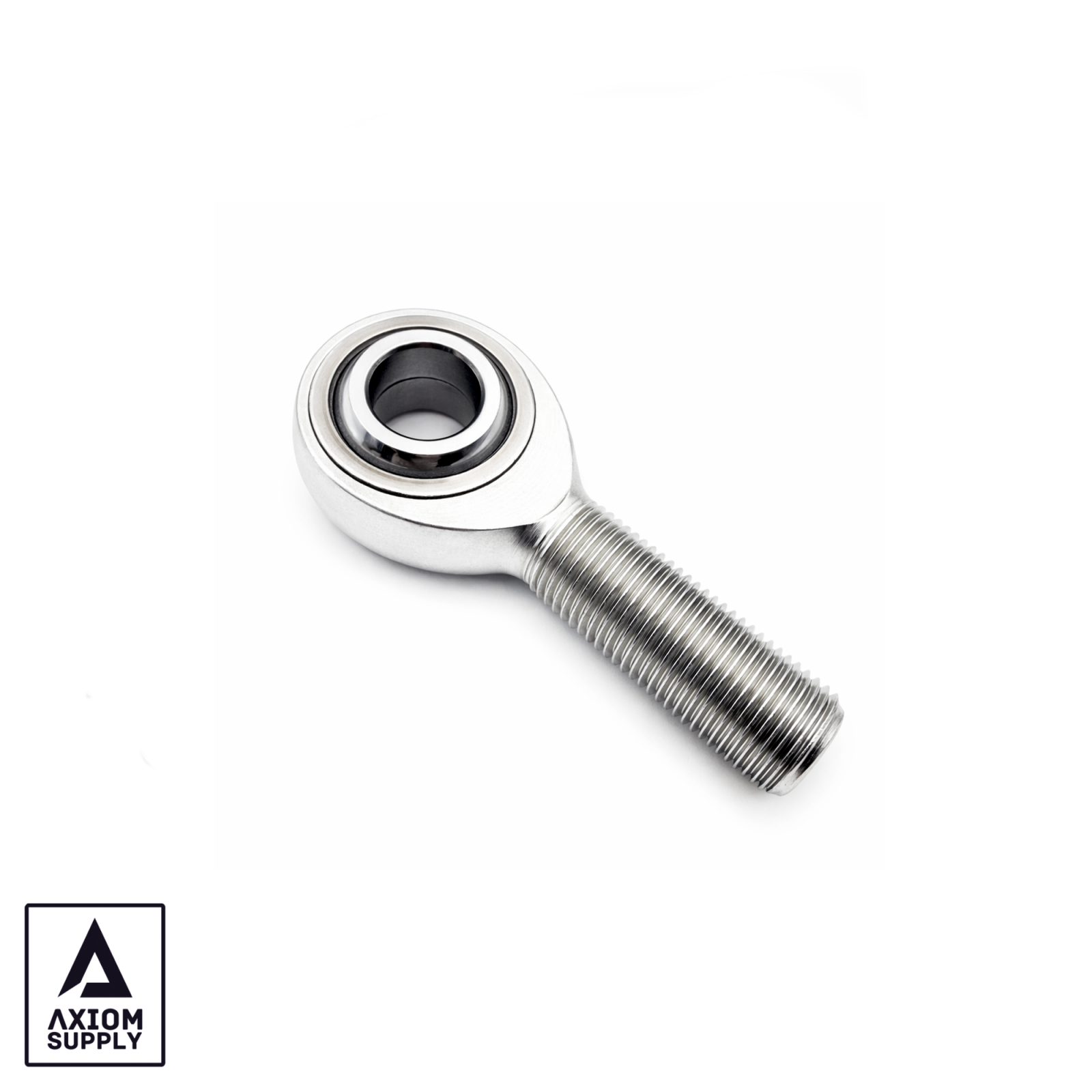

The Axiom Heavy Duty Heim Joint (SKU: JMXL10T-F1) is a high-strength spherical rod end (heim joint) for UTV suspension and steering linkage applications requiring a 5/8" shank diameter, 5/8" bore, and left-hand thread. Zinc-plated finish for corrosion resistance in mud, sand, rock, and trail environments. Left-hand thread heim joints are used on the opposite end of tie rods, suspension links, and steering components from right-hand thread joints — this allows the link length to be adjusted by rotating the tube without backing either joint out. Confirm your application requires left-hand thread before ordering. High-strength housing and ball. Sold individually.

Application (OFAS Standard)

Universal fit — compatible with any UTV suspension or steering linkage application requiring a 5/8" x 5/8" left-hand thread heim joint. Confirm all three dimensions before ordering.

Does NOT fit: Applications requiring right-hand thread — see JMXR10T-F1 for 5/8" x 5/8" right-hand thread zinc plated. Does not fit applications requiring 3/4" shank or bore — see selection guide below. Does not fit metric thread applications without confirming thread compatibility.

Axiom HD Heim Joint Selection Guide

• 5/8" x 5/8" — Right-Hand Thread (Standard): JMXR10T-F1
• 5/8" x 5/8" — Right-Hand Thread (Zinc Plated): JMXR10T-F1
• 5/8" x 5/8" — Left-Hand Thread (Zinc Plated): JMXL10T-F1 (this listing)
• 3/4" x 3/4" — Right-Hand Thread (Zinc): JMXR12T-F1
• 3/4" x 3/4" — Left-Hand Thread (Zinc): JMXL12T-F1
• 3/4" Shank x 5/8" Bore — Left-Hand Thread (Zinc): JMXL10-12T-F
• 3/4" Shank x 5/8" Bore — Right-Hand Thread (Zinc): JMXR10-12T-F

Technical Specifications

• SKU: JMXL10T-F1
• Type: Spherical rod end (heim joint)
• Shank Diameter: 5/8"
• Bore Size: 5/8"
• Thread: Left-hand
• Finish: Zinc plated — corrosion-resistant
• Housing: High-strength metal
• Quantity: Single (sold individually)
• Weight: 7 lbs
• Application: UTV suspension arms, steering linkage, long-travel suspension, custom fabrication

Symptoms of a Worn Heim Joint

• Steering wander or vague on-center feel
• Clunking or knocking from suspension or steering linkage over rough terrain
• Visible play or slop in the joint when checked by hand
• Uneven or accelerated tire wear
• Vibration through the steering wheel or chassis at speed

Installation Notes

• Thread direction confirmation required: Confirm the application requires left-hand thread before ordering. Left-hand thread turns opposite to standard — do not force installation if resistance is felt. Cross-threading will damage the rod end or tube.
• Why left-hand thread: Left-hand thread heim joints are paired with right-hand thread joints on opposite ends of a tie rod or suspension link. Rotating the center tube adjusts link length without removing either joint — this is the correct adjustment method for turnbuckle-style links.
• Dimension confirmation: Verify shank diameter (5/8"), bore size (5/8"), and thread pitch match your application before installation.
• Jam nut required: Secure with a left-hand thread jam nut after adjustment. Do not operate without a properly torqued jam nut — the joint will back out under vibration and load.
• Torque specs: Torque heim joint shank and jam nut to manufacturer specification for your UTV suspension or steering system.
• Inspection interval: Inspect for play, binding, or corrosion at regular service intervals. Replace immediately if play is detected.

Installation Warning

Do not install in a right-hand thread application — cross-threading will damage the rod end or tube. Do not force installation if resistance is felt — stop and confirm thread direction. Do not operate without a properly torqued left-hand thread jam nut. Replace immediately if play is detected. Once installed, the unit is non-returnable.

Engineering Question: What UTV make and model, which suspension or steering location, and have you confirmed thread direction is left-hand and shank/bore is 5/8" x 5/8"? Need right-hand thread instead? See JMXR10T-F1.
